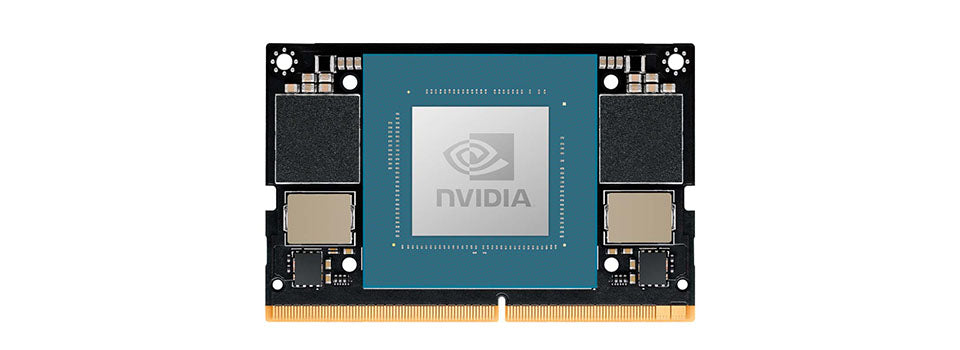

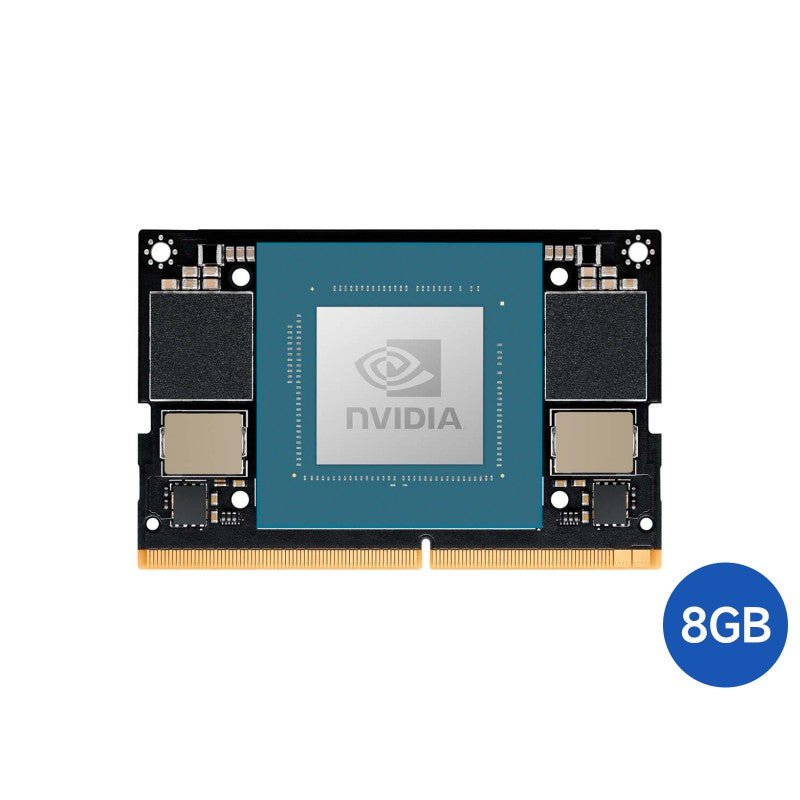

NVIDIA Jetson Orin Nano AI Development Module - 4GB / 8GB System-on-Module (SoM)
NVIDIA Jetson Orin Nano AI Development Module - 4GB / 8GB System-on-Module (SoM)
Couldn't load pickup availability
- In accordance with applicable export control laws and regulations, NVIDIA prohibits the sale of this product and its associated kits and modules in any form to Cuba, Iran, North Korea, Syria, the Crimea region, the Donetsk and Luhansk regions of Ukraine, Russia, Belarus, and any entities on the Entity List. (Countries or regions are subject to change based on updates or revisions to export control regulations.)
- Not for use in military, aerospace, nuclear, or supercomputing-related products or applications.
- We do not provide any technical support or services to the aforementioned countries, regions, entities, or restricted end-use applications.
N-VIDIA Jetson Orin Nano AI Development Module, System-on-Module, NANO Size, Options for Memory
Jetson Orin Nano
Advanced AI computer for smaller, lower-power autonomous machines
Product Features
The 8GB version of the Jetson Orin Nano series delivers up to 40 TOPS of AI performance in a compact and small form factor, with power options between 7W and 15W, up to 80X the performance of N-VIDIA Jetson Nano, setting a new standard for entry-level edge AI. Upgrading to the SUPER version delivers up to 67 TOPS with power options between 7W, 15W and 25W.
Newly upgraded performance and increased computing power
The official Jetson Orin Nano Developer Kit can be upgraded to SUPER Developer Kit via a software upgrade, improving performance by 70%. We provide upgrade tutorial in the wiki to help users upgrade quickly
| Module | 4GB | 4GB*** SUPER |
8GB | 8GB*** SUPER |
|||||
|---|---|---|---|---|---|---|---|---|---|
| Version | 4GB Module | Waveshare Kit | 4GB Module | Waveshare Kit | 8GB Module | Waveshare Kit | 8GB Module | Waveshare Kit | Official Kit |
| AI performance | 20TOPS | 34 TOPS (sparse) 17 TOPS (dense) |
40TOPS | 67 TOPS (sparse) 33 TOPS (dense) |
|||||
| GPU | 512-core N-VIDIA Ampere architecture GPU with 16 Tensor Cores | 1024-core N-VIDIA Ampere architecture GPU with 32 Tensor Cores | |||||||
| GPU Frequency | 625MHz (Max) | 1020MHz (Max) | 625MHz (Max) | 1020MHz (Max) | |||||
| CPU | 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU, 1.5MB L2 + 4MB L3 | ||||||||
| CPU Frequency | 1.5GHz (Max) | 1.7GHz (Max) | 1.5GHz (Max) | 1.7GHz (Max) | |||||
| Memory | 4GB 64-bit LPDDR5, 32GB/s | 4GB 64-bit LPDDR5, 51GB/s | 8GB 128-bit LPDDR5, 68GB/s | 8GB 128-bit LPDDR5, 102GB/s | |||||
| Storage | Supports external NVMe | 256GB NVMe Solid State Drive | Supports external NVMe | 256GB NVMe Solid State Drive | Supports external NVMe | 256GB NVMe Solid State Drive | Supports external NVMe | 256GB NVMe Solid State Drive | TF card slot & external NVMe via M.2 Key M |
| Power | 7W ~ 10W | 7 W | 10 W | 15W | 7W ~ 15W | 7 W | 10 W | 15W | |||||
| PCIe* | 1 x4 + 3 x1 (PCIe 3.0, Root Port & Endpoint) | M.2 Key M slot with x4 PCIe Gen3/ M.2 Key M slot with x2 PCIe Gen3/ M.2 Key E slot |
1 x4 + 3 x1 (PCIe 3.0, Root Port & Endpoint) | M.2 Key M slot with x4 PCIe Gen3/ M.2 Key M slot with x2 PCIe Gen3/ M.2 Key E slot |
1 x4 + 3 x1 (PCIe Gen3, Root Port & Endpoint) | M.2 Key M slot with x4 PCIe Gen3/ M.2 Key M slot with x2 PCIe Gen3/ M.2 Key E slot |
1 x4 + 3 x1 (PCIe Gen3, Root Port & Endpoint) | M.2 Key M slot with x4 PCIe Gen3/ M.2 Key M slot with x2 PCIe Gen3/ M.2 Key E slot |
|
| USB* | 3x USB 3.2 2.0 (10 Gbps) 3x USB 2.0 |
USB Type-A: 4x USB 3.2 Gen2/ USB Type-C (UFP) | 3x USB 3.2 2.0 (10 Gbps) 3x USB 2.0 |
USB Type-A: 4x USB 3.2 Gen2/ USB Type-C (UFP) | 3x USB 3.2 2.0 (10 Gbps) 3x USB 2.0 |
USB Type-A: 4x USB 3.2 Gen2/ USB Type-C (UFP) |
3x USB 3.2 2.0 (10 Gbps) 3x USB 2.0 |
USB Type-A: 4x USB 3.2 Gen2/ USB Type-C (UFP) |
|
| CSI Camera | Up to 4 cameras (8 via virtual channels**)/ 8 lanes MIPI CSI-2/ D-PHY 1.2 (up to 20 Gbps) |
2x MIPI CSI-2 Camera Connector | Up to 4 cameras (8 via virtual channels**)/ 8 lanes MIPI CSI-2/ D-PHY 1.2 (up to 20 Gbps) |
2x MIPI CSI-2 Camera Connector | Up to 4 cameras (8 via virtual channels**)/ 8 lanes MIPI CSI-2/ D-PHY 1.2 (up to 20 Gbps) |
2x MIPI CSI-2 Camera Connector | Up to 4 cameras (8 via virtual channels**)/ 8 lanes MIPI CSI-2/ D-PHY 1.2 (up to 20 Gbps) |
2x MIPI CSI-2 Camera Connector | |
| Video encode | 1080p30 supported by 1-2 CPU cores | ||||||||
| Video decode | 1x 4K60 (H.265) 2x 4K30 (H.265) 5x 1080p60 (H.265) 11x 1080p30 (H.265) |
||||||||
| Display | 1x 8K30 multi-mode DP 1.4a (+MST)/ eDP 1.4a/HDMI 2.1 |
1x DisplayPort 1.2 (+MST) connector | 1x 8K30 multi-mode DP 1.4a (+MST)/ eDP 1.4a/HDMI 2.1 |
1x DisplayPort 1.2 (+MST) connector | 1x 8K30 multi-mode DP 1.4a (+MST)/ eDP 1.4a/HDMI 2.1 |
1x DisplayPort 1.2 (+MST) connector | 1x 8K30 multi-mode DP 1.4a (+MST)/ eDP 1.4a/HDMI 2.1 |
1x DisplayPort 1.2 (+MST) connector | |
| Other | 3x UART, 2x SPI, 2x I2S, 4x I2C, 1x CAN, DMIC & DSPK, PWM, GPIO | 40-Pin Expansion Header(UART, SPI, I2S, I2C, GPIO), 12-pin button header, 4-pin fan header, DC power jack | 3x UART, 2x SPI, 2x I2S, 4x I2C, 1x CAN, DMIC & DSPK, PWM, GPIO | 40-Pin Expansion Header(UART, SPI, I2S, I2C, GPIO), 12-pin button header, 4-pin fan header, DC power jack | 3x UART, 2x SPI, 2x I2S, 4x I2C, 1x CAN, DMIC & DSPK, PWM, GPIO | 40-Pin Expansion Header(UART, SPI, I2S, I2C, GPIO), 12-pin button header, 4-pin fan header, DC power jack | 3x UART, 2x SPI, 2x I2S, 4x I2C, 1x CAN, DMIC & DSPK, PWM, GPIO | 40-Pin Expansion Header(UART, SPI, I2S, I2C, GPIO), 12-pin button header, 4-pin fan header, DC power jack | 40-Pin Expansion Header(UART, SPI, I2S, I2C, GPIO), 12-pin button header, 4-pin fan header, TF card slot, DC power jack |
| Networking | 1x GbE | 1x GbE Connector | 1x GbE | 1x GbE Connector | 1x GbE | 1x GbE Connector | 1x GbE | 1x GbE Connector | |
| Dimensions | 69.6 mm x 45 mm 260-pin SO-DIMM connector |
103 × 90.5 × 34mm | 69.6 mm x 45 mm 260-pin SO-DIMM connector |
103 × 90.5 × 34mm | 69.6 mm x 45 mm 260-pin SO-DIMM connector |
103 × 90.5 × 34mm | 69.6 mm x 45 mm 260-pin SO-DIMM connector |
103 × 90.5 × 34mm | 100 mm x 79 mmx 21 mm |
| * USB 3.2, MGBE, and PCIe share UPHY Lanes. See the Product Design Guide for supported UPHY configurations. ** Virtual Channels for Jetson Orin Nano are subject to change Refer to the Software Features section of the latest NVIDIA Jetson Linux Developer Guide for a list of supported features. *** Official kit: supports software upgrade to SUPER image, provides SUPER upgrade tutorial in the wiki (jetpack 6.1.1 can support upgrading SUPER version); *** Orin Nano Module and Waveshare kit: supports upgrading to SUPER image, provides SUPER upgrade tutorial in the wiki (jetpack 6.2 can support upgrading SUPER version); |
Professional application software and models
N-VIDIA Software
All N-VIDIA Jetson modules and developer kits are supported by the same N-VIDIA Jetson software stack, so you can develop once and deploy everywhere. Jetson software is designed to provide end-to-end acceleration for AI applications and accelerate the time to market. This brings the powerful N-VIDIA technologies that power data centers and cloud deployments to the edge.
Pretrained Models
Many AI applications have common needs: classification, object detection, language translation, text-to-speech, recommender engines, sentiment analysis, and more. Pretrained models from the NGC™ catalog are performance-optimized and ready to be fine-tuned with the N-VIDIA TAO Toolkit and customer datasets, reducing time and cost for production AI software development.
N-VIDIA Platforms for Robotics, AI Speech, and Smart Cities
N-VIDIA software platforms including Isaac for robotics, Riva for AI speech, and Metropolis for video analytics, are available to speed vertical-specific applications
N-VIDIA Isaac
Robots improve efficiency and quality of life in industries such as manufacturing, logistics, healthcare, and service. N-VIDIA Isaac™ accelerates the process with enhanced robotics development, simulation, and deployment.
N-VIDIA Riva
N-VIDIA Riva is a fully accelerated SDK for building multimodal conversational AI applications using an end-to-end deep-learning pipeline, suitable for optimized skills in speech, vision, and natural language processing (NLP) tasks.
N-VIDIA Metropolis
N-VIDIA Metropolis includes an application framework, a set of developer tools, and the partner ecosystem. It brings visual data and AI together to improve operational efficiency and safety across a broad range of industries.
Resources & Services
Official NVIDIA resources: Jetson Orin developer page · NVIDIA JetPack SDK · Jetson community projects
Selection Guide
| Model | Module | Developer Kit |
|---|---|---|
|
Jetson AGX Orin 2048-core N-VIDIA Ampere architecture GPU with 64 Tensor Cores |
110×110×71.65mm Official Kit: 64GB |
|
|
Jetson Orin Nano 512/1024-core N-VIDIA Ampere architecture GPU with 16/32 Tensor Cores |
 Memory: 4GB / 8GB 69.6×45mm 260-pin SO-DIMM connector |
100×79×21mm Official Kit |
|
100×79×21mm Official Super Kit |
||
103×90.5×34mm Waveshare Kit: 4GB / 8GB |
||
103×90.5×34mm Waveshare Dual ETH Kit: 4GB / 8GB |
||
|
Jetson Orin NX 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
 Memory: 8GB / 16GB 69.6×45mm 260-pin SO-DIMM connector |
103×90.5×34mm Waveshare Kit: 8GB / 16GB |
|
103×90.5×34mm Waveshare Dual ETH Kit: 8GB / 16GB |
||
|
Looking for a different Jetson module or a complete developer kit? Browse our Jetson Orin modules and full Jetson lineup, or email lixu@ai-paipai.com for a quote. |
Not sure which platform fits your project?
Frequently asked questions
What is NVIDIA Jetson Orin Nano AI Development Module - 4GB / 8GB System-on-Module (SoM) used for?
NVIDIA Jetson Orin Nano AI Development Module - 4GB / 8GB System-on-Module (SoM) is a Jetson SoM Module from NVIDIA. It is typically used in embedded computing, edge AI inference, industrial control and rapid prototyping, and can be integrated into custom carrier boards or finished devices.
Does NVIDIA Jetson Orin Nano AI Development Module - 4GB / 8GB System-on-Module (SoM) include technical support, datasheets or pre-flashed images?
Yes. Ai-Paipai supplies this item through a traceable supply chain and provides local engineering support, datasheets, SDKs and pre-flashed system images where applicable, plus OEM / ODM customization for volume projects.
Can I order NVIDIA Jetson Orin Nano AI Development Module - 4GB / 8GB System-on-Module (SoM) with OEM / ODM options or CE / FCC / RoHS certification?
OEM / ODM customization (specs, enclosure, BSP) is available, and CE / FCC / RoHS certified options can be provided on request for EU and US imports. Contact us for a quote.
How is NVIDIA Jetson Orin Nano AI Development Module - 4GB / 8GB System-on-Module (SoM) shipped, and what is the lead time?
Orders ship worldwide from Shenzhen. Stock items typically dispatch within a few business days; configurable or made-to-order variants take longer. Exact lead time is shown at checkout or on request.
Specifications
| Form factor | 260-pin SO-DIMM connector, 69.6 x 45 mm module |
| AI performance (4GB) | 20 TOPS - up to 34 TOPS sparse / 17 TOPS dense in Super mode |
| AI performance (8GB) | 40 TOPS - up to 67 TOPS sparse / 33 TOPS dense in Super mode |
| GPU (4GB) | 512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores |
| GPU (8GB) | 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
| GPU frequency | 625 MHz max - 1020 MHz max in Super mode |
| CPU | 6-core Arm Cortex-A78AE v8.2 64-bit, 1.5MB L2 + 4MB L3 |
| CPU frequency | 1.5 GHz max - 1.7 GHz max in Super mode |
| Memory (4GB) | 4GB 64-bit LPDDR5, 32 GB/s - 51 GB/s in Super mode |
| Memory (8GB) | 8GB 128-bit LPDDR5, 68 GB/s - 102 GB/s in Super mode |
| Storage | Supports external NVMe (no onboard storage) |
| Power | 7W-10W (4GB) / 7W-15W (8GB) - 7W / 15W / 25W in Super mode |
| PCIe | 1 x4 + 3 x1 (PCIe 3.0, Root Port and Endpoint) |
| USB | 3x USB 3.2 (10 Gbps), 3x USB 2.0 |
| CSI camera | Up to 4 cameras (8 via virtual channels), 8 lanes MIPI CSI-2, D-PHY 1.2 (up to 20 Gbps) |
| Video encode | 1080p30 supported by 1-2 CPU cores |
| Video decode | 1x 4K60 / 2x 4K30 / 5x 1080p60 / 11x 1080p30 (H.265) |
| Display | 1x 8K30 multi-mode DP 1.4a (+MST) / eDP 1.4a / HDMI 2.1 |
| Networking | 1x Gigabit Ethernet |
| Other I/O | 3x UART, 2x SPI, 2x I2S, 4x I2C, 1x CAN, DMIC & DSPK, PWM, GPIO |
| Software | NVIDIA JetPack / Jetson Linux, CUDA, TensorRT, Isaac, Riva, Metropolis |
| Export control | Not for use in military, aerospace, nuclear or supercomputing applications |
