Neardi LPR3576 RK3576 Embedded Computer - 3x USB 3.0, M.2 NVMe, Dual GbE, WiFi 6 Fanless Edge PC
Neardi LPR3576 RK3576 Embedded Computer - 3x USB 3.0, M.2 NVMe, Dual GbE, WiFi 6 Fanless Edge PC
Couldn't load pickup availability

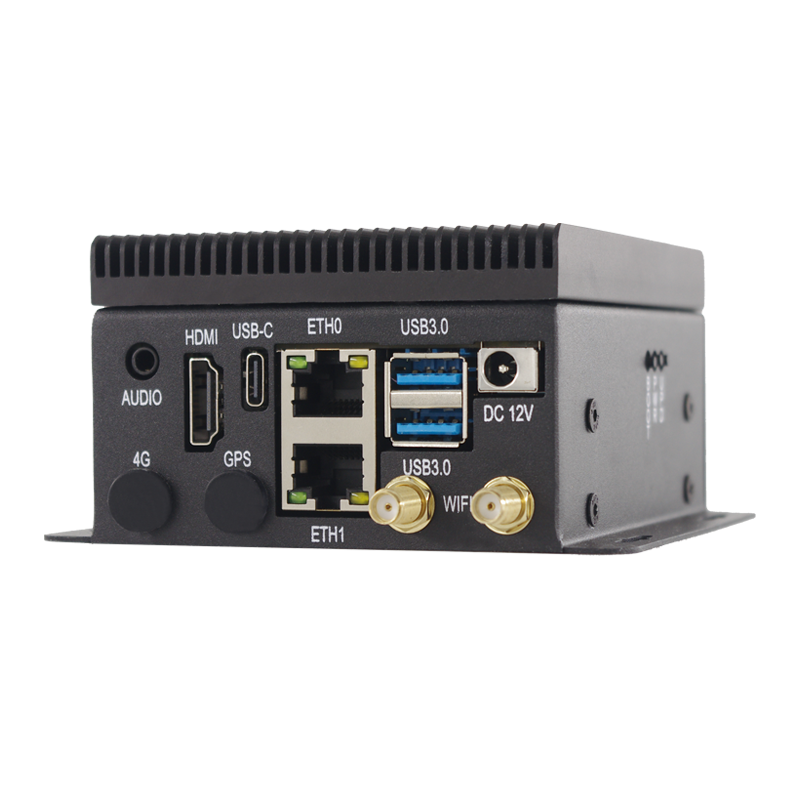

The Neardi LPR3576 is a compact fanless embedded computer built on the Rockchip RK3576 platform, combining dual-band Wi-Fi 6, dual Gigabit Ethernet and an M.2 M-Key socket for 2242 NVMe storage in a 107 x 105 x 53.5 mm chassis.
Highlights
- Rockchip RK3576 platform in a compact 107 x 105 x 53.5 mm chassis
- 3x USB 3.0 Type-A plus 2x USB Type-C (USB 3.0 + USB 2.0 debug) for cameras and high-throughput peripherals
- 1x onboard mini-PCIe slot for 4G/5G modules and 1x M.2 M-Key (2242) socket for NVMe SSD expansion
- Reserved eMMC connector and UFS socket for additional onboard storage
- Dual-band Wi-Fi 6 and Bluetooth 5.4 with 4G / GPS / Wi-Fi antenna connectors
- 2x Gigabit Ethernet (10/100/1000 Mbps), CAN bus, RS485 and 5 V / 3.3 V outputs
- 1x HDMI output, micro-SIM socket (1.8/3.3 V), BOOT / PWR / UPD buttons, 12 V - 3 A DC input
- Ubuntu and Android 14 firmware images available
Specifications
| Ref | Part Name | Part Specifications | Description |
|---|---|---|---|
| Part reference | Part Name | Part Specifications | Part Description |
| J1 | Audio | 3.5mm 3-L Jack | L/R audio out |
| J2 | HDMI | Type-A HDMI | HDMI Tx |
| J3 | USB-C | Type-C Socket | Type-C with USB 3.0 |
| J4 | ETH0/1 | Gigabit Ethernet | 10/100/1000-Mbps data transfer rates |
| J5 | USB 3.0 | Type-A USB 3.0 | USB 3.0 |
| J6 | DC 12V | DC 5.5 x 2.1mm | Main power supply, DC12V – 3A |
| J7 | 4G | ANT_JACK | 4G ANT |
| J8 | GPS | ANT_JACK | GPS ANT |
| J9 | WIFI | ANT_JACK | WIFI ANT |
| J10 | USB 3.0 | Type-A USB 3.0 | USB 3.0 |
| J11 | CAN/RS485 | 3.5mm 10pin wafer | CAN bus and RS485 Bus signals |
| J12 | 4G | Green LED | 3G/4G Module Status Indicator |
| J13 | STA | Green LED | Work status Status Indicator |
| J14 | PWR | Red LED | Power status indicate |
| J15 | SYS | Green LED | SYS status indicate |
| J16 | DBG | Type-C Socket | USB 2.0 Debug |
| J17 | Micro SIM | Push-Push Micro SIM Socket | For Micro SIM Card (1.8/3.3V) |
| J18 | BOOT | push-button | Key for system boot |
| J19 | PWR | push-button | Key for system Power |
| J20 | UPD | push-button | Key for system update |
Documentation & Downloads
- Wiki, SDK and documentation: https://wiki.neardi.net/docs/category/lpr3576
- Datasheet (PDF): LPR3576 product brochure
Need a bulk quote, OEM branding or a sample unit? Email lixu@ai-paipai.com - we ship worldwide from Shenzhen.
Not sure which platform fits your project?
Frequently asked questions
What is Neardi LPR3576 RK3576 Embedded Computer - 3x USB 3.0, M.2 NVMe, Dual GbE, WiFi 6 Fanless Edge PC used for?
Neardi LPR3576 RK3576 Embedded Computer - 3x USB 3.0, M.2 NVMe, Dual GbE, WiFi 6 Fanless Edge PC is a Embedded Computer from Neardi. It is typically used in embedded computing, edge AI inference, industrial control and rapid prototyping, and can be integrated into custom carrier boards or finished devices.
Does Neardi LPR3576 RK3576 Embedded Computer - 3x USB 3.0, M.2 NVMe, Dual GbE, WiFi 6 Fanless Edge PC include technical support, datasheets or pre-flashed images?
Yes. Ai-Paipai supplies this item through a traceable supply chain and provides local engineering support, datasheets, SDKs and pre-flashed system images where applicable, plus OEM / ODM customization for volume projects.
Can I order Neardi LPR3576 RK3576 Embedded Computer - 3x USB 3.0, M.2 NVMe, Dual GbE, WiFi 6 Fanless Edge PC with OEM / ODM options or CE / FCC / RoHS certification?
OEM / ODM customization (specs, enclosure, BSP) is available, and CE / FCC / RoHS certified options can be provided on request for EU and US imports. Contact us for a quote.
How is Neardi LPR3576 RK3576 Embedded Computer - 3x USB 3.0, M.2 NVMe, Dual GbE, WiFi 6 Fanless Edge PC shipped, and what is the lead time?
Orders ship worldwide from Shenzhen. Stock items typically dispatch within a few business days; configurable or made-to-order variants take longer. Exact lead time is shown at checkout or on request.
Specifications
| SOC | Rockchip RK3576 |
| Dimensions | 107 x 105 x 53.5 mm |
| Power input | DC 12 V - 3 A |
| USB | 3 x Type-A USB 3.0, 2 x Type-C USB (USB 3.0 + USB 2.0 debug) |
| Ethernet | 2 x Gigabit Ethernet, 10/100/1000 Mbps |
| Wireless | Dual-band Wi-Fi 6, Bluetooth 5.4, 4G / GPS / Wi-Fi antenna connectors |
| Expansion | 1 x mini-PCIe (4G/5G module), 1 x M.2 M-Key 2242 NVMe SSD, eMMC connector and UFS socket reserved |
| Display | 1 x HDMI output |
| Serial / fieldbus | CAN bus, RS485, 5 V and 3.3 V outputs |
| SIM | Micro SIM socket (1.8/3.3 V), push-push |
| Buttons | BOOT, PWR and UPD push buttons |
| OS support | Android 14 / Ubuntu |
| Available configurations | 2GB+16GB, 4GB+32GB, 8GB+64GB |
