Neardi LPM3588 RK3588 Industrial Computer - 5x Gigabit Ethernet, 2x HDMI + DP, HDMI In, Fanless
Neardi LPM3588 RK3588 Industrial Computer - 5x Gigabit Ethernet, 2x HDMI + DP, HDMI In, Fanless
Couldn't load pickup availability

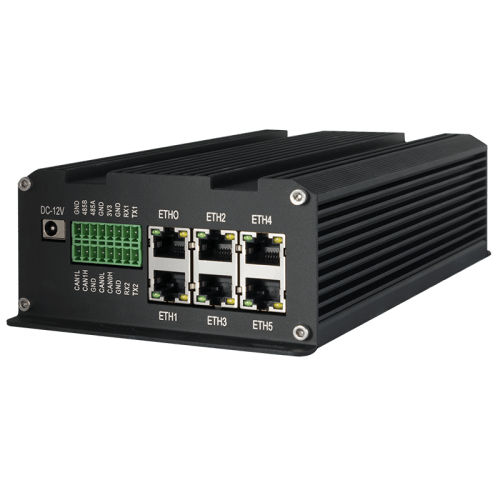

The Neardi LPM3588 is a full-aluminium fanless industrial computer on the Rockchip RK3588 with a 6 TOPS NPU and five Gigabit Ethernet ports - built for network-heavy edge deployments.
Highlights
- 5x Gigabit Ethernet plus 1x 100 Mbps Ethernet - six wired networks in a single fanless box
- 8-core Rockchip RK3588 with a 6 TOPS NPU; H.265/H.264/AV1/VP9/AVS2 decode up to 8K@60fps
- 2x HDMI 2.1 up to 8K@60fps or 4K@120fps plus 1x DisplayPort 1.2 output
- 1x HDMI 2.0 input at 4K@60fps with HDCP 2.3 support (varies by OS version)
- Full-aluminium fanless chassis (205 x 120.5 x 57.7 mm) rated for -20 to 75 °C operation
- mini-PCIe slot for 4G modules or NPU cards; dual-band Wi-Fi 6 and Bluetooth 5.0
- 2x USB 3.0 Type-A, CAN bus and RS485, audio out with mic in, 12 V - 3 A DC input
- Android / Ubuntu / Debian / Buildroot support

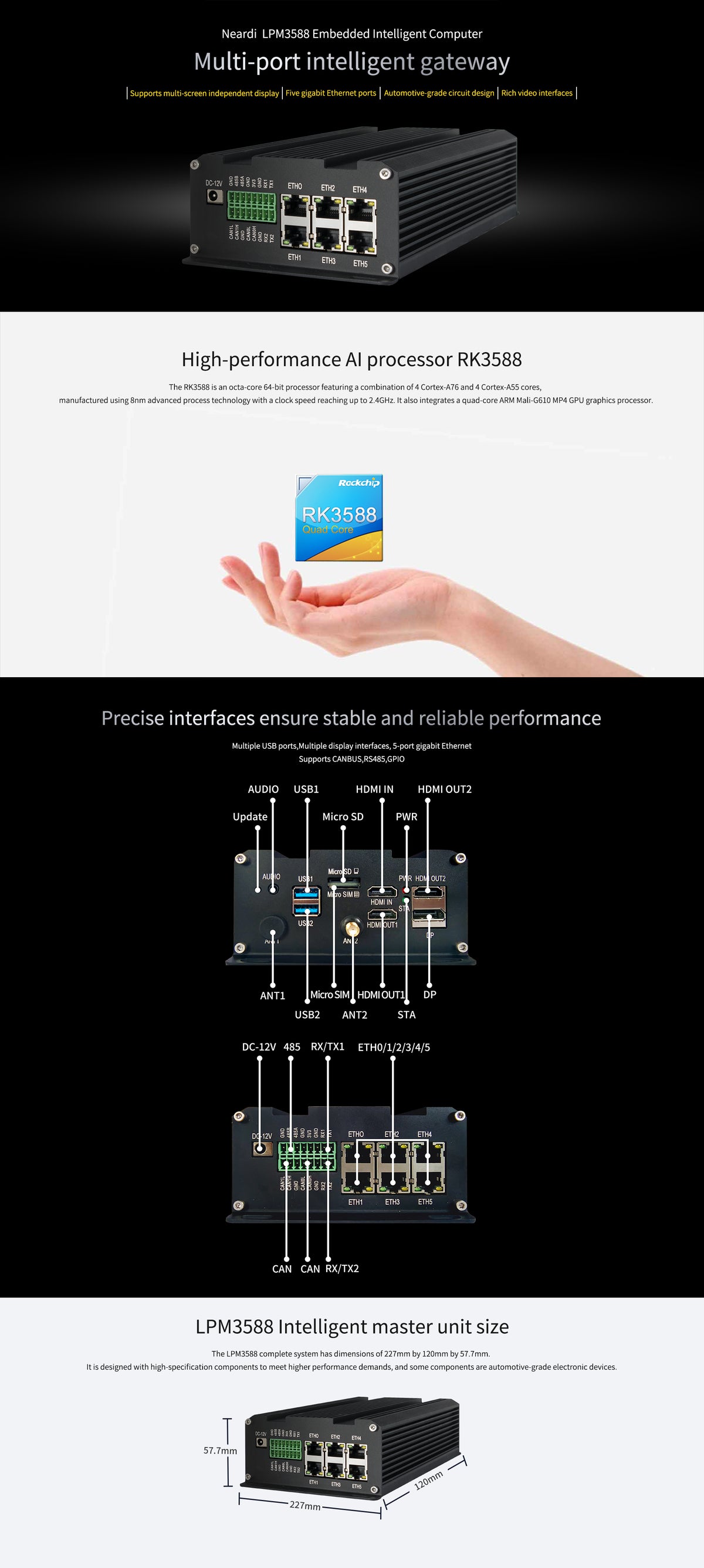

Specifications
| SOC | RK3588, an 8nm process; 8-core 64-bit processor architecture (4xA76 + 4xA55). |
| GPU | ARM Mali-G610 MC4 GPU; supports OpenGL ES 1.1/2.0/3.1/3.2; Vulkan 1.1/1.2; OpenCL 1.1/1.2/2.0; high-performance 2D graphics acceleration module. |
| NPU | 6 TOPS computational power; 3-core architecture; supports int4/int8/int16/FP16/BF16/TF32. |
| VPU | Supports video decoding for H.265/H.264/AV1/VP9/AVS2, with a maximum support of 8K at 60 frames per second (FPS); Supports video encoding for H.264/H.265, with a maximum support of 8K at 30 FPS. |
| DDR | LPDDR4/LPDDR4X memory, with options for 4GB/8GB/16GB. |
| eMMC | eMMC 5.1 storage, with options for 32GB/64GB/128GB. |
| OS | Android / Ubuntu / Buildroot / Debian |
| Power | DC 12 V - 3 A (DC Jack 5.5 x 2.1mm / PH2.0 wafer connector) |
| USB | 2 x Type-A USB 3.0 HOST |
| Display out | 2 x Type-A HDMI 2.1 up to 8K@60fps or 4K@120fps (varies by OS version), 1 x DP1.2 2Lane Output |
| Display in | 1 x HDMI-IN (4K@60fps), supports HDCP 2.3 (varies by OS version) |
| Audio | 3.5mm earphone Jack with Mic in L/R audio out |
| Networking | 5 x 10/100/1000Mbps Ethernet; 1 x 10/100Mbps Ethernet |
| Dimensions | 205 x 120.5 x 57.7 mm |
| Operating temperature | -20 to 75 °C |
| Weight | Approximately 1083g (excluding peripherals) |
| Available configurations | 4GB+32GB, 8GB+64GB, 16GB+128GB |
Documentation & Downloads
- Wiki, SDK and documentation: https://wiki.neardi.net/docs/category/lpm3588
- Datasheet (PDF): LPM3588 product brochure
Need a bulk quote, OEM branding or a sample unit? Email lixu@ai-paipai.com - we ship worldwide from Shenzhen.
Not sure which platform fits your project?
Frequently asked questions
What is Neardi LPM3588 RK3588 Industrial Computer - 5x Gigabit Ethernet, 2x HDMI + DP, HDMI In, Fanless used for?
Neardi LPM3588 RK3588 Industrial Computer - 5x Gigabit Ethernet, 2x HDMI + DP, HDMI In, Fanless is a Industrial Computer from Neardi. It is typically used in embedded computing, edge AI inference, industrial control and rapid prototyping, and can be integrated into custom carrier boards or finished devices.
Does Neardi LPM3588 RK3588 Industrial Computer - 5x Gigabit Ethernet, 2x HDMI + DP, HDMI In, Fanless include technical support, datasheets or pre-flashed images?
Yes. Ai-Paipai supplies this item through a traceable supply chain and provides local engineering support, datasheets, SDKs and pre-flashed system images where applicable, plus OEM / ODM customization for volume projects.
Can I order Neardi LPM3588 RK3588 Industrial Computer - 5x Gigabit Ethernet, 2x HDMI + DP, HDMI In, Fanless with OEM / ODM options or CE / FCC / RoHS certification?
OEM / ODM customization (specs, enclosure, BSP) is available, and CE / FCC / RoHS certified options can be provided on request for EU and US imports. Contact us for a quote.
How is Neardi LPM3588 RK3588 Industrial Computer - 5x Gigabit Ethernet, 2x HDMI + DP, HDMI In, Fanless shipped, and what is the lead time?
Orders ship worldwide from Shenzhen. Stock items typically dispatch within a few business days; configurable or made-to-order variants take longer. Exact lead time is shown at checkout or on request.
Specifications
| SOC | RK3588, an 8nm process; 8-core 64-bit processor architecture (4xA76 + 4xA55). |
| GPU | ARM Mali-G610 MC4 GPU; supports OpenGL ES 1.1/2.0/3.1/3.2; Vulkan 1.1/1.2; OpenCL 1.1/1.2/2.0; high-performance 2D graphics acceleration module. |
| NPU | 6 TOPS computational power; 3-core architecture; supports int4/int8/int16/FP16/BF16/TF32. |
| VPU | Supports video decoding for H.265/H.264/AV1/VP9/AVS2, with a maximum support of 8K at 60 frames per second (FPS); Supports video encoding for H.264/H.265, with a maximum support of 8K at 30 FPS. |
| DDR | LPDDR4/LPDDR4X memory, with options for 4GB/8GB/16GB. |
| eMMC | eMMC 5.1 storage, with options for 32GB/64GB/128GB. |
| OS | Android / Ubuntu / Buildroot / Debian |
| Power | DC 12 V - 3 A (DC Jack 5.5 x 2.1mm / PH2.0 wafer connector) |
| USB | 2 x Type-A USB 3.0 HOST |
| Display out | 2 x Type-A HDMI 2.1 up to 8K@60fps or 4K@120fps (varies by OS version), 1 x DP1.2 2Lane Output |
| Display in | 1 x HDMI-IN (4K@60fps), supports HDCP 2.3 (varies by OS version) |
| Audio | 3.5mm earphone Jack with Mic in L/R audio out |
| Networking | 5 x 10/100/1000Mbps Ethernet; 1 x 10/100Mbps Ethernet |
| Dimensions | 205 x 120.5 x 57.7 mm |
| Operating temperature | -20 to 75 °C |
| Weight | Approximately 1083g (excluding peripherals) |
| Available configurations | 4GB+32GB, 8GB+64GB, 16GB+128GB |
