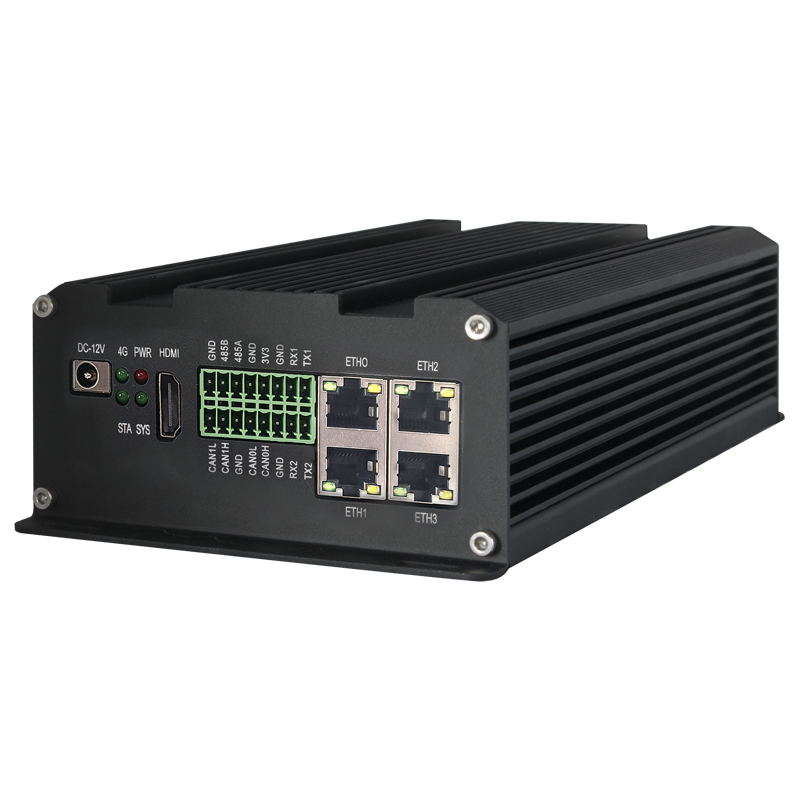

Neardi LPM3568 RK3568 Industrial Computer - 4x Ethernet, Full-Aluminium Fanless, CAN/RS485
Neardi LPM3568 RK3568 Industrial Computer - 4x Ethernet, Full-Aluminium Fanless, CAN/RS485
Couldn't load pickup availability
The Neardi LPM3568 is a full-aluminium fanless industrial computer on the Rockchip RK3568, with four wired network ports, an 8 MP ISP with HDR and CAN / RS485 fieldbus support for harsh industrial environments.
Highlights
- Rockchip RK3568 quad-core 64-bit Cortex-A55 up to 2.0 GHz with a 1 TOPS NPU
- Full-aluminium fanless chassis (227 x 120 x 57.7 mm) with an innovative internal structure for efficient heat dissipation
- 4 wired network ports: 3x Gigabit Ethernet plus 1x 100 Mbps Ethernet
- 4K VP9 / H.265 video decoding up to 60fps, 1080p100 H.265/H.264 encoding and an 8 MP ISP with HDR
- Deep-learning frameworks supported: TensorFlow, TF-Lite, PyTorch, Caffe, ONNX, MXNet, Keras, Darknet
- 2x CAN bus, 1x RS485 and 2x RX/TX serial for industrial peripherals
- mini-PCIe slot for 4G modules or NPU cards; dual-band Wi-Fi 6 and Bluetooth 5.0
- 1x HDMI 2.0, USB 3.0 + USB 2.0, audio out and mic in, 12 V - 3 A DC input

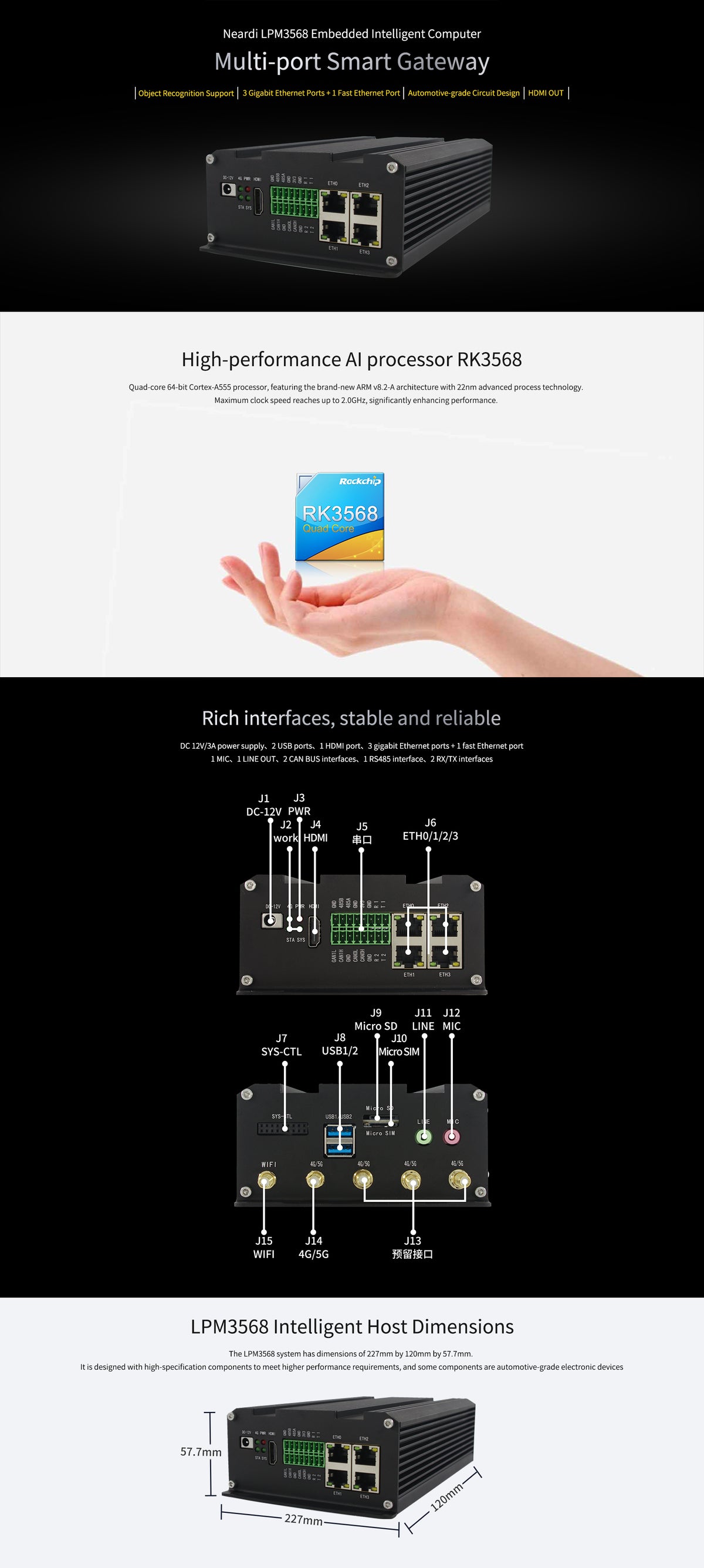

Specifications
| SOC | RK3568/RK3568J is a 22nm process technology system-on-chip (SoC) featuring a quad-core 64-bit Cortex-A55 processor with a maximum clock speed of up to 2.0GHz. |
| GPU | ARM G52 2EE, OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1, high quality 2D Graphics Engine build in |
| NPU | up to 1 TOPS; INT8/INT16/FP16/BFP16 MAC hybrid operation supported; TensorFlow, TF-lite, Pytorch, Caffe, ONNX, MXNet, Keras, Darknet deep-learning frameworks supported |
| VPU | 4K VP9 and 4K H265 up to 60fps video decoding, 1080P up to 100fps H265/H264 video encoding, 8M ISP with HDR |
| DDR | LPDDR4/LPDDR4X RAM is available in optional capacities of 1GB, 2GB, 4GB, or 8GB. |
| eMMC | eMMC 5.1 flash storage is available in optional capacities of 8GB, 16GB, 32GB, 64GB, or 128GB. |
| OS | Android / Ubuntu / Buildroot / Debian |
| Power | DC 12 V - 3 A (DC Jack 5.5 x 2.1mm / PH2.0 wafer connector) |
| USB | 1 x Type-A USB 3.0 HOST, 1 x Type-A USB 2.0 HOST |
| Connectivity | 2 x CAN bus, 1 x RS485, 2 x RX/TX |
| Display | 1 x Type-A HDMI 2.0 |
| Audio | 1 x 3.5mm audio out, 1 x 3.5mm microphone |
| Networking | 3 x 10/100/1000Mbps Ethernet, 1 x 10/100Mbps Ethernet |
| Dimensions | 227 x 120 x 57.7 mm |
| Operating temperature | -20 to 75 °C |
| Weight | Approximately 1083g (excluding peripherals) |
| Available configuration | 4GB+32GB |
Documentation & Downloads
- Wiki, SDK and documentation: https://wiki.neardi.net/docs/category/lpm3568
- Datasheet (PDF): LPM3568 product brochure
Need a bulk quote, OEM branding or a sample unit? Email lixu@ai-paipai.com - we ship worldwide from Shenzhen.
Frequently asked questions
What is Neardi LPM3568 RK3568 Industrial Computer - 4x Ethernet, Full-Aluminium Fanless, CAN/RS485 used for?
Neardi LPM3568 RK3568 Industrial Computer - 4x Ethernet, Full-Aluminium Fanless, CAN/RS485 is a Industrial Computer from Neardi. It is typically used in embedded computing, edge AI inference, industrial control and rapid prototyping, and can be integrated into custom carrier boards or finished devices.
Does Neardi LPM3568 RK3568 Industrial Computer - 4x Ethernet, Full-Aluminium Fanless, CAN/RS485 include technical support, datasheets or pre-flashed images?
Yes. Ai-Paipai supplies this item through a traceable supply chain and provides local engineering support, datasheets, SDKs and pre-flashed system images where applicable, plus OEM / ODM customization for volume projects.
Can I order Neardi LPM3568 RK3568 Industrial Computer - 4x Ethernet, Full-Aluminium Fanless, CAN/RS485 with OEM / ODM options or CE / FCC / RoHS certification?
OEM / ODM customization (specs, enclosure, BSP) is available, and CE / FCC / RoHS certified options can be provided on request for EU and US imports. Contact us for a quote.
How is Neardi LPM3568 RK3568 Industrial Computer - 4x Ethernet, Full-Aluminium Fanless, CAN/RS485 shipped, and what is the lead time?
Orders ship worldwide from Shenzhen. Stock items typically dispatch within a few business days; configurable or made-to-order variants take longer. Exact lead time is shown at checkout or on request.
