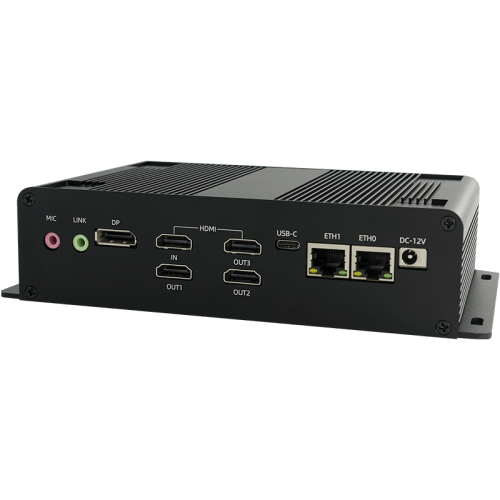

Neardi LPC3588 RK3588 Edge Computer - 3x HDMI Out, 4K HDMI Input, Fanless Industrial PC
Neardi LPC3588 RK3588 Edge Computer - 3x HDMI Out, 4K HDMI Input, Fanless Industrial PC
Couldn't load pickup availability

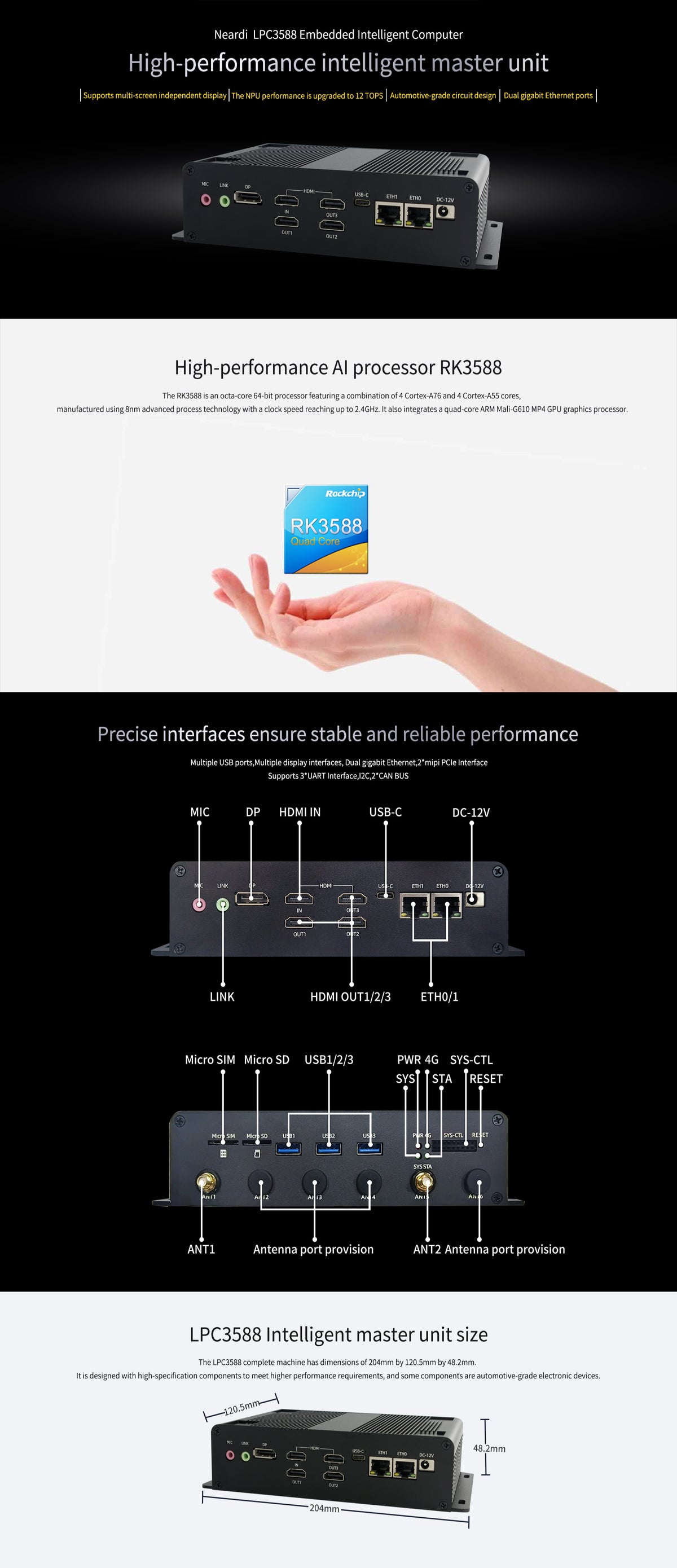

The Neardi LPC3588 is a slim 48.2 mm fanless computer on the Rockchip RK3588 with a 6 TOPS NPU, dual HDMI 2.1 outputs up to 8K@60fps and a 4K@60fps HDMI input with HDCP 2.3 support.
Highlights
- 8-core Rockchip RK3588 with a 6 TOPS NPU for on-device AI inference
- 2x HDMI 2.1 outputs up to 8K@60fps or 4K@120fps, plus 1x HDMI 1.4 and 1x DisplayPort 1.2 output
- 1x HDMI 2.0 input at 4K@60fps with HDCP 2.3 support (varies by OS version)
- 3x USB 3.0 Type-A + 1x USB 3.1 Type-C OTG for multiple USB cameras
- 2x mini-PCIe slots for 4G modules or NPU accelerator cards; dual-band Wi-Fi 6 and Bluetooth 5.0
- Slim 204 x 120.5 x 48.2 mm fanless chassis rated for -20 to 75 °C operation
- Dual Gigabit Ethernet, 12 V - 3 A DC input (DC jack or PH2.0 wafer connector)
- Android / Ubuntu / Debian / Buildroot support
Specifications
| SOC | RK3588, an 8nm process; 8-core 64-bit processor architecture (4xA76 + 4xA55). |
| GPU | ARM Mali-G610 MC4 GPU; supports OpenGL ES 1.1/2.0/3.1/3.2; Vulkan 1.1/1.2; OpenCL 1.1/1.2/2.0; high-performance 2D graphics acceleration module. |
| NPU | 6 TOPS computational power; 3-core architecture; supports int4/int8/int16/FP16/BF16/TF32. |
| VPU | Supports video decoding for H.265/H.264/AV1/VP9/AVS2, with a maximum support of 8K at 60 frames per second (FPS); Supports video encoding for H.264/H.265, with a maximum support of 8K at 30 FPS. |
| DDR | LPDDR4/LPDDR4X memory, with options for 4GB/8GB/16GB. |
| eMMC | eMMC 5.1 storage, with options for 32GB/64GB/128GB. |
| OS | Android / Ubuntu / Buildroot / Debian |
| Power | DC 12 V - 3 A (DC Jack 5.5 x 2.1mm / PH2.0 wafer connector) |
| USB | 3 x Type-A USB 3.0 HOST + 1 x Type-C USB 3.1 OTG |
| Display out | 2 x Type-A HDMI 2.1 up to 8K@60fps or 4K@120fps (varies by OS version), 1 x Type-A HDMI 1.4 up to 1080P@60fps (varies by OS version), 1 x DP1.2 2Lane Output |
| Display in | 1 x HDMI-IN (4K@60fps), supports HDCP 2.3 (varies by OS version) |
| Audio | 3.5mm earphone Jack with L/R audio out; 3.5mm microphone Jack with Mic in |
| Dimensions | 204 x 120.5 x 48.2 mm |
| Operating temperature | -20 to 75 °C |
| Weight | Approximately 674g (excluding peripherals) |
| Available configurations | 4GB+32GB, 8GB+64GB |
Documentation & Downloads
- Wiki, SDK and documentation: https://wiki.neardi.net/docs/category/lpc3588
- Datasheet (PDF): LPC3588 product brochure
Need a bulk quote, OEM branding or a sample unit? Email lixu@ai-paipai.com - we ship worldwide from Shenzhen.
Not sure which platform fits your project?
Frequently asked questions
What is Neardi LPC3588 RK3588 Edge Computer - 3x HDMI Out, 4K HDMI Input, Fanless Industrial PC used for?
Neardi LPC3588 RK3588 Edge Computer - 3x HDMI Out, 4K HDMI Input, Fanless Industrial PC is a Industrial Computer from Neardi. It is typically used in embedded computing, edge AI inference, industrial control and rapid prototyping, and can be integrated into custom carrier boards or finished devices.
Does Neardi LPC3588 RK3588 Edge Computer - 3x HDMI Out, 4K HDMI Input, Fanless Industrial PC include technical support, datasheets or pre-flashed images?
Yes. Ai-Paipai supplies this item through a traceable supply chain and provides local engineering support, datasheets, SDKs and pre-flashed system images where applicable, plus OEM / ODM customization for volume projects.
Can I order Neardi LPC3588 RK3588 Edge Computer - 3x HDMI Out, 4K HDMI Input, Fanless Industrial PC with OEM / ODM options or CE / FCC / RoHS certification?
OEM / ODM customization (specs, enclosure, BSP) is available, and CE / FCC / RoHS certified options can be provided on request for EU and US imports. Contact us for a quote.
How is Neardi LPC3588 RK3588 Edge Computer - 3x HDMI Out, 4K HDMI Input, Fanless Industrial PC shipped, and what is the lead time?
Orders ship worldwide from Shenzhen. Stock items typically dispatch within a few business days; configurable or made-to-order variants take longer. Exact lead time is shown at checkout or on request.
