Neardi
Neardi LPB3588 RK3588 Industrial Computer - 4x Relay, 4x Isolated DI, 4x Analog Input, CAN/RS485
Neardi LPB3588 RK3588 Industrial Computer - 4x Relay, 4x Isolated DI, 4x Analog Input, CAN/RS485
Couldn't load pickup availability

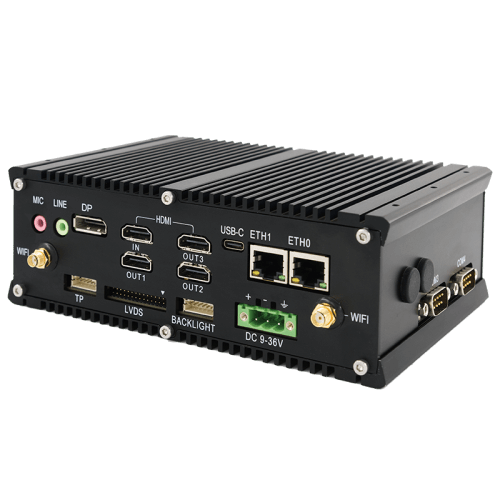

The Neardi LPB3588 is a fanless industrial computer on the Rockchip RK3588 with a 6 TOPS NPU and built-in industrial control I/O - 4 relays, 4 opto-isolated digital inputs and 4 analog inputs for direct sensor and actuator wiring.
Highlights
- Built-in industrial control I/O: 4x relays, 4x opto-isolated digital inputs (active and passive) and 4x analog inputs (voltage and current)
- 8-core Rockchip RK3588 with a 6 TOPS NPU (int4/int8/int16/FP16/BF16/TF32)
- 3x HDMI 2.0 + 1x DisplayPort 1.2 + dual-channel LVDS outputs, plus 1x HDMI input
- Wide 9-36 V DC input and a fanless chassis rated for -20 to 75 °C operation
- 2x mini-PCIe (2G/3G/4G/5G LTE module + optional AI accelerator card), M.2 M-Key NVMe, SATA 3.0, SD boot and micro-SIM
- 2x Gigabit Ethernet, 2x CAN bus, 4x RS232, 1x RS485 and 2x UART
- 3x USB 3.0 Type-A + 1x USB 3.1 Type-C OTG, 10 W @ 8 Ohm speaker outputs
- Android / Ubuntu / Debian / Buildroot with open-source system source code for secondary development
Specifications
| SOC | RK3588, an 8nm process; 8-core 64-bit processor architecture (4xA76 + 4xA55). |
| GPU | ARM Mali-G610 MC4 GPU; supports OpenGL ES 1.1/2.0/3.1/3.2; Vulkan 1.1/1.2; OpenCL 1.1/1.2/2.0; high-performance 2D graphics acceleration module. |
| NPU | 6 TOPS computational power; 3-core architecture; supports int4/int8/int16/FP16/BF16/TF32. |
| VPU | Supports video decoding for H.265/H.264/AV1/VP9/AVS2, with a maximum support of 8K at 60 frames per second (FPS); Supports video encoding for H.264/H.265, with a maximum support of 8K at 30 FPS. |
| DDR | LPDDR4/LPDDR4X memory, with options for 4GB/8GB/16GB. |
| eMMC | eMMC 5.1 storage, with options for 32GB/64GB/128GB. |
| OS | Android / Ubuntu / Buildroot / Debian |
| Power | DC 9-36 V |
| USB | 3 x Type-A USB 3.0 HOST, 1 x Type-C USB 3.1 OTG |
| Display out | 3 x Type-A HDMI 2.0, 1 x DP1.2, 1 x dual-channel LVDS |
| Display in | 1 x HDMI-IN |
| Audio | 1 x 3.5mm audio out, 1 x 3.5mm microphone, 2 x Speaker output with 10W@8Ohm |
| Networking | 2 x 10/100/1000Mbps Ethernet |
| Expandable interface | 1 x mini PCIe for 2G/3G/4G/5G LTE module, 1 x mini PCIe for AI cards (optional), M.2 NGFF (M-KEY) PCIe V2.1 x4 with NVMe SSD supported, 1 x SATA 3.0 |
| Connectivity | 2 x Uart, 2 x CAN bus, 4 x RS232, 1 x RS485 |
| Input/output | 4 x Relays, 4 x digital input, 4 x analog input |
| Dimensions | 182 x 120 x 63 mm |
| Operating temperature | -20 to 75 °C |
| Weight | Approximately 1132g (excluding peripherals) |
| Available configurations | 4GB+32GB, 8GB+64GB, 16GB+128GB |
Documentation & Downloads
- Wiki, SDK and documentation: https://wiki.neardi.net/docs/category/lpb3588
- Datasheet (PDF): LPB3588 product brochure
Need a bulk quote, OEM branding or a sample unit? Email lixu@ai-paipai.com - we ship worldwide from Shenzhen.
Not sure which platform fits your project?
Frequently asked questions
What is Neardi LPB3588 RK3588 Industrial Computer - 4x Relay, 4x Isolated DI, 4x Analog Input, CAN/RS485 used for?
Neardi LPB3588 RK3588 Industrial Computer - 4x Relay, 4x Isolated DI, 4x Analog Input, CAN/RS485 is a Industrial Computer from Neardi. It is typically used in embedded computing, edge AI inference, industrial control and rapid prototyping, and can be integrated into custom carrier boards or finished devices.
Does Neardi LPB3588 RK3588 Industrial Computer - 4x Relay, 4x Isolated DI, 4x Analog Input, CAN/RS485 include technical support, datasheets or pre-flashed images?
Yes. Ai-Paipai supplies this item through a traceable supply chain and provides local engineering support, datasheets, SDKs and pre-flashed system images where applicable, plus OEM / ODM customization for volume projects.
Can I order Neardi LPB3588 RK3588 Industrial Computer - 4x Relay, 4x Isolated DI, 4x Analog Input, CAN/RS485 with OEM / ODM options or CE / FCC / RoHS certification?
OEM / ODM customization (specs, enclosure, BSP) is available, and CE / FCC / RoHS certified options can be provided on request for EU and US imports. Contact us for a quote.
How is Neardi LPB3588 RK3588 Industrial Computer - 4x Relay, 4x Isolated DI, 4x Analog Input, CAN/RS485 shipped, and what is the lead time?
Orders ship worldwide from Shenzhen. Stock items typically dispatch within a few business days; configurable or made-to-order variants take longer. Exact lead time is shown at checkout or on request.
