Neardi LPB3568 RK3568 Industrial PC - up to 10 TOPS, 4x Relay, 3x mini-PCIe, CAN/RS485
Neardi LPB3568 RK3568 Industrial PC - up to 10 TOPS, 4x Relay, 3x mini-PCIe, CAN/RS485
Couldn't load pickup availability

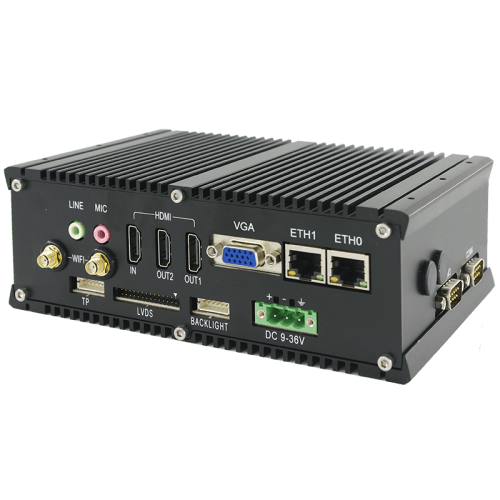

The Neardi LPB3568 is a fanless industrial computer on the Rockchip RK3568 that scales to 10 TOPS of AI compute by adding accelerator cards, with built-in relay, digital and analog I/O.
Highlights
- Scale to 10 TOPS of AI compute by adding up to 2 AI accelerator cards in the 3 mini-PCIe slots (1 reserved for 4G/5G LTE)
- Built-in industrial I/O: 4x relays, 4x opto-isolated digital inputs and 4x analog inputs
- Rockchip RK3568 quad-core Cortex-A55 up to 2.0 GHz with a 1 TOPS NPU
- Wide 9-36 V DC input and fanless operation from -20 to 75 °C
- 2x HDMI 2.0 + 1x VGA + dual-channel LVDS outputs, plus an HDMI input
- 2x Gigabit Ethernet, 2x UART, 4x RS232, 1x RS485 and 2x CAN bus
- 1x USB 3.0 HOST, 1x USB 3.0 OTG and 2x USB 2.0 HOST; M.2 M-Key NVMe, SD boot, micro-SIM
- Android / Ubuntu / Debian / Buildroot with open-source system source code

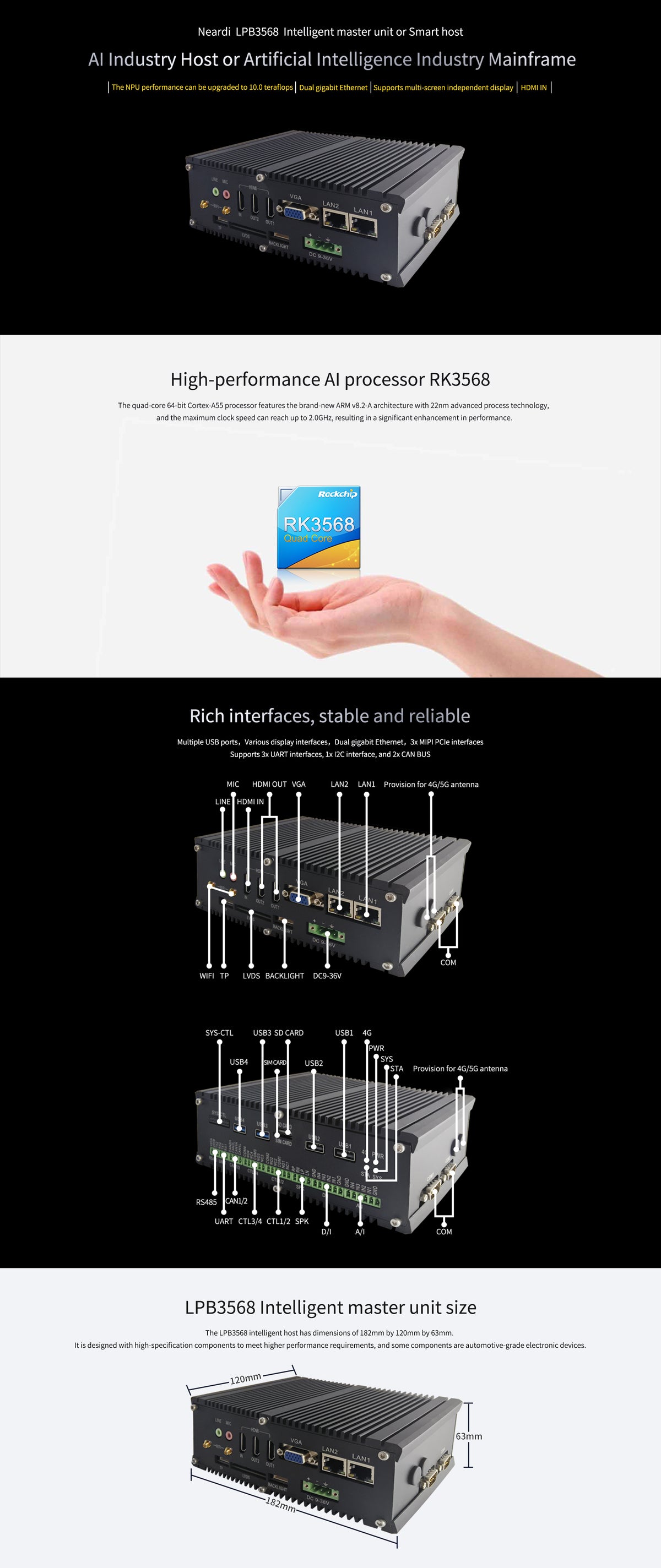

Specifications
| SOC | RK3568/RK3568J is a 22nm process technology system-on-chip (SoC) featuring a quad-core 64-bit Cortex-A55 processor with a maximum clock speed of up to 2.0GHz. |
| GPU | ARM G52 2EE, OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1, high quality 2D Graphics Engine build in |
| NPU | up to 1 TOPS; INT8/INT16/FP16/BFP16 MAC hybrid operation supported; TensorFlow, TF-lite, Pytorch, Caffe, ONNX, MXNet, Keras, Darknet deep-learning frameworks supported |
| VPU | 4K VP9 and 4K H265 up to 60fps video decoding, 1080P up to 100fps H265/H264 video encoding, 8M ISP with HDR |
| DDR | LPDDR4/LPDDR4X RAM is available in optional capacities of 1GB, 2GB, 4GB, or 8GB. |
| eMMC | eMMC 5.1 flash storage is available in optional capacities of 8GB, 16GB, 32GB, 64GB, or 128GB. |
| OS | Android / Ubuntu / Buildroot / Debian |
| Power | DC 9-36 V |
| USB | 1 x Type-A USB 3.0 HOST, 1 x Type-A USB 3.0 OTG, 2 x Type-A USB 2.0 HOST |
| Display output | 2 x Type-A HDMI 2.0, 1 x VGA, 1 x dual-channel LVDS |
| Audio | 1 x 3.5mm audio out, 1 x 3.5mm microphone, 2 x Speaker output with 10W@8Ohm |
| Display input | HDMI Input interface |
| PCIe | 1 x mini PCIe for 2G/3G/4G/5G LTE module, 2 x mini PCIe for AI cards |
| M.2 | M.2 NGFF (M-KEY) PCIe V2.1 x4 with NVMe SSD supported |
| SD card | Compatible with SDIO 3.0 protocol, system boot up supported |
| SIM card | Micro sim slot for Mini-PCIe 4G LTE module |
| RJ-45 | 2 x 10/100/1000 Ethernet |
| Connectivity | 2 x Uart, 2 x CAN bus, 4 x RS232, 1 x RS485 |
| Input/output | 4 x Relays, 4 x digital input, 4 x analog input |
| Dimensions | 182 x 120 x 63 mm |
| Operating temperature | -20 to 75 °C |
| Weight | Approximately 1070g (excluding peripherals) |
| Available configurations | 2GB+16GB, 4GB+32GB |
Documentation & Downloads
- Wiki, SDK and documentation: https://wiki.neardi.net/docs/category/lpb3568
- Datasheet (PDF): LPB3568 product brochure
Need a bulk quote, OEM branding or a sample unit? Email lixu@ai-paipai.com - we ship worldwide from Shenzhen.
Frequently asked questions
What is Neardi LPB3568 RK3568 Industrial PC - up to 10 TOPS, 4x Relay, 3x mini-PCIe, CAN/RS485 used for?
Neardi LPB3568 RK3568 Industrial PC - up to 10 TOPS, 4x Relay, 3x mini-PCIe, CAN/RS485 is a Industrial Computer from Neardi. It is typically used in embedded computing, edge AI inference, industrial control and rapid prototyping, and can be integrated into custom carrier boards or finished devices.
Does Neardi LPB3568 RK3568 Industrial PC - up to 10 TOPS, 4x Relay, 3x mini-PCIe, CAN/RS485 include technical support, datasheets or pre-flashed images?
Yes. Ai-Paipai supplies this item through a traceable supply chain and provides local engineering support, datasheets, SDKs and pre-flashed system images where applicable, plus OEM / ODM customization for volume projects.
Can I order Neardi LPB3568 RK3568 Industrial PC - up to 10 TOPS, 4x Relay, 3x mini-PCIe, CAN/RS485 with OEM / ODM options or CE / FCC / RoHS certification?
OEM / ODM customization (specs, enclosure, BSP) is available, and CE / FCC / RoHS certified options can be provided on request for EU and US imports. Contact us for a quote.
How is Neardi LPB3568 RK3568 Industrial PC - up to 10 TOPS, 4x Relay, 3x mini-PCIe, CAN/RS485 shipped, and what is the lead time?
Orders ship worldwide from Shenzhen. Stock items typically dispatch within a few business days; configurable or made-to-order variants take longer. Exact lead time is shown at checkout or on request.
