Neardi LPA3588 RK3588 Vehicle Computer - 8x AHD Input, 3x HDMI, CAN/RS485, Fanless Edge AI Terminal
Neardi LPA3588 RK3588 Vehicle Computer - 8x AHD Input, 3x HDMI, CAN/RS485, Fanless Edge AI Terminal
Couldn't load pickup availability

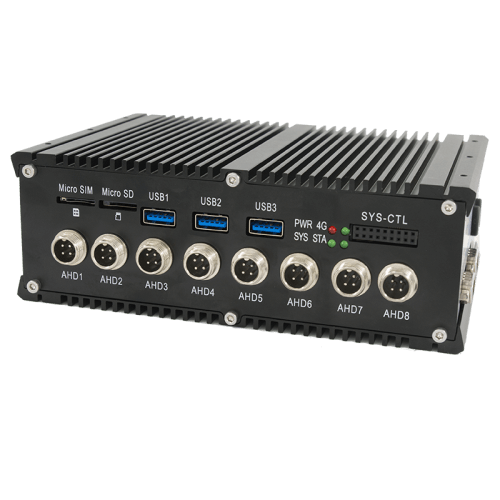

The Neardi LPA3588 is a fanless vehicle computer built on the Rockchip RK3588 with a 6 TOPS NPU, eight AHD camera inputs and a wide 9-36 V DC input - designed for fleet telematics, in-vehicle video analytics and mobile edge AI.
Highlights
- 8-core Rockchip RK3588 (4x Cortex-A76 + 4x Cortex-A55) with a 6 TOPS NPU for on-device AI inference
- 8x AHD camera inputs (up to 1920x1080 @ 30fps per channel) plus 1x HDMI 2.0 input for video analytics
- 3x HDMI 2.0 + 1x DisplayPort + dual-channel LVDS outputs for multi-screen, multi-content display
- Wide 9-36 V DC input with a fanless chassis rated for -20 to 75 °C operation
- 2x mini-PCIe slots (2G/3G/4G/5G LTE module + optional AI accelerator card), M.2 M-Key NVMe SSD, SATA 3.0, micro-SIM and SD boot
- 2x Gigabit Ethernet, 2x CAN bus, 4x RS232, 1x RS485 and 2x UART for vehicle and industrial peripherals
- 3x USB 3.0 Type-A + 1x USB 3.1 Type-C OTG, 10 W @ 8 Ohm speaker outputs, audio in/out
- Android / Ubuntu / Debian / Buildroot with open-source SDK and source code
Specifications
| SOC | RK3588, an 8nm process; 8-core 64-bit processor architecture (4xA76 + 4xA55). |
| GPU | ARM Mali-G610 MC4 GPU; supports OpenGL ES 1.1/2.0/3.1/3.2; Vulkan 1.1/1.2; OpenCL 1.1/1.2/2.0; high-performance 2D graphics acceleration module. |
| NPU | 6 TOPS computational power; 3-core architecture; supports int4/int8/int16/FP16/BF16/TF32. |
| VPU | Supports video decoding for H.265/H.264/AV1/VP9/AVS2, with a maximum support of 8K at 60 frames per second (FPS); Supports video encoding for H.264/H.265, with a maximum support of 8K at 30 FPS. |
| DDR | LPDDR4/LPDDR4X memory, with options for 4GB/8GB/16GB. |
| eMMC | eMMC 5.1 storage, with options for 32GB/64GB/128GB. |
| OS | Android / Ubuntu / Buildroot / Debian |
| Power | DC 9-36 V |
| USB | 3 x Type-A USB 3.0 HOST, 1 x Type-C USB 3.1 OTG |
| Display output | 3 x Type-A HDMI 2.0, 1 x DP, 1 x dual-channel LVDS |
| Audio | 1 x 3.5mm audio out, 1 x 3.5mm microphone, 2 x Speaker output with 10W@8Ohm |
| Video input | 1 x HDMI 2.0 Input, 8 x AHD input up to 1920 x 1080@30fps per channel |
| PCIe | 1 x mini PCIe for 2G/3G/4G/5G LTE module, 1 x mini PCIe for AI cards (optional) |
| M.2 | M.2 NGFF (M-KEY) PCIe V2.1 x 4 with NVMe SSD supported |
| SATA | 1 x SATA 3.0 |
| SD card | Compatible with SDIO 3.0 protocol, system boot up supported |
| SIM card | Micro sim slot for Mini-PCIe 4G LTE module |
| RJ-45 | 2 x 10/100/1000 Ethernet |
| Connectivity | 2 x Uart, 2 x CAN bus, 4 x RS232, 1 x RS485 |
| Dimensions | 182 x 120 x 63 mm |
| Operating temperature | -20 to 75 °C |
| Weight | Approximately 1138g (excluding peripherals) |
| Available configurations | 4GB+32GB, 8GB+64GB, 16GB+128GB |
Documentation & Downloads
- Wiki, SDK and documentation: https://wiki.neardi.net/docs/category/lpa3588
- Datasheet (PDF): LPA3588 product brochure
Need a bulk quote, OEM branding or a sample unit? Email lixu@ai-paipai.com - we ship worldwide from Shenzhen.
Not sure which platform fits your project?
Frequently asked questions
What is Neardi LPA3588 RK3588 Vehicle Computer - 8x AHD Input, 3x HDMI, CAN/RS485, Fanless Edge AI Terminal used for?
Neardi LPA3588 RK3588 Vehicle Computer - 8x AHD Input, 3x HDMI, CAN/RS485, Fanless Edge AI Terminal is a Vehicle Computer from Neardi. It is typically used in embedded computing, edge AI inference, industrial control and rapid prototyping, and can be integrated into custom carrier boards or finished devices.
Does Neardi LPA3588 RK3588 Vehicle Computer - 8x AHD Input, 3x HDMI, CAN/RS485, Fanless Edge AI Terminal include technical support, datasheets or pre-flashed images?
Yes. Ai-Paipai supplies this item through a traceable supply chain and provides local engineering support, datasheets, SDKs and pre-flashed system images where applicable, plus OEM / ODM customization for volume projects.
Can I order Neardi LPA3588 RK3588 Vehicle Computer - 8x AHD Input, 3x HDMI, CAN/RS485, Fanless Edge AI Terminal with OEM / ODM options or CE / FCC / RoHS certification?
OEM / ODM customization (specs, enclosure, BSP) is available, and CE / FCC / RoHS certified options can be provided on request for EU and US imports. Contact us for a quote.
How is Neardi LPA3588 RK3588 Vehicle Computer - 8x AHD Input, 3x HDMI, CAN/RS485, Fanless Edge AI Terminal shipped, and what is the lead time?
Orders ship worldwide from Shenzhen. Stock items typically dispatch within a few business days; configurable or made-to-order variants take longer. Exact lead time is shown at checkout or on request.
