Product description

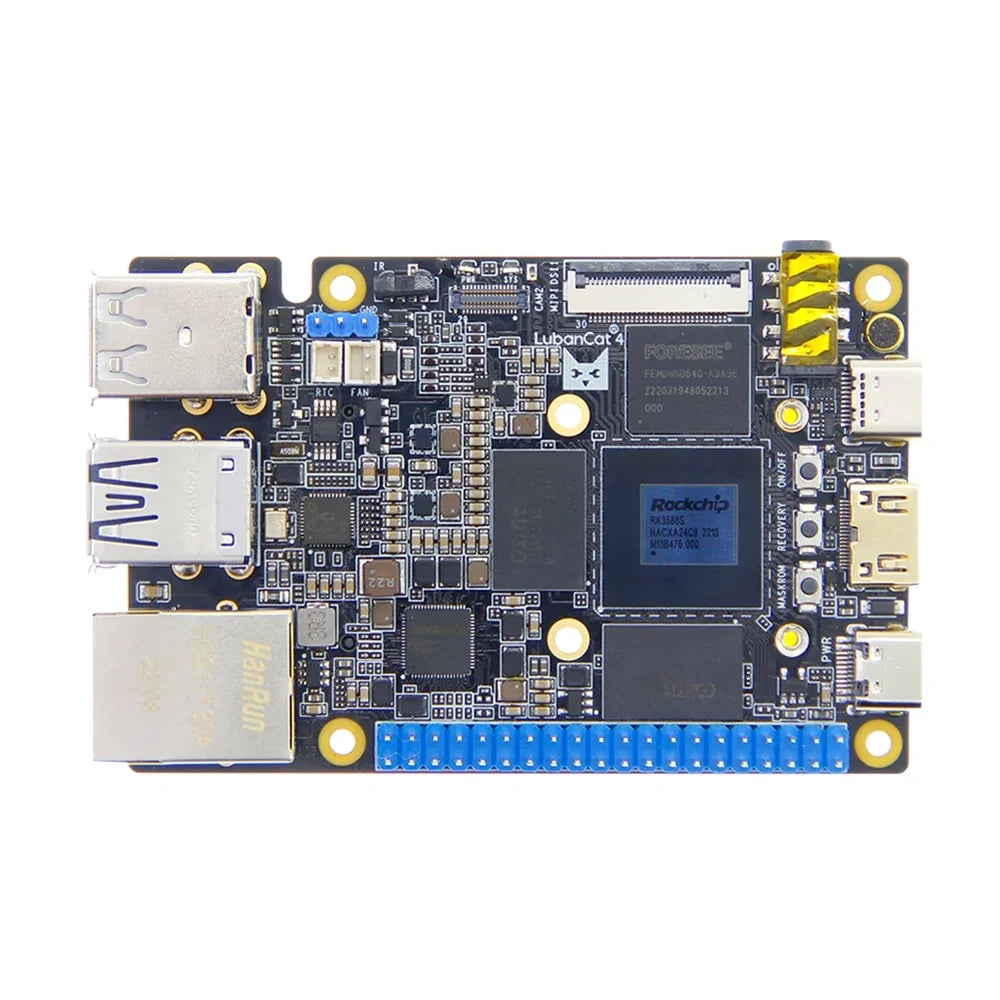

LubanCat-4 is a low-power, high-performance single-board computer designed by Wildfire Technology based on RockChip RK3588s.
LubanCat-4 is equipped with a quad-core A76+quad-core A55 eight-core CPU and a powerful Arm high-performance GPU, and has a built-in NPU with 6T computing power. Equipped with a Gigabit network port, mini-HDMI, USB3.0, MINI PCI-E interface, MIPI and other peripherals. While introducing high-usage interfaces, some low-usage interfaces and peripherals are deleted, significantly reducing the board area, and the reserved universal interfaces such as USB and MINI PCI-E are further expanded. By understanding the usage scenarios of the board, the small body can still burst out with great performance.
This allows LubanCat-4 to be used not only as a high-performance single-board computer, but also as an embedded motherboard for display, control, network transmission, file storage, edge computing and other scenarios.
The LubanCat-4 board provides a complete SDK driver development package, design schematics and other resources, which helps users further apply the board while greatly reducing the secondary development time based on this board and accelerating product launch.
Examples of application scenarios for LubanCat-4 boards:
Intelligent stand-alone small computer with functions such as office, education, programming development, and embedded development
Personal git warehouse, server, nas, soft routing, private cloud
Robots, drones and other projects
TV boxes, smart home hubs, home security monitoring, smart speakers and other smart devices

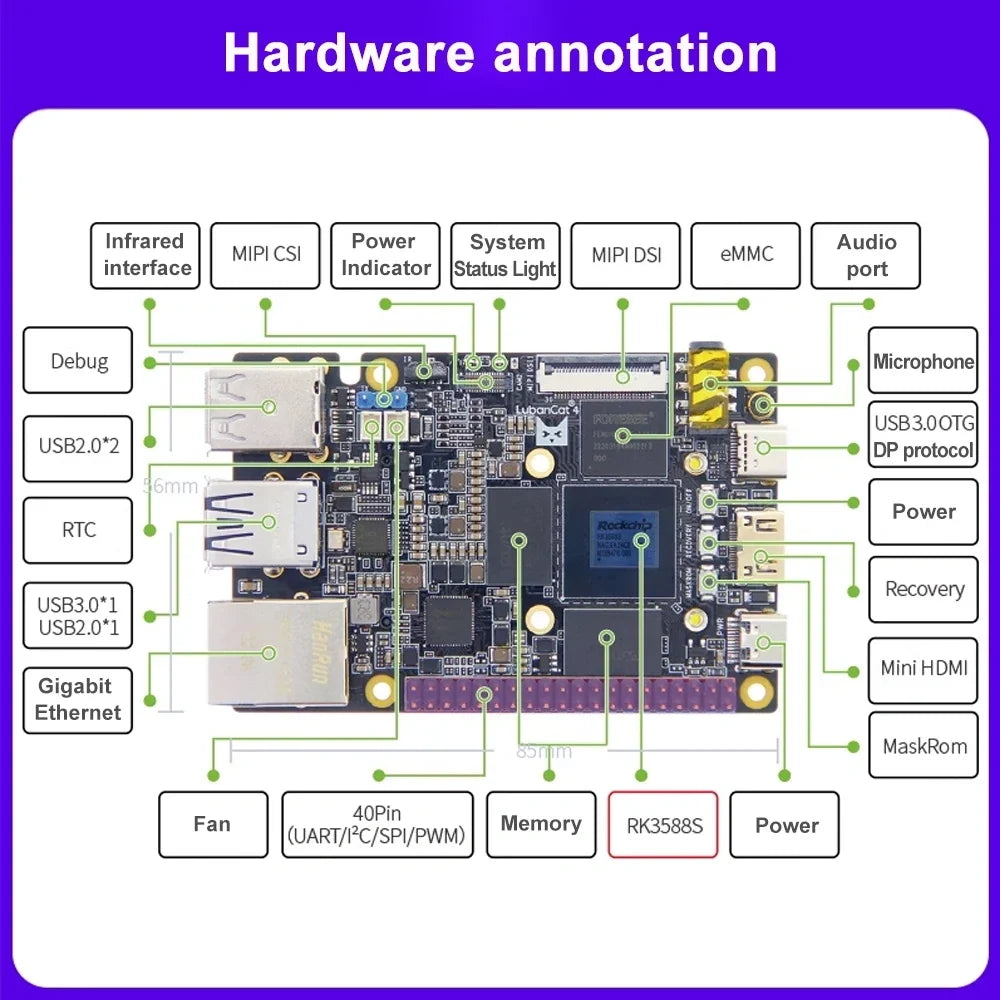

LubanCat-4 board hardware resource table:
| Board name | LubanCat-4 |
| Power interface | 5V@4A DC input, Type-C interface (no data transmission capability) |
| Main chip | RK3588S (quad-core A76+quad-core A55, Mali-G610, 6T computing power) |
| Memory | 4/8/16GB, LPDDR4X (other storage requirements can be customized) |
| Storage | 0/32/64/128GB, eMMC (other storage requirements can be customized) |
| Ethernet | 10/100/1000M adaptive Ethernet port |
| USB2.0 | Type-A interface*3(HOST) |
| USB3.0 | Type-A interface*1(HOST) |
| USB3.0 | Type-C interface*1 (OTG), for firmware burning interface, supports DP protocol, |
| Debug | Default parameter 1500000-8-N-1 |
| Button | ON/OFF(Power button), MR(MaskRom), REC(Recovery) |
| Audio | MIC IN*1, condenser microphone; |
| 40Pin | Compatible with Raspberry Pi 40Pin interface, support PWM, GPIO, lPC, SPI, |
| MINI-PCIE | Mini-PCle interface, can be used with full-height or half-height WlFI network |
| HDMI2.1 | Mini-HDMI2.1 display interface, support multi-screen display with other screens |
| MIPI-DSI | MIPI screen interface*2, can be plugged into wildfire MIPI screen, support |
| MIPI-CSI | 2*15Pin BTB camera interface*3 (front*1, back*2), can plug wildfire MIPI camera |
| SIM & | Can insert SIM card and Micro SD (TF) card at the same time, support TF card |
| Infrared receiver | Support infrared remote control function |
| RTC | RTC power socket*1 |
| Fan | Support installation of 5V fan cooling |
✅ Traceable Supply Chain — Ai-Paipai (Shenzhen AiPaipai Intelligent Technology Co., Ltd.)
This product is supplied through a traceable supply chain. We provide local technical support, pre-installed SDK / mirror images, and OEM / ODM customization, plus fast global shipping.
Why Buy From Ai-Paipai?
- Genuine & Traceable — sourced through a verifiable supply chain.
- Local Engineering Support — datasheets, SDKs, and pre-flashed images in English and Chinese.
- OEM / ODM & FPGA Customization — tailor specs, enclosures, and BSP for your project.
- One-Stop Sourcing — Firefly + youyeetoo + our own FPGA / edge lineup in one store.
Not sure which platform fits your project?
Frequently asked questions
What is Lubancat 4 - 8K Card Computer - Raspberry Pi Size - RK3588S used for?
Lubancat 4 - 8K Card Computer - Raspberry Pi Size - RK3588S is a Accessories from Wildfire. It is typically used in embedded computing, edge AI inference, industrial control and rapid prototyping, and can be integrated into custom carrier boards or finished devices.
Does Lubancat 4 - 8K Card Computer - Raspberry Pi Size - RK3588S include technical support, datasheets or pre-flashed images?
Yes. Ai-Paipai supplies this item through a traceable supply chain and provides local engineering support, datasheets, SDKs and pre-flashed system images where applicable, plus OEM / ODM customization for volume projects.
Can I order Lubancat 4 - 8K Card Computer - Raspberry Pi Size - RK3588S with OEM / ODM options or CE / FCC / RoHS certification?
OEM / ODM customization (specs, enclosure, BSP) is available, and CE / FCC / RoHS certified options can be provided on request for EU and US imports. Contact us for a quote.
How is Lubancat 4 - 8K Card Computer - Raspberry Pi Size - RK3588S shipped, and what is the lead time?
Orders ship worldwide from Shenzhen. Stock items typically dispatch within a few business days; configurable or made-to-order variants take longer. Exact lead time is shown at checkout or on request.
Specifications
| Board name | LubanCat-4 |
| Power interface | 5V@4A DC input, Type-C interface (no data transmission capability) |
| Main chip | RK3588S (quad-core A76+quad-core A55, Mali-G610, 6T computing power) |
| Memory | 4/8/16GB, LPDDR4X (other storage requirements can be customized) |
| Storage | 0/32/64/128GB, eMMC (other storage requirements can be customized) |
| Ethernet | 10/100/1000M adaptive Ethernet port |
| USB2.0 | Type-A interface*3(HOST) |
| USB3.0 | Type-A interface*1(HOST) |
| USB3.0 | Type-C interface*1 (OTG), for firmware burning interface, supports DP protocol, and can display differently with other screens |
| Debug | Default parameter 1500000-8-N-1 |
| Button | ON/OFF(Power button), MR(MaskRom), REC(Recovery) |
| Audio | MIC IN*1, condenser microphone; Headphone output + microphone input 2 in 1 interface*1 |
| 40Pin | Compatible with Raspberry Pi 40Pin interface, support PWM, GPIO, lPC, SPI, UART functions |
| MINI-PCIE | Mini-PCle interface, can be used with full-height or half-height WlFI network card, 4G module or other Mini-PCle interface modules |
| HDMI2.1 | Mini-HDMI2.1 display interface, support multi-screen display with other screens |
| MIPI-DSI | MIPI screen interface*2, can be plugged into wildfire MIPI screen, support multi-screen display with other screens |
| MIPI-CSI | 2*15Pin BTB camera interface*3 (front*1, back*2), can plug wildfire MIPI camera |
| SIM & TF card holder | Can insert SIM card and Micro SD (TF) card at the same time, support TF card to start the system, support up to 512GB, SIM card function needs |
| Infrared receiver | Support infrared remote control function |
| RTC | RTC power socket*1 |
| Fan | Support installation of 5V fan cooling |
