Linkpi ENC8 - Video Encoder/Decoder, 1080P60 HDMI IN x8 HD, 3531D Video Codec HDMI Direct Broadcast IPTV
Linkpi ENC8 - Video Encoder/Decoder, 1080P60 HDMI IN x8 HD, 3531D Video Codec HDMI Direct Broadcast IPTV
Couldn't load pickup availability
Linkpi ENC8 - Video Encoder/Decoder, 1080P60 HDMI IN x8 HD, 3531D Video Codec HDMI Direct Broadcast IPTV is an embedded computing platform for industrial and edge applications from Linkpi.
Available from Ai-Paipai with local engineering support, datasheets and pre-flashed images where applicable, plus OEM / ODM options and worldwide shipping.
Linkpi ENC8 - 1080P60 HDMI IN x8 HD
- Quick Start: WIKI: https://wiki.youyeetoo.com/en/LinkPi
-
Tips
- FAQ How to activate an NDI license
- Purchase NDI Licensing: Contact lixu@ai-paipai.com
- Only support NDI | HX, Please check: https://forum.youyeetoo.com/t/linkpi-enc1-v3-does-not-accept-external-ndi-streams/683
- The power supply of the device is AC220V, please pay attention to the voltage adaptation in the countries where AC110V is used.
Introduction
Linkpi ENC8 - Video Encoder/Decoder

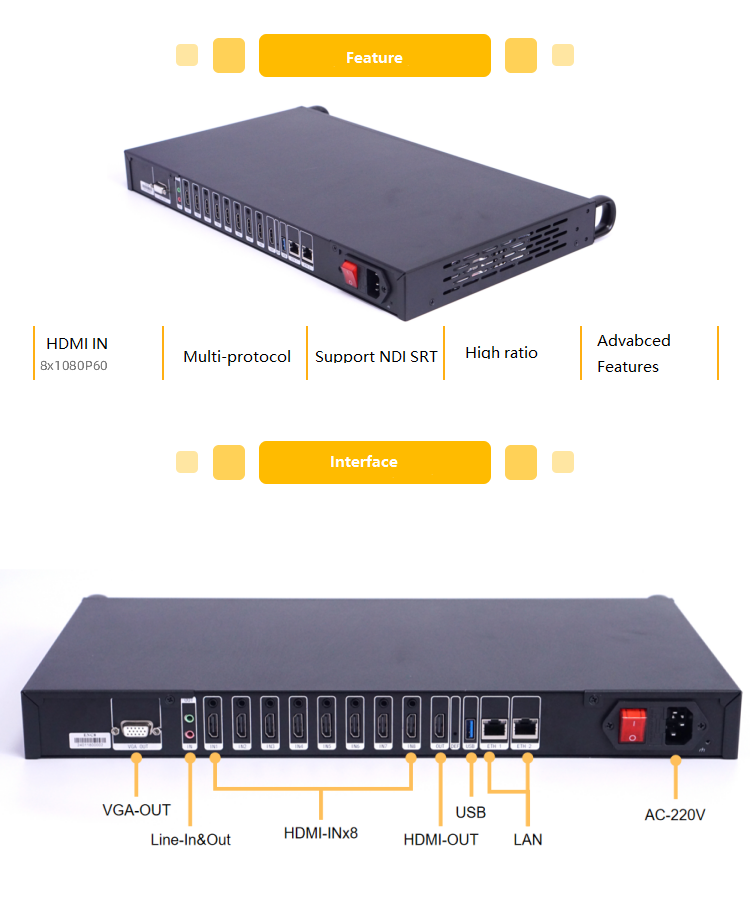

Features
- Video Encoder/Decoder
- 1080P60 HDMI IN x8 HD
- Hisilicon 3531D
- Video Codec
- HDMI Direct Broadcast
- IPTV
Shipping List
1x Linkpi ENC8
Specification
|
Core performance |
|
|
CPU |
ARM Cortex A53 quad-core@1.2GHz |
|
RAM |
4GB DDR4 |
|
FLASH |
8GB eMMC |
|
Video parameters |
|
|
HDMI IN |
8x HDMI IN, HDMI 1.3 supports up to 1080P@60fps |
|
HDMI OUT |
supports up to 4K60 |
|
Resolution |
4K30, 1080P, 720P, 1080i, 720i, 1600×1200, 1440x900, 1366×768, 1280×1024, 1024×768, 800×600, 640x480 |
|
Encode |
H.264 Baseline profile H.264 Main profile H.264 High profile H.265 Main profile MJPEG/JPEG Baseline |
|
Decode |
H264, H264, MJPEG |
|
Encode Resolution |
Main:4K, 1080P, 720P, 360P |
|
Sub: 720P, 360P |
|
|
Framerate |
1~60 adjustable |
|
Multiple reference frames |
Support SmartP, DualP |
|
Max Bitrate |
20Mbps |
|
Bit rate control |
CBR/VBR/AVBR/FIXQP/QPMAP |
|
Audio parameters |
|
|
lnput |
HDMI, 3.5mm Line-In, audio can be used at the same time |
|
Output |
HDMI, 3.5mm Line-Out, audio can be used at the same time |
|
Sampling rate |
48K, 44.1K, 32K, 16K, 8K |
|
Encoding format |
AAC, MP3, MPEG2, PMCA, PMCU |
|
Network parameters |
|
|
Wired interface |
10/100/1000M RJ45 network port |
|
WIFI |
Optional external wifi module |
|
4G/5G |
Support (Huawei E8372, LinkPi 5GCPE) |
|
Protocols |
RTSP, RTMP, HTTP, HLS, UDP, unicast, multicast |
|
ONVIF |
Support |
|
SRT |
Support |
|
NDI |
Support |
|
GB28181 |
Support |
|
File storage |
|
|
Storage |
U disk |
|
Record format |
MP4, TS, FLV, MOV, MKV, AVI |
|
Basic parameters |
|
|
Adapter |
AC-220V |
|
Power |
<20w |
|
Size |
442×243x45 ( mm L×W×H) |
|
Working temperature |
0~70°C |
|
Software features |
|
|
Basic functions |
WEB configuration, parameter hot update, firmware upgrade, network setting, password management |
|
Video mixing |
Picture-in-picture, 4-split screen, 9-split screen, custom |
|
Special effect overlay |
Logo, watermark, subtitle, scrolling subtitle, mosaic, timestamp |
|
Resource management |
Custom fonts, upload watermark Logo pictures |
Detailed Descriptions
✅ Traceable Supply Chain — Ai-Paipai (Shenzhen AiPaipai Intelligent Technology Co., Ltd.)
This product is supplied through a traceable supply chain. We provide local technical support, pre-installed SDK / mirror images, and OEM / ODM customization, plus fast global shipping.
Why Buy From Ai-Paipai?
- Genuine & Traceable — sourced through a verifiable supply chain.
- Local Engineering Support — datasheets, SDKs, and pre-flashed images in English and Chinese.
- OEM / ODM & FPGA Customization — tailor specs, enclosures, and BSP for your project.
- One-Stop Sourcing — Firefly + youyeetoo + our own FPGA / edge lineup in one store.
Frequently asked questions
What is Linkpi ENC8 - Video Encoder/Decoder, 1080P60 HDMI IN x8 HD, 3531D Video Codec HDMI Direct Broadcast IPTV used for?
Linkpi ENC8 - Video Encoder/Decoder, 1080P60 HDMI IN x8 HD, 3531D Video Codec HDMI Direct Broadcast IPTV is a Embedded Computing from Linkpi. It is typically used in embedded computing, edge AI inference, industrial control and rapid prototyping, and can be integrated into custom carrier boards or finished devices.
Does Linkpi ENC8 - Video Encoder/Decoder, 1080P60 HDMI IN x8 HD, 3531D Video Codec HDMI Direct Broadcast IPTV include technical support, datasheets or pre-flashed images?
Yes. Ai-Paipai supplies this item through a traceable supply chain and provides local engineering support, datasheets, SDKs and pre-flashed system images where applicable, plus OEM / ODM customization for volume projects.
Can I order Linkpi ENC8 - Video Encoder/Decoder, 1080P60 HDMI IN x8 HD, 3531D Video Codec HDMI Direct Broadcast IPTV with OEM / ODM options or CE / FCC / RoHS certification?
OEM / ODM customization (specs, enclosure, BSP) is available, and CE / FCC / RoHS certified options can be provided on request for EU and US imports. Contact us for a quote.
How is Linkpi ENC8 - Video Encoder/Decoder, 1080P60 HDMI IN x8 HD, 3531D Video Codec HDMI Direct Broadcast IPTV shipped, and what is the lead time?
Orders ship worldwide from Shenzhen. Stock items typically dispatch within a few business days; configurable or made-to-order variants take longer. Exact lead time is shown at checkout or on request.
Specifications
| CPU | ARM Cortex A53 quad-core@1.2GHz 32KB l-Cache, 32KB D-Cache |
| RAM | 4GB DDR4 |
| FLASH | 8GB eMMC |
| HDMI IN | 8x HDMI IN, HDMI 1.3 supports up to 1080P@60fps |
| HDMI OUT | supports up to 4K60 |
| Resolution | 4K30, 1080P, 720P, 1080i, 720i, 1600×1200, 1440x900, 1366×768, 1280×1024, 1024×768, 800×600, 640x480 |
| Encode | H.264 Baseline profile H.264 Main profile H.264 High profile H.265 Main profile MJPEG/JPEG Baseline |
| Decode | H264, H264, MJPEG |
| Encode Resolution | Main:4K, 1080P, 720P, 360P |
| Framerate | 1~60 adjustable |
| Multiple reference frames | Support SmartP, DualP |
| Max Bitrate | 20Mbps |
| Bit rate control | CBR/VBR/AVBR/FIXQP/QPMAP |
| lnput | HDMI, 3.5mm Line-In, audio can be used at the same time |
| Output | HDMI, 3.5mm Line-Out, audio can be used at the same time |
| Sampling rate | 48K, 44.1K, 32K, 16K, 8K |
| Encoding format | AAC, MP3, MPEG2, PMCA, PMCU |
| Wired interface | 10/100/1000M RJ45 network port |
| WIFI | Optional external wifi module |
| 4G/5G | Support (Huawei E8372, LinkPi 5GCPE) |
| Protocols | RTSP, RTMP, HTTP, HLS, UDP, unicast, multicast |
| ONVIF | Support |
| SRT | Support |
| NDI | Support |
| GB28181 | Support |
| Storage | U disk |
| Record format | MP4, TS, FLV, MOV, MKV, AVI |
| Adapter | AC-220V |
| Power | <20w |
| Size | 442×243x45 (mm L×W×H) |
| Working temperature | 0~70°C |
| Basic functions | WEB configuration, parameter hot update, firmware upgrade, network setting, password management |
| Video mixing | Picture-in-picture, 4-split screen, 9-split screen, custom |
| Special effect overlay | Logo, watermark, subtitle, scrolling subtitle, mosaic, timestamp |
| Resource management | Custom fonts, upload watermark Logo pictures |
| Quick Start | WIKI: https://wiki.youyeetoo.com/en/LinkPi |
| NDI Licensing | available from Ai-Paipai, contact lixu@ai-paipai.com |
| Only support NDI | HX, Please check | https://forum.youyeetoo.com/t/linkpi-enc1-v3-does-not-accept-external-ndi-streams/683 |
