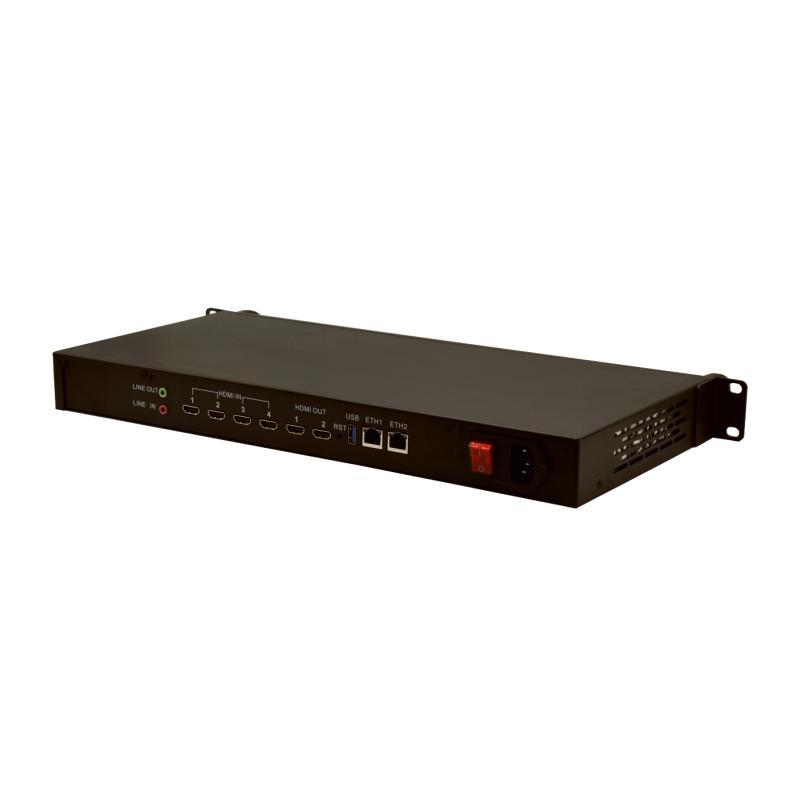

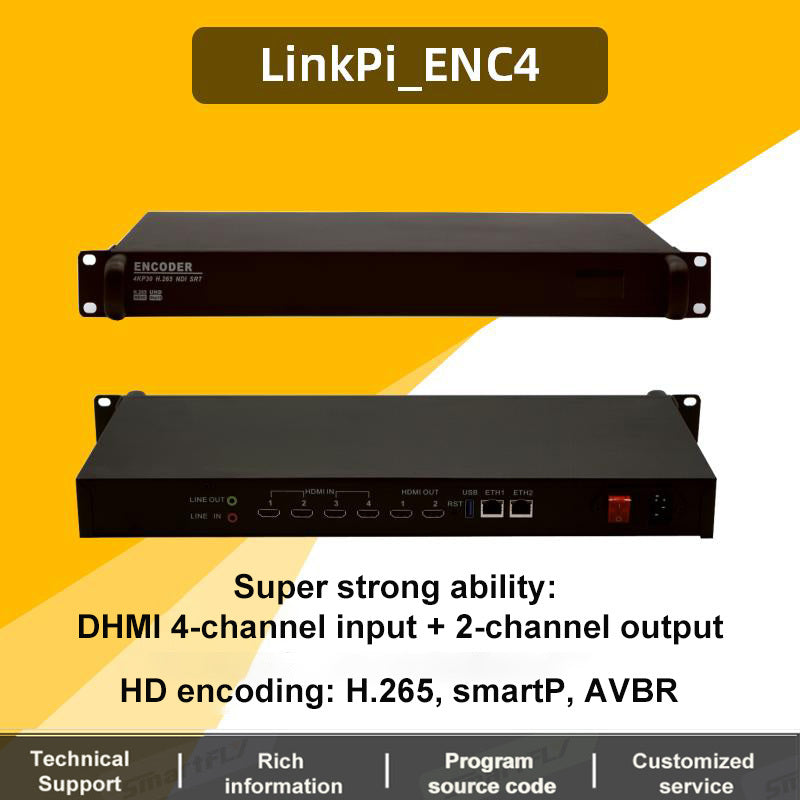

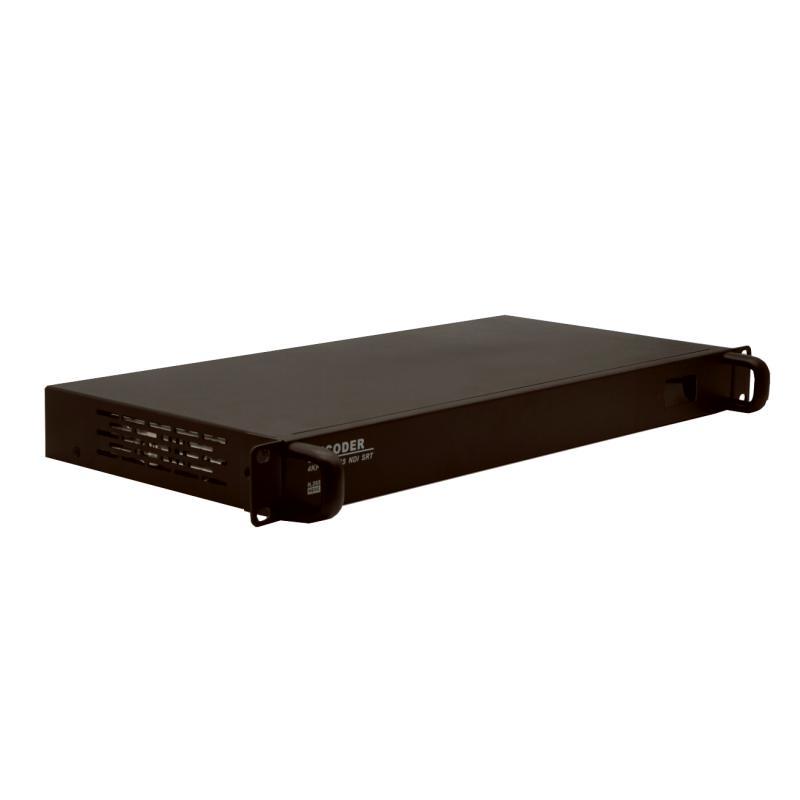

LinkPi ENC4 - 4K Encoder Decoder, 4GB DDR4 HDMI-IN x4 HDMI-OUT x2 H265/264/ 1.2Tops NPU
LinkPi ENC4 - 4K Encoder Decoder, 4GB DDR4 HDMI-IN x4 HDMI-OUT x2 H265/264/ 1.2Tops NPU
Couldn't load pickup availability
Linkpi LinkPi ENC4 - 4K Encoder Decoder, 4GB DDR4 HDMI-IN x4 HDMI-OUT x2 H265/264/ 1.2Tops NPU — an embedded computing platform for industrial and edge applications.
Available from Ai-Paipai with local engineering support, datasheets and pre-flashed images where applicable, plus OEM / ODM options and worldwide shipping.
LinkPi ENC4 NDI Encoder - 4x HDMI 4K Encoder
- Quick StartWIKI: https://wiki.youyeetoo.com/en/LinkPi
-
Tips
- NDI Licensing: Contact lixu@ai-paipai.com
- FAQ How to activate an NDI license
Noted:
- After purchasing, please back up the NDI authorization code, one code per machine to avoid loss.
- You can also use NDI DEMO without purchasing an NDI license. It can be used for 30 minutes after startup, and the screen will be black after 30 minutes, and it can be used again for 30 minutes after restarting. But this only affects NDI, not other protocols (such as SRT, RTMP, RTSP, HTTP, UDP, etc.).
Shipping List
1x LinkPi ENC4
Specification
|
Core performance |
|
|
CPU |
ARM Cortex A9 quad-core@1.2GHz 32KB l-Cache, 32KB D-Cache |
|
RAM |
4GB DDR4 |
|
FLASH |
8GB eMMC |
|
Video parameters |
|
|
HDMI Input |
4x HDMI 1.4, supports up to 4K@60 |
|
HDMI OUT |
supports up to 4K60 |
|
Resolution |
4K30, 1080P, 720P, 1080i, 720i, 1600×1200, 1440x900, 1366×768, 1280×1024, 1024×768, 800×600, 640x480 |
|
Encode |
H.264 Baseline profile H.264 Main profile H.264 High profile H.265 Main profile MJPEG/JPEG Baseline |
|
Decode |
H264, H264, MJPEG |
|
Encode Main |
4K, 1080P, 720P, 360P |
|
Resolution |
Sub: 720P, 360P |
|
Framerate |
1~60 adjustable |
|
Multiple reference frames |
Support SmartP, DualP |
|
Max Bitrate |
20Mbps |
|
Bit rate control |
CBR/VBR/AVBR/FIXQP/QPMAP |
|
Audio parameters |
|
|
Input |
HDMI, 3.5mm Line-In, audio can be used at the same time |
|
Output |
HDMI, 3.5mm Line-Out, audio can be used at the same time |
|
Sampling rate |
48K, 44.1K, 32K, 16K, 8K |
|
Encoding format |
AAC, MP3, MPEG2, PMCA, PMCU |
|
Network parameters |
|
|
Wired interface |
10/100M RJ45 network port |
|
WIFI |
Optional external wifi module |
|
4G/5G |
Support (Huawei E8372, LinkPi 5GCPE) |
|
Protocols |
RTSP, RTMP, HTTP, HLS, UDP, unicast, multicast |
|
ONVIF |
Support |
|
SRT |
Support |
|
NDI |
Support |
|
GB28181 |
Support |
|
File storage |
|
|
Storage |
U disk |
|
Record format |
MP4, TS, FLV, MOV, MKV, AVI |
|
Basic parameters |
|
|
Adapter |
AC 220V |
|
Power |
<20W |
|
Size |
445×255x40 ( mm L×W×H) |
|
Working temperature |
0~70°C |
|
Software features |
|
|
Basic functions |
WEB configuration, parameter hot update, firmware upgrade, network setting, password management |
|
Video mixing |
Picture-in-picture, 4-split screen, 9-split screen, custom |
|
Special effect overlay |
Logo, watermark, subtitle, scrolling subtitle, mosaic, timestamp |
|
Resource management |
Custom fonts, upload watermark Logo pictures |
Detailed Descriptions
✅ Traceable Supply Chain — Ai-Paipai (Shenzhen AiPaipai Intelligent Technology Co., Ltd.)
This product is supplied through a traceable supply chain. We provide local technical support, pre-installed SDK / mirror images, and OEM / ODM customization, plus fast global shipping.
Why Buy From Ai-Paipai?
- Genuine & Traceable — sourced through a verifiable supply chain.
- Local Engineering Support — datasheets, SDKs, and pre-flashed images in English and Chinese.
- OEM / ODM & FPGA Customization — tailor specs, enclosures, and BSP for your project.
- One-Stop Sourcing — Firefly + youyeetoo + our own FPGA / edge lineup in one store.
Frequently asked questions
What is LinkPi ENC4 - 4K Encoder Decoder, 4GB DDR4 HDMI-IN x4 HDMI-OUT x2 H265/264/ 1.2Tops NPU used for?
LinkPi ENC4 - 4K Encoder Decoder, 4GB DDR4 HDMI-IN x4 HDMI-OUT x2 H265/264/ 1.2Tops NPU is a Embedded Computing from Linkpi. It is typically used in embedded computing, edge AI inference, industrial control and rapid prototyping, and can be integrated into custom carrier boards or finished devices.
Does LinkPi ENC4 - 4K Encoder Decoder, 4GB DDR4 HDMI-IN x4 HDMI-OUT x2 H265/264/ 1.2Tops NPU include technical support, datasheets or pre-flashed images?
Yes. Ai-Paipai supplies this item through a traceable supply chain and provides local engineering support, datasheets, SDKs and pre-flashed system images where applicable, plus OEM / ODM customization for volume projects.
Can I order LinkPi ENC4 - 4K Encoder Decoder, 4GB DDR4 HDMI-IN x4 HDMI-OUT x2 H265/264/ 1.2Tops NPU with OEM / ODM options or CE / FCC / RoHS certification?
OEM / ODM customization (specs, enclosure, BSP) is available, and CE / FCC / RoHS certified options can be provided on request for EU and US imports. Contact us for a quote.
How is LinkPi ENC4 - 4K Encoder Decoder, 4GB DDR4 HDMI-IN x4 HDMI-OUT x2 H265/264/ 1.2Tops NPU shipped, and what is the lead time?
Orders ship worldwide from Shenzhen. Stock items typically dispatch within a few business days; configurable or made-to-order variants take longer. Exact lead time is shown at checkout or on request.
Specifications
| CPU | ARM Cortex A9 quad-core@1.2GHz 32KB l-Cache, 32KB D-Cache |
| RAM | 4GB DDR4 |
| FLASH | 8GB eMMC |
| HDMI Input | 4x HDMI 1.4, supports up to 4K@60 |
| HDMI OUT | supports up to 4K60 |
| Resolution | 4K30, 1080P, 720P, 1080i, 720i, 1600×1200, 1440x900, 1366×768, 1280×1024, 1024×768, 800×600, 640x480 |
| Encode | H.264 Baseline profile H.264 Main profile H.264 High profile H.265 Main profile MJPEG/JPEG Baseline |
| Decode | H264, H264, MJPEG |
| Encode Main | 4K, 1080P, 720P, 360P |
| Resolution | Sub: 720P, 360P |
| Framerate | 1~60 adjustable |
| Multiple reference frames | Support SmartP, DualP |
| Max Bitrate | 20Mbps |
| Bit rate control | CBR/VBR/AVBR/FIXQP/QPMAP |
| Input | HDMI, 3.5mm Line-In, audio can be used at the same time |
| Output | HDMI, 3.5mm Line-Out, audio can be used at the same time |
| Sampling rate | 48K, 44.1K, 32K, 16K, 8K |
| Encoding format | AAC, MP3, MPEG2, PMCA, PMCU |
| Wired interface | 10/100M RJ45 network port |
| WIFI | Optional external wifi module |
| 4G/5G | Support (Huawei E8372, LinkPi 5GCPE) |
| Protocols | RTSP, RTMP, HTTP, HLS, UDP, unicast, multicast |
| ONVIF | Support |
| SRT | Support |
| NDI | Support |
| GB28181 | Support |
| Storage | U disk |
| Record format | MP4, TS, FLV, MOV, MKV, AVI |
| Adapter | AC 220V |
| Power | <20W |
| Size | 445×255x40 (mm L×W×H) |
| Working temperature | 0~70°C |
| Basic functions | WEB configuration, parameter hot update, firmware upgrade, network setting, password management |
| Video mixing | Picture-in-picture, 4-split screen, 9-split screen, custom |
| Special effect overlay | Logo, watermark, subtitle, scrolling subtitle, mosaic, timestamp |
| Resource management | Custom fonts, upload watermark Logo pictures |
| Quick Start WIKI | https://wiki.youyeetoo.com/en/LinkPi |
| Tips NDI Licensing | contact lixu@ai-paipai.com |
