LinkPi ENC1-V3 NDI Encoder - ENC1-V2 upgraded version, RTSP/RTMP/HTTP/HLS

LinkPi ENC1-V3 NDI Encoder - ENC1-V2 upgraded version, RTSP/RTMP/HTTP/HLS

$101.53 USD
$101.53 USD
Sale Sold out
Shipping calculated at checkout.
Configuration

LinkPi ENC1-V3 NDI Encoder - ENC1-V2 upgraded version, RTSP/RTMP/HTTP/HLS is an embedded computing platform for industrial and edge applications from Linkpi.

Available from Ai-Paipai with local engineering support, datasheets and pre-flashed images where applicable, plus OEM / ODM options and worldwide shipping.

LinkPi ENC1-V3 NDI Encoder

Noted:

  • After purchasing, please back up the NDI authorization code, one code per machine to avoid loss.
  • You can also use NDI DEMO without purchasing an NDI license. It can be used for 30 minutes after startup, and the screen will be black after 30 minutes, and it can be used again for 30 minutes after restarting. But this only affects NDI, not other protocols (such as SRT, RTMP, RTSP, HTTP, UDP, etc.).

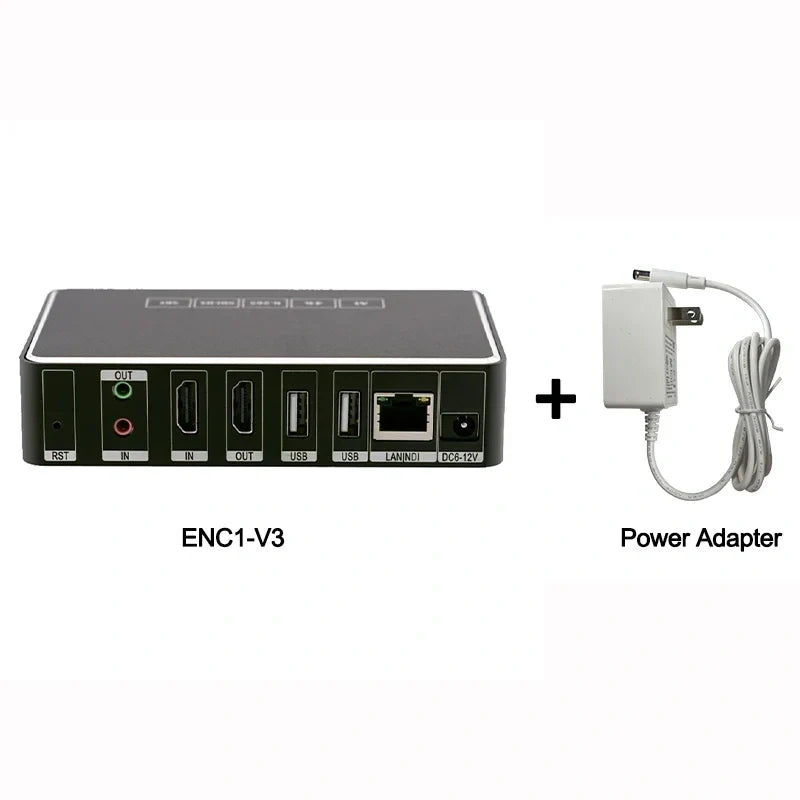

Shipping List

1x ENC1-V3
1x DC Power

Specification



Core performance

CPU

ARM Cortex A7 quad-core@1.2GHz 32KB l-Cache, 32KB D-Cache

RAM

2GB DDR4

FLASH

8GB eMMC

Video parameters

HDMI IN

HDMI 1.4 supports up to 4K@30fps

HDMI OUT

supports up to 4K60

Resolution

4K30, 1080P, 720P, 1080i, 720i, 1600×1200, 1440x900, 1366×768,

1280×1024, 1024×768, 800×600, 640x480

Encode

H.264 Baseline profile

H.264 Main profile

H.264 High profile

H.265 Main profile

MJPEG/JPEG Baseline

Decode

H264, H264, MJPEG

Encode Main

4K, 1080P, 720P, 360P

Resolution

Sub: 720P, 360P

Framerate

1~60 adjustable

Multiple reference frames

Support SmartP, DualP

Max Bitrate

20Mbps

Bit rate control

CBR/VBR/AVBR/FIXQP/QPMAP



Audio parameters

Input

HDMI, 3.5mm Line-In, audio can be used at the same time

Output

HDMI, 3.5mm Line-Out, audio can be used at the same time

Sampling rate

48K, 44.1K, 32K, 16K, 8K

Encoding format

AAC, MP3, MPEG2, PMCA, PMCU

Network parameters

Wired interface

10/100MRJ45 network port

WIFI

Optional external wifi module

4G/5G

Support (Huawei E8372, LinkPi 5GCPE)

Protocols

RTSP, RTMP, HTTP, HLS, UDP, unicast, multicast

ONVIF

Support

SRT

Support

NDI

Support

GB28181

Support

File storage

Storage

U disk

Record format

MP4, TS, FLV, MOV, MKV, AVI

Basic parameters

Adapter

DC-12V 1A

Power

<5w

Size

132×82x29 ( mm L×W×H)

Working temperature

0~70°C

Software features

Basic functions

WEB configuration, parameter hot update, firmware upgrade, network setting, password management

Video mixing

Picture-in-picture, 4-split screen, 9-split screen, custom

Special effect overlay

Logo, watermark, subtitle, scrolling subtitle, mosaic, timestamp

Resource management

Custom fonts, upload watermark Logo pictures


Detailed Descriptions

✅ Traceable Supply Chain — Ai-Paipai (Shenzhen AiPaipai Intelligent Technology Co., Ltd.)

This product is supplied through a traceable supply chain. We provide local technical support, pre-installed SDK / mirror images, and OEM / ODM customization, plus fast global shipping.

Why Buy From Ai-Paipai?

  • Genuine & Traceable — sourced through a verifiable supply chain.
  • Local Engineering Support — datasheets, SDKs, and pre-flashed images in English and Chinese.
  • OEM / ODM & FPGA Customization — tailor specs, enclosures, and BSP for your project.
  • One-Stop Sourcing — Firefly + youyeetoo + our own FPGA / edge lineup in one store.
View full details

Frequently asked questions

What is LinkPi ENC1-V3 NDI Encoder - ENC1-V2 upgraded version, RTSP/RTMP/HTTP/HLS used for?
LinkPi ENC1-V3 NDI Encoder - ENC1-V2 upgraded version, RTSP/RTMP/HTTP/HLS is a Embedded Computing from Linkpi. It is typically used in embedded computing, edge AI inference, industrial control and rapid prototyping, and can be integrated into custom carrier boards or finished devices.

Does LinkPi ENC1-V3 NDI Encoder - ENC1-V2 upgraded version, RTSP/RTMP/HTTP/HLS include technical support, datasheets or pre-flashed images?
Yes. Ai-Paipai supplies this item through a traceable supply chain and provides local engineering support, datasheets, SDKs and pre-flashed system images where applicable, plus OEM / ODM customization for volume projects.

Can I order LinkPi ENC1-V3 NDI Encoder - ENC1-V2 upgraded version, RTSP/RTMP/HTTP/HLS with OEM / ODM options or CE / FCC / RoHS certification?
OEM / ODM customization (specs, enclosure, BSP) is available, and CE / FCC / RoHS certified options can be provided on request for EU and US imports. Contact us for a quote.

How is LinkPi ENC1-V3 NDI Encoder - ENC1-V2 upgraded version, RTSP/RTMP/HTTP/HLS shipped, and what is the lead time?
Orders ship worldwide from Shenzhen. Stock items typically dispatch within a few business days; configurable or made-to-order variants take longer. Exact lead time is shown at checkout or on request.

Specifications

CPU ARM Cortex A7 quad-core@1.2GHz 32KB l-Cache, 32KB D-Cache
RAM 2GB DDR4
FLASH 8GB eMMC
HDMI IN HDMI 1.4 supports up to 4K@30fps
HDMI OUT supports up to 4K60
Resolution 4K30, 1080P, 720P, 1080i, 720i, 1600×1200, 1440x900, 1366×768, 1280×1024, 1024×768, 800×600, 640x480
Encode H.264 Baseline profile H.264 Main profile H.264 High profile H.265 Main profile MJPEG/JPEG Baseline
Decode H264, H264, MJPEG
Encode Main 4K, 1080P, 720P, 360P
Resolution Sub: 720P, 360P
Framerate 1~60 adjustable
Multiple reference frames Support SmartP, DualP
Max Bitrate 20Mbps
Bit rate control CBR/VBR/AVBR/FIXQP/QPMAP
Input HDMI, 3.5mm Line-In, audio can be used at the same time
Output HDMI, 3.5mm Line-Out, audio can be used at the same time
Sampling rate 48K, 44.1K, 32K, 16K, 8K
Encoding format AAC, MP3, MPEG2, PMCA, PMCU
Wired interface 10/100MRJ45 network port
WIFI Optional external wifi module
4G/5G Support (Huawei E8372, LinkPi 5GCPE)
Protocols RTSP, RTMP, HTTP, HLS, UDP, unicast, multicast
ONVIF Support
SRT Support
NDI Support
GB28181 Support
Storage U disk
Record format MP4, TS, FLV, MOV, MKV, AVI
Adapter DC-12V 1A
Power <5w
Size 132×82x29 (mm L×W×H)
Working temperature 0~70°C
Basic functions WEB configuration, parameter hot update, firmware upgrade, network setting, password management
Video mixing Picture-in-picture, 4-split screen, 9-split screen, custom
Special effect overlay Logo, watermark, subtitle, scrolling subtitle, mosaic, timestamp
Resource management Custom fonts, upload watermark Logo pictures
Quick Start WIKI https://wiki.youyeetoo.com/en/LinkPi
NDI Licensing contact lixu@ai-paipai.com
