ITX-3568JQ Quad-core ITX ARM Motherboard
ITX-3568JQ Quad-core ITX ARM Motherboard
Couldn't load pickup availability
ITX-3568JQ Quad-core ITX ARM Motherboard is a Firefly product sold by Ai-Paipai. Key specifications — Soc: RK3568J,Up to 1.4GHz Quad-core 64-bit Cortex-A55… · Npu: Integrated with an AI accelerator RKNN NPU, 1.0… · Ram: LPDDR4 (1GB/2GB/4GB/8GB) · Storage: eMMC (8GB/16GB/32GB/64GB/128GB optional), 16 MB SPI Flash · Display: 1 × HDMI 2.0, supporting 4K@60 Hz 1 × MIPI DSI,…. Typical applications: edge AI inference, machine vision and IoT gateway deployments. Ai-Paipai (Shenzhen AiPaipai Intelligent Technology Co., Ltd.) is an authorized distributor providing local technical support, pre-installed SDK / OS images, OEM / ODM customization, and worldwide shipping.
✅ Authorized Distributor — Ai-Paipai (Shenzhen AiPaipai Intelligent Technology Co., Ltd.)
This product is supplied by an authorized distributor of the original brand. We provide local technical support, pre-installed SDK / mirror images, and OEM / ODM customization, plus fast global shipping.

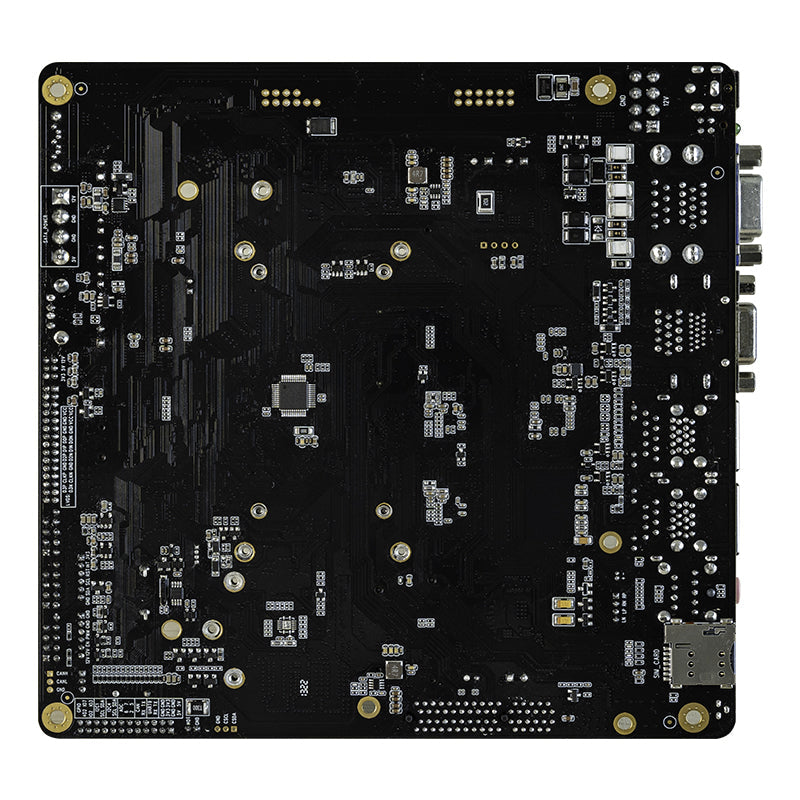

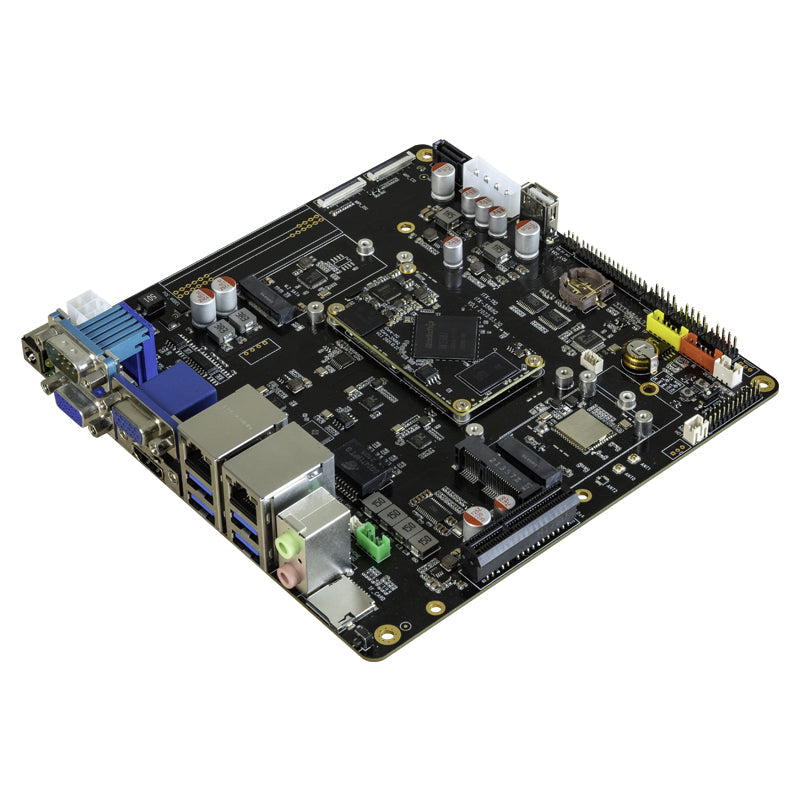

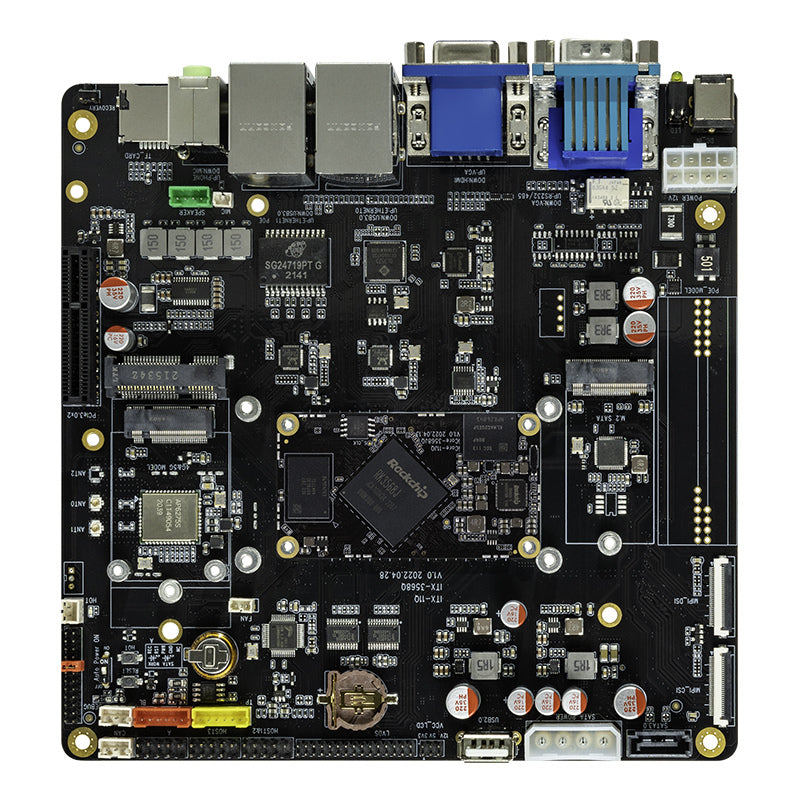

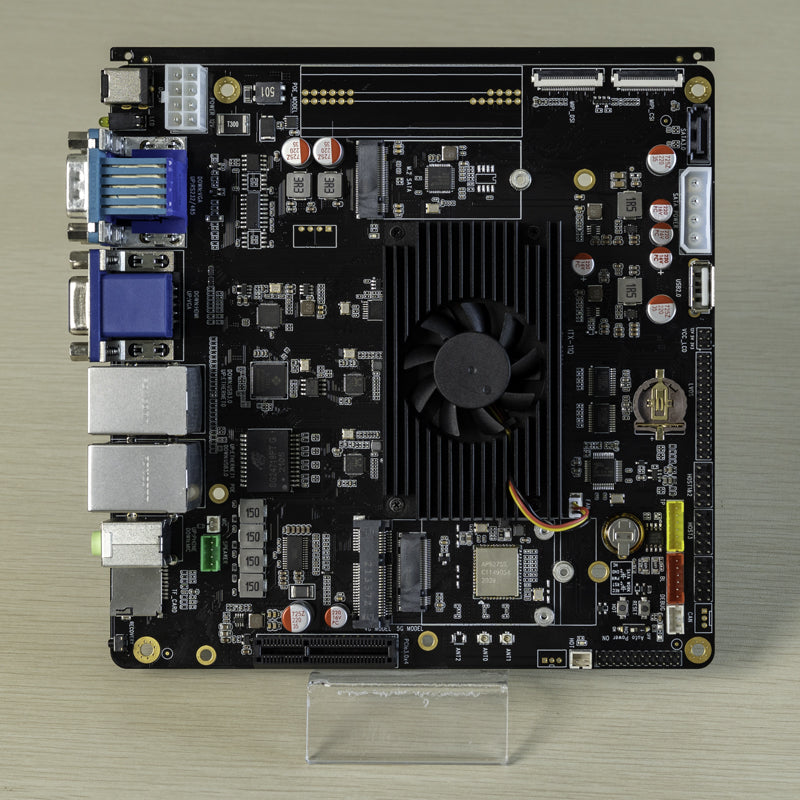

This ITX motherboard is equipped with Rockchip RK3568 series quad-core 64-bit industrial-grade processor and 8GB memory. It supports high-speed wireless networks such as WiFi 6 and 5G/4G. The BTB interface provides stronger transmission performance. The motherboard has industrial-grade stability and can operate reliably for a long time in a temperature range of -40°C to 85°C. In addition, industrial-grade and automotive-grade customization are also available.
- Product Datasheet: Click Here
- Product Wiki: Click Here
Feature
- Industrial-grade Processor RK3568 Series: The RK3568 series uses a quad-core 64-bit Cortex-A55 processor with a 22nm lithography process and a main frequency of up to 2.0 GHz. It has a built-in 1 TOPS NPU, supports mainstream deep learning frameworks, and provides efficient and stable performance for back-end device data processing. The motherboard provides a wealth of storage configuration options.
- Integrated GPU, VPU, and NPU: It integrates dual-core GPU, high-performance VPU and efficient NPU. The GPU is compatible with Open GL ES 3.2/2.0/1.1 and Vulkan 1.1. The VPU provides synchronous encoding and decoding capabilities, supports single-channel 4K 60fps or eight-channel 1080P 30fps multi-format decoding, and video encoding up to 1080P 60fps. The built-in 1 TOPS NPU supports FP16/BFP16, significantly improving AI application development capabilities.
- Support 3 Displays And Eight-camera Input: The device is equipped with rich video interfaces, including MIPI-DSI, LVDS, eDP, HDMI and MIPI-CSI, and supports triple-screen display output. This feature ensures clear visual content on multiple screens such as the center console, co-pilot seat and headrest, enabling diverse multimedia playback. The built-in 8M ISP provides security-grade image signal processing. The product can support up to eight 1080P camera inputs, making it ideal for multi-camera applications.

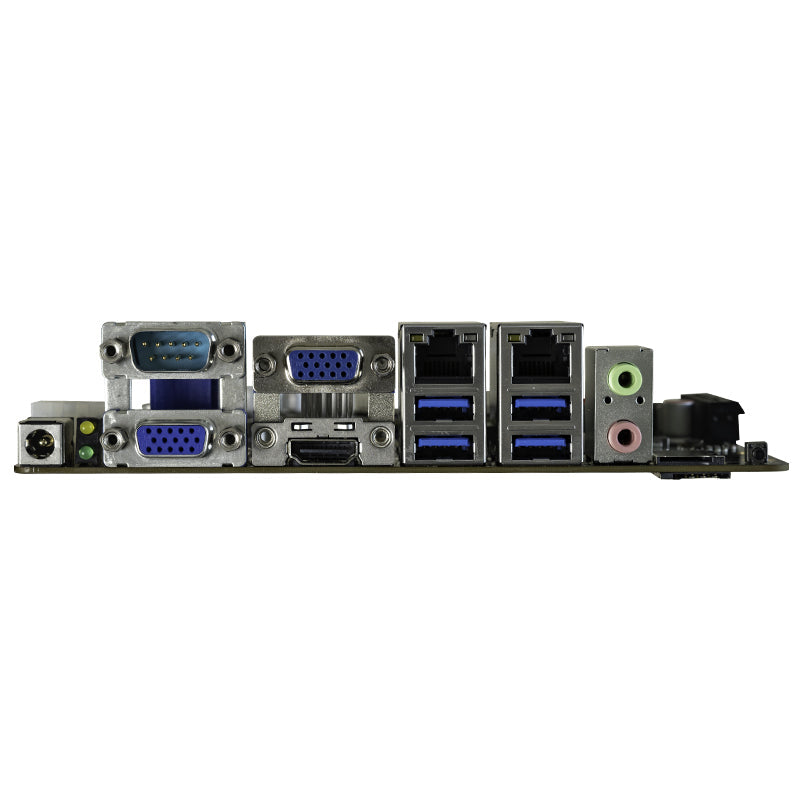

- Strong Network Communication Capability: It supports dual Gigabit Ethernet (RJ45), POE (output power 60W), 2.4GHz/5GHz dual-band WiFi 6, 802.11a/b/g/n/ac/ax protocols, Bluetooth 5.0, and can expand 5G/4G LTE wireless communication.
Shipping list
- Main unit × 1
- Power adapter / cable (region plug on request) × 1
- Accessories vary by configuration — contact us for the exact included list.
Document links will be replaced with the official Firefly resource URLs on request.
Our cooperating carriers: FedEx, DHL, UPS, SF Express
Delivery Area And Cost
| Country/Region | 0–2kg | 2–3kg | 3–4kg | 4–5kg | 5–6kg | 6–7kg | 7–8kg | 8–9kg | 9–10kg |
|---|---|---|---|---|---|---|---|---|---|
| Japan, Taiwan, Hong Kong, Macau | $15 | $20 | $25 | $30 | $35 | $40 | $45 | $50 | $55 |
| Singapore, Thailand, Malaysia | $20 | $25 | $30 | $35 | $40 | $45 | $50 | $55 | $60 |
| Indonesia, Philippines | $25 | $30 | $40 | $50 | $60 | $70 | $80 | $85 | $95 |
| South Korea | $25 | $35 | $35 | $45 | $45 | $55 | $55 | $65 | $65 |
| United States, Australia, New Zealand, Canada, UK, and most of Western Europe | $30 | $45 | $55 | $65 | $75 | $85 | $95 | $105 | $115 |
| Other regions (Eastern Europe, Middle East, Latin America, etc.) | $50 | $65 | $80 | $95 | $110 | $125 | $135 | $150 | $165 |
Shipping time is for reference only; the actual situation shall prevail.
- Authorized & Genuine — sourced directly from brand-approved channels.
- Local Engineering Support — datasheets, SDKs, and pre-flashed images in English and Chinese.
- OEM / ODM & FPGA Customization — tailor specs, enclosures, and BSP for your project.
- One-Stop Sourcing — Firefly + youyeetoo + our own FPGA / edge lineup in one store.
Frequently asked questions
What is ITX-3568JQ Quad-core ITX ARM Motherboard used for?
ITX-3568JQ Quad-core ITX ARM Motherboard is a Motherboard / SBC from Firefly. It is typically used in embedded computing, edge AI inference, industrial control and rapid prototyping, and can be integrated into custom carrier boards or finished devices.
Does ITX-3568JQ Quad-core ITX ARM Motherboard include technical support, datasheets or pre-flashed images?
Yes. Ai-Paipai supplies this item as an authorized distributor and provides local engineering support, datasheets, SDKs and pre-flashed system images where applicable, plus OEM / ODM customization for volume projects.
Can I order ITX-3568JQ Quad-core ITX ARM Motherboard with OEM / ODM options or CE / FCC / RoHS certification?
OEM / ODM customization (specs, enclosure, BSP) is available, and CE / FCC / RoHS certified options can be provided on request for EU and US imports. Contact us for a quote.
How is ITX-3568JQ Quad-core ITX ARM Motherboard shipped, and what is the lead time?
Orders ship worldwide from Shenzhen. Stock items typically dispatch within a few business days; configurable or made-to-order variants take longer. Exact lead time is shown at checkout or on request.
Specifications
| Product Datasheet | Click Here |
| Product Wiki | Click Here |
| Strong Network Communication Capability | It supports dual Gigabit Ethernet (RJ45), POE (output power 60W), 2.4GHz/5GHz dual-band WiFi 6, 802.11a/b/g/n/ac/ax protocols, Bluetooth 5.0, and can expand 5G/4G LTE wireless communication. |
