Firefly
IPC-M10R800-A3568J Industrial Panel Computer
IPC-M10R800-A3568J Industrial Panel Computer
Couldn't load pickup availability
IPC-M10R800-A3568J Industrial Panel Computer is a Firefly product sold by Ai-Paipai. Key specifications — Soc: RockChip RK3568 · Npu: 1 Tops@INT8, integrated high-performance AI accelerator… · Ram: 2GB / 4GB / 8GB LPDDR4 Supports all-data-link ECC · Storage: 32GB / 64GB / 128GB eMMC Supports 2242 / 2280 NVMe SSD… · Ethernet: Supports dual Gigabit Ethernet (1000 M bps) LAN (PoE)…. Typical applications: edge AI inference, machine vision and industrial automation. Ai-Paipai (Shenzhen AiPaipai Intelligent Technology Co., Ltd.) is an authorized distributor providing local technical support, pre-installed SDK / OS images, OEM / ODM customization, and worldwide shipping.
✅ Authorized Distributor — Ai-Paipai (Shenzhen AiPaipai Intelligent Technology Co., Ltd.)
This product is supplied by an authorized distributor of the original brand. We provide local technical support, pre-installed SDK / mirror images, and OEM / ODM customization, plus fast global shipping.
The IPC-M10R800-A3568J tablet features a 10-point IPS touchscreen, dual 2-megapixel WDR cameras, and M.2 and SATA 3.0 interfaces for large-capacity hard drive expansion. It also supports dual Gigabit Ethernet ports and WiFi 6, making it suitable for a wide range of applications in healthcare, industrial automation, commercial advertising, express delivery lockers, and food ordering systems.
- Product Datasheet: Click Here
- Product Wiki: Click Here
Feature
- High-performance Processor: The RK3568 quad-core 64-bit Cortex-A55 processor, clocked at up to 2.0GHz, offers low power consumption and high performance. It integrates a GPU, VPU, and NPU coprocessors, with the VPU enabling 4K video decoding. It can be configured with up to 8GB of RAM and supports full-link ECC.

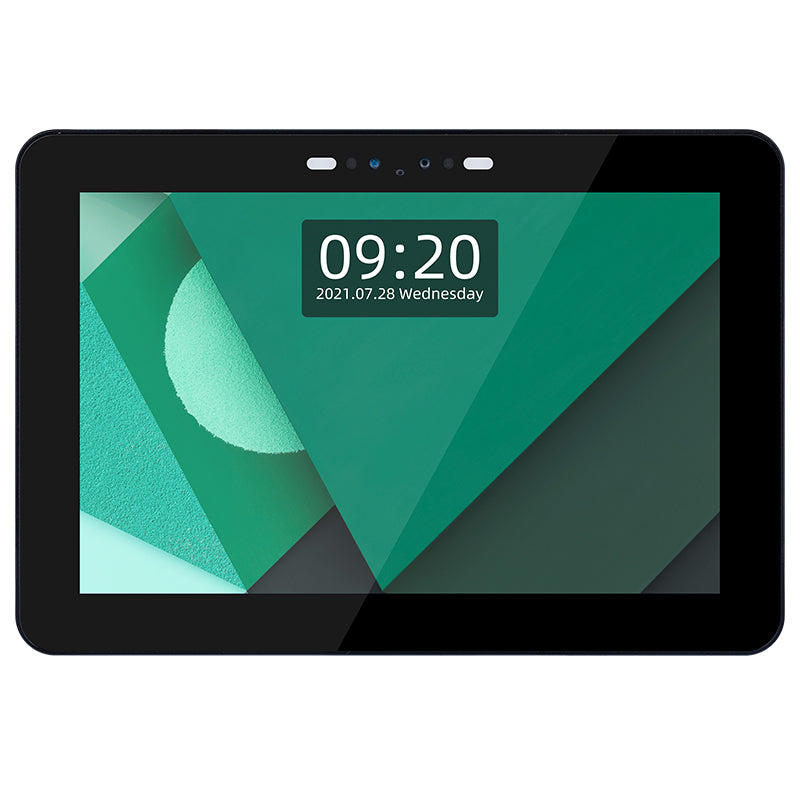

- 10.1-inch IPS LCD Screen: 1280×800 resolution, full-view HD display, delicate and saturated colors, provide high-quality display effects. 10-point touch screen provides a precise and sensitive touch experience.
- 2M WDR Dual-lens Camera: Equipped with a 2-megapixel dual-lens (RGB+IR) WDR camera, it has a highly sensitive image sensor and a wide dynamic range, making it highly adaptable to changes in light and color temperature.

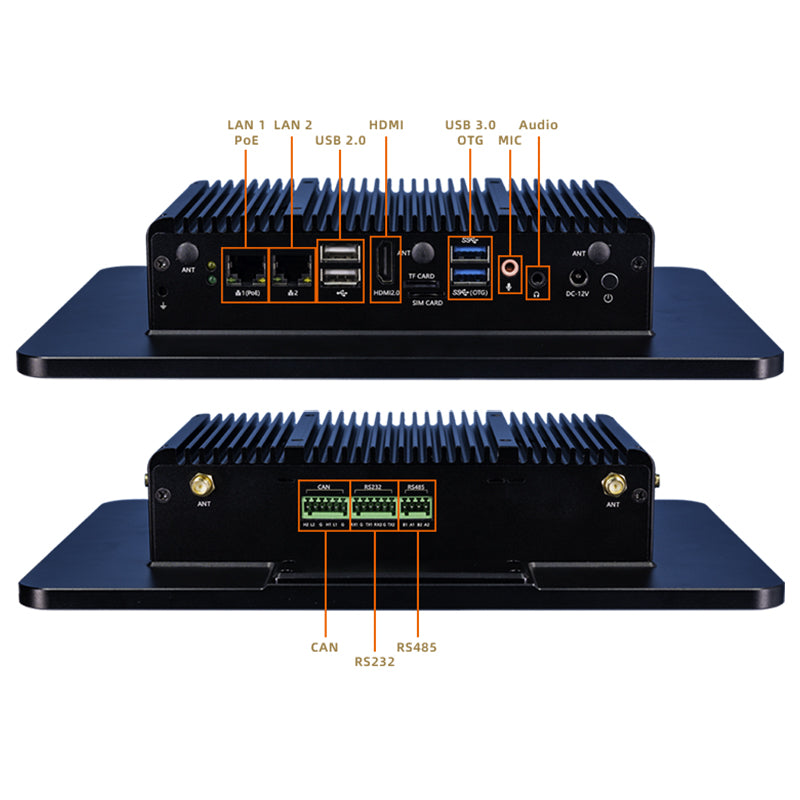

- Dual GbE, Supports POE+: Equipped with dual adaptive RJ45 Gigabit Ethernet ports, it can access and transmit data from both internal and external networks, improving network transmission efficiency. The LAN (PoE) port supports PoE+ (802.3AT, 30W output power), which can power devices while transmitting network data, ensuring normal operation.
Hardware Overview
Shipping list
- Main unit × 1
- Power adapter / cable (region plug on request) × 1
- Accessories vary by configuration — contact us for the exact included list.
Document links will be replaced with the official Firefly resource URLs on request.
Our cooperating carriers: FedEx, DHL, UPS, SF Express
Delivery Area And Cost
| Country/Region | 0–2kg | 2–3kg | 3–4kg | 4–5kg | 5–6kg | 6–7kg | 7–8kg | 8–9kg | 9–10kg |
|---|---|---|---|---|---|---|---|---|---|
| Japan, Taiwan, Hong Kong, Macau | $15 | $20 | $25 | $30 | $35 | $40 | $45 | $50 | $55 |
| Singapore, Thailand, Malaysia | $20 | $25 | $30 | $35 | $40 | $45 | $50 | $55 | $60 |
| Indonesia, Philippines | $25 | $30 | $40 | $50 | $60 | $70 | $80 | $85 | $95 |
| South Korea | $25 | $35 | $35 | $45 | $45 | $55 | $55 | $65 | $65 |
| United States, Australia, New Zealand, Canada, UK, and most of Western Europe | $30 | $45 | $55 | $65 | $75 | $85 | $95 | $105 | $115 |
| Other regions (Eastern Europe, Middle East, Latin America, etc.) | $50 | $65 | $80 | $95 | $110 | $125 | $135 | $150 | $165 |
Shipping time is for reference only; the actual situation shall prevail.
- Authorized & Genuine — sourced directly from brand-approved channels.
- Local Engineering Support — datasheets, SDKs, and pre-flashed images in English and Chinese.
- OEM / ODM & FPGA Customization — tailor specs, enclosures, and BSP for your project.
- One-Stop Sourcing — Firefly + youyeetoo + our own FPGA / edge lineup in one store.
Frequently asked questions
What is IPC-M10R800-A3568J Industrial Panel Computer used for?
IPC-M10R800-A3568J Industrial Panel Computer is a Embedded Computing from Firefly. It is typically used in embedded computing, edge AI inference, industrial control and rapid prototyping, and can be integrated into custom carrier boards or finished devices.
Does IPC-M10R800-A3568J Industrial Panel Computer include technical support, datasheets or pre-flashed images?
Yes. Ai-Paipai supplies this item as an authorized distributor and provides local engineering support, datasheets, SDKs and pre-flashed system images where applicable, plus OEM / ODM customization for volume projects.
Can I order IPC-M10R800-A3568J Industrial Panel Computer with OEM / ODM options or CE / FCC / RoHS certification?
OEM / ODM customization (specs, enclosure, BSP) is available, and CE / FCC / RoHS certified options can be provided on request for EU and US imports. Contact us for a quote.
How is IPC-M10R800-A3568J Industrial Panel Computer shipped, and what is the lead time?
Orders ship worldwide from Shenzhen. Stock items typically dispatch within a few business days; configurable or made-to-order variants take longer. Exact lead time is shown at checkout or on request.
Specifications
| Product Datasheet | Click Here |
| Product Wiki | Click Here |
| 10.1-inch IPS LCD Screen | 1280×800 resolution, full-view HD display, delicate and saturated colors, provide high-quality display effects. 10-point touch screen provides a precise and sensitive touch experience. |
| 2M WDR Dual-lens Camera | Equipped with a 2-megapixel dual-lens (RGB+IR) WDR camera, it has a highly sensitive image sensor and a wide dynamic range, making it highly adaptable to changes in light and color temperature. |
