Intel N150 MINI PC youyeetoo BY53, 12GB LPDDR5, Fanless Windows 11 Pro Micro Computer, 128GB–2TB NVMe Options, 4K Dual HDMI, Gigabit Ethernet, VESA Mount Small Desktop for Home/Office

Intel N150 MINI PC youyeetoo BY53, 12GB LPDDR5, Fanless Windows 11 Pro Micro Computer, 128GB–2TB NVMe Options, 4K Dual HDMI, Gigabit Ethernet, VESA Mount Small Desktop for Home/Office is a single board computer (SBC) for embedded and edge-AI development from youyeetoo.

Available from Ai-Paipai with local engineering support, datasheets and pre-flashed images where applicable, plus OEM / ODM options and worldwide shipping.

Introduction

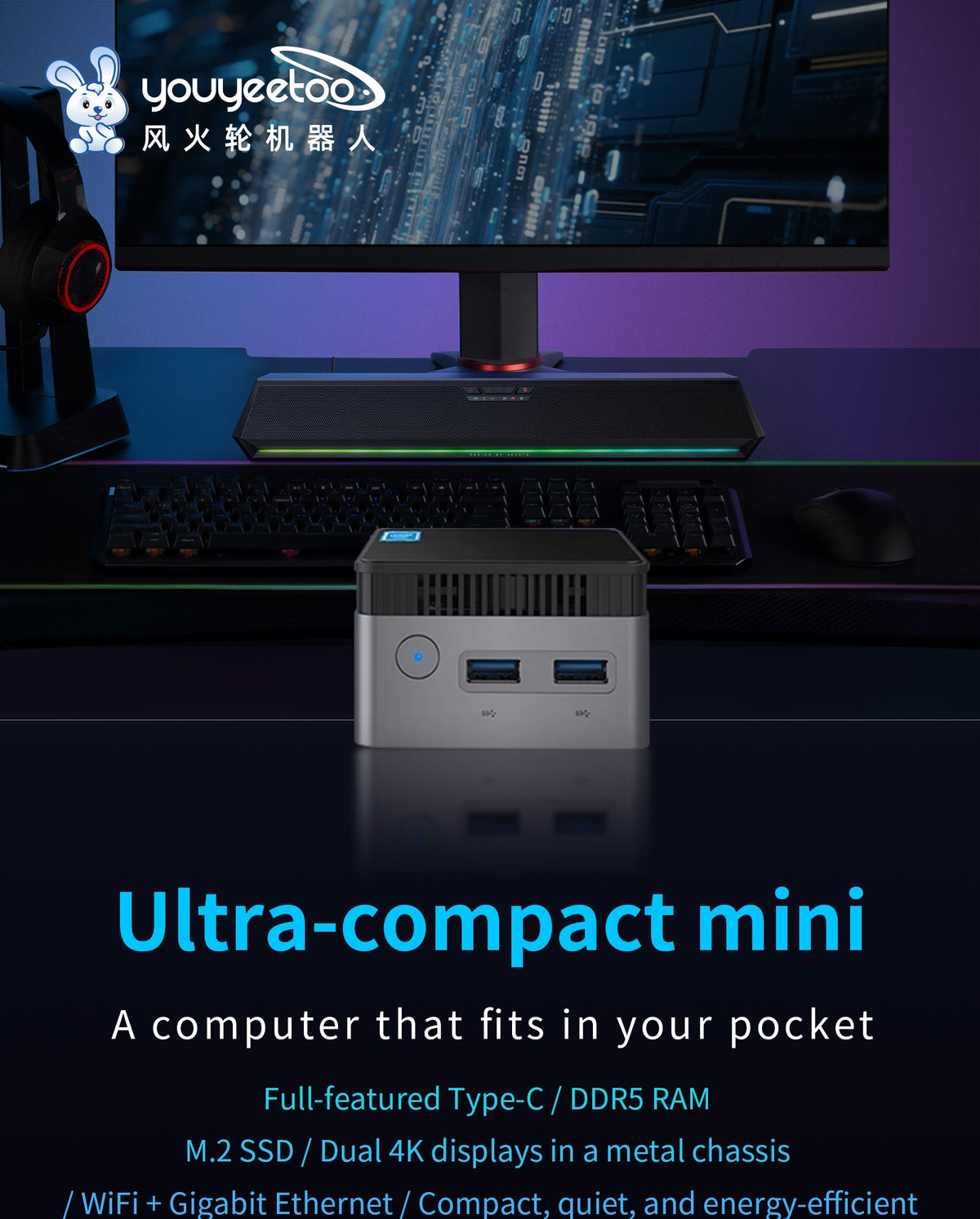

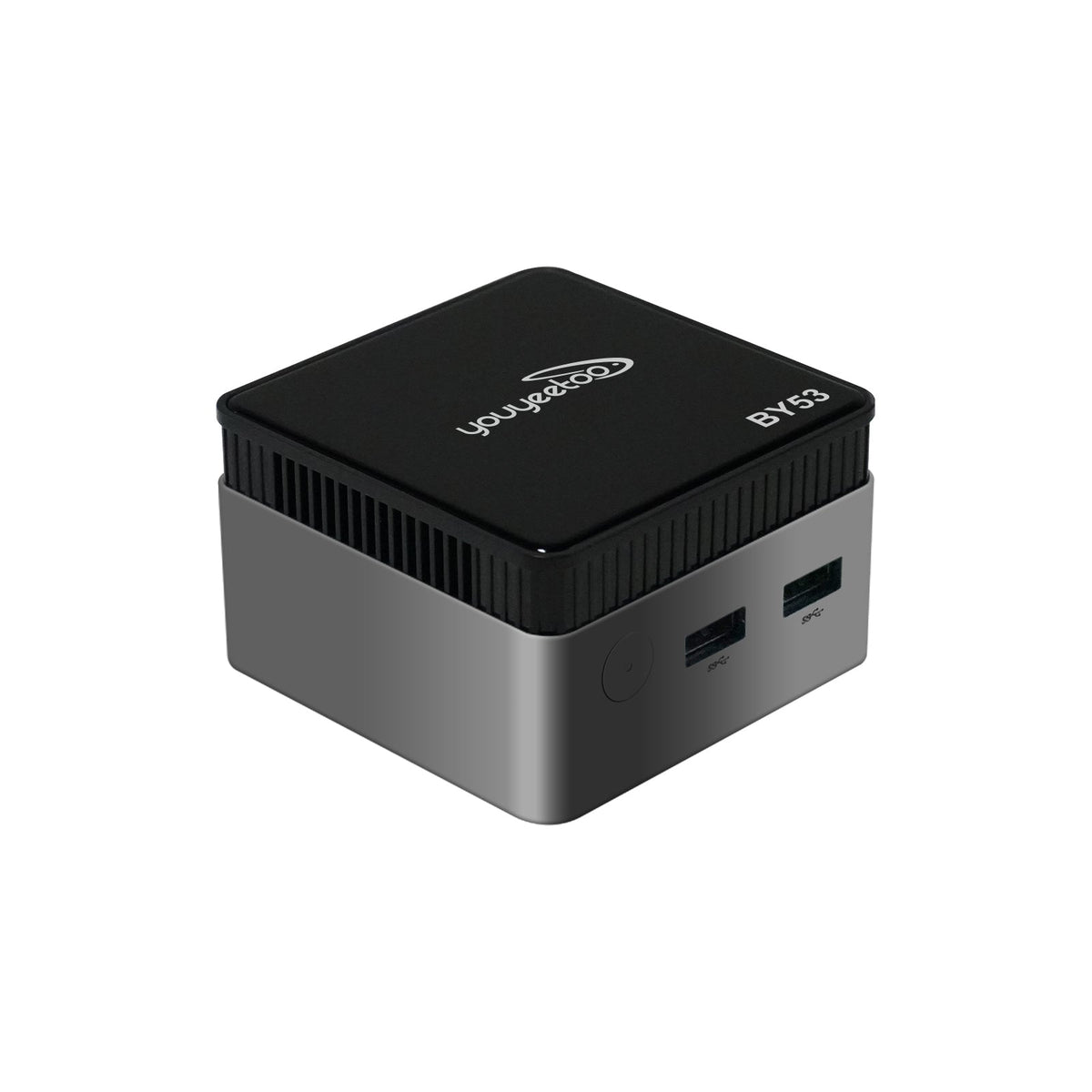

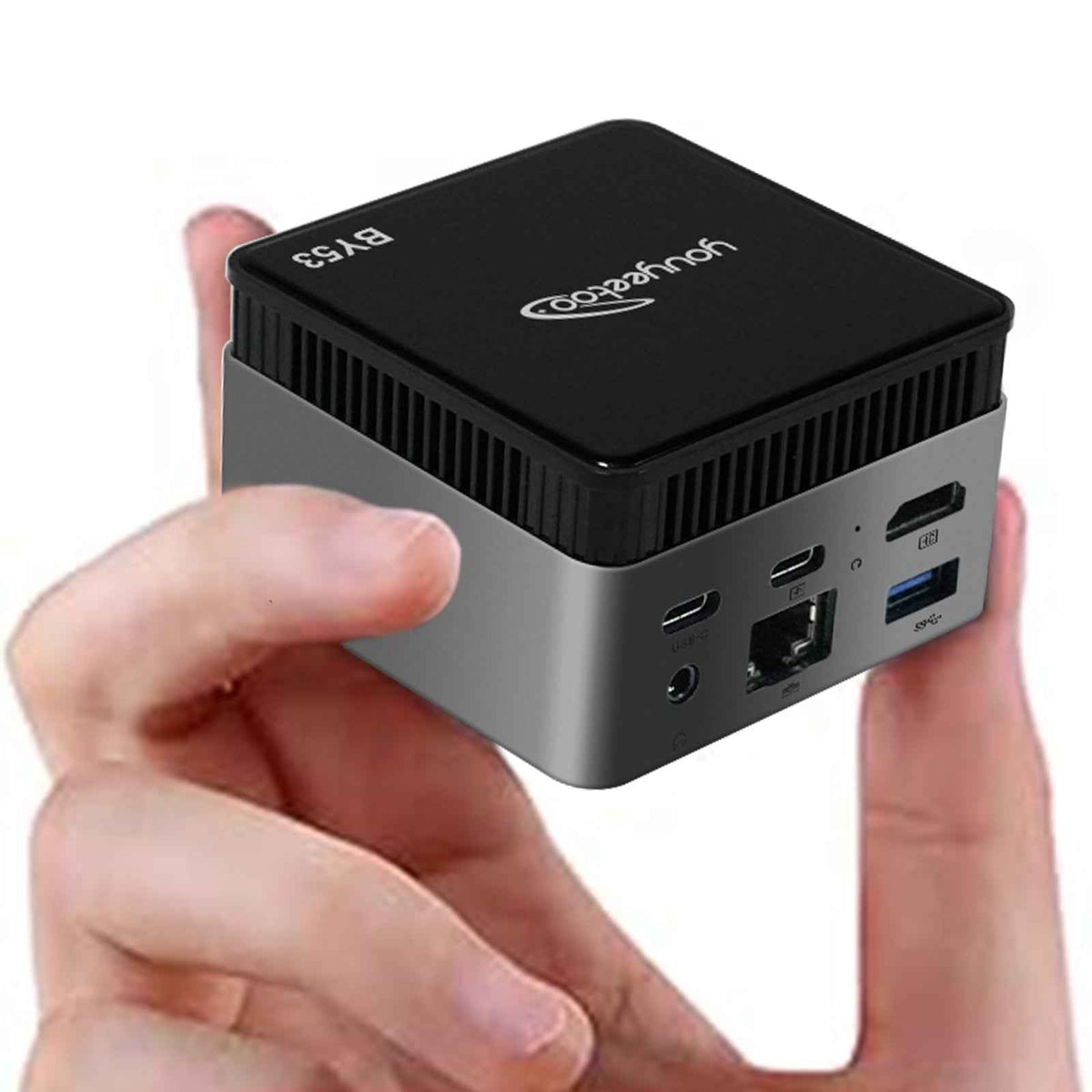

The youyeetoo BY53 redefines the entry-level desktop. Measuring just 4.7 × 4.3 × 1.5 in and weighing 0.66 lb, the aluminium fanless box packs Intel’s latest Alder Lake-N N150 quad-core processor, 12 GB LPDDR5 memory and user-expandable NVMe storage. Dual 4K HDMI outputs, USB-C DisplayPort, Gigabit Ethernet and dual-band Wi-Fi deliver the connectivity integrators need for digital signage, kiosks, thin clients or office PCs. A 6 W TDP allows 24/7 operation without throttling, while VESA mounting hardware and auto-power-on keep installs quick and cable-free. The system ships with Windows 11 Pro, but BIOS/ driver support for Ubuntu, Debian and CentOS ensures developers can roll their own edge, firewall or media image in minutes. Whether you need one unit for the living room or hundreds for an IoT rollout, BY53 offers silent, energy-saving performance at a value price.

Features

1. [Silent Power] youyeetoo BY53 Mini PC ships with Intel N150 up to 3.6 GHz and 12 GB LPDDR5-4800 for smooth 4K streaming and multi-tab browsing without fan noise—perfect for open offices, kiosks and home theaters.
2. [Flexible Storage] Choose 128 GB, 256 GB, 512 GB, 1 TB or 2 TB NVMe SSD pre-installed; spare M.2 2242 SATA socket inside lets buyers add a second drive in minutes—tool-less lid.
3. [Dual 4K Display] Two HDMI 2.0 ports push 4K@60 Hz simultaneously; USB-C Alt-DP offers a third screen option, ideal for digital signage, stock tickers or extended Excel sheets.
4. [Rapid Connectivity] Gigabit LAN, 2.4+5 GHz Wi-Fi 5 and BT 5.2 guarantee fast file transfers, cloud backups and peripheral pairing; Wake-on-LAN & PXE simplify mass deployment.
5. [24/7 Reliability] Fanless aluminium chassis, 6 W TDP, -10–50 °C working range, VESA mount plate and auto-power-on BIOS make BY53 a set-and-forget edge node for factories, POS and IoT gateways.
6. [Ready Out-of-the-Box] Hardware certified for Windows 11 Pro (pre-loaded) and mainstream Linux distros—simply pick your OS, connect power & peripherals, and go.

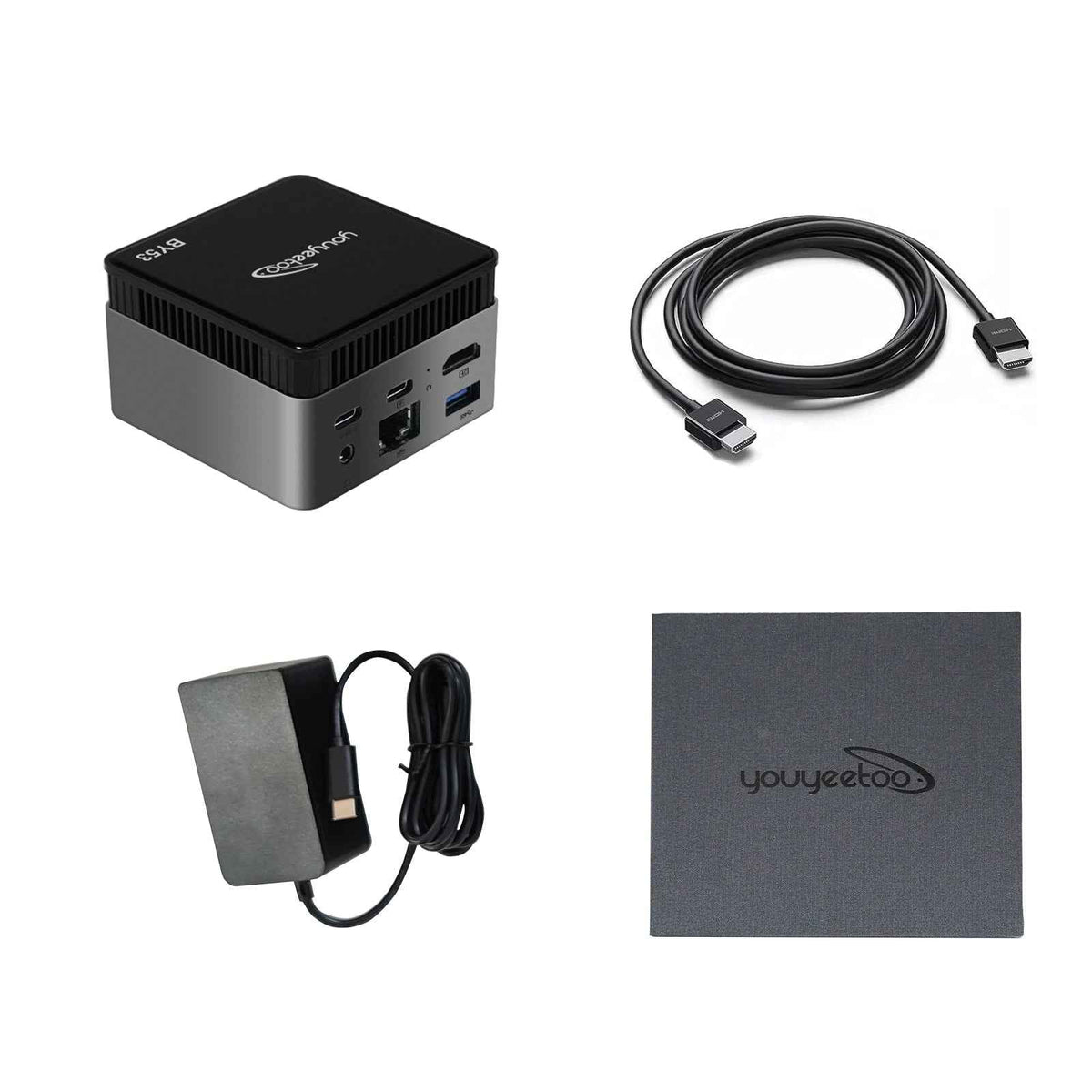

Shipping List

• BY53 Mini PC (with selected SSD)
• 12 V power adapter (US/EU/UK plug per order)
• VESA mount plate & screws
• HDMI cable (0.8 m)
• Quick-start guide



Applications

• Digital Signage & Advertising Displays
  Fanless 24/7 operation; dual 4K HDMI feed restaurant menu boards, retail promo screens or airport flight strips with zero noise.
• Huddle-Room Collaboration Hub
  Hide-it-behind-monitor PC—USB-C DP adds a third display while Gigabit LAN keeps 4K cameras stutter-free for Zoom/Teams.
• Edge Compute & IoT Gateway
  6 W TDP and wide-temp tolerance live inside NEMA boxes, collecting PLC data via Node-RED/InfluxDB and back-hauling over Wi-Fi 5.
• Software Router & Firewall
  On-board GbE plus M.2 SATA lane for a second NIC—passthrough to pfSense/OpenWrt creates a low-cost SD-WAN node.
• Point-of-Sale (POS) Terminal
  Shares 12 V rail with cash drawer; optional UART board drives receipt printers—run Loyverse, Square or custom POS on Windows 11 Pro.
• Home Theater PC (HTPC)
  4K@60 Hz HDR and BT 5.2 aptX HD turn Kodi/Plex into a silent media server that hides behind the TV.
• Portable Dev Workstation
  Windows 11 + WSL and 12 GB LPDDR5 compile Android/Linux kernels fast; USB-C PD lets you code off a power bank in the field.
• Educational Desktop
  Cost-effective fleet for schools—VESA mount creates an instant AIO; PXE and Intel EEC simplify mass imaging while saving energy.



Specification

• CPU: Intel N150 (4C/4T, 6 W, up to 3.6 GHz)
• GPU: Intel UHD (24 EU, 750 MHz)
• RAM: 12 GB LPDDR5-4800 on-board (non-ECC)
• Storage: 1× M.2 2242 SATA/NVMe PCIe 3.0 x4 (128 GB–2 TB options)

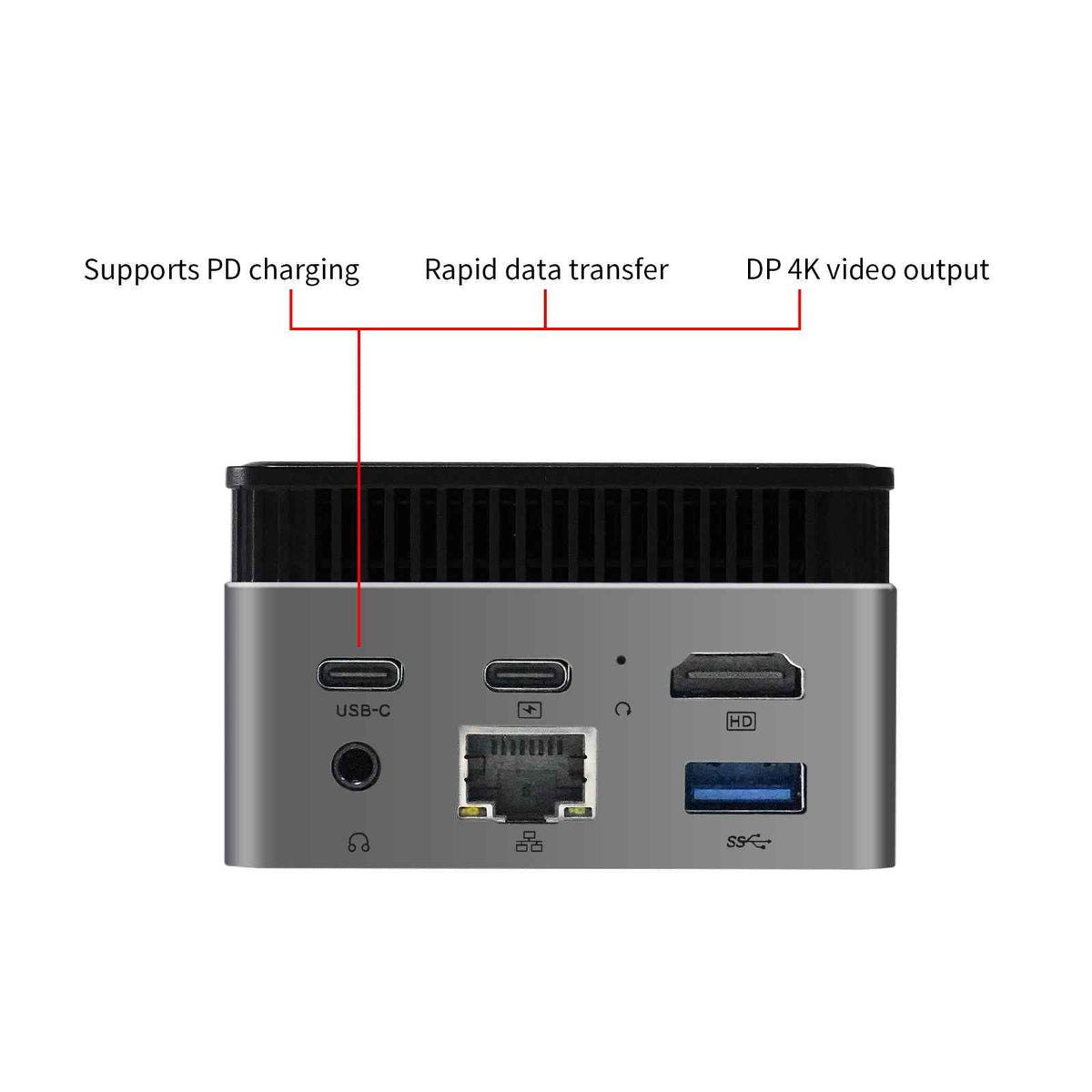

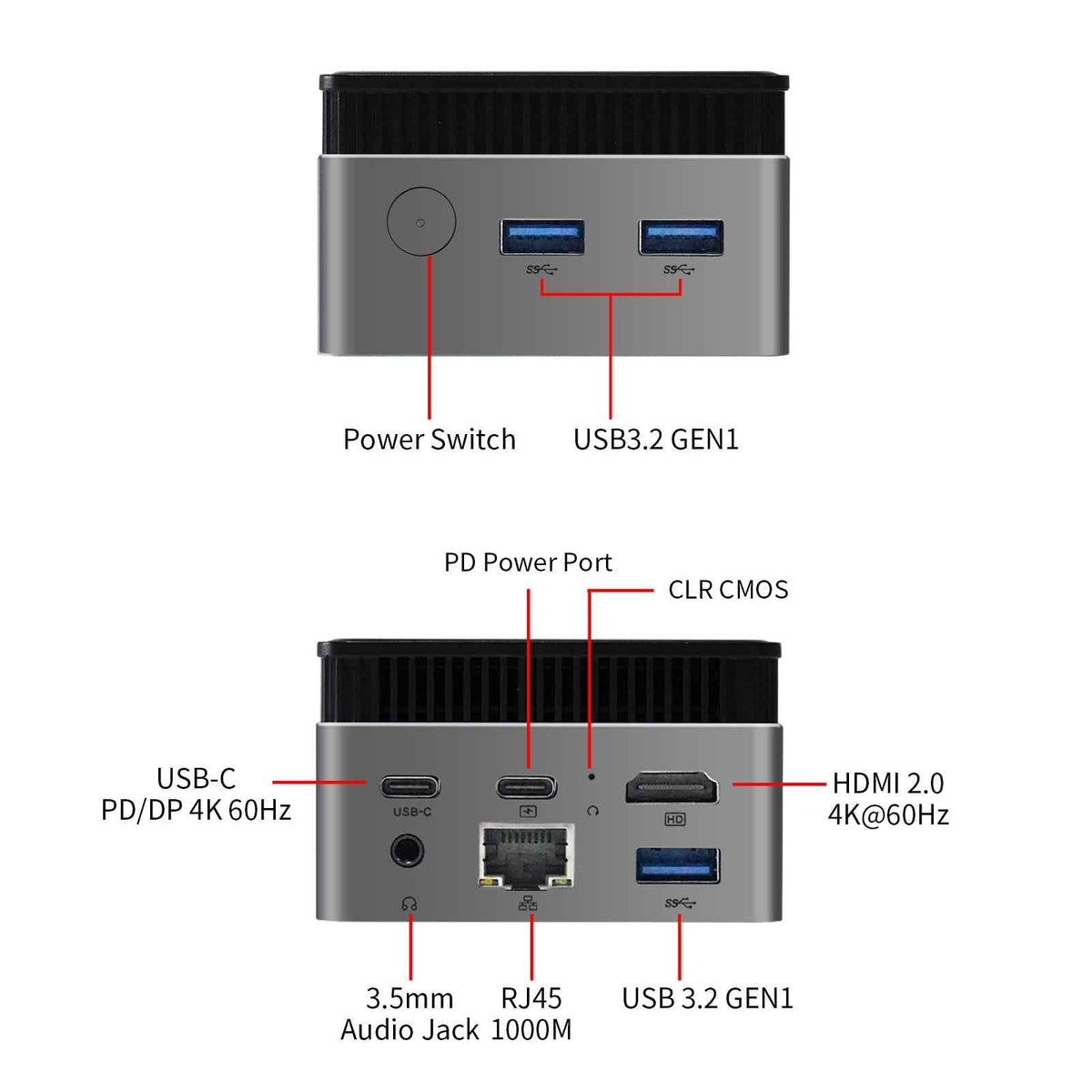

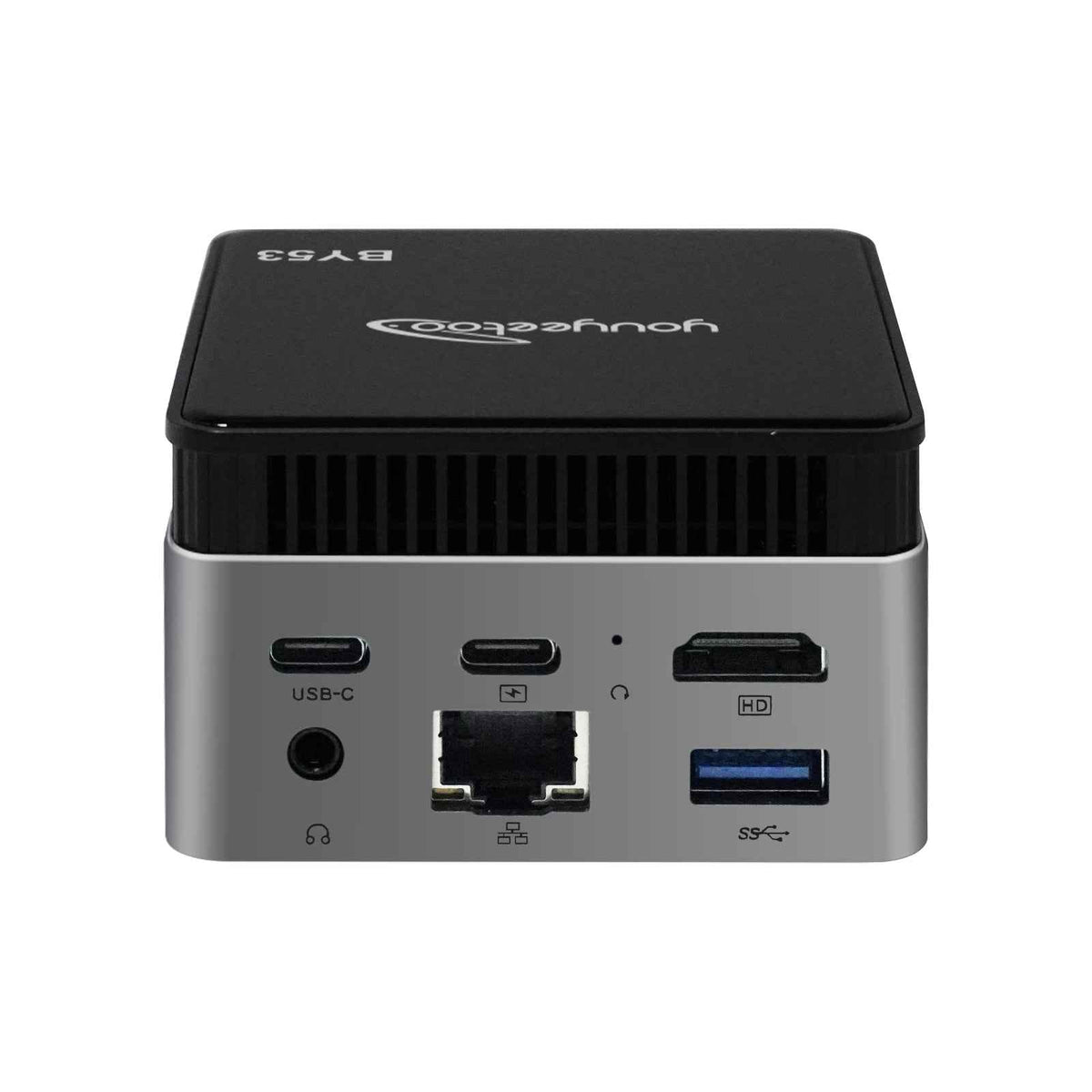

• Video Output: 1× HDMI 2.0 (4K@60 Hz) + 1× USB-C DP 1.4
• Network: Realtek RTL8111H Gigabit LAN, Intel AX201 Wi-Fi 5, BT 5.2
• USB: 3× USB 3.2 Gen 1
• Audio: 3.5 mm combo jack, HDMI digital
• Power: 12 V / 3 A adapter, 36 W max, 6 W idle, Support PD
• OS Support: Windows 11 Pro (pre-installed), Ubuntu 22.04+, Debian 12, CentOS Stream 9
• Environment: 0–50 °C, 10–90 % RH, fanless, VESA 75 mm
• Dimensions & Weight: 120 × 110 × 38 mm, 300 g
