Firefly

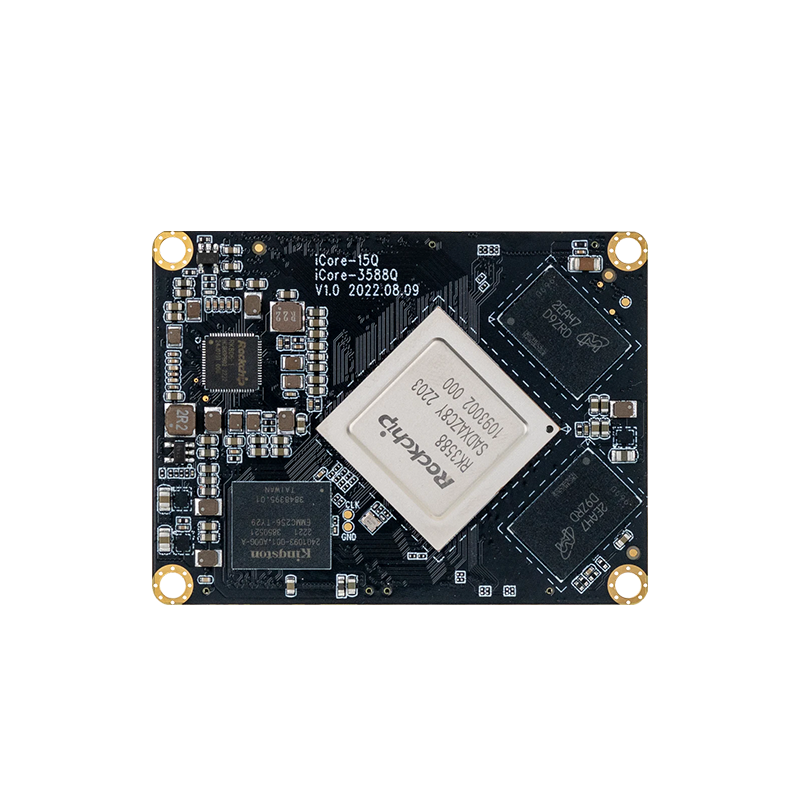

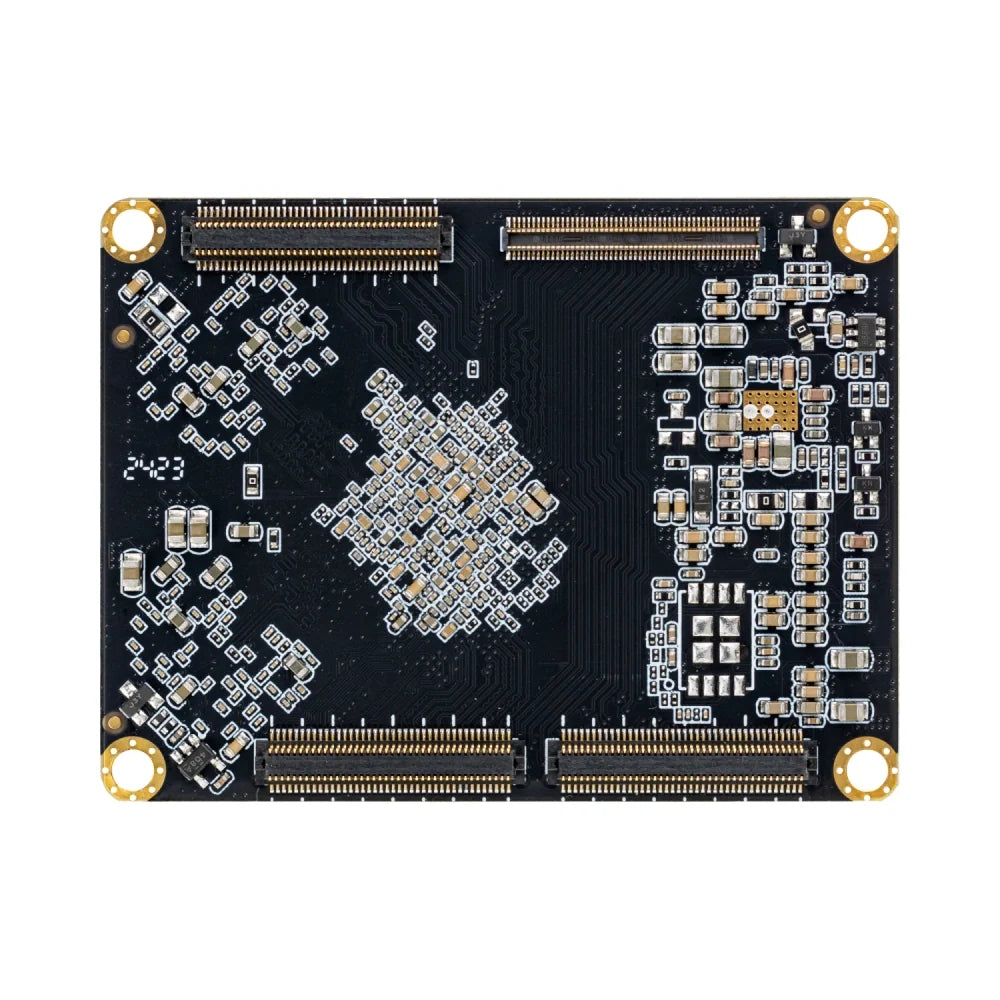

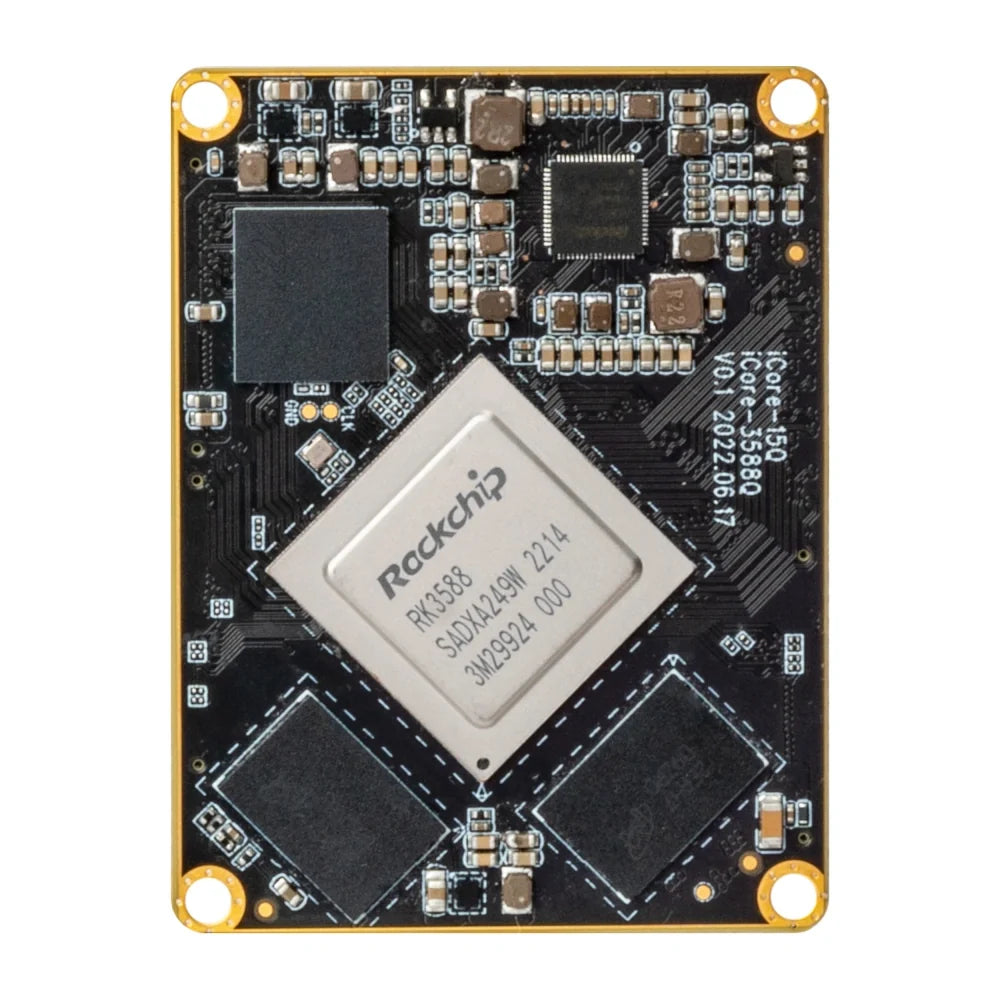

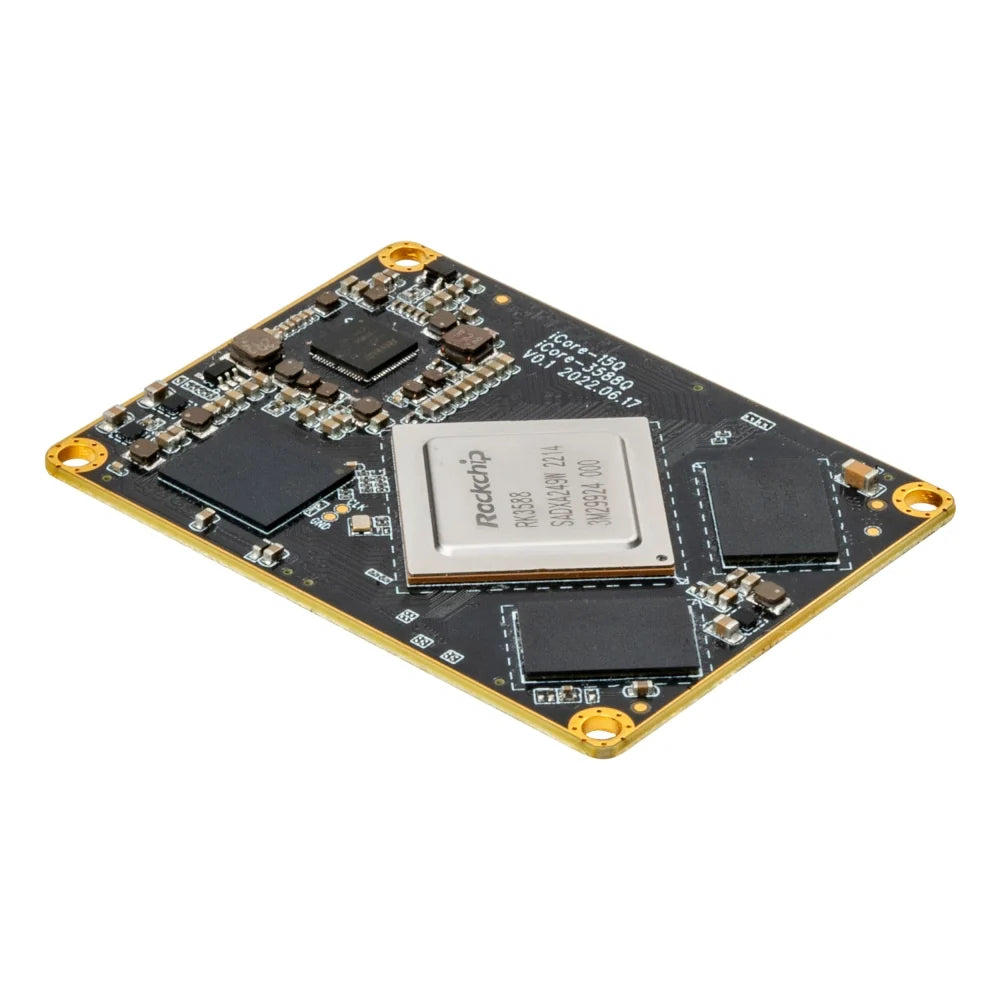

iCore-3588Q 8K AI System on Module
iCore-3588Q 8K AI System on Module
Couldn't load pickup availability
iCore-3588Q 8K AI System on Module is a Firefly product sold by Ai-Paipai. Key specifications — Soc: RockChip RK3588 · Npu: Up to 6TOPs (INT8), Support INT4/INT8/INT16 mixed… · Ram: LPDDR4/LPDDR4x/LPDDR5 (4GB/8GB/16GB/32GB optional) · Storage: eMMC (32GB/64GB/128GB/256GB optional) · Network: PCIe3.0/GMAC/SDIO3.0/USB3.1 (Gen1), capable of…. Typical applications: edge AI inference, machine vision and industrial automation. Ai-Paipai (Shenzhen AiPaipai Intelligent Technology Co., Ltd.) is an authorized distributor providing local technical support, pre-installed SDK / OS images, OEM / ODM customization, and worldwide shipping.
✅ Authorized Distributor — Ai-Paipai (Shenzhen AiPaipai Intelligent Technology Co., Ltd.)
This product is supplied by an authorized distributor of the original brand. We provide local technical support, pre-installed SDK / mirror images, and OEM / ODM customization, plus fast global shipping.
The iCore-3588Q is powered by Rockchip's flagship RK3588 octa-core 64-bit ARM processor, supporting up to 32GB RAM and 8K video encoding/decoding. Featuring a BTB interface for high-speed transmission, it offers rich connectivity including multi-drive support, Gigabit Ethernet, Wi-Fi 6, 5G/4G expansion, and multi-display outputs. With multi-OS compatibility, it is ideal for ARM PCs, edge computing, cloud servers, and smart NVR systems.
- Product Datasheet: Click Here
- Product Wiki: Click Here
Feature
- New-gen AIoT SoC - RK3588S Series: The Rockchip RK3588 is a next-generation flagship AIoT SoC built on an advanced 8nm process, delivering powerful performance with its octa-core 64-bit CPU (up to 2.4GHz). It integrates an ARM Mali-G610 MP4 GPU and a high-efficiency NPU offering 6 TOPS of AI computing power, along with a 48MP ISP supporting HDR and 3DNR for enhanced imaging.
- Real 8K Experience: Engineered for premium multimedia experiences, this SoM delivers true 8K@60fps VP9 decoding with stunning clarity and detail. It features full support for OpenGL ES 3.2, OpenCL 2.2, and Vulkan 1.2, alongside a dedicated 2D hardware engine for ultra-smooth rendering. Perfect for high-end displays, AI-driven applications, and immersive viewing, it meets the most demanding visual and processing needs.
- Multi-channel Input and Output: The SoM has HDMI 2.1/eDP1.3/MIPI-DSI/DP1.4/BT.1120 multi-channel video output and HDMI RX2.0/MIPI-CSI/DVP video input interface, supports multi-channel 8K video output and 4K video input, can realize up to seven-screen display, provides up to 16-channel 1080P@30fps cameras, and 4, 6, and 8-channel wide-angle seamless stitching.
- Firm and Tight Board-to-Board Interface: The SoM uses high-speed industrial-grade connectors with high reliability and stability. The BTB interface connection is tight and firm, and can be easily installed on the backplane.
Hardware Overview
Shipping list
- Main unit × 1
- Power adapter / cable (region plug on request) × 1
- Accessories vary by configuration — contact us for the exact included list.
Document links will be replaced with the official Firefly resource URLs on request.
Our cooperating carriers: FedEx, DHL, UPS, SF Express
Delivery Area And Cost
| Country/Region | 0–2kg | 2–3kg | 3–4kg | 4–5kg | 5–6kg | 6–7kg | 7–8kg | 8–9kg | 9–10kg |
|---|---|---|---|---|---|---|---|---|---|
| Japan, Taiwan, Hong Kong, Macau | $15 | $20 | $25 | $30 | $35 | $40 | $45 | $50 | $55 |
| Singapore, Thailand, Malaysia | $20 | $25 | $30 | $35 | $40 | $45 | $50 | $55 | $60 |
| Indonesia, Philippines | $25 | $30 | $40 | $50 | $60 | $70 | $80 | $85 | $95 |
| South Korea | $25 | $35 | $35 | $45 | $45 | $55 | $55 | $65 | $65 |
| United States, Australia, New Zealand, Canada, UK, and most of Western Europe | $30 | $45 | $55 | $65 | $75 | $85 | $95 | $105 | $115 |
| Other regions (Eastern Europe, Middle East, Latin America, etc.) | $50 | $65 | $80 | $95 | $110 | $125 | $135 | $150 | $165 |
Shipping time is for reference only; the actual situation shall prevail.
- Authorized & Genuine — sourced directly from brand-approved channels.
- Local Engineering Support — datasheets, SDKs, and pre-flashed images in English and Chinese.
- OEM / ODM & FPGA Customization — tailor specs, enclosures, and BSP for your project.
- One-Stop Sourcing — Firefly + youyeetoo + our own FPGA / edge lineup in one store.
Frequently asked questions
What is iCore-3588Q 8K AI System on Module used for?
iCore-3588Q 8K AI System on Module is a SoM / Core Board from Firefly. It is typically used in embedded computing, edge AI inference, industrial control and rapid prototyping, and can be integrated into custom carrier boards or finished devices.
Does iCore-3588Q 8K AI System on Module include technical support, datasheets or pre-flashed images?
Yes. Ai-Paipai supplies this item as an authorized distributor and provides local engineering support, datasheets, SDKs and pre-flashed system images where applicable, plus OEM / ODM customization for volume projects.
Can I order iCore-3588Q 8K AI System on Module with OEM / ODM options or CE / FCC / RoHS certification?
OEM / ODM customization (specs, enclosure, BSP) is available, and CE / FCC / RoHS certified options can be provided on request for EU and US imports. Contact us for a quote.
How is iCore-3588Q 8K AI System on Module shipped, and what is the lead time?
Orders ship worldwide from Shenzhen. Stock items typically dispatch within a few business days; configurable or made-to-order variants take longer. Exact lead time is shown at checkout or on request.
Specifications
| Product Datasheet | Click Here |
| Product Wiki | Click Here |
| Firm and Tight Board-to-Board Interface | The SoM uses high-speed industrial-grade connectors with high reliability and stability. The BTB interface connection is tight and firm, and can be easily installed on the backplane. |
