ICORE-3576Q38 38mm System On Module
ICORE-3576Q38 38mm System On Module
Couldn't load pickup availability
ICORE-3576Q38 38mm System On Module is a Firefly product sold by Ai-Paipai. Key specifications — Soc: Rockchip RK3576 · Npu: 6 TOPS NPU, It supports INT4/INT8/INT16/FP16/BF16/TF32… · Ram: LPDDR4/LPDDR4x (4GB/8GB/16GB optional) · Storage: eMMC (16GB/32GB/64GB/128GB/256GB optional), UFS2.0… · Video output: 1 × HDMI2.1(4096×2160@120Hz)/eDP1.3(4096×2160@60Hz,…. Typical applications: edge AI inference, machine vision and IoT gateway deployments. Ai-Paipai (Shenzhen AiPaipai Intelligent Technology Co., Ltd.) is an authorized distributor providing local technical support, pre-installed SDK / OS images, OEM / ODM customization, and worldwide shipping.
✅ Authorized Distributor — Ai-Paipai (Shenzhen AiPaipai Intelligent Technology Co., Ltd.)
This product is supplied by an authorized distributor of the original brand. We provide local technical support, pre-installed SDK / mirror images, and OEM / ODM customization, plus fast global shipping.

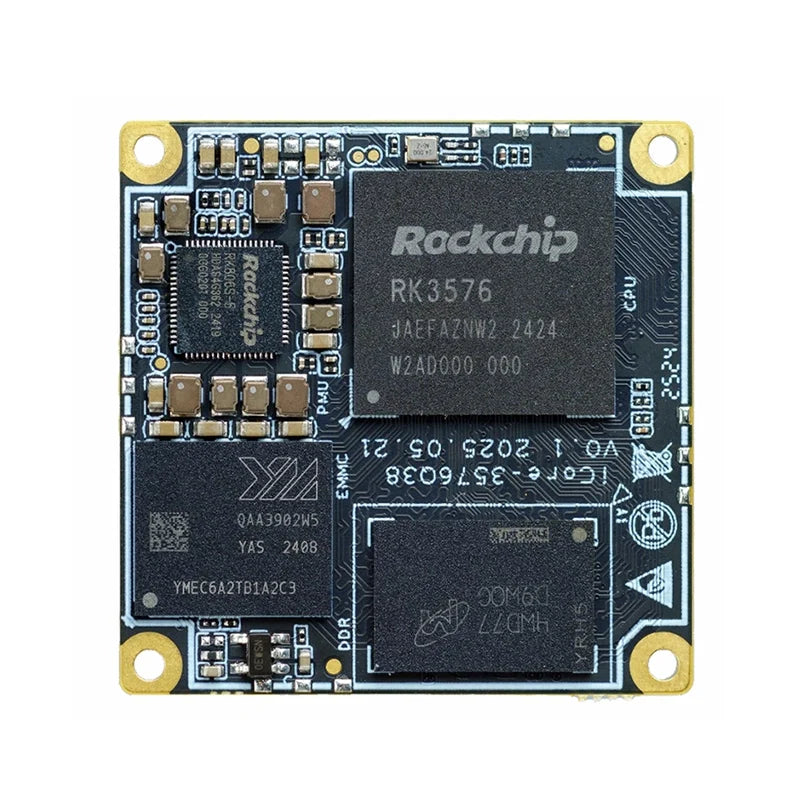

ICORE-3576Q38 Mini SoM: A compact 38×38mm powerhouse delivering 6 TOPS edge AI performance, enabling private large-model deployment with industrial-grade reliability for intelligent edge solutions. Especially suitable for IPC Camera and drone applications.
- Product Datasheet: Click Here
- Product Wiki: Click Here
Feature

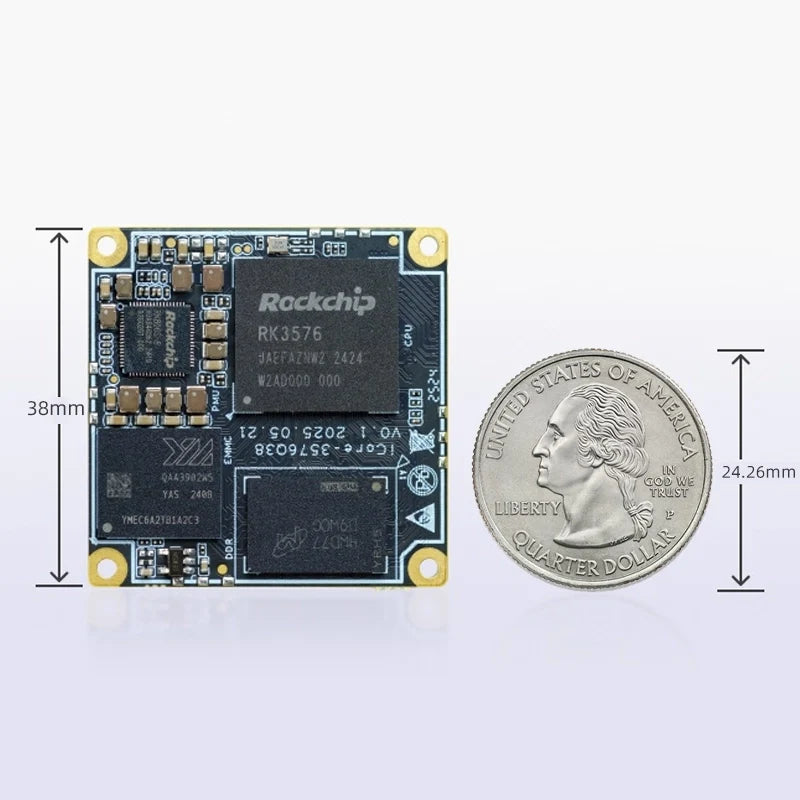

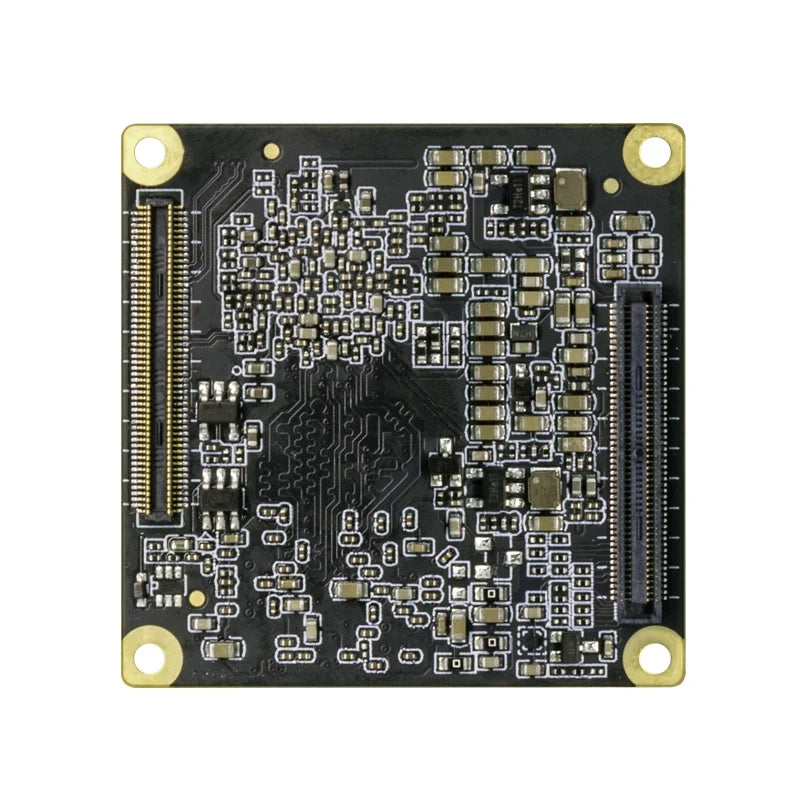

- 38mm × 38mm Mini Size: The SoM utilizes a BTB interface design and features a high-speed, industrial-grade connector. This design offers superior transmission capabilities, high-frequency stability, and solder-free operation. Measuring just 38 x 38 mm, the SoM saves valuable space.
- AIoT Processor RK3576: The RK3576 utilizes the big.LITTLE architecture (4x A72 + 4x A53) with a clock speed of up to 2.2GHz, providing strong support for high-performance computing and multi-tasking. Equipped with a Mali-G52 MC3 GPU with 145G FLOPS of GPU performance, it enables efficient heterogeneous computing and meets the needs of graphics-intensive applications.
- 6 TOPS Edge Computing Power: Built-in 6TOPS NPU, supports INT4/INT8/INT16/FP16/BF16/TF32 operations, dual-core collaborative or independent operation, and supports parallel multi-tasking and multi-scenario processing.
- Deployment of Large AI Models: Supports private deployment of large-parameter models based on the Transformer architecture, such as the Gemma series, ChatGLM series, and other large language models.
- 8K/4K High-Frame-Rate Video Decoding: Supports 8K@30fps/4K@120fps (VP9, AVS2, AV1) and 4K@60fps video decoding (H.264/AVC), as well as 4K@60fps video encoding (H.264/AVC).
Hardware Overview
Shipping list
- Main unit × 1
- Power adapter / cable (region plug on request) × 1
- Accessories vary by configuration — contact us for the exact included list.
Document links will be replaced with the official Firefly resource URLs on request.
Our cooperating carriers: FedEx, DHL, UPS, SF Express
Delivery Area And Cost
| Country/Region | 0–2kg | 2–3kg | 3–4kg | 4–5kg | 5–6kg | 6–7kg | 7–8kg | 8–9kg | 9–10kg |
|---|---|---|---|---|---|---|---|---|---|
| Japan, Taiwan, Hong Kong, Macau | $15 | $20 | $25 | $30 | $35 | $40 | $45 | $50 | $55 |
| Singapore, Thailand, Malaysia | $20 | $25 | $30 | $35 | $40 | $45 | $50 | $55 | $60 |
| Indonesia, Philippines | $25 | $30 | $40 | $50 | $60 | $70 | $80 | $85 | $95 |
| South Korea | $25 | $35 | $35 | $45 | $45 | $55 | $55 | $65 | $65 |
| United States, Australia, New Zealand, Canada, UK, and most of Western Europe | $30 | $45 | $55 | $65 | $75 | $85 | $95 | $105 | $115 |
| Other regions (Eastern Europe, Middle East, Latin America, etc.) | $50 | $65 | $80 | $95 | $110 | $125 | $135 | $150 | $165 |
Shipping time is for reference only; the actual situation shall prevail.
- Authorized & Genuine — sourced directly from brand-approved channels.
- Local Engineering Support — datasheets, SDKs, and pre-flashed images in English and Chinese.
- OEM / ODM & FPGA Customization — tailor specs, enclosures, and BSP for your project.
- One-Stop Sourcing — Firefly + youyeetoo + our own FPGA / edge lineup in one store.
Frequently asked questions
What is ICORE-3576Q38 38mm System On Module used for?
ICORE-3576Q38 38mm System On Module is a SoM / Core Board from Firefly. It is typically used in embedded computing, edge AI inference, industrial control and rapid prototyping, and can be integrated into custom carrier boards or finished devices.
Does ICORE-3576Q38 38mm System On Module include technical support, datasheets or pre-flashed images?
Yes. Ai-Paipai supplies this item as an authorized distributor and provides local engineering support, datasheets, SDKs and pre-flashed system images where applicable, plus OEM / ODM customization for volume projects.
Can I order ICORE-3576Q38 38mm System On Module with OEM / ODM options or CE / FCC / RoHS certification?
OEM / ODM customization (specs, enclosure, BSP) is available, and CE / FCC / RoHS certified options can be provided on request for EU and US imports. Contact us for a quote.
How is ICORE-3576Q38 38mm System On Module shipped, and what is the lead time?
Orders ship worldwide from Shenzhen. Stock items typically dispatch within a few business days; configurable or made-to-order variants take longer. Exact lead time is shown at checkout or on request.
Specifications
| Product Datasheet | Click Here |
| Product Wiki | Click Here |
| 38mm × 38mm Mini Size | The SoM utilizes a BTB interface design and features a high-speed, industrial-grade connector. This design offers superior transmission capabilities, high-frequency stability, and solder-free operation. Measuring just 38 x 38 mm, the SoM saves valuable space. |
| 6 TOPS Edge Computing Power | Built-in 6TOPS NPU, supports INT4/INT8/INT16/FP16/BF16/TF32 operations, dual-core collaborative or independent operation, and supports parallel multi-tasking and multi-scenario processing. |
| Deployment of Large AI Models | Supports private deployment of large-parameter models based on the Transformer architecture, such as the Gemma series, ChatGLM series, and other large language models. |
| 8K/4K High-Frame-Rate Video Decoding | Supports 8K@30fps/4K@120fps (VP9, AVS2, AV1) and 4K@60fps video decoding (H.264/AVC), as well as 4K@60fps video encoding (H.264/AVC). |
