Firefly

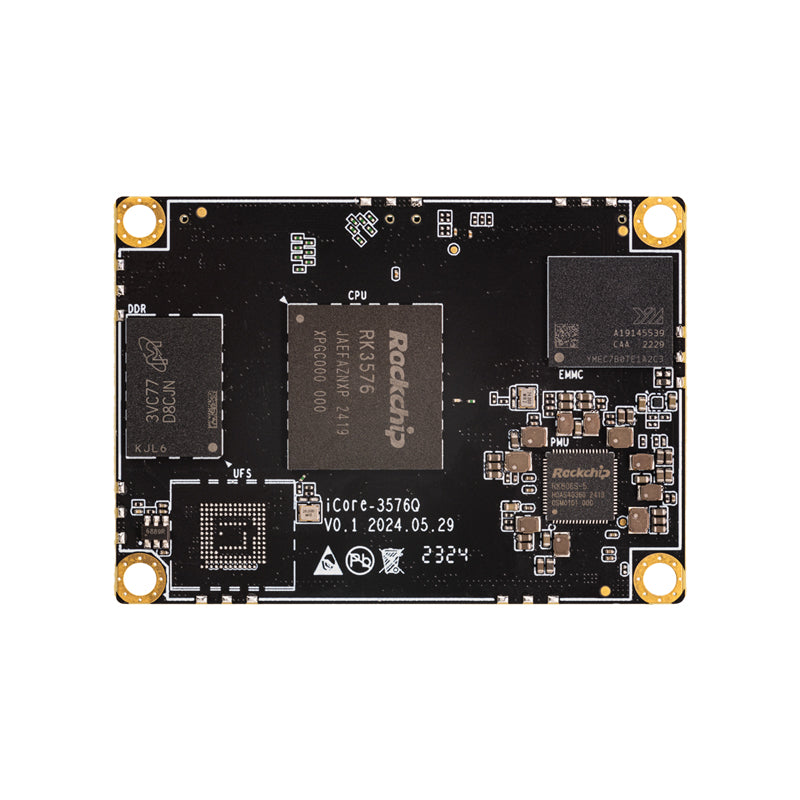

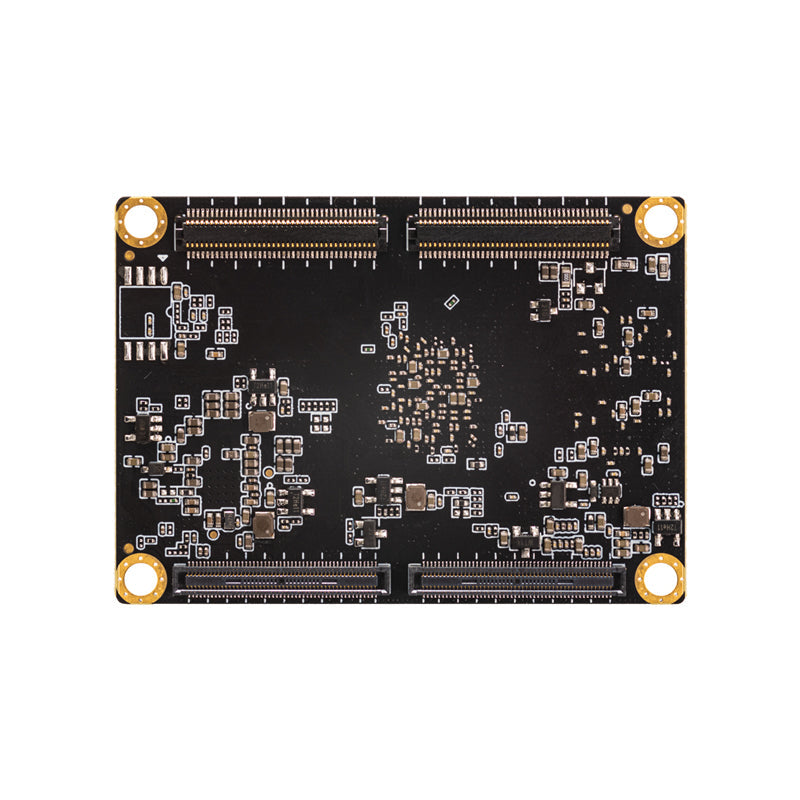

iCore-3576JQ Industrial System On Module

iCore-3576JQ Industrial System On Module

$299.00 USD
$299.00 USD
Sale Sold out
Shipping calculated at checkout.
Configuration

iCore-3576JQ Industrial System On Module is a Firefly product sold by Ai-Paipai. Key specifications — Soc: Rockchip RK3576J · Ai performance: Support the privatization deployment of… · Ram: LPDDR4/LPDDR4x (4GB/8GB optional) · Storage: eMMC (16GB/32GB/64GB/128GB/256GB optional), UFS2.0… · Video output: 1 × HDMI2.1(4096×2160@120Hz)/eDP1.3(4096×2160@60Hz,…. Typical applications: edge AI inference, machine vision and IoT gateway deployments. Ai-Paipai (Shenzhen AiPaipai Intelligent Technology Co., Ltd.) is an authorized distributor providing local technical support, pre-installed SDK / OS images, OEM / ODM customization, and worldwide shipping.

✅ Authorized Distributor — Ai-Paipai (Shenzhen AiPaipai Intelligent Technology Co., Ltd.)

This product is supplied by an authorized distributor of the original brand. We provide local technical support, pre-installed SDK / mirror images, and OEM / ODM customization, plus fast global shipping.

Shipping list

  • Main unit × 1
  • Power adapter / cable (region plug on request) × 1
  • Accessories vary by configuration — contact us for the exact included list.
Ai performance
Support the privatization deployment of ultra-large-scale parametric models under the Transformer architecture, such as Gemma-2B, ChatGLM3-6B, Qwen-1.8B, Phi-3-3.8B, and other large language models. It supports traditional network architectures such as CNN, RNN, and LSTM, and supports the import and export of RKNN models. Support a variety of deep learning frameworks, including TensorFlow, TensorFlow Lite, PyTorch, Caffe, ONNX and Darknet. It also supports the development of custom operators Support Docker container management technology It supports the real-time object detection algorithm YOLO (You Only Look Once), which is fast and real-time compared with traditional object detection methods, and can accurately identify and locate multiple target objects in images or videos, powering AI applications.
Soc
Rockchip RK3576J
Cpu
Octa-core 64-bit processor (4×A72 + 4×A53) with a maximum frequency of 1.6GHz
Gpu
G52 MC3@1GHz, support OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1, embedded with high-performance 2D acceleration hardware
Npu
6 TOPS NPU, It supports INT4/INT8/INT16/FP16/BF16/TF32 operations, supports dual-core collaborative or independent work, and supports multi-task and multi-scene parallelism
Ram
LPDDR4/LPDDR4x (4GB/8GB optional)
Storage
eMMC (16GB/32GB/64GB/128GB/256GB optional), UFS2.0 (Optional)
Power
5.0V (voltage tolerance ± 5%)
Power consumption
Max: 3.75W (5V/750mA) Normal: 0.45W (5V/90mA) Min: 0.045W (5V/9mA)
Video output
1 × HDMI2.1(4096×2160@120Hz)/eDP1.3(4096×2160@60Hz, supports 1Lane/2Lane/4Lane modes) 1 × DP1.4 (4096×2160@120Hz) 1 × EBC Output interface (support E-ink EPD (Electronic Paper Display), 2560×1920) 1 × MIPI_DCPHY_TX (Supports V2.0 version and 0/1/2/3 Lane mode; C-PHY supports V1.1 version and 0/1/2 Trio mode; 2560×1600@60Hz) 1 × LCDC TX (Supports parallel 24 bit RGB mode) 1920×1080@60Hz 16 bit BT1120 mode 1920×1080@60Hz 8-bit BT656 mode 720×576@60Hz And MCU mode)
Audio
2 × SAI (4T/4R), 3 × SAI (1T/1R), supports I2S/TDM/PCM mode, and supports sampling rates up to 192 KHz 2 × SPDIF TX & RX (8ch; Supports up to 24bits resolution) 2 × PDM (Up to 8 channels, audio resolution 16~24 bits, sample rate up to 192KHz, support PDM master receive mode) 2 × DSM (Double-rate interface supported; Supports 8-wire and 16-wire serial transmission modes; DSMC_CLKP/N up to 100MHz)
Os
It supports RTLinux kernel and has excellent real-time performance, which is widely used in industrial application scenarios. Support Android14, Linux OS, Buildroot, a domestic operating system, and provide a safe and stable system environment for product research and production. It has new industrial features such as real-time network, Flexbus, hardware resource isolation, and DSMC to meet the needs of different industrial applications.
Weight
≈15g
Environment
Operating Temperature: -40℃ ~ 85℃ Storage Humidity: 10%~90%RH (non-condensing)
Watchdog
External watchdog support (on-board watchdog IC)
Interface type
BTB(2 × BTB Socket(80Pin) + 2 × BTB Socket(100Pin))
Usb
1 × USB3.2 Gen1 OTG0 (multiplexed with DP1.4) 1 × USB3.2 Gen1 OTG1 (multiplexed with PCIe 2.1/SATA 3.1)
Can
2 × CAN FD (Supports 8192-bit receive FIFO)
Uart
12 × UART (Support automatic flow control mode, support RS485 function)
Spi
5 × SPI (Supports serial master and serial slave modes, software configurable)
I2c
10 × I2C (Supports 7-bit and 10-bit address modes, data rates up to 100kbps in standard mode and up to 400kbps in fast mode)
Product tutorialsClick Here
Product datasheetClick Here
SDK software and firmware filesClick Here

Document links will be replaced with the official Firefly resource URLs on request.
