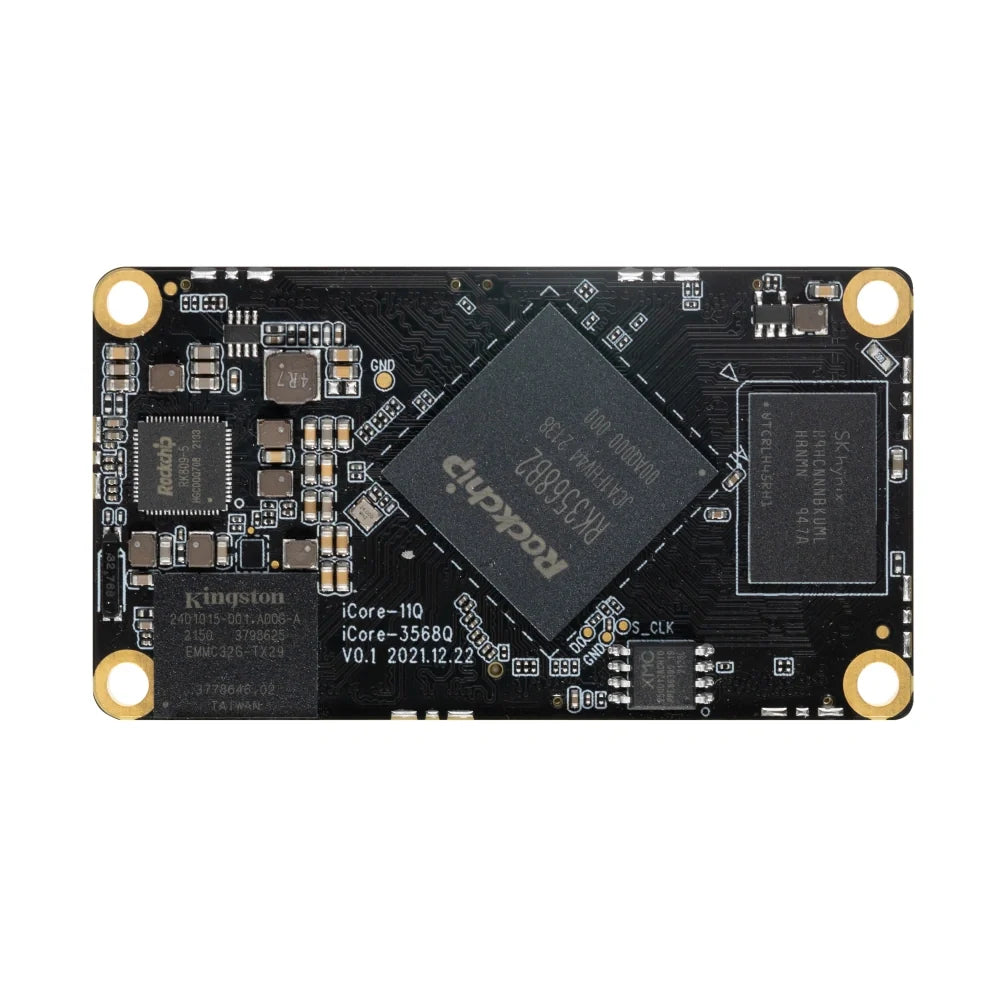

iCore-3568Q Quad-Core Industrial System on Module
iCore-3568Q Quad-Core Industrial System on Module
Couldn't load pickup availability
iCore-3568Q Quad-Core Industrial System on Module is a Firefly product sold by Ai-Paipai. Key specifications — Cpu: RK3568J Quad-core 64-bit Cortex-A55 processor, 22nm… · Npu: Integrated with an AI accelerator RKNN NPU,1.0 Tops@INT8… · Ram: LPDDR4 (1GB/2GB/4GB/8GB optional) · Storage: eMMC (8GB/16GB/32GB/64GB/128GB optional) · Network: GMAC/SDIO 3.0/USB 3.0, with capabilities for Gigabit…. Typical applications: edge AI inference, machine vision and industrial automation. Ai-Paipai (Shenzhen AiPaipai Intelligent Technology Co., Ltd.) is an authorized distributor providing local technical support, pre-installed SDK / OS images, OEM / ODM customization, and worldwide shipping.
✅ Authorized Distributor — Ai-Paipai (Shenzhen AiPaipai Intelligent Technology Co., Ltd.)
This product is supplied by an authorized distributor of the original brand. We provide local technical support, pre-installed SDK / mirror images, and OEM / ODM customization, plus fast global shipping.

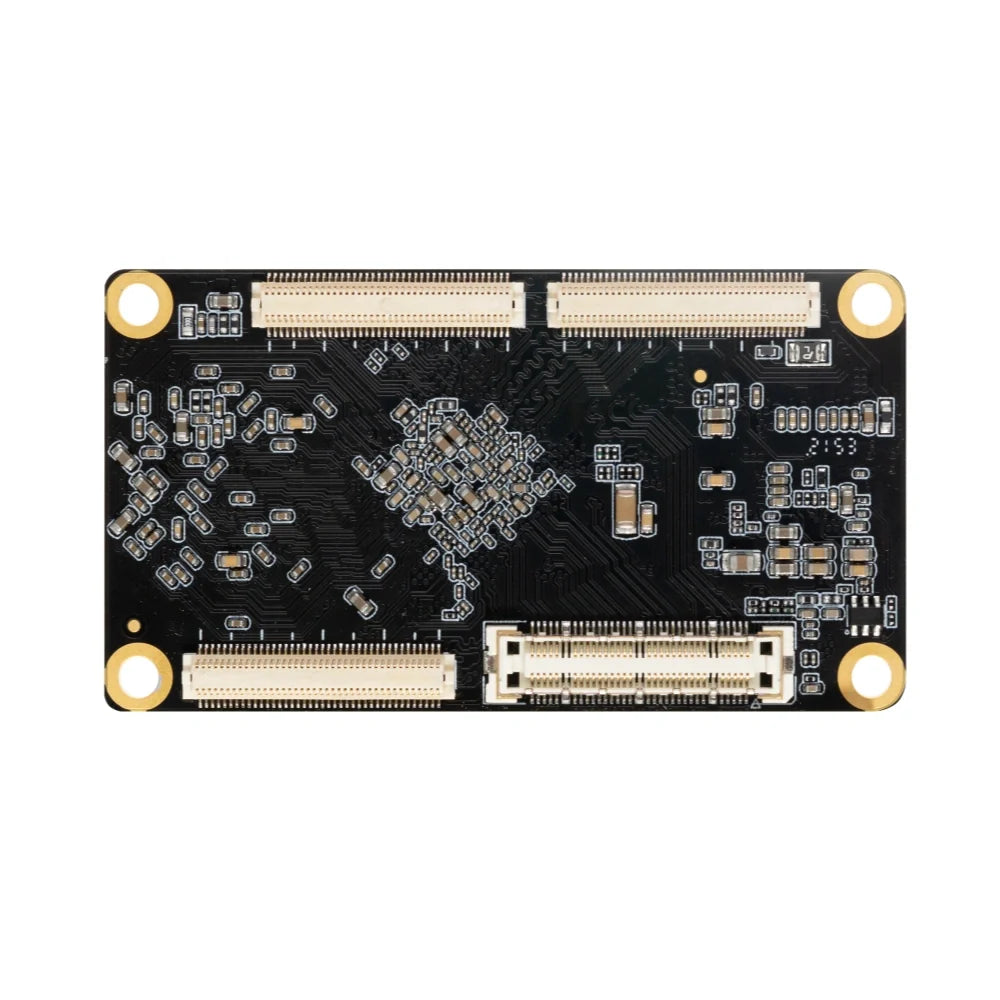

The iCore-3568JQ utilizes Rockchip's RK3568 series quad-core 64-bit industrial-grade processor and comes with 8GB of RAM. It supports high-speed wireless networks such as WiFi 6 and 5G/4G. The BTB interface provides enhanced transmission capabilities. This system-on-module (SOM) offers industrial-grade stability and can operate reliably over a wide temperature range of -40°C to 85°C.
With a backplane reference design, the device is versatile and ideally suited for applications such as industrial tablets, IoT gateways, edge computing, cloud terminals, industrial inspection, and in-vehicle infotainment.
- Product Datasheet: Click Here
- Product Wiki: Click Here
Feature
- RK3568J Industrial-grade Processor: The RK3568 series uses a quad-core 64-bit Cortex-A55 processor, adopts a 22nm lithography process, has a main frequency of up to 2.0GHz, and has a built-in 1TOPS NPU. It supports mainstream deep learning frameworks and provides efficient and stable performance for back-end device data processing.
- Integrated GPU, VPU, and NPU: This SoM integrates a dual-core GPU, a high-performance VPU, and a high-efficiency NPU. The GPU is compatible with OpenGL ES 3.2/2.0/1.1 and Vulkan 1.1. The VPU provides simultaneous encoding and decoding capabilities, supporting single-channel 4K 60fps or eight-channel 1080p 30fps multi-format decoding, as well as H.264 video encoding up to 1080p 60fps.
- Support Three Displays and Eight-camera Input: Equipped with a rich set of video interfaces, including MIPI-DSI, LVDS, eDP, HDMI, and MIPI-CSI, it supports three display outputs. A built-in 8M ISP provides security-grade image signal processing. This product supports up to eight 1080P camera inputs, making it ideal for multi-camera applications.
- Customizable for Commercial, Industrial, Automotive-grade Products: The iCore-3568JQ SoM is available in industrial and automotive-grade versions, supporting a wide operating temperature range (-40°C to 85°C) and enabling 24/7 stable operation to meet the demands of industrial applications. Its built-in FP16/BFP16-compatible NPU ensures algorithm portability, including 360-degree surround view algorithms, DMS algorithms, BSD algorithms, and DMS/APA (Automatic Parking Assist).
Hardware Overview
Shipping list
- Main unit × 1
- Power adapter / cable (region plug on request) × 1
- Accessories vary by configuration — contact us for the exact included list.
Document links will be replaced with the official Firefly resource URLs on request.
Our cooperating carriers: FedEx, DHL, UPS, SF Express
Delivery Area And Cost
| Country/Region | 0–2kg | 2–3kg | 3–4kg | 4–5kg | 5–6kg | 6–7kg | 7–8kg | 8–9kg | 9–10kg |
|---|---|---|---|---|---|---|---|---|---|
| Japan, Taiwan, Hong Kong, Macau | $15 | $20 | $25 | $30 | $35 | $40 | $45 | $50 | $55 |
| Singapore, Thailand, Malaysia | $20 | $25 | $30 | $35 | $40 | $45 | $50 | $55 | $60 |
| Indonesia, Philippines | $25 | $30 | $40 | $50 | $60 | $70 | $80 | $85 | $95 |
| South Korea | $25 | $35 | $35 | $45 | $45 | $55 | $55 | $65 | $65 |
| United States, Australia, New Zealand, Canada, UK, and most of Western Europe | $30 | $45 | $55 | $65 | $75 | $85 | $95 | $105 | $115 |
| Other regions (Eastern Europe, Middle East, Latin America, etc.) | $50 | $65 | $80 | $95 | $110 | $125 | $135 | $150 | $165 |
Shipping time is for reference only; the actual situation shall prevail.
- Authorized & Genuine — sourced directly from brand-approved channels.
- Local Engineering Support — datasheets, SDKs, and pre-flashed images in English and Chinese.
- OEM / ODM & FPGA Customization — tailor specs, enclosures, and BSP for your project.
- One-Stop Sourcing — Firefly + youyeetoo + our own FPGA / edge lineup in one store.
Frequently asked questions
What is iCore-3568Q Quad-Core Industrial System on Module used for?
iCore-3568Q Quad-Core Industrial System on Module is a SoM / Core Board from Firefly. It is typically used in embedded computing, edge AI inference, industrial control and rapid prototyping, and can be integrated into custom carrier boards or finished devices.
Does iCore-3568Q Quad-Core Industrial System on Module include technical support, datasheets or pre-flashed images?
Yes. Ai-Paipai supplies this item as an authorized distributor and provides local engineering support, datasheets, SDKs and pre-flashed system images where applicable, plus OEM / ODM customization for volume projects.
Can I order iCore-3568Q Quad-Core Industrial System on Module with OEM / ODM options or CE / FCC / RoHS certification?
OEM / ODM customization (specs, enclosure, BSP) is available, and CE / FCC / RoHS certified options can be provided on request for EU and US imports. Contact us for a quote.
How is iCore-3568Q Quad-Core Industrial System on Module shipped, and what is the lead time?
Orders ship worldwide from Shenzhen. Stock items typically dispatch within a few business days; configurable or made-to-order variants take longer. Exact lead time is shown at checkout or on request.
