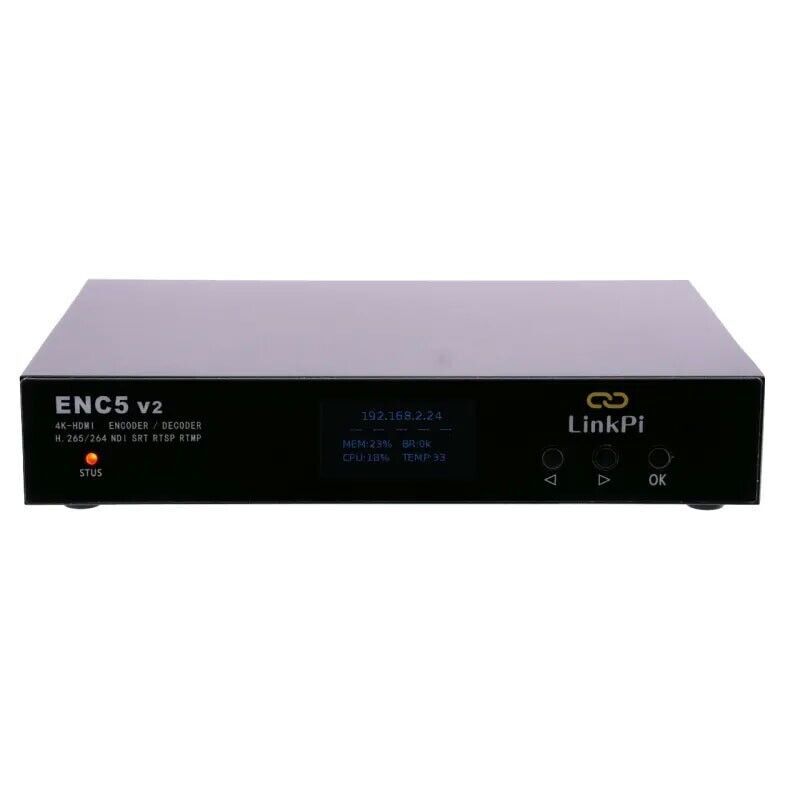

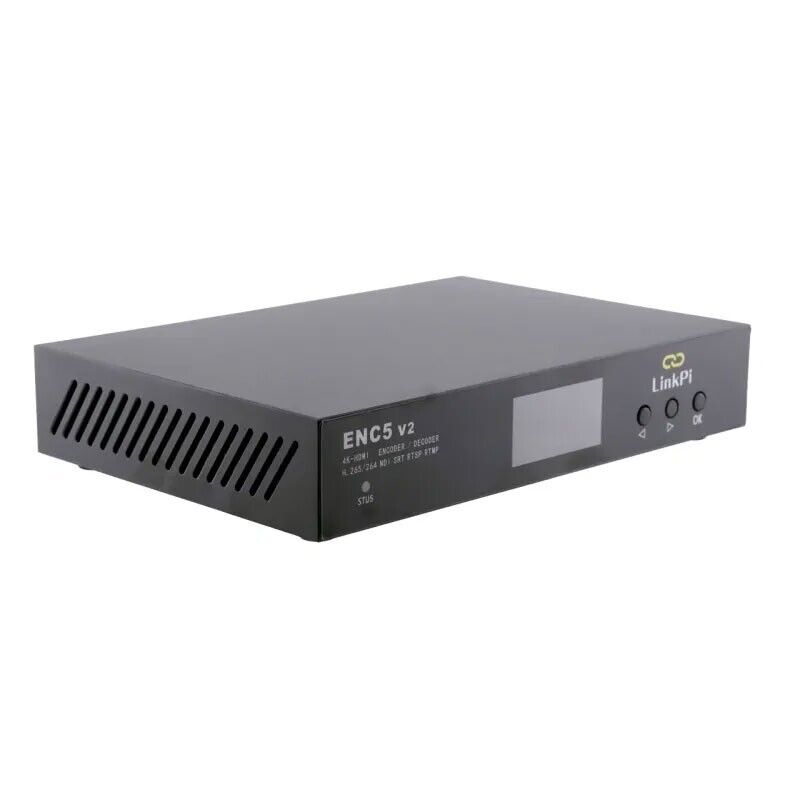

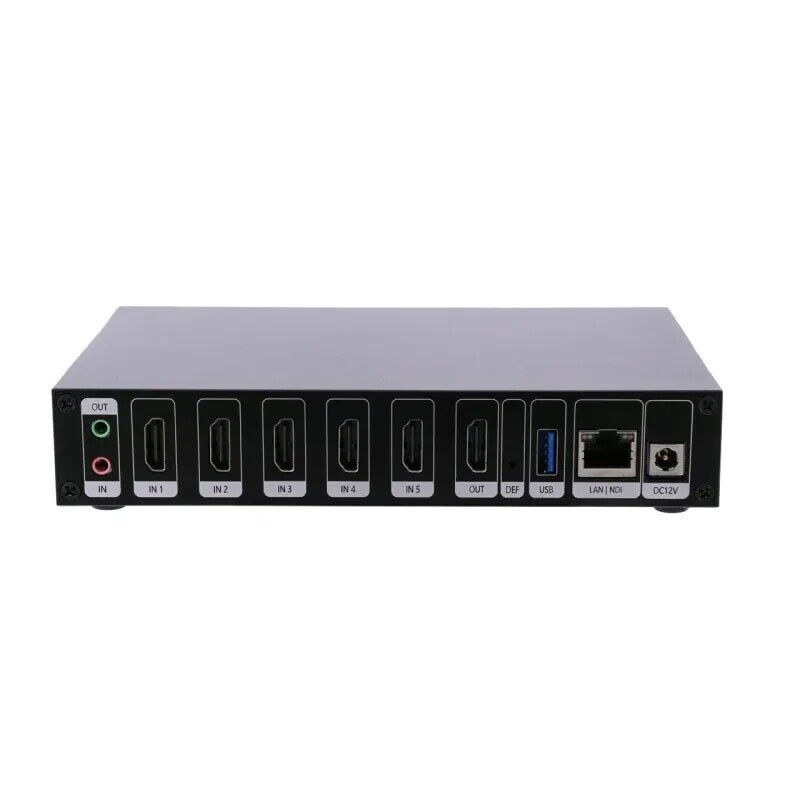

Linkpi ENC5v2 5CH 4K HDMI Encoder Video Decoder SRT NDI RTMP HD Live Streaming
Linkpi ENC5v2 5CH 4K HDMI Encoder Video Decoder SRT NDI RTMP HD Live Streaming
Regular price
$381.91 USD
Regular price
Sale price
$381.91 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
LinkPi ENC5-V2 5-Channel 4K HDMI Encoder Video Decoder SRT NDI RTMP HD Live Streaming Device
WIKI: https://wiki.youyeetoo.com/en/LinkPi
Forum: https://forum.youyeetoo.com/c/linkpi-hd-video-encode/9
Tips:
The product supports NDI encoding and NDI decoding. At the request of NewTek, the copyright holder, customers who need to use the full NDI function need to purchase an additional NDI license. Users who do not need the full NDI functionality do not need to purchase this license, which will not affect the use of other functions.
Features:
- 4KP30 HD input
- Multi-protocol live streaming: RTSP/RTMP/HTTP/HLS
- For NDI and SRT: the device can be used with software including VMix
- High compression ratio: H.265 + smartP
- Advanced features: watermark subtitles and image optimization
- It can be used for video encoding and decoding, as well as directing and mixing. Encoding and decoding is based on protocol groups, such as NDI, SRT and RTSP to achieve image transmission. The delay of the whole process of encoding and decoding is about 60~80ms
- Supports many peripherals: including TV set-top boxes, laptops, camcorders, DSLR cameras, network surveillance, USB cameras, mobile phones and game consoles. Most encoder models already support HDCP and support connection for PS4, Blu-ray players, and other devices. If you need more information, please contact customer service. (Note: Mobile phone access requires additional purchase of MHL adapter or special adapter for Apple, wireless screen projector, etc.)
- Support special protocols: The manufacturer has obtained NewTek certification and authorization. One device supports any multiple NDI outputs, supports authorization code import, and prevents copying. (Note: According to NewTek's licensing regulations, users who have not purchased NDI licenses can only use the NDI function for 30 minutes at a time)
- By enabling the SRT protocol, users can connect any channel of the encoder to OBS, vMix, and other software for secondary editing and publishing. It is suitable for scenarios such as live streaming and directing
- Support mobile phone control: scan the code (see manual) on the mobile phone to open the mini program. Most of the functions of the web site can be operated through mini-programs. Automatic discovery of all encoders in the LAN
- Multi-platform live streaming: Only one encoder is required to push live streams to any number of platforms at the same time
- Full frame rate deinterlacing: supports 1080i60/50 to 1080P6050 and 720i60/50 to 720P60/50
- Multi-screen directing: In addition to the input video of HDMI, USB, network and other channels, the system also supports the arrangement and mixing of multiple channels of pictures, and can be directed and switched in real time
- Group management: When there are multiple encoders in the network, the devices will be automatically networked. Users only need to access any one encoder to manage all encoders. A unified program can be generated. One-click synchronous encoding and streaming settings are supported
- Live streaming for online learning: This encoder is compatible with DingTalk
- Wireless network transmission: support WIFI and 4G module to realize wireless video transmission and mobile live streaming
- Remote assistance: One-click remote assistance and no need to log in to your PC. Easy and fast to use, ensuring privacy and security
- Integrated communication and Tally light: Support LAN, calls via Internet and Tally light control. Automatic linkage to vMix and other directing software (headset and Tally light should be purchased separately)
Specifications:
Core performance:
- CPU: A53 quad-core for ARM Cortex at 1.2GHz; 32KB I-Cache and 32KB D-Cache
- Memory: 4GB DDR4
- FLASH: 8GB eMmc
Video parameters:
- HDMI input: 5 HDMI 1.4 supports up to 4K at 30fps
- HDMI output: up to 4K60
- Resolution: 4K30, 1080P, 720P, 1080i, 720i, 1600×1200, 1440x900, 1366×768, 1280×1024, 1024x768, 800x600 and 640x480
- Encoding formats: H.264 Baseline profile, H.264 Main profile, H.264 High profile, H.265 Main profile and MJPEG/JPEG Baseline
- Decoding formats: H264, H264 and MJPEG
- Encoding resolution: Main: 4K, 1080P, 720P and 360P; Sub: 720P and 360P
- Frame rate: 1~60 adjustable
- Multi-reference frame: Supports SmartP and DualP
- Maximum bitrate: 20Mbps
- Bitrate control: CBR/VBR/AVBR/FIXQP/QPMAP
Audio and video parameters:

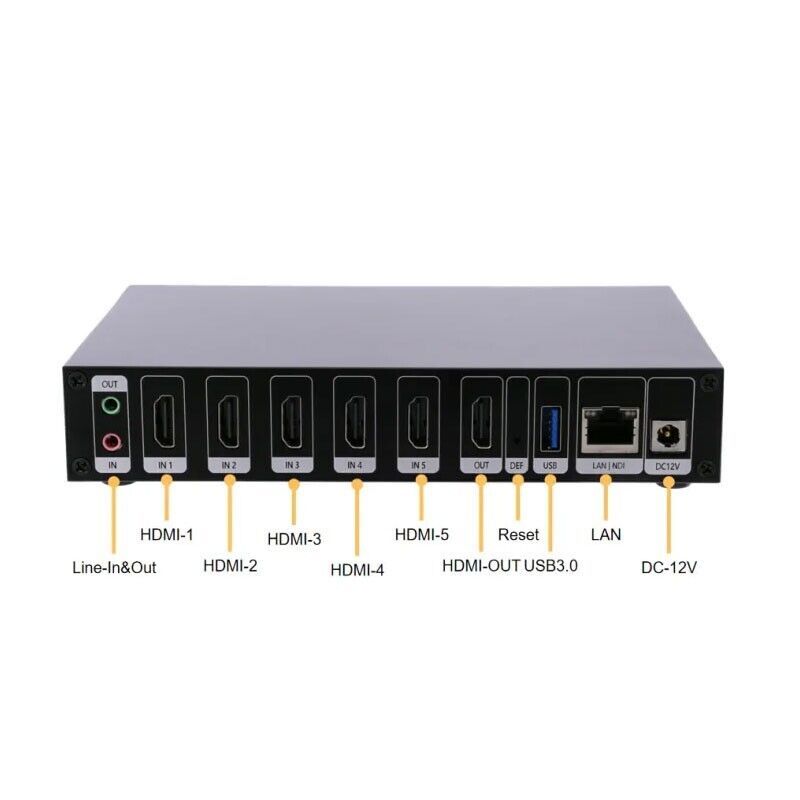

- Input interface: HDMI, 3.5mm Line-In and audio can be used at the same time
- Output interface: HDMI, 3.5mm Line-Out and audio can be used at the same time
- Sampling rate: 48K, 44.1K, 32K, 16K and 8K
- Encoding formats: AAC, MP3, MPEG2, PMCA and PMCU
Network parameters:
- Wired interface: 10/100/1000MR J45 network port
- WIFI: Optional external wifi module
- 4G/5G: Supported (Huawei E8372 and Link Pi 5GCPE)
- Transport protocols: RTSP, RTMP, HTTP, HLS, UDP, unicast and multicast
- For ONVIF: Yes
- SRT: Yes
- For NDI: Yes
- GB28181: Yes
File storage:
- Storage interface: For U disk
- Recording formats: MP4, TS, FLV, MOV, MKV and AVI
Basic parameters:
- Power supply: DC-12V 2A
- Power: <15W
- Working temperature: 0~70°C
- Dimensions: 176 x 126 x 33mm/6.9 x 5 x 1.3" (LxWxH)
Software features:
- Basic functions: WEB configuration, parameter hot update, firmware upgrade, network settings and password management
- Video mixing: picture-in-picture, split screen into 4 sections, split screen into 9 sections and custom
- Effect overlays: logo, watermark, subtitle, rolling subtitle, mosaic and timestamp
- Resource management: customize fonts and upload watermark logo images
Package Included:
- 1 x Encoder Decoder
- 1 x Power adapter
WIKI: https://wiki.youyeetoo.com/en/LinkPi
Forum: https://forum.youyeetoo.com/c/linkpi-hd-video-encode/9
Tips:
The product supports NDI encoding and NDI decoding. At the request of NewTek, the copyright holder, customers who need to use the full NDI function need to purchase an additional NDI license. Users who do not need the full NDI functionality do not need to purchase this license, which will not affect the use of other functions.
Features:
- 4KP30 HD input
- Multi-protocol live streaming: RTSP/RTMP/HTTP/HLS
- For NDI and SRT: the device can be used with software including VMix
- High compression ratio: H.265 + smartP
- Advanced features: watermark subtitles and image optimization
- It can be used for video encoding and decoding, as well as directing and mixing. Encoding and decoding is based on protocol groups, such as NDI, SRT and RTSP to achieve image transmission. The delay of the whole process of encoding and decoding is about 60~80ms
- Supports many peripherals: including TV set-top boxes, laptops, camcorders, DSLR cameras, network surveillance, USB cameras, mobile phones and game consoles. Most encoder models already support HDCP and support connection for PS4, Blu-ray players, and other devices. If you need more information, please contact customer service. (Note: Mobile phone access requires additional purchase of MHL adapter or special adapter for Apple, wireless screen projector, etc.)
- Support special protocols: The manufacturer has obtained NewTek certification and authorization. One device supports any multiple NDI outputs, supports authorization code import, and prevents copying. (Note: According to NewTek's licensing regulations, users who have not purchased NDI licenses can only use the NDI function for 30 minutes at a time)
- By enabling the SRT protocol, users can connect any channel of the encoder to OBS, vMix, and other software for secondary editing and publishing. It is suitable for scenarios such as live streaming and directing
- Support mobile phone control: scan the code (see manual) on the mobile phone to open the mini program. Most of the functions of the web site can be operated through mini-programs. Automatic discovery of all encoders in the LAN
- Multi-platform live streaming: Only one encoder is required to push live streams to any number of platforms at the same time
- Full frame rate deinterlacing: supports 1080i60/50 to 1080P6050 and 720i60/50 to 720P60/50
- Multi-screen directing: In addition to the input video of HDMI, USB, network and other channels, the system also supports the arrangement and mixing of multiple channels of pictures, and can be directed and switched in real time
- Group management: When there are multiple encoders in the network, the devices will be automatically networked. Users only need to access any one encoder to manage all encoders. A unified program can be generated. One-click synchronous encoding and streaming settings are supported
- Live streaming for online learning: This encoder is compatible with DingTalk
- Wireless network transmission: support WIFI and 4G module to realize wireless video transmission and mobile live streaming
- Remote assistance: One-click remote assistance and no need to log in to your PC. Easy and fast to use, ensuring privacy and security
- Integrated communication and Tally light: Support LAN, calls via Internet and Tally light control. Automatic linkage to vMix and other directing software (headset and Tally light should be purchased separately)
Specifications:
Core performance:
- CPU: A53 quad-core for ARM Cortex at 1.2GHz; 32KB I-Cache and 32KB D-Cache
- Memory: 4GB DDR4
- FLASH: 8GB eMmc
Video parameters:
- HDMI input: 5 HDMI 1.4 supports up to 4K at 30fps
- HDMI output: up to 4K60
- Resolution: 4K30, 1080P, 720P, 1080i, 720i, 1600×1200, 1440x900, 1366×768, 1280×1024, 1024x768, 800x600 and 640x480
- Encoding formats: H.264 Baseline profile, H.264 Main profile, H.264 High profile, H.265 Main profile and MJPEG/JPEG Baseline
- Decoding formats: H264, H264 and MJPEG
- Encoding resolution: Main: 4K, 1080P, 720P and 360P; Sub: 720P and 360P
- Frame rate: 1~60 adjustable
- Multi-reference frame: Supports SmartP and DualP
- Maximum bitrate: 20Mbps
- Bitrate control: CBR/VBR/AVBR/FIXQP/QPMAP
Audio and video parameters:
- Input interface: HDMI, 3.5mm Line-In and audio can be used at the same time
- Output interface: HDMI, 3.5mm Line-Out and audio can be used at the same time
- Sampling rate: 48K, 44.1K, 32K, 16K and 8K
- Encoding formats: AAC, MP3, MPEG2, PMCA and PMCU
Network parameters:
- Wired interface: 10/100/1000MR J45 network port
- WIFI: Optional external wifi module
- 4G/5G: Supported (Huawei E8372 and Link Pi 5GCPE)
- Transport protocols: RTSP, RTMP, HTTP, HLS, UDP, unicast and multicast
- For ONVIF: Yes
- SRT: Yes
- For NDI: Yes
- GB28181: Yes
File storage:
- Storage interface: For U disk
- Recording formats: MP4, TS, FLV, MOV, MKV and AVI
Basic parameters:
- Power supply: DC-12V 2A
- Power: <15W
- Working temperature: 0~70°C
- Dimensions: 176 x 126 x 33mm/6.9 x 5 x 1.3" (LxWxH)
Software features:
- Basic functions: WEB configuration, parameter hot update, firmware upgrade, network settings and password management
- Video mixing: picture-in-picture, split screen into 4 sections, split screen into 9 sections and custom
- Effect overlays: logo, watermark, subtitle, rolling subtitle, mosaic and timestamp
- Resource management: customize fonts and upload watermark logo images
Package Included:
- 1 x Encoder Decoder
- 1 x Power adapter
