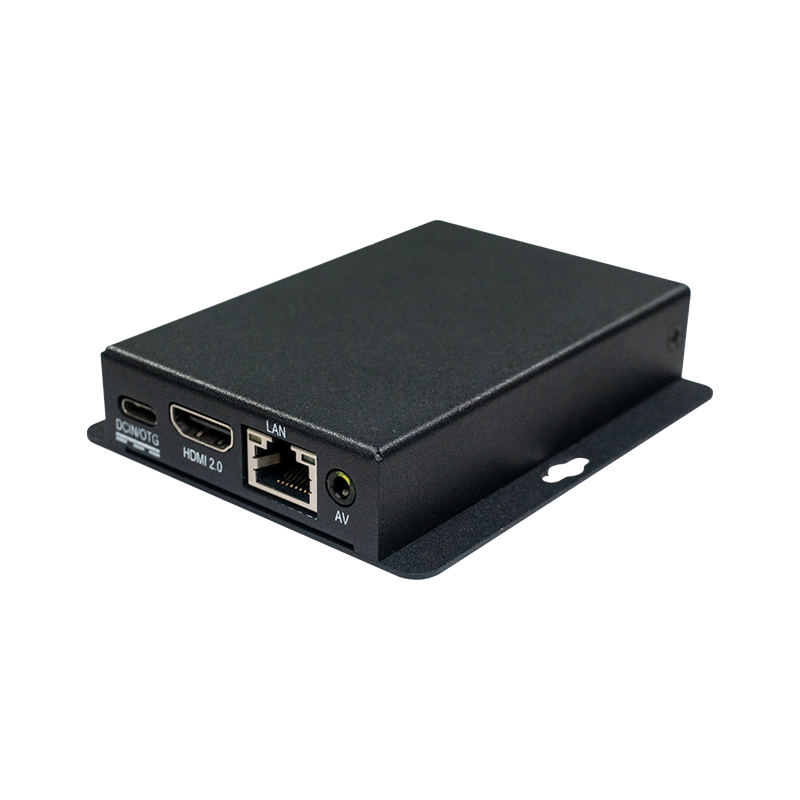

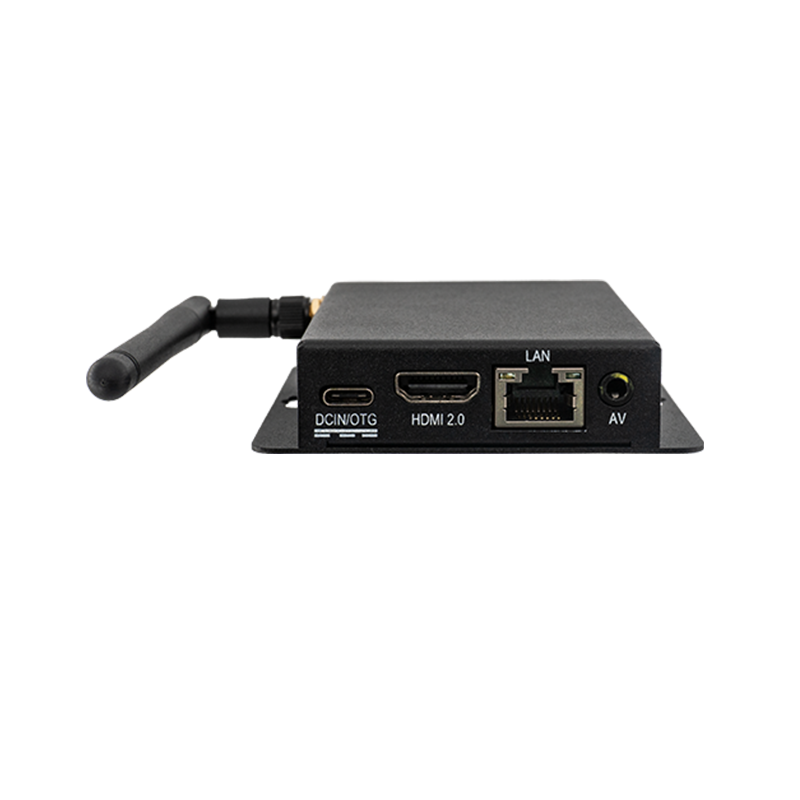

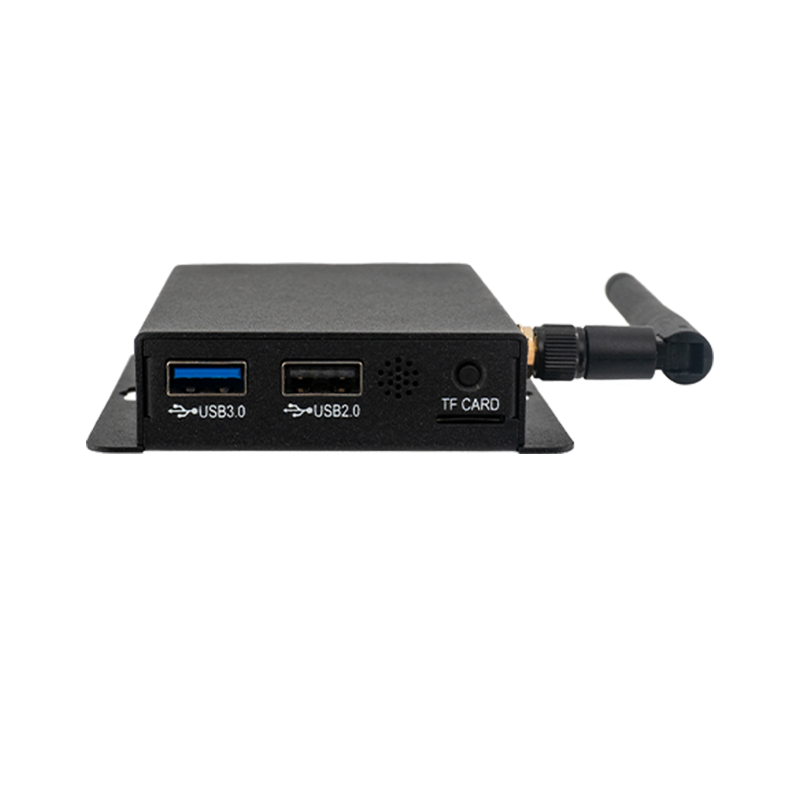

EC-R3566PC Fanless Industrial ARM PC
EC-R3566PC Fanless Industrial ARM PC
Couldn't load pickup availability
EC-R3566PC Fanless Industrial ARM PC is a Firefly product sold by Ai-Paipai. Key specifications — Soc: Rockchip RK3566 · Ram: 1GB/2GB/4GB/8GB LPDDR4 32Bit,supports all-data-link ECC · Storage: 8GB / 16GB / 32GB / 64GB eMMC M.2 PCIe 2.0 × 1 (Supports… · Wireless network: Supports dual-band WiFi (802.11 a/b/g/n/ac) Supports BT5.0 · Os: Android 11.0, Ubuntu 18.04, Buildroot + QT, Station OS. Typical applications: edge AI inference, machine vision and industrial automation. Ai-Paipai (Shenzhen AiPaipai Intelligent Technology Co., Ltd.) is an authorized distributor providing local technical support, pre-installed SDK / OS images, OEM / ODM customization, and worldwide shipping.
✅ Authorized Distributor — Ai-Paipai (Shenzhen AiPaipai Intelligent Technology Co., Ltd.)
This product is supplied by an authorized distributor of the original brand. We provide local technical support, pre-installed SDK / mirror images, and OEM / ODM customization, plus fast global shipping.
The EC-R3566PC embedded computer is equipped with Rockchip RK3566 quad-core processor, dual-core GPU and high-performance NPU, supports up to 8G memory, provides rich interfaces, and is suitable for applications such as smart NVR, cloud terminal, IoT gateway, industrial control, etc.
- Product Datasheet: Click Here
- Product Wiki: Click Here
Feature
- RK3566 Quad-core 64-bit Processor: RK3566 quad-core 64-bit Cortex-A55 processor, with a main frequency of up to 1.8GHz, greatly improved efficiency; using 22nm lithography process, low power consumption and high performance.
- Integrated Co-processors: It integrates dual-core GPU, high-performance VPU and efficient NPU. GPU supports OpenGL ES3.2/2.0/1.1 and Vulkan1.1. VPU can realize 4K 60fps H.264/VP9 video decoding and 1080P 60fps H.264 video encoding. NPU supports one-click switching of mainstream frameworks such as Caffe/TensorFlow.
- M.2 Interface To Expand: The onboard M.2 PCIe2.0 interface can be connected to NVMe SSD, which has the advantages of high-speed reading and writing and large-capacity storage.
- High-quality Metal Enclosure: The computer is equipped with a high-quality metal casing, which saves space, has efficient heat dissipation, and can be flexibly embedded in various smart devices.
Hardware Overview
Shipping list
- Main unit × 1
- Power adapter / cable (region plug on request) × 1
- Accessories vary by configuration — contact us for the exact included list.
Document links will be replaced with the official Firefly resource URLs on request.
Our cooperating carriers: FedEx, DHL, UPS, SF Express
Delivery Area And Cost
| Country/Region | 0–2kg | 2–3kg | 3–4kg | 4–5kg | 5–6kg | 6–7kg | 7–8kg | 8–9kg | 9–10kg |
|---|---|---|---|---|---|---|---|---|---|
| Japan, Taiwan, Hong Kong, Macau | $15 | $20 | $25 | $30 | $35 | $40 | $45 | $50 | $55 |
| Singapore, Thailand, Malaysia | $20 | $25 | $30 | $35 | $40 | $45 | $50 | $55 | $60 |
| Indonesia, Philippines | $25 | $30 | $40 | $50 | $60 | $70 | $80 | $85 | $95 |
| South Korea | $25 | $35 | $35 | $45 | $45 | $55 | $55 | $65 | $65 |
| United States, Australia, New Zealand, Canada, UK, and most of Western Europe | $30 | $45 | $55 | $65 | $75 | $85 | $95 | $105 | $115 |
| Other regions (Eastern Europe, Middle East, Latin America, etc.) | $50 | $65 | $80 | $95 | $110 | $125 | $135 | $150 | $165 |
Shipping time is for reference only; the actual situation shall prevail.
- Authorized & Genuine — sourced directly from brand-approved channels.
- Local Engineering Support — datasheets, SDKs, and pre-flashed images in English and Chinese.
- OEM / ODM & FPGA Customization — tailor specs, enclosures, and BSP for your project.
- One-Stop Sourcing — Firefly + youyeetoo + our own FPGA / edge lineup in one store.
Frequently asked questions
What is EC-R3566PC Fanless Industrial ARM PC used for?
EC-R3566PC Fanless Industrial ARM PC is a Embedded Computing from Firefly. It is typically used in embedded computing, edge AI inference, industrial control and rapid prototyping, and can be integrated into custom carrier boards or finished devices.
Does EC-R3566PC Fanless Industrial ARM PC include technical support, datasheets or pre-flashed images?
Yes. Ai-Paipai supplies this item as an authorized distributor and provides local engineering support, datasheets, SDKs and pre-flashed system images where applicable, plus OEM / ODM customization for volume projects.
Can I order EC-R3566PC Fanless Industrial ARM PC with OEM / ODM options or CE / FCC / RoHS certification?
OEM / ODM customization (specs, enclosure, BSP) is available, and CE / FCC / RoHS certified options can be provided on request for EU and US imports. Contact us for a quote.
How is EC-R3566PC Fanless Industrial ARM PC shipped, and what is the lead time?
Orders ship worldwide from Shenzhen. Stock items typically dispatch within a few business days; configurable or made-to-order variants take longer. Exact lead time is shown at checkout or on request.
Specifications
| Product Datasheet | Click Here |
| Product Wiki | Click Here |
| RK3566 Quad-core 64-bit Processor | RK3566 quad-core 64-bit Cortex-A55 processor, with a main frequency of up to 1.8GHz, greatly improved efficiency; using 22nm lithography process, low power consumption and high performance. |
| M.2 Interface To Expand | The onboard M.2 PCIe2.0 interface can be connected to NVMe SSD, which has the advantages of high-speed reading and writing and large-capacity storage. |
| High-quality Metal Enclosure | The computer is equipped with a high-quality metal casing, which saves space, has efficient heat dissipation, and can be flexibly embedded in various smart devices. |
