Firefly

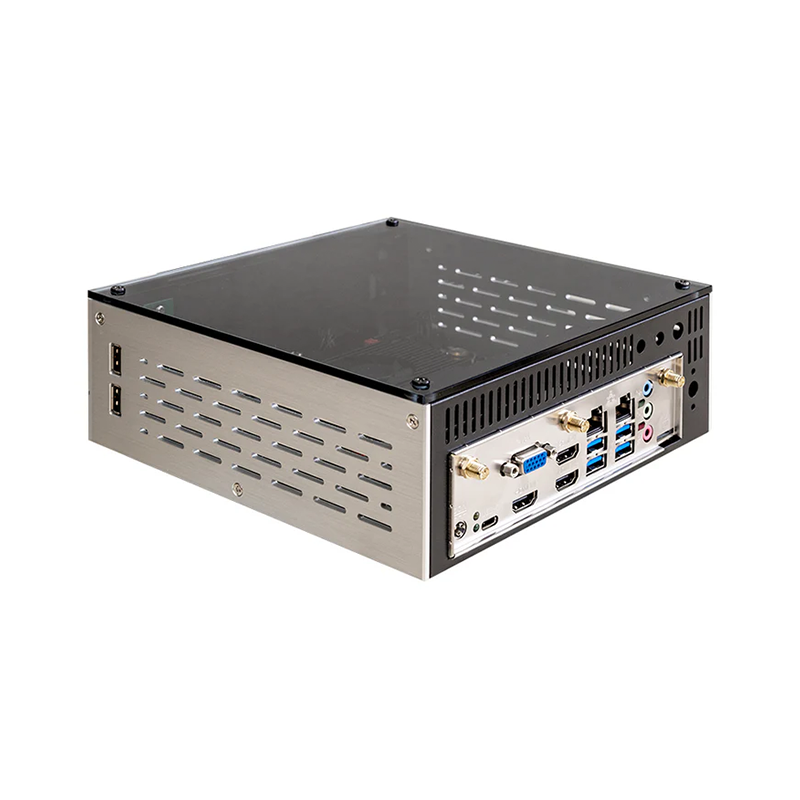

EC-I3588J RK3588 Embedded Industrial PC

EC-I3588J RK3588 Embedded Industrial PC

Regular price $499.00 USD
Regular price Sale price $499.00 USD
Sale Sold out
Shipping calculated at checkout.
Configuration
Quantity

EC-I3588J RK3588 Embedded Industrial PC is a Firefly product sold by Ai-Paipai. Key specifications — Soc: RockChip RK3588 · Npu: NPU computing power up to 6 TOPS Support INT4/INT8/INT16… · Ram: 4GB/8GB/16GB 64bit LPDDR4/LPDDR4x/LPDDR5 (Up to 32GB… · Storage: 16GB/32GB/64GB/128GB eMMC · Ethernet: 2 × 1000Mbps Ethernet (RJ45) *One of them supports POE…. Typical applications: edge AI inference, industrial automation and digital signage and HMI. Ai-Paipai (Shenzhen AiPaipai Intelligent Technology Co., Ltd.) is an authorized distributor providing local technical support, pre-installed SDK / OS images, OEM / ODM customization, and worldwide shipping.

✅ Authorized Distributor — Ai-Paipai (Shenzhen AiPaipai Intelligent Technology Co., Ltd.)

This product is supplied by an authorized distributor of the original brand. We provide local technical support, pre-installed SDK / mirror images, and OEM / ODM customization, plus fast global shipping.


Shipping list

  • Main unit × 1
  • Power adapter / cable (region plug on request) × 1
  • Accessories vary by configuration — contact us for the exact included list.
Soc
RockChip RK3588
Cpu
8-core 64-bit (4×Cortex-A76+4×Cortex-A55), 8nm lithography process, frequency up to 2.4GHz
Gpu
ARM Mali-G610 MP4 quad-core GPU Support OpenGL ES3.2 / OpenCL 2.2 / Vulkan1.1, 450 GFLOPS
Npu
NPU computing power up to 6 TOPS Support INT4/INT8/INT16 mixed operation Support framework switching of TensorFlow/MXNet/PyTorch/Caffe
Vpu
Video decoding: 8K@60fps H.265/VP9/AVS2 8K@30fps H.264 AVC/MVC 4K@60fps AV1 1080P@60fps MPEG-2/-1/VC-1/VP8 Video encoding: 8K@30fps encoding, support H.265 / H.264 Achieve up to 32-channel 1080P@30fps decoding and 16-channel 1080P@30fps encoding
Ram
4GB/8GB/16GB 64bit LPDDR4/LPDDR4x/LPDDR5 (Up to 32GB optional)
Storage
16GB/32GB/64GB/128GB eMMC
Storage expansion
1 × M.2 SATA3.0, can expand with one 2242 (SATA3.0) SSD 4 × standard SATA3.0, can expand with two SATA3.0 SSD/HDD 1 × TF Card Card
Power
DC12V voltage input (DC5.5×2.1mm)
Power consumption
Idle: ≈1.35W (12V/110mA) Typical: ≈4.8W (12V/400mA) Max: ≈20W (12V/1700mA)

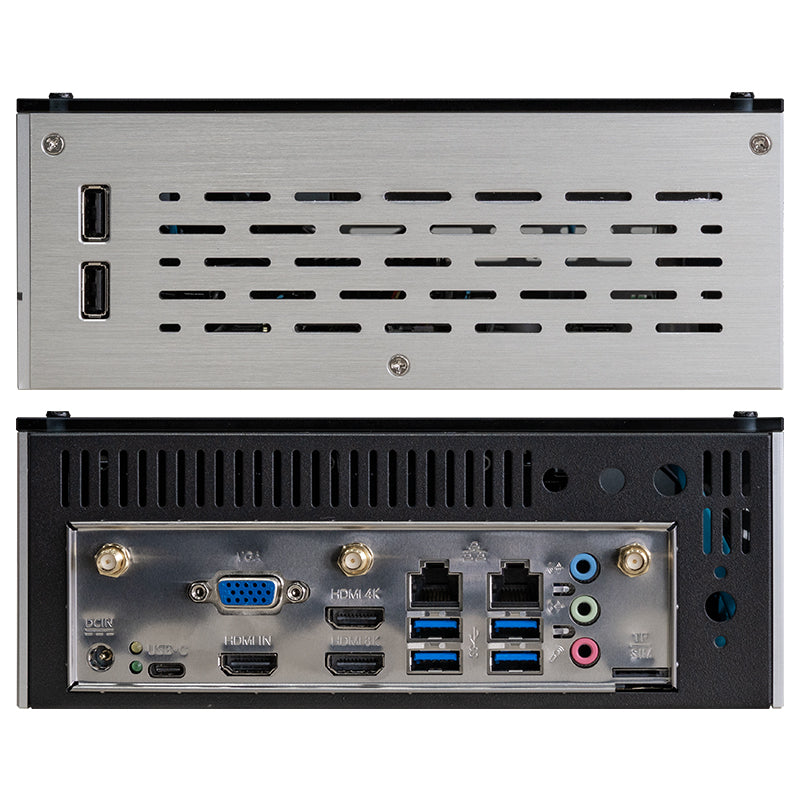

Video output
1 × HDMI2.1 (8K@60fps or 4K@120fps) 1 × HDMI2.0 (4K@60fps) 1 × DP1.4 (8K@30fps, USB-C multi-function interface output) 1 × VGA (1080P@60fps)
Video input
1 × HDMI-IN (4K@60fps), support HDCP 2.3
Audio input
1 × Line-In input 1 × MIC input 1 × HDMI audio input
Audio output
1 × Phone output 2 × HDMI audio output 1 × DP1.4 audio output
Audio output
1 × Phone output 2 × HDMI audio output 1 × DP1.4 audio output
Os
Android: Android 12.0 Linux: Ubuntu Desktop, Ubuntu Server, Debian11, Buildroot, RTLinux, Kylin Linux, UOS, etc. Supports UEFI Boot
Dimension
20(L) x 20(W) x 8.5(H) cm (including rubber feet), metal brushed enclosure
Weight
≈1.3kg (no peripheral devices)
Environment
Operating Temperature: -20℃- 60℃ Storage Temperature: -20℃- 70℃ Storage Humidity: 10%~80 %
Ethernet
2 × 1000Mbps Ethernet (RJ45) *One of them supports POE power supply and the max output is 60w (optional)
Usb
4 × USB3.0 (Limit 1A) 1 × USB-C multi-function interface (USB3.0 OTG / DP1.4) (Limit 2A) 2 × USB2.0 (Limit 500mA)
Button
1 × Power Button
Product tutorials
Click Here
Sdk software and firmware files
Click Here
Product tutorialsClick Here
Product datasheetClick Here
SDK software and firmware filesClick Here

Document links will be replaced with the official Firefly resource URLs on request.
