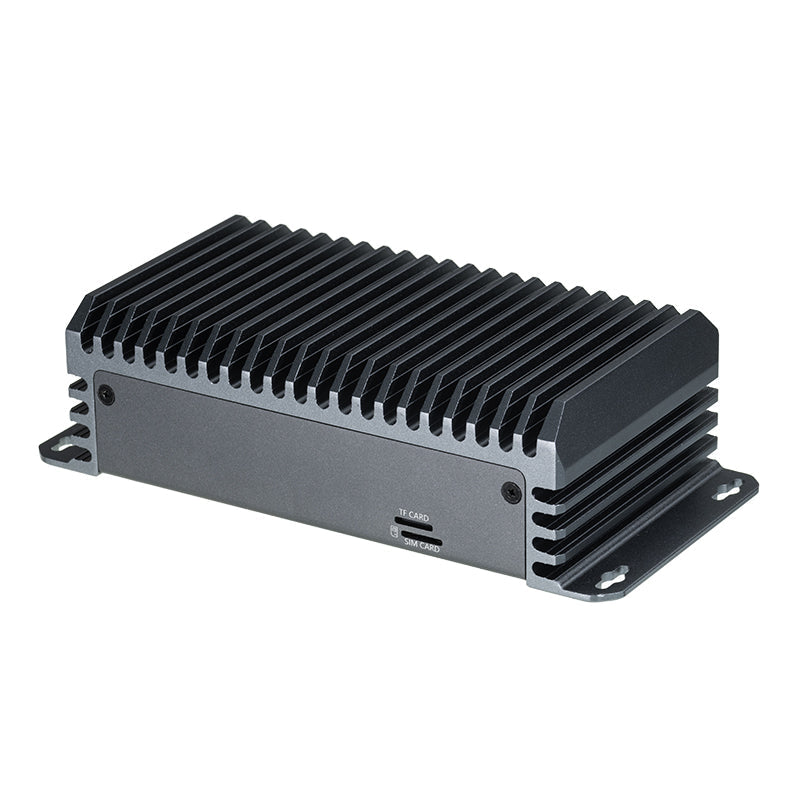

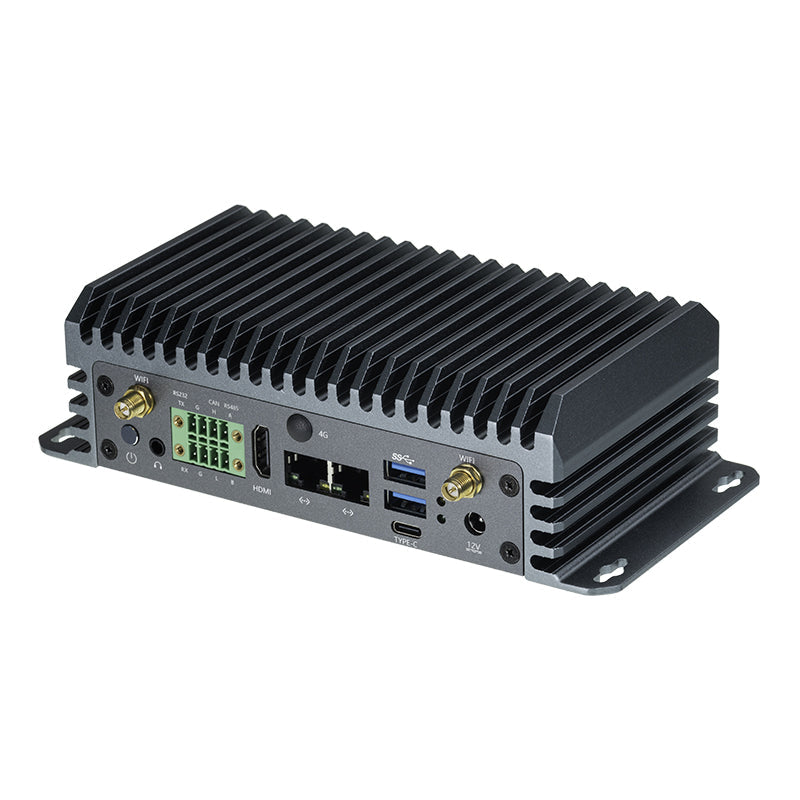

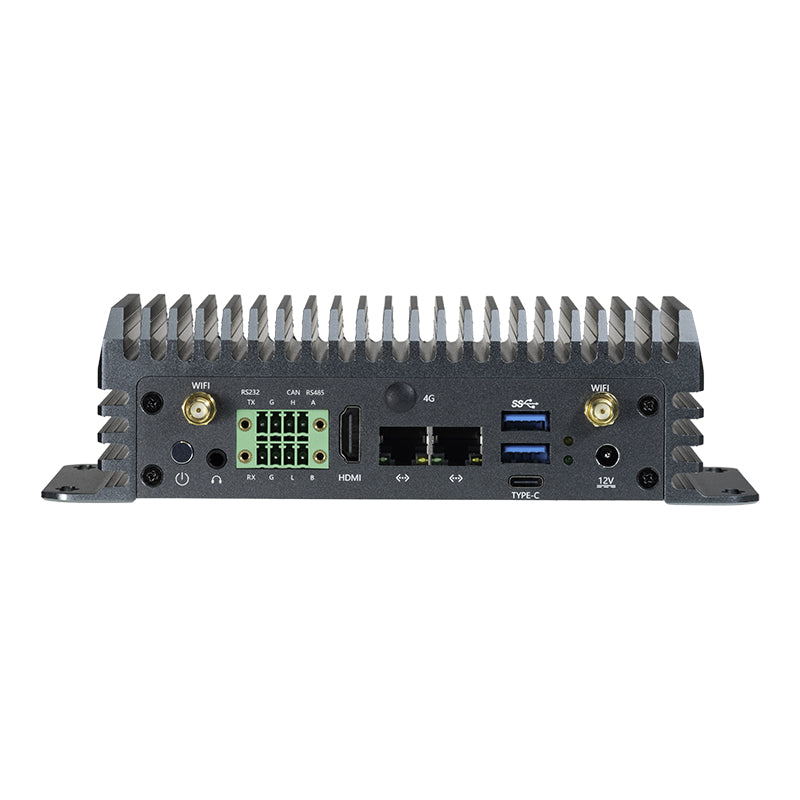

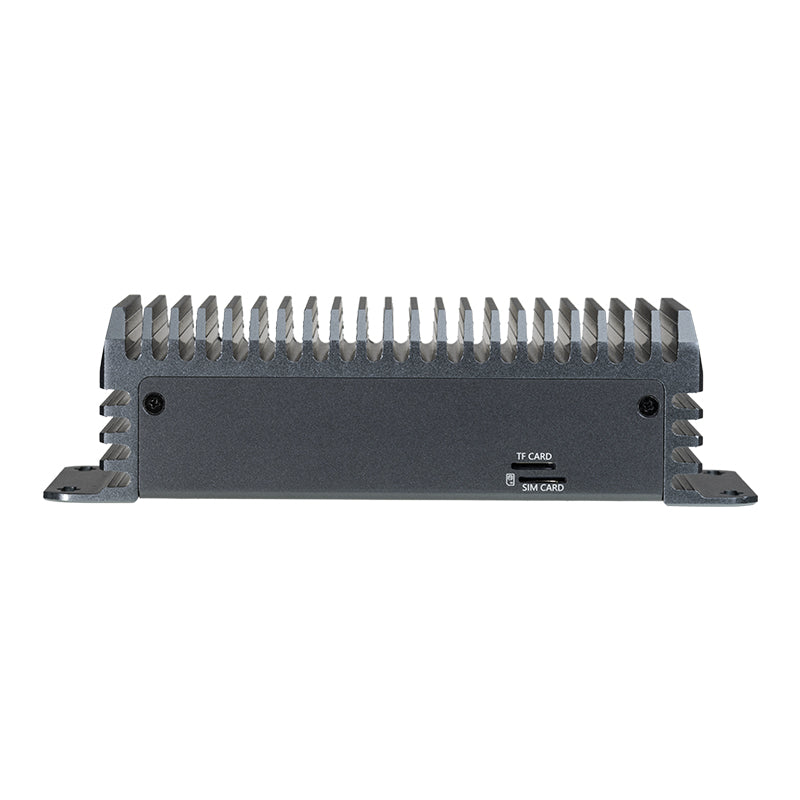

• Firefly EC-A3588JD4 RK3588 ARM Fanless Industrial PC
  • Firefly EC-A3588JD4 — view 2
  • Firefly EC-A3588JD4 — view 3
  • Firefly EC-A3588JD4 — view 4
1 4

Firefly

EC-A3588JD4 RK3588 ARM Fanless Industrial PC

EC-A3588JD4 RK3588 ARM Fanless Industrial PC

$399.00 USD
$399.00 USD
Sale Sold out
Shipping calculated at checkout.
Configuration

EC-A3588JD4 RK3588 ARM Fanless Industrial PC is a Firefly product sold by Ai-Paipai. Key specifications — Soc: Rockchip RK3588 · Npu: The computing power is up to 6TOPS (INT8), support… · Ram: LPDDR4/LPDDR4x (4GB/8GB/16GB optional, up to 32GB) · Storage: eMMC (32GB/64GB/128GB/256GB optional) · Video output: 1 × HDMI2.1 (8K@60fps or 4K@120fps). Typical applications: edge AI inference, IoT gateway deployments and industrial automation. Ai-Paipai (Shenzhen AiPaipai Intelligent Technology Co., Ltd.) is an authorized distributor providing local technical support, pre-installed SDK / OS images, OEM / ODM customization, and worldwide shipping.

✅ Authorized Distributor — Ai-Paipai (Shenzhen AiPaipai Intelligent Technology Co., Ltd.)

This product is supplied by an authorized distributor of the original brand. We provide local technical support, pre-installed SDK / mirror images, and OEM / ODM customization, plus fast global shipping.

The EC-A3588JD4 ARM Fanless Industrial PC is powered by Rockchip's flagship RK3588 octa-core 64-bit processor, delivering 6 TOPS AI performance for high-efficiency edge computing and AI applications.

Feature

  • Private Deployment of Large Language Models: The EC-A3588JD4 enables private deployment of Transformer-based LLMs, supporting models like Gemma-2B, ChatGLM3-6B, Qwen1.5-1.8B, and Phi-3-3.8B for on-device AI applications.
  • Decoding of 8K Ultra-High Definition Video: The EC-A3588JD4 supports 8K ultra-HD video decoding for sharper visuals and richer detail, powered by an advanced 2D hardware engine for superior display performance.
  • 32 GB of Massive Memory: The EC-A3588JD4 breaks through traditional memory limits, delivering faster response times and robust support for high-memory, large-storage applications.
  • Industrial-Grade Stability: The EC-A3588JD4 ensures industrial-grade reliability with external watchdog support and multi-OS compatibility, making it ideal for ARM PCs, edge computing, cloud servers, and smart NVR systems.

Hardware Overview

Shipping list

  • Main unit × 1
  • Power adapter / cable (region plug on request) × 1
  • Accessories vary by configuration — contact us for the exact included list.
Soc
Rockchip RK3588
Cpu
Octa-core 64-bit processor (4×Cortex-A76+4×Cortex-A55), main frequency up to 2.4GHz
Gpu
ARM Mali-G610 MP4 quad-core GPU, support OpenGL ES3.2/OpenCL 2.2/Vulkan1.1, 450 GFLOPS
Npu
The computing power is up to 6TOPS (INT8), support INT4/INT8/INT16 mixed operations
Ram
LPDDR4/LPDDR4x (4GB/8GB/16GB optional, up to 32GB)
Storage
eMMC (32GB/64GB/128GB/256GB optional)
Storage expansion
1 × TF Card, M.2 SATA3.0/PCIe NVMe SSD 2242/2260/2280 (Inside the computer)
Power
DC 12V (5.5mm × 2.1mm, support 9V~24V wide voltage input)
Video output
1 × HDMI2.1 (8K@60fps or 4K@120fps)
Os
Android, Linux OS
Software support
Support the privatization deployment of ultra-large-scale parametric models under the Transformer architecture, such as Gemma-2B, ChatGLM3-6B, Qwen-1.8B, Phi-3-3.8B and other large language models It supports traditional network architectures such as CNN, RNN, and LSTM, and supports the import and export of RKNN models; Support a variety of deep learning frameworks, including TensorFlow, TensorFlow Lite, PyTorch, Caffe, ONNX and Darknet. It also supports the development of custom operators Support Docker container management technology
Dimension
188.0mm × 88.44mm × 50.65mm
Weight
Net weight of computer: 0.79kg, Total weight with package: 1.12kg
Environment
Operating Temperature: -20℃~60℃ Storage Temperature: -20℃~70℃ Storage Humidity: 10%~90%RH(non-condensing)
Internet
Ethernet: 2 × RJ45 (1000Mbps) WiFi: Extend WiFi/Bluetooth module through M.2 E-KEY (2230), support 2.4GHz/5GHz dual band WiFi6 (802.11a/b/g/n/ac/ax), Bluetooth5.2 4G: Extend 4G LTE via Mini PCIe
Usb
2 × USB3.0 (Max: 1A)
Other
1 × Type-C (OTG), 1 × SIM Card 1 × Phoenix connector (2×4PIN, 3.5mm pitch): 1 × RS485, 1 × RS232, 1 × CAN 2.0
Product tutorials
Click Here
Sdk software and firmware files
Click Here
Product tutorialsClick Here
Product datasheetClick Here
SDK software and firmware filesClick Here

Document links will be replaced with the official Firefly resource URLs on request.

Our cooperating carriers: FedEx, DHL, UPS, SF Express

Delivery Area And Cost

Country/Region 0–2kg 2–3kg 3–4kg 4–5kg 5–6kg 6–7kg 7–8kg 8–9kg 9–10kg
Japan, Taiwan, Hong Kong, Macau $15 $20 $25 $30 $35 $40 $45 $50 $55
Singapore, Thailand, Malaysia $20 $25 $30 $35 $40 $45 $50 $55 $60
Indonesia, Philippines $25 $30 $40 $50 $60 $70 $80 $85 $95
South Korea $25 $35 $35 $45 $45 $55 $55 $65 $65
United States, Australia, New Zealand, Canada, UK, and most of Western Europe $30 $45 $55 $65 $75 $85 $95 $105 $115
Other regions (Eastern Europe, Middle East, Latin America, etc.) $50 $65 $80 $95 $110 $125 $135 $150 $165

Shipping time is for reference only; the actual situation shall prevail.

Why Buy From Ai-Paipai?
  • Authorized & Genuine — sourced directly from brand-approved channels.
  • Local Engineering Support — datasheets, SDKs, and pre-flashed images in English and Chinese.
  • OEM / ODM & FPGA Customization — tailor specs, enclosures, and BSP for your project.
  • One-Stop Sourcing — Firefly + youyeetoo + our own FPGA / edge lineup in one store.
View full details

Not sure which platform fits your project?

Frequently asked questions

What is EC-A3588JD4 RK3588 ARM Fanless Industrial PC used for?
EC-A3588JD4 RK3588 ARM Fanless Industrial PC is a Embedded Computing from Firefly. It is typically used in embedded computing, edge AI inference, industrial control and rapid prototyping, and can be integrated into custom carrier boards or finished devices.

Does EC-A3588JD4 RK3588 ARM Fanless Industrial PC include technical support, datasheets or pre-flashed images?
Yes. Ai-Paipai supplies this item as an authorized distributor and provides local engineering support, datasheets, SDKs and pre-flashed system images where applicable, plus OEM / ODM customization for volume projects.

Can I order EC-A3588JD4 RK3588 ARM Fanless Industrial PC with OEM / ODM options or CE / FCC / RoHS certification?
OEM / ODM customization (specs, enclosure, BSP) is available, and CE / FCC / RoHS certified options can be provided on request for EU and US imports. Contact us for a quote.

How is EC-A3588JD4 RK3588 ARM Fanless Industrial PC shipped, and what is the lead time?
Orders ship worldwide from Shenzhen. Stock items typically dispatch within a few business days; configurable or made-to-order variants take longer. Exact lead time is shown at checkout or on request.

Specifications

Product Datasheet Click Here
Product Wiki Click Here
Private Deployment of Large Language Models The EC-A3588JD4 enables private deployment of Transformer-based LLMs, supporting models like Gemma-2B, ChatGLM3-6B, Qwen1.5-1.8B, and Phi-3-3.8B for on-device AI applications.
Decoding of 8K Ultra-High Definition Video The EC-A3588JD4 supports 8K ultra-HD video decoding for sharper visuals and richer detail, powered by an advanced 2D hardware engine for superior display performance.
32 GB of Massive Memory The EC-A3588JD4 breaks through traditional memory limits, delivering faster response times and robust support for high-memory, large-storage applications.
Industrial-Grade Stability The EC-A3588JD4 ensures industrial-grade reliability with external watchdog support and multi-OS compatibility, making it ideal for ARM PCs, edge computing, cloud servers, and smart NVR systems.
