• Firefly EC-A186JD4 Industrial AI PC
1 1

Firefly

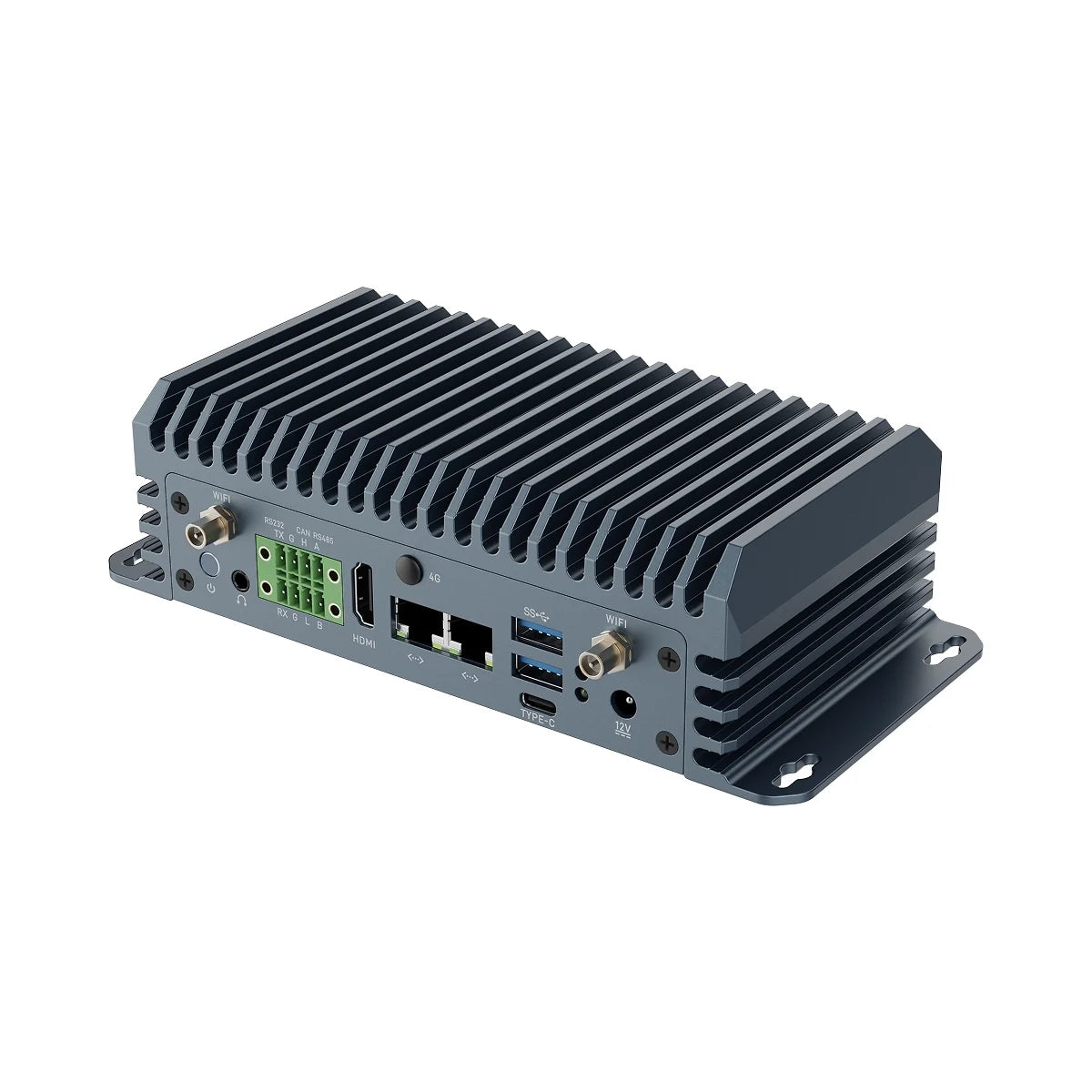

EC-A186JD4 Industrial AI PC

EC-A186JD4 Industrial AI PC

$329.00 USD
$329.00 USD
Sale Sold out
Shipping calculated at checkout.
Configuration

EC-A186JD4 Industrial AI PC is a Firefly product sold by Ai-Paipai. Key specifications — Soc: SOPHON CV186AH · Ram: 4GB LPDDR4 (4GB/8GB/16GB optional) · Storage: 32GB eMMC (32GB/64GB/128GB/256GB optional) · Storage expansion: 1 × TF Card 1 × M.2 M‑KEY (inside the device) - Supports… · Os: Ubuntu. Typical applications: edge AI inference and industrial automation. Ai-Paipai (Shenzhen AiPaipai Intelligent Technology Co., Ltd.) is an authorized distributor providing local technical support, pre-installed SDK / OS images, OEM / ODM customization, and worldwide shipping.

✅ Authorized Distributor — Ai-Paipai (Shenzhen AiPaipai Intelligent Technology Co., Ltd.)

This product is supplied by an authorized distributor of the original brand. We provide local technical support, pre-installed SDK / mirror images, and OEM / ODM customization, plus fast global shipping.

EC-A186JD4 powered by the SOPHON CV186 AI processor. CV186 delivers 7.2 TOPS INT8. Supports mainstream AI models and deep learning frameworks. Features SOPHON SDK for easy algorithm deployment with low migration cost. Supports 16-channel 1080P@30fps decode and 10-channel 1080P@30fps encode. Offers HDMI 2.0, RS485, RS232, and USB 3.0.

Feature

  • High-Performance AI Processor
  • Deployment of Large AI Models
  • Supports Multiple Deep Learning Frameworks
  • Multi-Channel Video AI Processing Performance
  • Rich Algorithms with High Practicality
  • Full Aluminum Alloy Shell for Heat Dissipation
  • Rich Expansion Interfaces
  • Provides Development Materials

Product Overview

Shipping list

  • Main unit × 1
  • Power adapter / cable (region plug on request) × 1
  • Accessories vary by configuration — contact us for the exact included list.
Soc
SOPHON CV186AH
Cpu
Hexa-core ARM Cortex-A53 @ 1.6GHz
Tpu
7.2T@INT8, 12T@INT4, and 1.5T@FP16/BF16 computing power
Ram
4GB LPDDR4 (4GB/8GB/16GB optional)
Storage
32GB eMMC (32GB/64GB/128GB/256GB optional)
Storage expansion
1 × TF Card 1 × M.2 M‑KEY (inside the device) - Supports expansion of PCIe NVMe SSD (2242/2260/2280) - Supports expansion of SATA 3.0 SSD (2242/2260/2280) - PCIe NVMe SSD supported by default
Power
DC 12V (5.5mm × 2.1mm, support 9V~24V wide voltage input)
Power consumption
Normal: 8.5W(12V/710mA), Max: 14W(12V/1170mA)
Audio output
1 × 3.5mm Audio jack (Support MIC recording, American standard CTIA)
Audio output
1 × 3.5mm Audio jack (Support MIC recording, American standard CTIA)
Os
Ubuntu
Software support
Supports private deployment of ultra-large-scale Transformer-based models, including large language models such as Deepseek-R1, Gemma, Llama, ChatGLM, Qwen, and Phi series. Supports traditional network architectures including CNN, RNN, and LSTM, as well as mainstream deep learning frameworks: TensorFlow, PyTorch, PaddlePaddle, Caffe, and ONNX. Supports custom operator development and Docker-based containerized management.
Dimension
188.0mm × 88.44mm × 50.65mm
Weight
Net weight: 0.79kg, Total weight with packaging: 1.14kg
Environment
Operating Temperature: -20℃~60℃, Storage Temperature: -20℃~70℃, Storage Humidity: 10%~90%RH (non-condensing)
Usb
2 × USB3.0 (Max: 1A; Top: USB3.0(1), reused with 5G; Bottom: USB3.0(2)), 1 × Type-C (Debug)
Product tutorialsClick Here
Product datasheetClick Here
SDK software and firmware filesClick Here

Document links will be replaced with the official Firefly resource URLs on request.

Our cooperating carriers: FedEx, DHL, UPS, SF Express

Delivery Area And Cost

Country/Region 0–2kg 2–3kg 3–4kg 4–5kg 5–6kg 6–7kg 7–8kg 8–9kg 9–10kg
Japan, Taiwan, Hong Kong, Macau $15 $20 $25 $30 $35 $40 $45 $50 $55
Singapore, Thailand, Malaysia $20 $25 $30 $35 $40 $45 $50 $55 $60
Indonesia, Philippines $25 $30 $40 $50 $60 $70 $80 $85 $95
South Korea $25 $35 $35 $45 $45 $55 $55 $65 $65
United States, Australia, New Zealand, Canada, UK, and most of Western Europe $30 $45 $55 $65 $75 $85 $95 $105 $115
Other regions (Eastern Europe, Middle East, Latin America, etc.) $50 $65 $80 $95 $110 $125 $135 $150 $165

Shipping time is for reference only; the actual situation shall prevail.

Why Buy From Ai-Paipai?
  • Authorized & Genuine — sourced directly from brand-approved channels.
  • Local Engineering Support — datasheets, SDKs, and pre-flashed images in English and Chinese.
  • OEM / ODM & FPGA Customization — tailor specs, enclosures, and BSP for your project.
  • One-Stop Sourcing — Firefly + youyeetoo + our own FPGA / edge lineup in one store.
View full details

Frequently asked questions

What is EC-A186JD4 Industrial AI PC used for?
EC-A186JD4 Industrial AI PC is a Embedded Computing from Firefly. It is typically used in embedded computing, edge AI inference, industrial control and rapid prototyping, and can be integrated into custom carrier boards or finished devices.

Does EC-A186JD4 Industrial AI PC include technical support, datasheets or pre-flashed images?
Yes. Ai-Paipai supplies this item as an authorized distributor and provides local engineering support, datasheets, SDKs and pre-flashed system images where applicable, plus OEM / ODM customization for volume projects.

Can I order EC-A186JD4 Industrial AI PC with OEM / ODM options or CE / FCC / RoHS certification?
OEM / ODM customization (specs, enclosure, BSP) is available, and CE / FCC / RoHS certified options can be provided on request for EU and US imports. Contact us for a quote.

How is EC-A186JD4 Industrial AI PC shipped, and what is the lead time?
Orders ship worldwide from Shenzhen. Stock items typically dispatch within a few business days; configurable or made-to-order variants take longer. Exact lead time is shown at checkout or on request.

Specifications

Product Datasheet Click Here
