Firefly

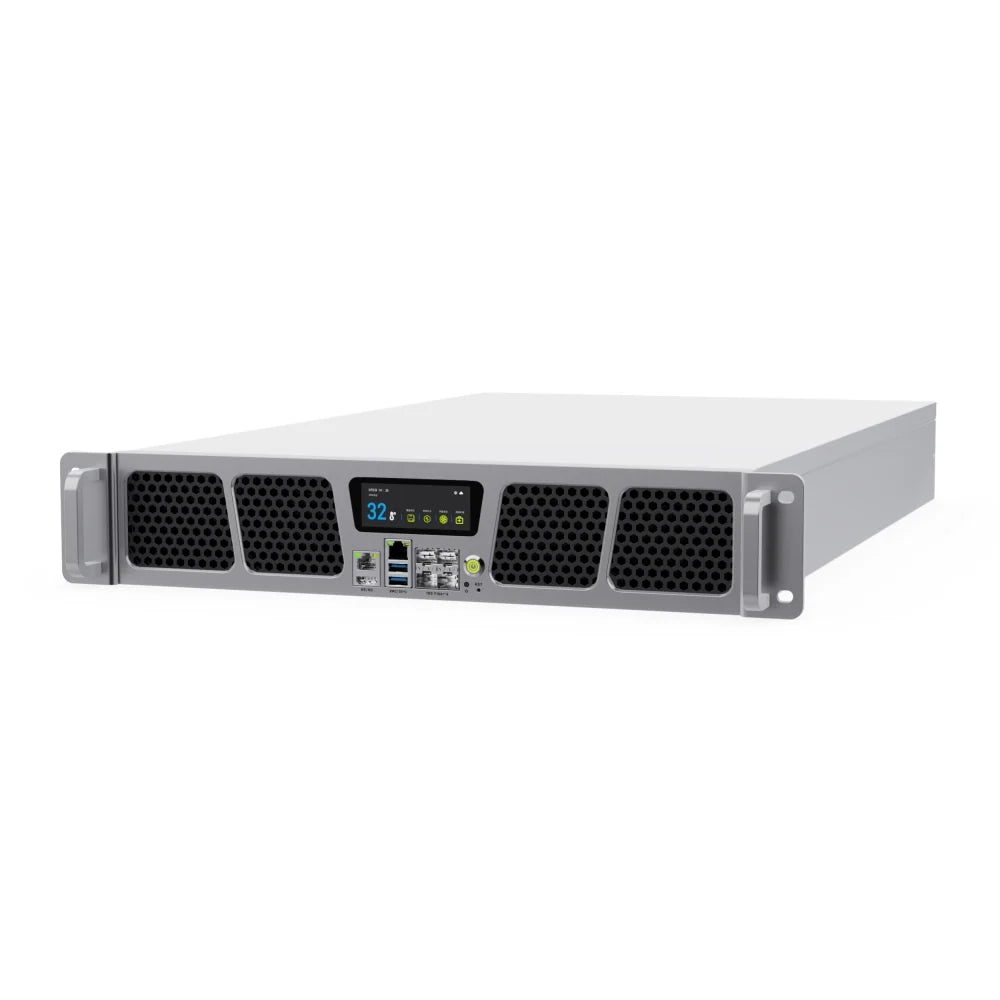

CSC2-N48 Edge Computing 2U Server

CSC2-N48 Edge Computing 2U Server

$38,249.00 USD
$38,249.00 USD
Sale Sold out
Shipping calculated at checkout.
Title

CSC2-N48 Edge Computing 2U Server is a Firefly product sold by Ai-Paipai. Key specifications — Ai computing power: RK3588S: 288T (6T × 48, INT8) BM1684X: 1536T (32T × 48,… · Ram: RK3588S: 16GB LPDDR5 × 48 (4/8/16/32GB) BM1684X: 8GB… · Storage: RK3588S: 256GB eMMC × 48 (16/32/64/128/256GB) BM1684X:… · Display: 1 × HDMI (Maximum resolution 1080P, BMC management display) · Storage expansion: RK3588S/BM1684X: 2280 PCIe NVMe SSD × 48 (Optional)…. Typical applications: edge AI inference, machine vision and industrial automation. Ai-Paipai (Shenzhen AiPaipai Intelligent Technology Co., Ltd.) is an authorized distributor providing local technical support, pre-installed SDK / OS images, OEM / ODM customization, and worldwide shipping.

✅ Authorized Distributor — Ai-Paipai (Shenzhen AiPaipai Intelligent Technology Co., Ltd.)

This product is supplied by an authorized distributor of the original brand. We provide local technical support, pre-installed SDK / mirror images, and OEM / ODM customization, plus fast global shipping.

The CSC2-N48 is a high-density 2U cluster server featuring 48 computing nodes that deliver up to high AI performance. Supporting NVIDIA Jetson and Rockchip platforms, it is purpose-built for private large model deployment (e.g., DeepSeek, Llama), edge computing, and high-speed data processing with integrated aBMC management.

Feature

  • Built-in 48 Computing Nodes: Server integrates 48 distributed computing nodes supporting multiple processor platforms (Rockchip / SOPHGO / NVIDIA), with each node delivering 6~157 TOPS computing power. This scalable configuration provides powerful AI and deep learning acceleration capabilities.
  • Private Deployment of Large Models: Enables on-premises deployment of leading large language models (Deepseek-R1, Llama, Qwen), vision models (SAM, ViT), and image generation models (Flux, Stable Diffusion).
  • Configure aBMC Management System: Includes aBMC intelligent management system for: Real-time monitoring, Software/hardware configuration, Troubleshooting, Alert notification, System upgrades, Remote maintenance, Supports secondary development for customization.
  • Scalable M.2 PCIe NVMe SSD: Features 48 onboard M.2 PCIe interfaces supporting NVMe 2280 SSD expansion, enabling massive high-speed storage capacity. Delivers significantly improved data throughput to meet high-density storage requirements, with scalable capacity up to TB-level.

Product Overview

Shipping list

  • Main unit × 1
  • Power adapter / cable (region plug on request) × 1
  • Accessories vary by configuration — contact us for the exact included list.
Server form
2U rackmount computing power server
Number of nodes
48 distributed computing nodes + 1 control node
Compute nodes
RK3588S: Octa-core 64-bit processor RK3588S, up to 2.4GHz BM1684X: Octa-core 64-bit processor BM1684X, up to 2.3GHz Jetson Orin Nano (8GB): Hexa-core 64-bit processor NVIDIA Jetson Orin Nano, up to 1.7GHz Jetson Orin NX (16GB): Octa-core 64-bit processor NVIDIA Jetson Orin NX, up to 2.0GHz
Control nodes
Octa-core 64-bit processor RK3588, with a maximum clock speed of 2.4GHz and a peak computing power of 6TOPS
Ai computing power
RK3588S: 288T (6T × 48, INT8) BM1684X: 1536T (32T × 48, INT8) Jetson Orin Nano (8GB): 3216T (67T × 48, INT8) Jetson Orin NX (16GB): 7536T (157T × 48INT8)
Fan module
12 high-speed cooling fans
Bmc
Integrated BMC management system based on web management interface, supports monitoring, configuration, alarming, remote operation and maintenance, virtual replacement management, and provides CLI command line and Redfish and other tools to facilitate secondary development.
Large model
All models support the privatization of ultra-large-scale parametric models under the Transformer architecture, such as Deepseek-R1 series, Gemma series, Llama series, ChatGLM series, Qwen series, Phi series and other large language models BM1684X: Support the privatization deployment of large visual models such as ViT, Grounding DINO, SAM, etc. Jetson Orin Nano/Jetson Orin NX: Supports the privatization deployment of large vision models such as EfficientVIT, NanoOWL, NanoSAM, SAM, TAM, etc. BM1684X/Jetson Orin Nano/Jetson Orin NX: Support the private deployment of Flux, Stable Diffusion, and Stable Diffusion XL image generation models
Deep learning
All models: Supports traditional network architectures such as CNN, RNN, LSTM, and supports a variety of deep learning frameworks, including TensorFlow, PyTorch, PaddlePaddle, ONNX, Caffe, etc. Support custom operator development and Docker containerization management technology Jetson Orin Nano/Jetson Orin NX: Support Ollama local large model deployment framework and ComfyUI graphical deployment framework
Console
1 × Console (RJ45, BMC debug serial port, baud rate 115200)
Ram
RK3588S: 16GB LPDDR5 × 48 (4/8/16/32GB) BM1684X: 8GB LPDDR4 × 48 (8/12/16GB) Jetson Orin Nano (8GB): 8GB LPDDR5 × 48 Jetson Orin NX (16GB): 16GB LPDDR5 × 48
Storage
RK3588S: 256GB eMMC × 48 (16/32/64/128/256GB) BM1684X: 32GB eMMC × 48 (32/64/128GB) Jetson Orin Nano/NX: None
Storage expansion
RK3588S/BM1684X: 2280 PCIe NVMe SSD × 48 (Optional) Jetson Orin Nano/NX: 256GB (2280 PCIe NVMe SSD, the server is internally assembled)
Power
2 AC redundant power supplies (Hot-swappable supported)
Display
1 × HDMI (Maximum resolution 1080P, BMC management display)
Dimension
724.0mm (L) × 430.0mm (W) × 88.8 mm (H)
Weight
Net weight of the server: 23.1kg, total weight with packaging: 25.3kg
Environment
Operating Temperature: 0ºC ~ 35ºC, Storage Temperature: -40ºC ~ 60ºC, Operating Humidity: 5% ~ 80%RH (non-condensing)
Internet
4 × 10G Ethernet (SFP+), 1 × Gigabit Ethernet (RJ45, MGMT used as BMC management network)
Usb
2 × USB3.0 (The lower USB is USB3.0 OTG, and the BMC can be upgraded OTG using a USB flash drive)
Button
1 × Reset button, 1 × Power button, 1 × Restart BMC button
Product tutorialsClick Here
Product datasheetClick Here
SDK software and firmware filesClick Here

Document links will be replaced with the official Firefly resource URLs on request.

Our cooperating carriers: FedEx, DHL, UPS, SF Express

Delivery Area And Cost

Country/Region 0–2kg 2–3kg 3–4kg 4–5kg 5–6kg 6–7kg 7–8kg 8–9kg 9–10kg
Japan, Taiwan, Hong Kong, Macau $15 $20 $25 $30 $35 $40 $45 $50 $55
Singapore, Thailand, Malaysia $20 $25 $30 $35 $40 $45 $50 $55 $60
Indonesia, Philippines $25 $30 $40 $50 $60 $70 $80 $85 $95
South Korea $25 $35 $35 $45 $45 $55 $55 $65 $65
United States, Australia, New Zealand, Canada, UK, and most of Western Europe $30 $45 $55 $65 $75 $85 $95 $105 $115
Other regions (Eastern Europe, Middle East, Latin America, etc.) $50 $65 $80 $95 $110 $125 $135 $150 $165

Shipping time is for reference only; the actual situation shall prevail.

Why Buy From Ai-Paipai?
  • Authorized & Genuine — sourced directly from brand-approved channels.
  • Local Engineering Support — datasheets, SDKs, and pre-flashed images in English and Chinese.
  • OEM / ODM & FPGA Customization — tailor specs, enclosures, and BSP for your project.
  • One-Stop Sourcing — Firefly + youyeetoo + our own FPGA / edge lineup in one store.
View full details

Frequently asked questions

What is CSC2-N48 Edge Computing 2U Server used for?
CSC2-N48 Edge Computing 2U Server is a AI Server / Cluster from Firefly. It is typically used in embedded computing, edge AI inference, industrial control and rapid prototyping, and can be integrated into custom carrier boards or finished devices.

Does CSC2-N48 Edge Computing 2U Server include technical support, datasheets or pre-flashed images?
Yes. Ai-Paipai supplies this item as an authorized distributor and provides local engineering support, datasheets, SDKs and pre-flashed system images where applicable, plus OEM / ODM customization for volume projects.

Can I order CSC2-N48 Edge Computing 2U Server with OEM / ODM options or CE / FCC / RoHS certification?
OEM / ODM customization (specs, enclosure, BSP) is available, and CE / FCC / RoHS certified options can be provided on request for EU and US imports. Contact us for a quote.

How is CSC2-N48 Edge Computing 2U Server shipped, and what is the lead time?
Orders ship worldwide from Shenzhen. Stock items typically dispatch within a few business days; configurable or made-to-order variants take longer. Exact lead time is shown at checkout or on request.

Specifications

Product Datasheet Click Here
Built-in 48 Computing Nodes Server integrates 48 distributed computing nodes supporting multiple processor platforms (Rockchip / SOPHGO / NVIDIA), with each node delivering 6~157 TOPS computing power. This scalable configuration provides powerful AI and deep learning acceleration capabilities.
Private Deployment of Large Models Enables on-premises deployment of leading large language models (Deepseek-R1, Llama, Qwen), vision models (SAM, ViT), and image generation models (Flux, Stable Diffusion).
Configure aBMC Management System Includes aBMC intelligent management system for: Real-time monitoring, Software/hardware configuration, Troubleshooting, Alert notification, System upgrades, Remote maintenance, Supports secondary development for customization.
Scalable M.2 PCIe NVMe SSD Features 48 onboard M.2 PCIe interfaces supporting NVMe 2280 SSD expansion, enabling massive high-speed storage capacity. Delivers significantly improved data throughput to meet high-density storage requirements, with scalable capacity up to TB-level.
