Firefly

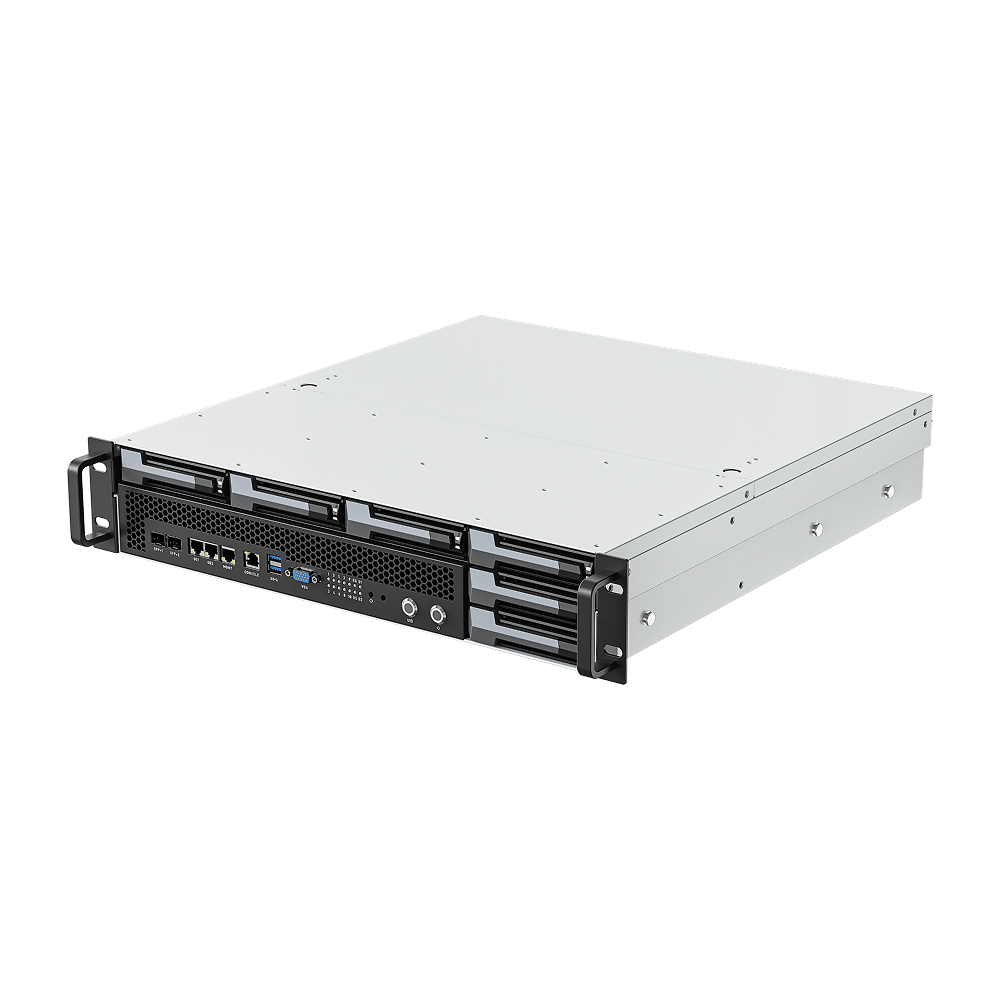

CSB2-N10SPK3 RISC-V Server

CSB2-N10SPK3 RISC-V Server

Regular price $11,949.00 USD
Regular price Sale price $11,949.00 USD
Sale Sold out
Shipping calculated at checkout.
Configuration
Quantity

CSB2-N10SPK3 RISC-V Server is a Firefly product sold by Ai-Paipai. Key specifications — Ai performance: 600 TOPS (60T × 10, SquareINT4). It supports the RVV… · Ram: 32GB LPDDR5 × 10 (8/16/32GB) · Storage: 128GB UFS2.2 × 10 · Display: 1 × VGA (maximum resolution 1080P, BMC management display) · Storage expansion: 3.5-inch/2.5-inch SATA3.0 SSD hard drive slot × 6…. Typical applications: edge AI inference, machine vision and industrial automation. Ai-Paipai (Shenzhen AiPaipai Intelligent Technology Co., Ltd.) is an authorized distributor providing local technical support, pre-installed SDK / OS images, OEM / ODM customization, and worldwide shipping.

✅ Authorized Distributor — Ai-Paipai (Shenzhen AiPaipai Intelligent Technology Co., Ltd.)

This product is supplied by an authorized distributor of the original brand. We provide local technical support, pre-installed SDK / mirror images, and OEM / ODM customization, plus fast global shipping.

Industry's first RVA23 Profile mass-production array server, featuring 10 built-in SpacemiT K3 compute nodes (quantity configurable). A single node delivers maximum frequency of 2.4GHz and peak computing power of 60 TOPS, capable of running 30B large models. It supports mainstream build systems such as Open Build Server and Koji, as well as compatibility testing for mainstream Linux distributions, open-source software, and AI frameworks. It also offers remote RISC-V cloud debugging functionality, features dual 10GbE ports and Gigabit Ethernet ports, expandable with 6 SATA3.0 hard drives and comes with integrated BMC management system.

Feature

  • Support for Linux Distribution Build Systems
  • Full RISC-V Hardware Virtualization
  • High-Level Security Defense Technology
  • Supports RISC-V Software Compatibility Testing
  • Remote RISC-V Debugging Functionality
  • Exceptional Power Efficiency, Green Computing Power
  • Integrated BMC Management System
  • 6 × 3.5-inch SATA 3.0 HDD/SSD

Product Overview


Shipping list

  • Main unit × 1
  • Power adapter / cable (region plug on request) × 1
  • Accessories vary by configuration — contact us for the exact included list.
Ai performance
600 TOPS (60T × 10, SquareINT4). It supports the RVV vector instruction set, native FP8 inference and multimodal algorithm acceleration. A single node can run 30B local models, with model performance exceeding 10 Tokens/S@30B, enabling deployment of all AI algorithms and models.
Server form
2U rack-mounted computing power server
Number of nodes
10 distributed computing nodes + 1 control node
Compute nodes
8-core X100 64-bit RISC-V AI processor SpacemiT Key Stone K3, with a maximum main frequency of 2.4GHz. A single node delivers 130K DMIPS of general-purpose computing power and fully complies with the RVA23 Profile. Its single-core SpecInt2006 exceeds 9.0/GHz, with performance equivalent to ARM-A76.
Control nodes
Octa-core 64-bit processor RK3588, main frequency up to 2.4GHz, the highest computing power is 6TOPS
Fan module
4 high-speed cooling fans
Installation requirements
IEC 297 Universal Cabinet Installation: 19 inches wide and 800 mm deep and above Retractable slideway installation: The distance between the front and rear holes of the cabinet is 543.5mm~848.5mm
Bmc
The BMC management system is integrated with the web-based management interface, supporting Redfish, VNC, NTP, monitoring advanced and virtual media, and the BMC management system can be redeveloped
Console
1 × Console (RJ45, BMC debug serial port, baud rate 115200)
Ram
32GB LPDDR5 × 10 (8/16/32GB)
Storage
128GB UFS2.2 × 10
Storage expansion
3.5-inch/2.5-inch SATA3.0 SSD hard drive slot × 6 (Supports hot swapping; BMC can directly operate the hard drive, and computing child nodes can indirectly access the hard drive through the network sharing method provided by BMC)
Codecs
Video Encoding: 4K@60fps H.264 Video Decoding: 4K@120fps H.264/VP9
Power
Single power supply (default) / Redundant dual power supplies optional
Display
1 × VGA (maximum resolution 1080P, BMC management display)
Dimension
Standard 2U rack servers: 487.9mm(L) × 530.59mm(W) × 88.8mm(H)
Weight
Server net weight: 11.5kg, total weight with packaging: 13.7kg
Environment
Operating Temperature: 0ºC ~ 42ºC, Storage Temperature: -40ºC ~ 60ºC, Operating Humidity: 5% ~ 80%RH (non-condensing)
Usb
2 × USB3.0 (Lower USB port is USB3.0 OTG, supporting BMC upgrade via USB flash drive) 1 × USB2.0 (Internal USB2.0 port, maintains appearance integrity and enables expansion of internal dongles, Bluetooth, Wi-Fi modules, etc.)
Button
1 × Reset, 1 × UID, 1 × Power
Product tutorialsClick Here
Product datasheetClick Here
SDK software and firmware filesClick Here

Document links will be replaced with the official Firefly resource URLs on request.

Our cooperating carriers: FedEx, DHL, UPS, SF Express

Delivery Area And Cost

Country/Region 0–2kg 2–3kg 3–4kg 4–5kg 5–6kg 6–7kg 7–8kg 8–9kg 9–10kg
Japan, Taiwan, Hong Kong, Macau $15 $20 $25 $30 $35 $40 $45 $50 $55
Singapore, Thailand, Malaysia $20 $25 $30 $35 $40 $45 $50 $55 $60
Indonesia, Philippines $25 $30 $40 $50 $60 $70 $80 $85 $95
South Korea $25 $35 $35 $45 $45 $55 $55 $65 $65
United States, Australia, New Zealand, Canada, UK, and most of Western Europe $30 $45 $55 $65 $75 $85 $95 $105 $115
Other regions (Eastern Europe, Middle East, Latin America, etc.) $50 $65 $80 $95 $110 $125 $135 $150 $165

Shipping time is for reference only; the actual situation shall prevail.

Why Buy From Ai-Paipai?
  • Authorized & Genuine — sourced directly from brand-approved channels.
  • Local Engineering Support — datasheets, SDKs, and pre-flashed images in English and Chinese.
  • OEM / ODM & FPGA Customization — tailor specs, enclosures, and BSP for your project.
  • One-Stop Sourcing — Firefly + youyeetoo + our own FPGA / edge lineup in one store.
View full details

Frequently asked questions

What is CSB2-N10SPK3 RISC-V Server used for?
CSB2-N10SPK3 RISC-V Server is a AI Server / Cluster from Firefly. It is typically used in embedded computing, edge AI inference, industrial control and rapid prototyping, and can be integrated into custom carrier boards or finished devices.

Does CSB2-N10SPK3 RISC-V Server include technical support, datasheets or pre-flashed images?
Yes. Ai-Paipai supplies this item as an authorized distributor and provides local engineering support, datasheets, SDKs and pre-flashed system images where applicable, plus OEM / ODM customization for volume projects.

Can I order CSB2-N10SPK3 RISC-V Server with OEM / ODM options or CE / FCC / RoHS certification?
OEM / ODM customization (specs, enclosure, BSP) is available, and CE / FCC / RoHS certified options can be provided on request for EU and US imports. Contact us for a quote.

How is CSB2-N10SPK3 RISC-V Server shipped, and what is the lead time?
Orders ship worldwide from Shenzhen. Stock items typically dispatch within a few business days; configurable or made-to-order variants take longer. Exact lead time is shown at checkout or on request.
