Firefly

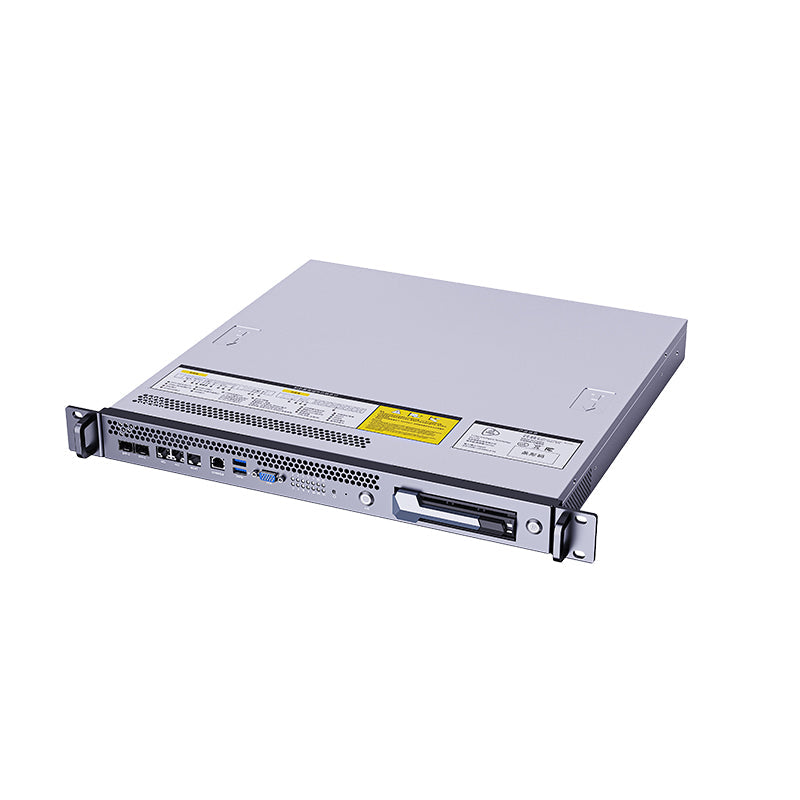

CSB1-N10NorinNX Jetson Orin NX Server

CSB1-N10NorinNX Jetson Orin NX Server

$19,569.00 USD
$19,569.00 USD
Sale Sold out
Shipping calculated at checkout.
Title

CSB1-N10NorinNX Jetson Orin NX Server is a Firefly product sold by Ai-Paipai. Key specifications — Ai computing power: 1570 TOPS (INT8) · Ram: 16GB LPDDR5 × 10 (Number of compute nodes) · Storage: 256GB (2242 PCIe NVMe SSD, the server is internally… · Display: 1 × VGA (maximum resolution 1080P, BMC management display) · Storage expansion: 3.5-inch/2.5-inch SATA3.0/SSD hard drive slot × 1 (BMC…. Typical applications: edge AI inference, machine vision and IoT gateway deployments. Ai-Paipai (Shenzhen AiPaipai Intelligent Technology Co., Ltd.) is an authorized distributor providing local technical support, pre-installed SDK / OS images, OEM / ODM customization, and worldwide shipping.

✅ Authorized Distributor — Ai-Paipai (Shenzhen AiPaipai Intelligent Technology Co., Ltd.)

This product is supplied by an authorized distributor of the original brand. We provide local technical support, pre-installed SDK / mirror images, and OEM / ODM customization, plus fast global shipping.

Machines with deployed DeepSeek specifications come with deployment software and model files for DeepSeek-R1 series distillation models, allowing you to quickly run the reasoning of DeepSeek-R1 series distillation models at hand

Shipping list

  • Main unit × 1
  • Power adapter / cable (region plug on request) × 1
  • Accessories vary by configuration — contact us for the exact included list.
Server form
1U rack-mounted computing power server
Number of nodes
10 distributed computing nodes (up to 80 ARM cores) + 1 control node
Compute nodes
Octa-core 64-bit processor NVIDIA Jetson OrinNX, main frequency up to 2.0GHz
Control nodes
Octa-core 64-bit processor RK3588, main frequency up to 2.4GHz, the highest computing power is 6TOPS
Ai computing power
1570 TOPS (INT8)
Fan module
6 high-speed cooling fans
Installation requirements
IEC 297 Universal Cabinet Installation: 19 inches wide and 800 mm deep and above Retractable slideway installation: The distance between the front and rear holes of the cabinet is 543.5mm~848.5mm
Bmc
The BMC management system is integrated with the web-based management interface, supporting Redfish, VNC, NTP, monitoring advanced and virtual media, and the BMC management system can be redeveloped
Large model
Robot model: The ROS robot model is supported. Large language models: Support Ollama local large model deployment framework, which can be used for natural language processing, code generation, and assistance scenarios. Support the private deployment of ultra-large-scale parametric models under the Transformer architecture, such as LLaMa3 and Phi-3 Mini. Large visual models: Support the privatization deployment of large visual models such as EfficientVIT, NanoOWL, NanoSAM, SAM, and TAM. AI Painting: Support ComfyUI graphical deployment framework, which can be used for scenarios such as image restoration, image style conversion, and image synthesis. Supports the private deployment of Flux, Stable Diffusion, and Stable Diffusion XL image generation model in the AIGC field.
Deep learning
Supports multiple deep learning frameworks accelerated by cuDNN, including PaddlePaddle, PyTorch, TensorFlow, MATLAB, MxNet, Caffe2, Chainer, and Keras. Supports custom operator development. Docker containerization: Docker containerization technology is supported, which can be easily used for image deployment.
Console
1 × Console (RJ45, BMC debug serial port, baud rate 115200)
Ram
16GB LPDDR5 × 10 (Number of compute nodes)
Storage
256GB (2242 PCIe NVMe SSD, the server is internally assembled)
Storage expansion
3.5-inch/2.5-inch SATA3.0/SSD hard drive slot × 1 (BMC can directly operate the hard drive, and computing child nodes can indirectly access the hard drive through the network sharing method provided by BMC)
Power
550W AC power supply (Input: 90V AC~264V AC, 47 Hz~63 Hz, 8A) (Hot swappable not supported)
Display
1 × VGA (maximum resolution 1080P, BMC management display)
Dimension
420.0 mm(L) × 421.3 mm(W) × 44.4 mm(H)
Weight
Server net weight: 8.1kg, total weight with packaging: 10.3kg
Environment
Operating Temperature: 0ºC ~ 45ºC Storage Temperature: -40ºC ~ 60ºC Operating Humidity: 5% ~ 90%RH(non-condensing)
Other interface
1 × RS232 (DB9, baud rate 115200),1 × RS485 (DB9, baud rate 115200)
Usb
2 × USB3.0 (The lower USB is USB3.0 OTG, and the BMC can be upgraded OTG by using a USB flash drive)
Button
1 × Reset, 1 × UID, 1 × Power button
Product tutorials
Click Here
Sdk software and firmware files
Click Here
Product tutorialsClick Here
Product datasheetClick Here
SDK software and firmware filesClick Here

Document links will be replaced with the official Firefly resource URLs on request.

Our cooperating carriers: FedEx, DHL, UPS, SF Express

Delivery Area And Cost

Country/Region 0–2kg 2–3kg 3–4kg 4–5kg 5–6kg 6–7kg 7–8kg 8–9kg 9–10kg
Japan, Taiwan, Hong Kong, Macau $15 $20 $25 $30 $35 $40 $45 $50 $55
Singapore, Thailand, Malaysia $20 $25 $30 $35 $40 $45 $50 $55 $60
Indonesia, Philippines $25 $30 $40 $50 $60 $70 $80 $85 $95
South Korea $25 $35 $35 $45 $45 $55 $55 $65 $65
United States, Australia, New Zealand, Canada, UK, and most of Western Europe $30 $45 $55 $65 $75 $85 $95 $105 $115
Other regions (Eastern Europe, Middle East, Latin America, etc.) $50 $65 $80 $95 $110 $125 $135 $150 $165

Shipping time is for reference only; the actual situation shall prevail.

Why Buy From Ai-Paipai?
  • Authorized & Genuine — sourced directly from brand-approved channels.
  • Local Engineering Support — datasheets, SDKs, and pre-flashed images in English and Chinese.
  • OEM / ODM & FPGA Customization — tailor specs, enclosures, and BSP for your project.
  • One-Stop Sourcing — Firefly + youyeetoo + our own FPGA / edge lineup in one store.
View full details

Not sure which platform fits your project?

Frequently asked questions

What is CSB1-N10NorinNX Jetson Orin NX Server used for?
CSB1-N10NorinNX Jetson Orin NX Server is a AI Server / Cluster from Firefly. It is typically used in embedded computing, edge AI inference, industrial control and rapid prototyping, and can be integrated into custom carrier boards or finished devices.

Does CSB1-N10NorinNX Jetson Orin NX Server include technical support, datasheets or pre-flashed images?
Yes. Ai-Paipai supplies this item as an authorized distributor and provides local engineering support, datasheets, SDKs and pre-flashed system images where applicable, plus OEM / ODM customization for volume projects.

Can I order CSB1-N10NorinNX Jetson Orin NX Server with OEM / ODM options or CE / FCC / RoHS certification?
OEM / ODM customization (specs, enclosure, BSP) is available, and CE / FCC / RoHS certified options can be provided on request for EU and US imports. Contact us for a quote.

How is CSB1-N10NorinNX Jetson Orin NX Server shipped, and what is the lead time?
Orders ship worldwide from Shenzhen. Stock items typically dispatch within a few business days; configurable or made-to-order variants take longer. Exact lead time is shown at checkout or on request.
