Firefly

Core-3588L AI System on Module Rockchip RK3588

Core-3588L AI System on Module Rockchip RK3588

$279.00 USD
$279.00 USD
Sale Sold out
Shipping calculated at checkout.
Configuration

Core-3588L AI System on Module Rockchip RK3588 is a Firefly product sold by Ai-Paipai. Key specifications — Soc: Octa-core 64-bit (4 x Cortex-A76+4 x Cortex-A55) Up to… · Npu: 6 TOPS Support INT4/INT8/INT16 mixed operation Support… · Ram: LPDDR4/LPDDR4x (4GB/8GB/16GB optional, up to 32GB) · Storage: eMMC (32GB/64GB/128GB/256GB optional) · Network: GMAC/SDIO 3.0/USB 3.0 can expand Gigabit Ethernet, WiFi…. Typical applications: edge AI inference, machine vision and industrial automation. Ai-Paipai (Shenzhen AiPaipai Intelligent Technology Co., Ltd.) is an authorized distributor providing local technical support, pre-installed SDK / OS images, OEM / ODM customization, and worldwide shipping.

✅ Authorized Distributor — Ai-Paipai (Shenzhen AiPaipai Intelligent Technology Co., Ltd.)

This product is supplied by an authorized distributor of the original brand. We provide local technical support, pre-installed SDK / mirror images, and OEM / ODM customization, plus fast global shipping.

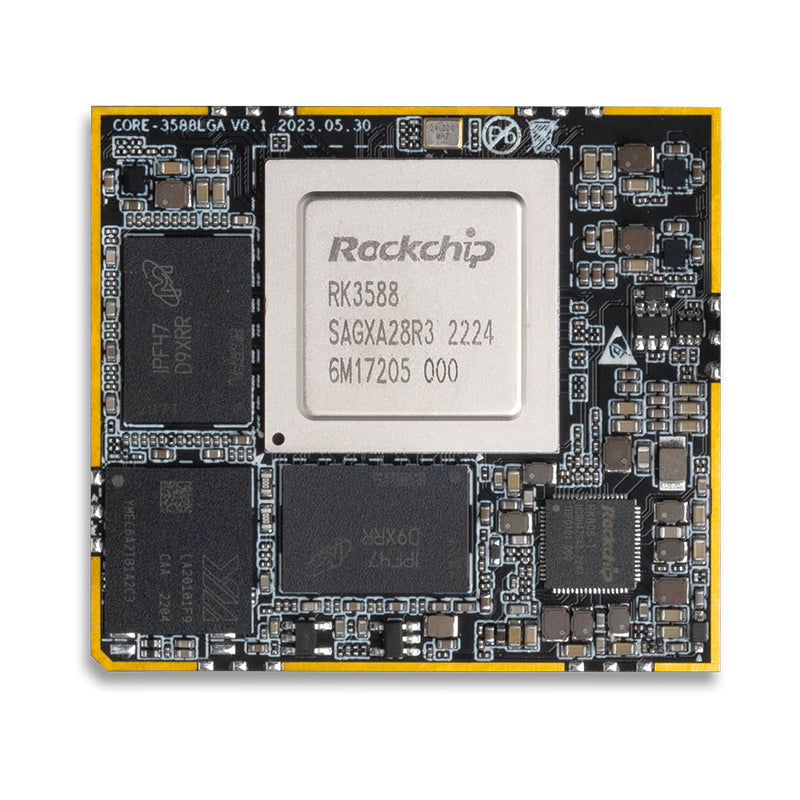

The system on module is equipped with Rockchip's new generation flagship octa-core 64-bit processor RK3588, with up to 32GB memory, 6 TOPS NPU and 8K video encoding and decoding capabilities. LGA packaging improves transmission capacity. Core-3588L provides a rich selection of interfaces, supporting multiple hard drives, Gigabit Ethernet, WiFi 6, 5G/4G expansion, and video input and output. Compatible with multiple operating systems.

Feature

  • A New-gen AIoT SoC RK3588 Series: RK3588 is Rockchip's new generation flagship AIoT SoC, built with 8nm lithography. It is equipped with an octa-core 64-bit CPU with a main frequency of up to 2.4 GHz. It integrates an ARM Mali-G610 MP4 quad-core GPU, a 48-megapixel image signal processor (ISP) supporting HDR and 3DNR, and a built-in AI accelerator NPU, which can provide 6 Top computing power. The RK3588 series also supports mainstream deep learning frameworks. The powerful performance of RK3588 provides more optimized performance in various AI application scenarios.
  • 6 TOPS Powerful Computing Power: It is equipped with a powerful NPU with 6TOPS computing power, supports INT4/INT8/INT16 mixed operations, and supports TensorFlow/MXNet/PyTorch/Caffe framework switching.
  • 8K HD Video Decoding: The core board supports 8K@60fps video decoding and 8K@30fps video encoding, and supports simultaneous encoding and decoding, which can achieve up to 32 channels of 1080P@30fps decoding and 16 channels of 1080P@30fps encoding. The powerful video encoding and decoding capabilities bring amazing 8K high-definition display effects and delicate picture quality.
  • New-generation 48-megapixel ISP: RK3588 introduces a new generation of 48-megapixel ISP 3.0, which supports lens shading correction, 2D/3D noise reduction, sharpening and defogging, fisheye correction, gamma correction, wide dynamic contrast enhancement and other functions, significantly improving image quality.
  • Support 7-channel Camera Connections: The system on module is equipped with HDMI 2.1/eDP1.3, MIPI-DSI, DP1.4 and BT.1120, supports multiple video output options and multi-channel 8K video output, and supports seven-screen output, which can be matched with different monitors to meet the needs of multi-screen display scenarios. In addition, it also supports multi-channel video input interface and up to 7-channel camera interface.

Shipping list

  • Main unit × 1
  • Power adapter / cable (region plug on request) × 1
  • Accessories vary by configuration — contact us for the exact included list.
Soc
Octa-core 64-bit (4 x Cortex-A76+4 x Cortex-A55) Up to 2.4GHz
Gpu
ARM Mali-G610 MP4 quad-core GPU Support OpenGL ES3.2/OpenCL 2.2/Vulkan1.1, 450 GFLOPS
Npu
6 TOPS Support INT4/INT8/INT16 mixed operation Support framework switching of TensorFlow/MXNet/PyTorch/Caffe
Vpu
Hardware decoding: 8K@60fps H.265/VP9/AVS2 8K@30fps H.264 AVC/MVC 4K@60fps AV1 1080P@60fps MPEG-2/-1/VC-1/VP8 Hardware encoding: 8K@30fps H.265 / H.264
Ram
LPDDR4/LPDDR4x (4GB/8GB/16GB optional, up to 32GB)
Storage
eMMC (32GB/64GB/128GB/256GB optional)
Pcie
3 x PCIe2.1(1 lane), shared with SATA 3, only supporting RC (Root Comple), with a maximum data rate of 5 Gbps 1 x PCIe3.0 (2×2, 1×4, 4×1) 4 options: 1 x 4 lanes / 2 x 2 lanes / 4 x 1 lane / (1 x 2 lanes + 2 x 1 lane); each lane supports 8 Gbps data rate; Supporting RC and EP
Sata
3 x SATA 3.0 shared with PCIe 2.1
Power
4V (voltage tolerance ± 5%)
Video output
2 x HDMI2.1 TX/eDP1.3 TX (one 8K@60Hz HDMI supporting HDCP2.3; eDP1.3, 4K@60Hz, supporting HDCP1.3; HDMI and eDP unable to work simultaneously) 2 x DP1.4a (shared with USB3.1 Gen1, supporting 1, 2, 4 lanes; up to 7680 x 4320@30Hz; HDCP2.3, HDCP 1.3) 2 x MIPI DSI (supporting MIPI DPHY 2.0 or CPHY 1.1, 4K@60Hz; dual MIPI displays (left-right), and RGB/YUV formats (up to 10 bits)) 1 x BT.1120 output (supporting RGB format (up to 8 bit), with a data rate of up to 150MHz and resolution up to 1920 x 1080@60Hz) Support 7 displays (achieve up to 7 displays (2 x HDMI + 2 x MIPI DSI + 2 x DP (one DP can be converted to VGA) + 1 x BT.1120))
Audio
2 x I2S (8 lanes), supporting TX and RX, audio resolution ranging from 16 to 32 bit, and a sampling rate of up to 192 KHz) 2 x I2S(2 lanes), supporting TX and RX, audio resolution ranging from 16 to 32 bit, and a sampling rate of 192 KHz) 2 x SPDIF, supporting 2×16 bit audio data storage and dual-phase stereo output 2 x PDM (8 lanes), up to 8 channels, audio resolution of 16 to 24 bit, a sampling rate of up to 192 KHz; PDM master receive mode and multiple MIC arrays
Os
Android and Linux OS
Dimension
45 mm x 50 mm
Weight
≈20 g
Environment
Operating temperature: 20℃~60℃ Operating humidity: 10%~90%RH (non-condensing)
Network
GMAC/SDIO 3.0/USB 3.0 can expand Gigabit Ethernet, WiFi 6/Bluetooth, and 5G/4G LTE
Usb
2 x USB 3.1 OTG (shared with DP (USB3OTG_0 and USB3OTG_1)) 1 x USB 3.1 HOST (shared with PIPE-PHY2 (USB3OTG_2)) 2 x USB2.0 HOST 2 x USB2.0 OTG
Gpio
All GPIOs can be used to generate interrupts.
Adc
8 x ADC, 12-bit single-ended input SAR-ADC, with a sampling rate of up to 1MS/s
Pwm
16 x PWM, supporting up to 16 on-chip PWM channels, with capture mode
Can
3 x CAN 2.0B, supporting CAN standard frames and extended frames for transmission and reception
Uart
10 x UART, built-in 2-channel 64-bit FIFO, used respectively for TX and RX; supporting 5-bit, 6-bit, 7-bit, and 8-bit serial data transmission, with a baud rate of up to 4 Mbps; all 10 UART channels support automatic flow control mode
Spi
5 x SPI: each controller supports 2 chip select outputs; offering both serial master and serial slave modes, with software configuration
I2c
9 x I2C, supporting 7-bit and 10-bit addressing modes, achieving data transfer rates of up to 100k bits/s in standard mode and up to 400k bits/s in fast mode
Sdio
1 x SDIO 3.0, supporting SDIO 3.0 (4-bit data bus widths)
Product tutorials
Click Here
Sdk software and firmware files
Click Here
Product tutorialsClick Here
Product datasheetClick Here
SDK software and firmware filesClick Here

Document links will be replaced with the official Firefly resource URLs on request.

Our cooperating carriers: FedEx, DHL, UPS, SF Express

Delivery Area And Cost

Country/Region 0–2kg 2–3kg 3–4kg 4–5kg 5–6kg 6–7kg 7–8kg 8–9kg 9–10kg
Japan, Taiwan, Hong Kong, Macau $15 $20 $25 $30 $35 $40 $45 $50 $55
Singapore, Thailand, Malaysia $20 $25 $30 $35 $40 $45 $50 $55 $60
Indonesia, Philippines $25 $30 $40 $50 $60 $70 $80 $85 $95
South Korea $25 $35 $35 $45 $45 $55 $55 $65 $65
United States, Australia, New Zealand, Canada, UK, and most of Western Europe $30 $45 $55 $65 $75 $85 $95 $105 $115
Other regions (Eastern Europe, Middle East, Latin America, etc.) $50 $65 $80 $95 $110 $125 $135 $150 $165

Shipping time is for reference only; the actual situation shall prevail.

Why Buy From Ai-Paipai?
  • Authorized & Genuine — sourced directly from brand-approved channels.
  • Local Engineering Support — datasheets, SDKs, and pre-flashed images in English and Chinese.
  • OEM / ODM & FPGA Customization — tailor specs, enclosures, and BSP for your project.
  • One-Stop Sourcing — Firefly + youyeetoo + our own FPGA / edge lineup in one store.
View full details

Not sure which platform fits your project?

Frequently asked questions

What is Core-3588L AI System on Module Rockchip RK3588 used for?
Core-3588L AI System on Module Rockchip RK3588 is a SoM / Core Board from Firefly. It is typically used in embedded computing, edge AI inference, industrial control and rapid prototyping, and can be integrated into custom carrier boards or finished devices.

Does Core-3588L AI System on Module Rockchip RK3588 include technical support, datasheets or pre-flashed images?
Yes. Ai-Paipai supplies this item as an authorized distributor and provides local engineering support, datasheets, SDKs and pre-flashed system images where applicable, plus OEM / ODM customization for volume projects.

Can I order Core-3588L AI System on Module Rockchip RK3588 with OEM / ODM options or CE / FCC / RoHS certification?
OEM / ODM customization (specs, enclosure, BSP) is available, and CE / FCC / RoHS certified options can be provided on request for EU and US imports. Contact us for a quote.

How is Core-3588L AI System on Module Rockchip RK3588 shipped, and what is the lead time?
Orders ship worldwide from Shenzhen. Stock items typically dispatch within a few business days; configurable or made-to-order variants take longer. Exact lead time is shown at checkout or on request.

Specifications

Product Datasheet Click Here
Product Wiki Click Here
6 TOPS Powerful Computing Power It is equipped with a powerful NPU with 6TOPS computing power, supports INT4/INT8/INT16 mixed operations, and supports TensorFlow/MXNet/PyTorch/Caffe framework switching.
