Firefly

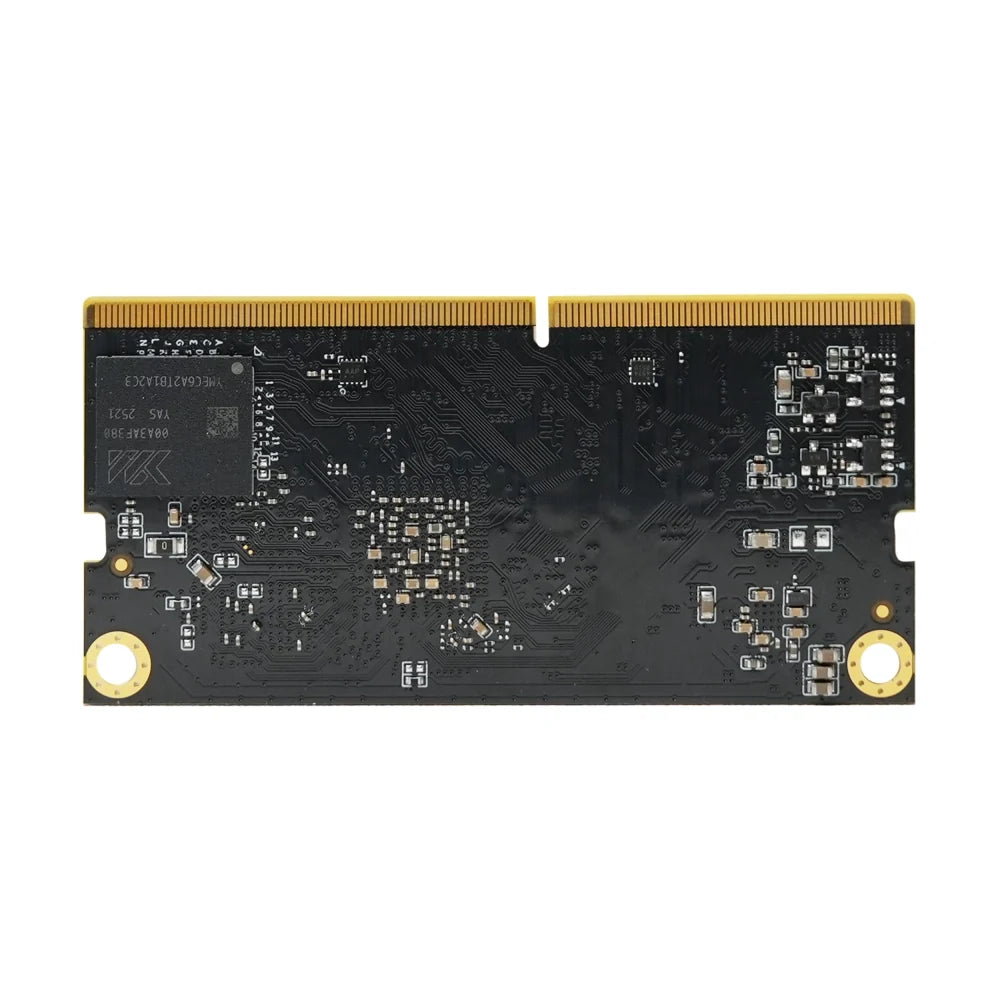

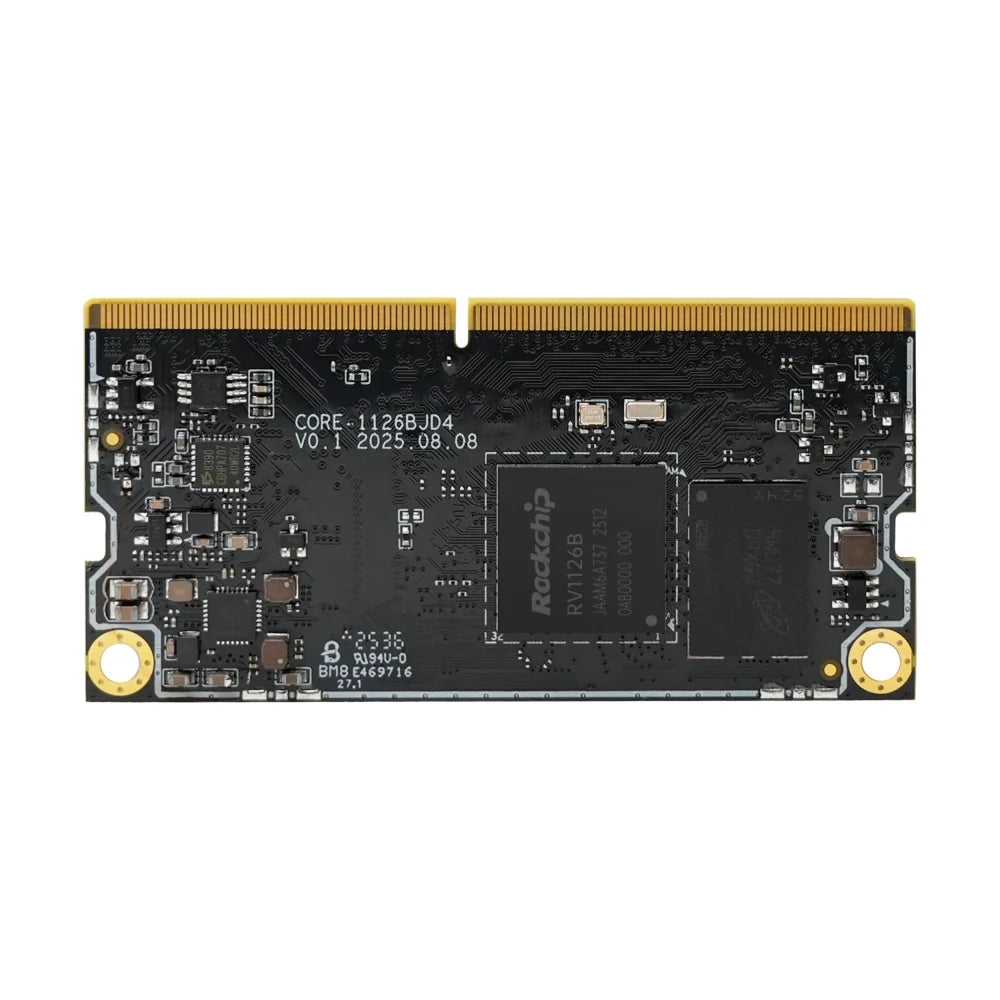

CORE-1126BJD4 RV1126B Vision System On Module
CORE-1126BJD4 RV1126B Vision System On Module
Couldn't load pickup availability
CORE-1126BJD4 RV1126B Vision System On Module is a Firefly product sold by Ai-Paipai. Key specifications — Soc: Rockchip RV1126B · Video input: 2 × MIPI-CSI/LVDS/sub LVDS DPHY (1×4lanes or 2×2lanes) 1… · Ram: LPDDR4 (1GB/2GB/4GB Optional) · Storage: eMMC (8GB/16GB/32GB Optional) · Video output: 1 × MIPI-DSI (1080P@60Hz, 1×4lanes) Supports…. Typical applications: edge AI inference, machine vision and industrial automation. Ai-Paipai (Shenzhen AiPaipai Intelligent Technology Co., Ltd.) is an authorized distributor providing local technical support, pre-installed SDK / OS images, OEM / ODM customization, and worldwide shipping.
✅ Authorized Distributor — Ai-Paipai (Shenzhen AiPaipai Intelligent Technology Co., Ltd.)
This product is supplied by an authorized distributor of the original brand. We provide local technical support, pre-installed SDK / mirror images, and OEM / ODM customization, plus fast global shipping.
The CORE-1126BJD4 is equipped with Rockchip's quad-core RV1126B AI vision processor, an integrated 3 TOPS NPU, and supports lightweight AI models and deep learning frameworks. It also features a built-in 12MP ISP, an 8MP AI-ISP, and multiple algorithm accelerators. This SoM supports 12MP video encoding, 4K video decoding, and simultaneous input from four cameras.
- Product Datasheet: Click Here
Feature
- AI Vision Processor RV1126B: Equipped with a quad-core 64-bit RV1126B AI vision processor. Based on the ARM Cortex-A53 core, it runs at up to 1.6 GHz and includes NEON advanced SIMD and an FPU, enhancing high-performance computing and multitasking capabilities.
- Deployment of Lightweight AI models: Supports lightweight large language models, large visual models, or multimodal large models with less than 2B parameters, such as Qwen, Gemma2-2B, Phi2, MiniCPM series, and other small AI large models.
- Built-in 12MP ISP: Equipped with a new generation of hardware ISP, it supports up to 12 megapixels and features key algorithm accelerators, including HDR, 3A, LSC, and noise reduction. On this basis, it also adds AI-ISP (supports up to 8 megapixels).
- 4K High-Frame-Rate Video Decoding: Supports video encoding up to 12MP at 30fps. Its multi-stream encoding capability allows simultaneous local high-resolution recording and low-resolution streaming to the cloud. It supports 4K at 30fps decoding and integrates the JPEG codec with Baseline mode for various image sizes and YUV formats.
- Simultaneous Input From 4 Cameras: It supports two MIPI CSI/LVDS/SubLVDS D-PHY interfaces and one DVP (BT.601/BT.656/BT.1120) interface, allowing up to four cameras to input simultaneously.
Hardware Overview
Shipping list
- Main unit × 1
- Power adapter / cable (region plug on request) × 1
- Accessories vary by configuration — contact us for the exact included list.
Document links will be replaced with the official Firefly resource URLs on request.
Our cooperating carriers: FedEx, DHL, UPS, SF Express
Delivery Area And Cost
| Country/Region | 0–2kg | 2–3kg | 3–4kg | 4–5kg | 5–6kg | 6–7kg | 7–8kg | 8–9kg | 9–10kg |
|---|---|---|---|---|---|---|---|---|---|
| Japan, Taiwan, Hong Kong, Macau | $15 | $20 | $25 | $30 | $35 | $40 | $45 | $50 | $55 |
| Singapore, Thailand, Malaysia | $20 | $25 | $30 | $35 | $40 | $45 | $50 | $55 | $60 |
| Indonesia, Philippines | $25 | $30 | $40 | $50 | $60 | $70 | $80 | $85 | $95 |
| South Korea | $25 | $35 | $35 | $45 | $45 | $55 | $55 | $65 | $65 |
| United States, Australia, New Zealand, Canada, UK, and most of Western Europe | $30 | $45 | $55 | $65 | $75 | $85 | $95 | $105 | $115 |
| Other regions (Eastern Europe, Middle East, Latin America, etc.) | $50 | $65 | $80 | $95 | $110 | $125 | $135 | $150 | $165 |
Shipping time is for reference only; the actual situation shall prevail.
- Authorized & Genuine — sourced directly from brand-approved channels.
- Local Engineering Support — datasheets, SDKs, and pre-flashed images in English and Chinese.
- OEM / ODM & FPGA Customization — tailor specs, enclosures, and BSP for your project.
- One-Stop Sourcing — Firefly + youyeetoo + our own FPGA / edge lineup in one store.
Frequently asked questions
What is CORE-1126BJD4 RV1126B Vision System On Module used for?
CORE-1126BJD4 RV1126B Vision System On Module is a SoM / Core Board from Firefly. It is typically used in embedded computing, edge AI inference, industrial control and rapid prototyping, and can be integrated into custom carrier boards or finished devices.
Does CORE-1126BJD4 RV1126B Vision System On Module include technical support, datasheets or pre-flashed images?
Yes. Ai-Paipai supplies this item as an authorized distributor and provides local engineering support, datasheets, SDKs and pre-flashed system images where applicable, plus OEM / ODM customization for volume projects.
Can I order CORE-1126BJD4 RV1126B Vision System On Module with OEM / ODM options or CE / FCC / RoHS certification?
OEM / ODM customization (specs, enclosure, BSP) is available, and CE / FCC / RoHS certified options can be provided on request for EU and US imports. Contact us for a quote.
How is CORE-1126BJD4 RV1126B Vision System On Module shipped, and what is the lead time?
Orders ship worldwide from Shenzhen. Stock items typically dispatch within a few business days; configurable or made-to-order variants take longer. Exact lead time is shown at checkout or on request.
Specifications
| Product Datasheet | Click Here |
| AI Vision Processor RV1126B | Equipped with a quad-core 64-bit RV1126B AI vision processor. Based on the ARM Cortex-A53 core, it runs at up to 1.6 GHz and includes NEON advanced SIMD and an FPU, enhancing high-performance computing and multitasking capabilities. |
| Deployment of Lightweight AI models | Supports lightweight large language models, large visual models, or multimodal large models with less than 2B parameters, such as Qwen, Gemma2-2B, Phi2, MiniCPM series, and other small AI large models. |
| Built-in 12MP ISP | Equipped with a new generation of hardware ISP, it supports up to 12 megapixels and features key algorithm accelerators, including HDR, 3A, LSC, and noise reduction. On this basis, it also adds AI-ISP (supports up to 8 megapixels). |
| Simultaneous Input From 4 Cameras | It supports two MIPI CSI/LVDS/SubLVDS D-PHY interfaces and one DVP (BT.601/BT.656/BT.1120) interface, allowing up to four cameras to input simultaneously. |
