Firefly

CAM-8MS1M IMX415 800W Monocular MIPI Camera

CAM-8MS1M IMX415 800W Monocular MIPI Camera

$59.00 USD
$59.00 USD
Sale Sold out
Shipping calculated at checkout.
Configuration

CAM-8MS1M IMX415 800W Monocular MIPI Camera is a Firefly product sold by Ai-Paipai. We provide local technical support, pre-installed SDK / mirror images, and OEM / ODM customization , plus fast global shipping. CAM-8MS1M (IMX415) is a 1/2.8-inch industrial-grade high-definition wide dynamic sensor suitable for various complex light environments. Typical applications: machine vision. Ai-Paipai (Shenzhen AiPaipai Intelligent Technology Co., Ltd.) is an authorized distributor providing local technical support, pre-installed SDK / OS images, OEM / ODM customization, and worldwide shipping.

✅ Authorized Distributor — Ai-Paipai (Shenzhen AiPaipai Intelligent Technology Co., Ltd.)

This product is supplied by an authorized distributor of the original brand. We provide local technical support, pre-installed SDK / mirror images, and OEM / ODM customization, plus fast global shipping.

CAM-8MS1M (IMX415) is a 1/2.8-inch industrial-grade high-definition wide dynamic sensor suitable for various complex light environments. MIPI standard interface supports 7x24 hours of uninterrupted operation. It is mainly used in face recognition access control, face recognition attendance, gate machines, identification machines and other scenarios.

Product Parameters

Camera CAM-8MS1M(IMX415)
CMOS Sensor 1/2.8 sensor/RGB
Max Resolution 3840(H) x 2160(V) (16:9 mode)
Sensor Pixel Size 1.45um x 1.45um
Low Lux ≤0.5Lux/F2.0
Image Transmission Rate 3840x2160/60fps
SNR TBD
WDR TBD
FOV D:120.3° H: 111° V: 76.4°
Aperture F2.0
FOV H: 84°V: 50°
Aperture F2.0
Focal Length 1.95mm
Distortion TV Distortion<-3.3%
Lens CRA TBD
Lens Temperature Range -20° /+60°
Lens Structure 1G5P
IR NC
Power Supply 5V,Ripple not higher than 100mv.
Connection Way  0.5mm FPC

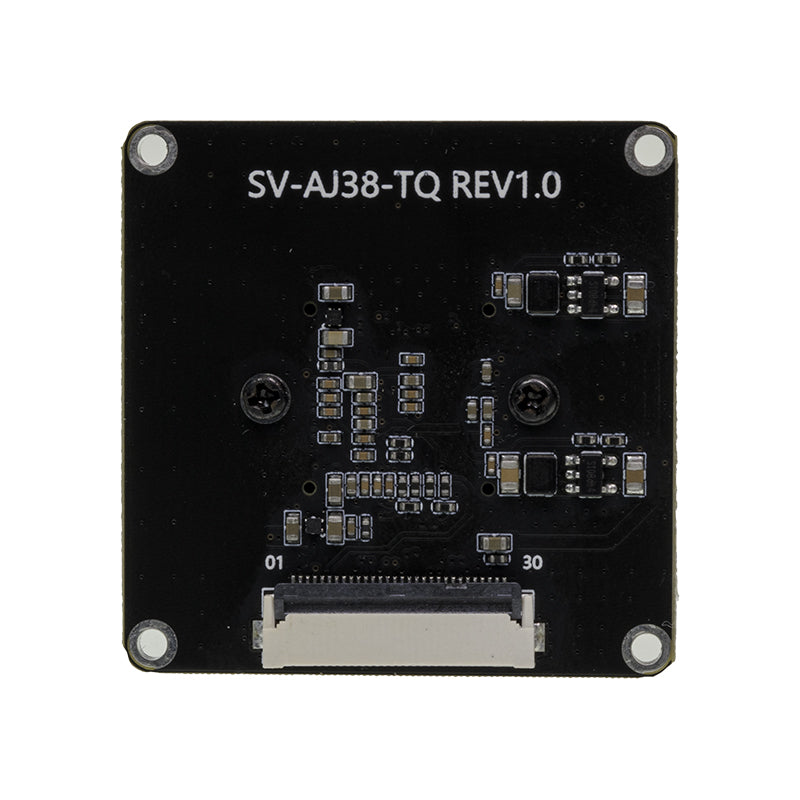

(SV-AJ38-TQ REV1.0 is 30pins, Board needs to be based on the hardware interface)
Power Consumption TBD
Operating Temperature -10° C ~ +55° C (Humidity : 10%RH ~ 75%RH)
Storage Temperature -20° C~ +65° C (Humidity : 10%RH ~75%RH)

Shipping list

  • Main unit × 1
  • Power adapter / cable (region plug on request) × 1
  • Accessories vary by configuration — contact us for the exact included list.

Detailed specifications are listed on the product images. Contact Ai-Paipai technical support for the full datasheet (PDF) and manufacturer documentation.

Product tutorialsClick Here
Product datasheetClick Here
SDK software and firmware filesClick Here

Document links will be replaced with the official Firefly resource URLs on request.

Our cooperating carriers: FedEx, DHL, UPS, SF Express

Delivery Area And Cost

Country/Region 0–2kg 2–3kg 3–4kg 4–5kg 5–6kg 6–7kg 7–8kg 8–9kg 9–10kg
Japan, Taiwan, Hong Kong, Macau $15 $20 $25 $30 $35 $40 $45 $50 $55
Singapore, Thailand, Malaysia $20 $25 $30 $35 $40 $45 $50 $55 $60
Indonesia, Philippines $25 $30 $40 $50 $60 $70 $80 $85 $95
South Korea $25 $35 $35 $45 $45 $55 $55 $65 $65
United States, Australia, New Zealand, Canada, UK, and most of Western Europe $30 $45 $55 $65 $75 $85 $95 $105 $115
Other regions (Eastern Europe, Middle East, Latin America, etc.) $50 $65 $80 $95 $110 $125 $135 $150 $165

Shipping time is for reference only; the actual situation shall prevail.

Why Buy From Ai-Paipai?
  • Authorized & Genuine — sourced directly from brand-approved channels.
  • Local Engineering Support — datasheets, SDKs, and pre-flashed images in English and Chinese.
  • OEM / ODM & FPGA Customization — tailor specs, enclosures, and BSP for your project.
  • One-Stop Sourcing — Firefly + youyeetoo + our own FPGA / edge lineup in one store.
View full details

Frequently asked questions

What is CAM-8MS1M IMX415 800W Monocular MIPI Camera used for?
CAM-8MS1M IMX415 800W Monocular MIPI Camera is a AI Camera from Firefly. It is typically used in embedded computing, edge AI inference, industrial control and rapid prototyping, and can be integrated into custom carrier boards or finished devices.

Does CAM-8MS1M IMX415 800W Monocular MIPI Camera include technical support, datasheets or pre-flashed images?
Yes. Ai-Paipai supplies this item as an authorized distributor and provides local engineering support, datasheets, SDKs and pre-flashed system images where applicable, plus OEM / ODM customization for volume projects.

Can I order CAM-8MS1M IMX415 800W Monocular MIPI Camera with OEM / ODM options or CE / FCC / RoHS certification?
OEM / ODM customization (specs, enclosure, BSP) is available, and CE / FCC / RoHS certified options can be provided on request for EU and US imports. Contact us for a quote.

How is CAM-8MS1M IMX415 800W Monocular MIPI Camera shipped, and what is the lead time?
Orders ship worldwide from Shenzhen. Stock items typically dispatch within a few business days; configurable or made-to-order variants take longer. Exact lead time is shown at checkout or on request.

Specifications

Camera CAM-8MS1M(IMX415)
CMOS Sensor 1/2.8 sensor/RGB
Max Resolution 3840(H) x 2160(V) (16:9 mode)
Sensor Pixel Size 1.45um x 1.45um
Low Lux ≤0.5Lux/F2.0
Image Transmission Rate 3840x2160/60fps
SNR TBD
WDR TBD
FOV D:120.3° H: 111° V: 76.4°
Aperture F2.0
FOV H: 84°V: 50°
Focal Length 1.95mm
Distortion TV Distortion<-3.3%
Lens CRA TBD
Lens Temperature Range -20° /+60°
Lens Structure 1G5P
IR NC
Power Supply 5V,Ripple not higher than 100mv.
Connection Way 0.5mm FPC (SV-AJ38-TQ REV1.0 is 30pins, Board needs to be based on the hardware interface)
Power Consumption TBD
Operating Temperature -10° C ~ +55° C (Humidity: 10%RH ~ 75%RH)
Storage Temperature -20° C~ +65° C (Humidity: 10%RH ~75%RH)
Product Wiki Click Here
