Firefly

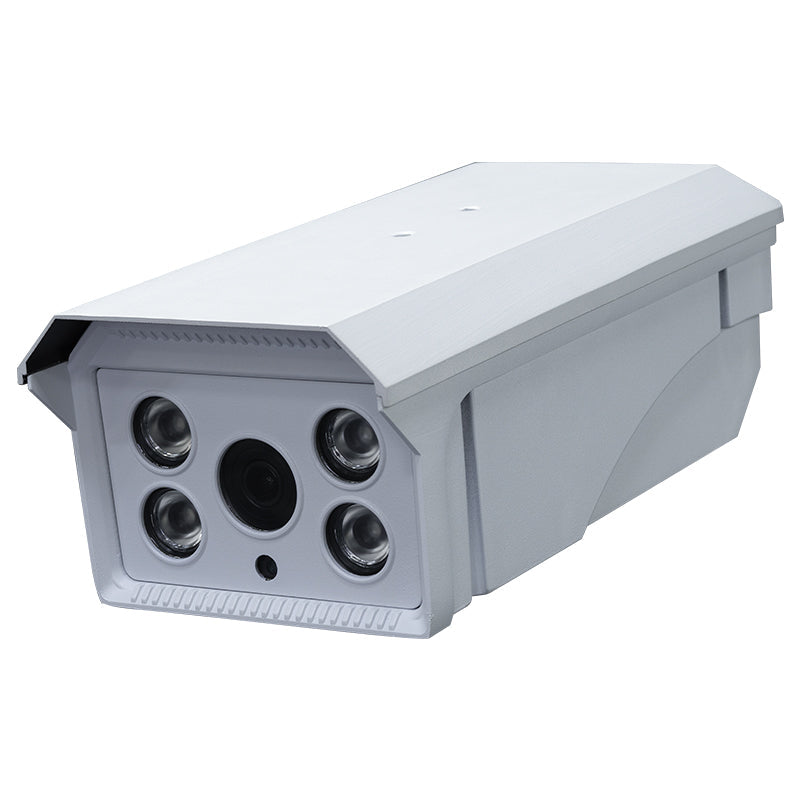

C40PL Open Source AI Camera

C40PL Open Source AI Camera

$249.00 USD
$249.00 USD
Sale Sold out
Shipping calculated at checkout.
Configuration

C40PL Open Source AI Camera is a Firefly product sold by Ai-Paipai. We provide local technical support, pre-installed SDK / mirror images, and OEM / ODM customization, plus fast global shipping. The C40PL is equipped with a quad-core high-performance AI intelligent vision processor with a computing power of up to 2.0Tops. Typical applications: edge AI inference and machine vision. Ai-Paipai (Shenzhen AiPaipai Intelligent Technology Co., Ltd.) is an authorized distributor providing local technical support, pre-installed SDK / OS images, OEM / ODM customization, and worldwide shipping.

✅ Authorized Distributor — Ai-Paipai (Shenzhen AiPaipai Intelligent Technology Co., Ltd.)

This product is supplied by an authorized distributor of the original brand. We provide local technical support, pre-installed SDK / mirror images, and OEM / ODM customization, plus fast global shipping.

The C40PL is equipped with a quad-core high-performance AI intelligent vision processor with a computing power of up to 2.0Tops. It supports 4K video encoding and decoding, multiple AI frameworks and liveness detection, has high recognition accuracy, and is equipped with a 400W HDR high dynamic infrared enhanced wide-angle camera, which is suitable for scenarios such as face recognition and license plate recognition.

Feature

  • Quad-core AI vision SoC: Low-power AI vision processor RV1126 quad-core 32-bit ARM Cortex-A7 architecture, up to 1.5GHz.
  • IP67 Waterproof Design: IP67 waterproof and dustproof designmakesthe camera easier to deal withoutdoorsurveillance and rainy and snowyweather.
  • Powerful AI Computing NPU: Built-in neural network processor NPU with computing power up to 2.0 Tops, it supports direct conversion and deployment of Tensorflow PyTorch, Caffe, MxNet, DarkNet, ONNX, etc.
  • 4M Pixel, HD And HDR: Owing to a large-aperture high-precision optical 4M pixel lens, with resolution up to 2688*1520, HDR function and dynamic range up to 120db.

Specifications

Resolution 1520P(2688×1520, 4M pixel)
Focal Length 5.2mm(Range: 1.18m ~6.38m)
Lens Angle 111°
WDR 120dB
Video Encoding H.264/H.265 4K@30FPS
Network Interface RJ45(GbE)
Power 48V-0.5A(POE)
OS Linux
Size 249×124×90.8 (mm)
Operating Temperature -10℃~60℃
IP Rating IP67waterproof and dustproof design
CPU RV1126 quad-coreARM Cortex-A732-bit kernel, integrated with NEONand FPU
NPU 2.0Tops, supports INT8/ INT16Strong network model compatibility, easy conversion of frameworks like Tensor Flow/MXNet/PyTorch/Caffe
RAM 2GB DDR4
Storage 16GB eMMC
Intelligent Alarming Motion detection, intrusion detection, covering detection
Mode Supports Day/Night mode switching, Fill Light mode
Protocol Supports RTSP/RTMP
Face Recognition Supports face detection, face recognition
Back-Stage Management Video preview playback, face recognition management, network settings, video settings, audio settings, image settings, event management,
configurationplan, storage management, intelligent analysis

Shipping list

  • Main unit × 1
  • Power adapter / cable (region plug on request) × 1
  • Accessories vary by configuration — contact us for the exact included list.

Detailed specifications are listed on the product images. Contact Ai-Paipai technical support for the full datasheet (PDF) and manufacturer documentation.

Product tutorialsClick Here
Product datasheetClick Here
SDK software and firmware filesClick Here

Document links will be replaced with the official Firefly resource URLs on request.

Our cooperating carriers: FedEx, DHL, UPS, SF Express

Delivery Area And Cost

Country/Region 0–2kg 2–3kg 3–4kg 4–5kg 5–6kg 6–7kg 7–8kg 8–9kg 9–10kg
Japan, Taiwan, Hong Kong, Macau $15 $20 $25 $30 $35 $40 $45 $50 $55
Singapore, Thailand, Malaysia $20 $25 $30 $35 $40 $45 $50 $55 $60
Indonesia, Philippines $25 $30 $40 $50 $60 $70 $80 $85 $95
South Korea $25 $35 $35 $45 $45 $55 $55 $65 $65
United States, Australia, New Zealand, Canada, UK, and most of Western Europe $30 $45 $55 $65 $75 $85 $95 $105 $115
Other regions (Eastern Europe, Middle East, Latin America, etc.) $50 $65 $80 $95 $110 $125 $135 $150 $165

Shipping time is for reference only; the actual situation shall prevail.

Why Buy From Ai-Paipai?
  • Authorized & Genuine — sourced directly from brand-approved channels.
  • Local Engineering Support — datasheets, SDKs, and pre-flashed images in English and Chinese.
  • OEM / ODM & FPGA Customization — tailor specs, enclosures, and BSP for your project.
  • One-Stop Sourcing — Firefly + youyeetoo + our own FPGA / edge lineup in one store.
View full details

Frequently asked questions

What is C40PL Open Source AI Camera used for?
C40PL Open Source AI Camera is a AI Camera from Firefly. It is typically used in embedded computing, edge AI inference, industrial control and rapid prototyping, and can be integrated into custom carrier boards or finished devices.

Does C40PL Open Source AI Camera include technical support, datasheets or pre-flashed images?
Yes. Ai-Paipai supplies this item as an authorized distributor and provides local engineering support, datasheets, SDKs and pre-flashed system images where applicable, plus OEM / ODM customization for volume projects.

Can I order C40PL Open Source AI Camera with OEM / ODM options or CE / FCC / RoHS certification?
OEM / ODM customization (specs, enclosure, BSP) is available, and CE / FCC / RoHS certified options can be provided on request for EU and US imports. Contact us for a quote.

How is C40PL Open Source AI Camera shipped, and what is the lead time?
Orders ship worldwide from Shenzhen. Stock items typically dispatch within a few business days; configurable or made-to-order variants take longer. Exact lead time is shown at checkout or on request.

Specifications

Resolution 1520P(2688×1520, 4M pixel)
Focal Length 5.2mm(Range: 1.18m ~6.38m)
Lens Angle 111°
WDR 120dB
Video Encoding H.264/H.265 4K@30FPS
Network Interface RJ45(GbE)
Power 48V-0.5A(POE)
OS Linux
Size 249×124×90.8 (mm)
Operating Temperature -10℃-60℃
IP Rating IP67waterproof and dustproof design
CPU RV1126 quad-coreARM Cortex-A732-bit kernel, integrated with NEONand FPU
NPU 2.0Tops, supports INT8/ INT16Strong network model compatibility, easy conversion of frameworks like Tensor Flow/MXNet/PyTorch/Caffe
RAM 2GB DDR4
Storage 16GB eMMC
Intelligent Alarming Motion detection, intrusion detection, covering detection
Mode Supports Day/Night mode switching, Fill Light mode
Protocol Supports RTSP/RTMP
Face Recognition Supports face detection, face recognition
Back-Stage Management Video preview playback, face recognition management, network settings, video settings, audio settings, image settings, event management, configurationplan, storage management, intelligent analysis
Product Wiki Click Here
Quad-core AI vision SoC Low-power AI vision processor RV1126 quad-core 32-bit ARM Cortex-A7 architecture, up to 1.5GHz.
IP67 Waterproof Design IP67 waterproof and dustproof designmakesthe camera easier to deal withoutdoorsurveillance and rainy and snowyweather.
Powerful AI Computing NPU Built-in neural network processor NPU with computing power up to 2.0 Tops, it supports direct conversion and deployment of Tensorflow PyTorch, Caffe, MxNet, DarkNet, ONNX, etc.
4M Pixel, HD And HDR Owing to a large-aperture high-precision optical 4M pixel lens, with resolution up to 2688*1520, HDR function and dynamic range up to 120db.
