PE100A - 90AE0020-M0C010

Intelligent Edge computer with NXP® i.MX 8M low power consumption and scalable processor

Feature:

• Intelligent Edge computer with NXP® i.MX 8M low power consumption and scalable processor
• 16G on board eMMC and Micro-SD card for storage capacity
• Support Linux Yocto OS
• Wide Temperature Range: -20~60°C

DATASHEET

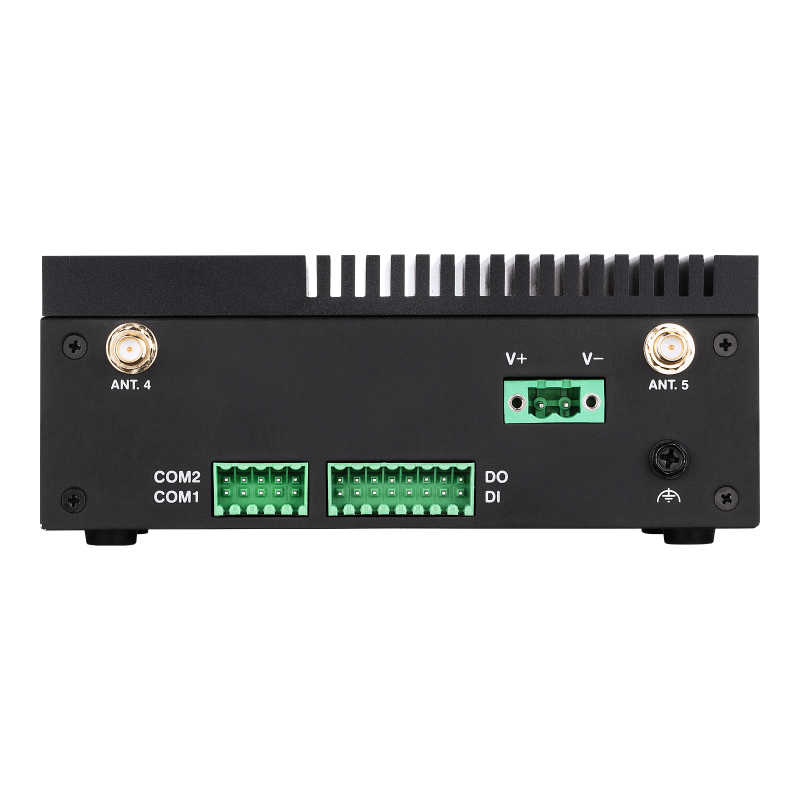

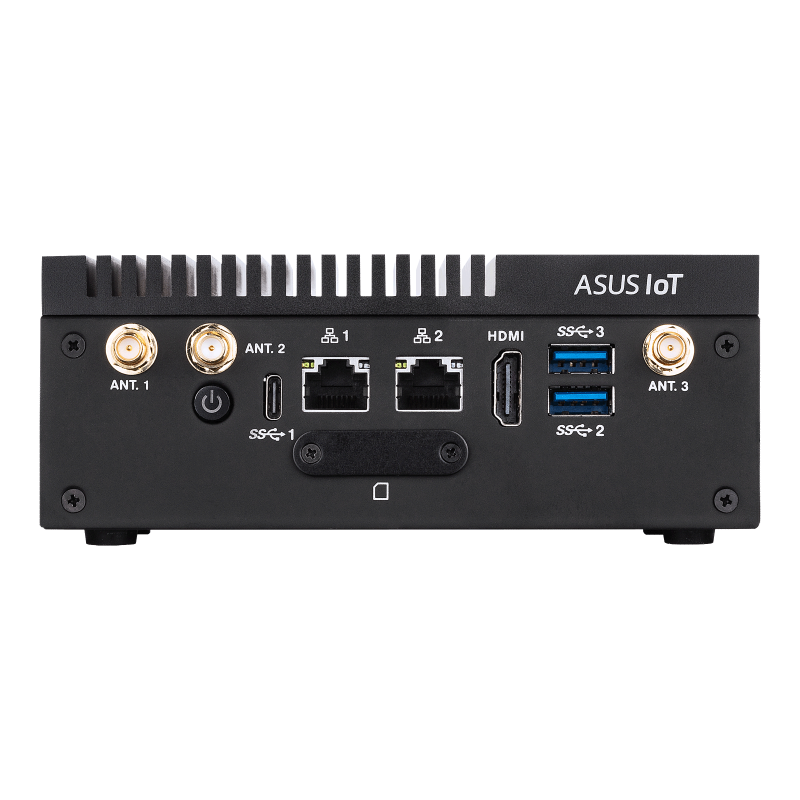

PE100A is an edge computer based on a Pico-ITX motherboard that's optimized for TCO, supported by a secondary I/O board for extra functionality. It's powered by an NXP® i.MX 8M system-on-a-chip (SoC) processor that's based on the Arm® Cortex-A53 architecture with up to 1.3 GHz and delivers efficient performance with low power consumption. PE100A also features 4 GB LPDDR4 onboard memory and 16GB onboard eMMC, and includes two Ethernet ports, three USB ports and one HDMI on the front side. Two COM ports, with RS232/RS485/CAN bus, and one digital DI/DO are also available as optional interfaces at the rear. Inside, PE100A's mainboard also supports an M.2 E-key connector and micro SD card connector, while the I/O board offers Mini PCIe®/mSATA and a Nano-SIM socket interface.

The new computer is also engineered with a wide range of power inputs (12~24V), operating temperatures (-20°~60°) to serve as an edge-to-cloud gateway device for data aggregation, processing and forwarding. The TCO-optimized SBC is ideal for embedded automation solutions and diverse smaller-scale IoT applications. ASUS Edge computer also secure for 24/7 stability and reliability, combined with our world-class after-sales service and guaranteed long-term availability to make sure your investment for the duration of the product lifecycle is maximized.

Why Buy From Ai-Paipai?

• Genuine & Traceable — sourced through a verifiable supply chain.
• Local Engineering Support — datasheets, SDKs, and pre-flashed images in English and Chinese.
• OEM / ODM & FPGA Customization — tailor specs, enclosures, and BSP for your project.
• One-Stop Sourcing — Firefly + youyeetoo + our own FPGA / edge lineup in one store.

Specifications
