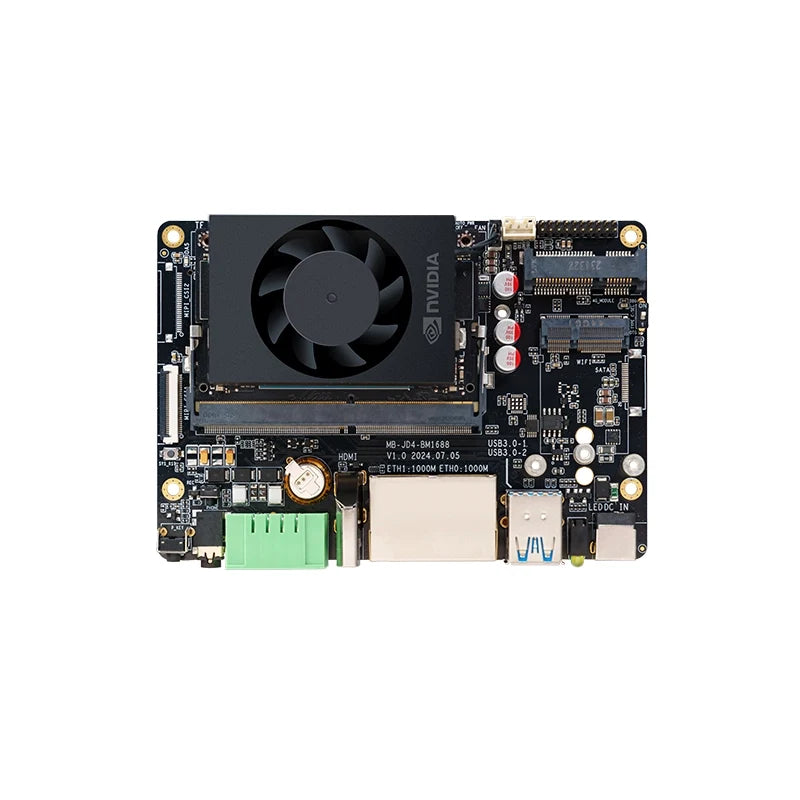

AIO-OrinNX Jetson Orin NX Robotics Motherboard
AIO-OrinNX Jetson Orin NX Robotics Motherboard
Couldn't load pickup availability
AIO-OrinNX Jetson Orin NX Robotics Motherboard is a Firefly product sold by Ai-Paipai. Key specifications — Soc: NVIDIA Jetson Orin NX · Ai performance: Robot model: ROS robot model is supported. Large… · Ram: 16GB LPDDR5 · Storage: 1 x M.2 M-KEY (Expandable PCle NVMe SSD, supports… · Video output: 1 x HDMI2.0 (4K@60fps). Typical applications: edge AI inference, machine vision and IoT gateway deployments. Ai-Paipai (Shenzhen AiPaipai Intelligent Technology Co., Ltd.) is an authorized distributor providing local technical support, pre-installed SDK / OS images, OEM / ODM customization, and worldwide shipping.
✅ Authorized Distributor — Ai-Paipai (Shenzhen AiPaipai Intelligent Technology Co., Ltd.)
This product is supplied by an authorized distributor of the original brand. We provide local technical support, pre-installed SDK / mirror images, and OEM / ODM customization, plus fast global shipping.
AIO-OrinNX is equipped with NVIDIA Jetson Orin NX core module, providing up to 157 TOPS computing power, supporting private deployment of modern mainstream AI models, and supporting up to 8K video decoding. It has comprehensive connection options, including Gigabit Ethernet, dual-band WiFi, 4G/5G, Bluetooth and multiple video I/O interfaces, running on Linux operating system, and is very suitable for edge AI applications, robots, smart drones, smart monitoring systems and other industrial AI applications.
- Product Datasheet: Click Here
Feature
- High-Performance Edge Computing Module: Equipped with the NVIDIA Jetson Orin Nano edge computing module, it uses a six-core ARM CPU and a 1024-core NVIDIA Ampere architecture GPU (32 Tensor Cores), which can run multiple AI application pipelines concurrently, bringing powerful AI performance.
- Up to 157 TOPS Computing Power: It has an AI performance of up to 157 TOPS and supports mainstream AI models such as Transformer and ROS robot models. It supports TensorFlow, OpenCV, JetPack, MXNet, PyTorch and other frameworks to build complex deep neural networks, and has the capabilities of object recognition, target detection and tracking, speech recognition, and visual development, adapting to a variety of AI application scenarios.
- Full-Scale Model Private Deployment: Supports private deployment of modern mainstream AI models, including large language models like LLaMA-2, ChatGLM, and Qwen; vision foundation models such as ViT, Grounding DINO, and SAM; as well as AIGC models like Stable Diffusion V1.5 for image generation.
- Supports Up to 8K Video Decoding: It can decode 18 channels of 1080p@30fps videos and supports: 1x8K@30fps, 2x4K@60fps, 4x4K@30fps, 9x1080p@60fps, and 18x1080p@30fps, meeting the needs of various AI application scenarios.
Applications
-
Edge Generative AI: The NVIDIA Jetson Orin series provides powerful AI computing capabilities, large unified memory, and a comprehensive software stack to execute the latest generative AI applications with ultra-efficiency. It can quickly infer any Transformer-based generative AI model and achieve excellent edge performance in MLPerf benchmarks.
-
AI Software Stack and Ecosystem: Democratize edge AI and robotics development with a complete AI software stack and ecosystem, powered by Edge-Generated AI, NVIDIA Metropolis, and the Isaac platform. NVIDIA JetPack, Isaac ROS, and reference AI workflows enable you to integrate advanced technologies into your products without relying on expensive in-house AI resources.
-
Wide Range of Applications: Applicable to industries such as edge computing, robotics, large-scale model positioning, smart cities, smart medical care, and smart industrial applications.
Hardware Overview

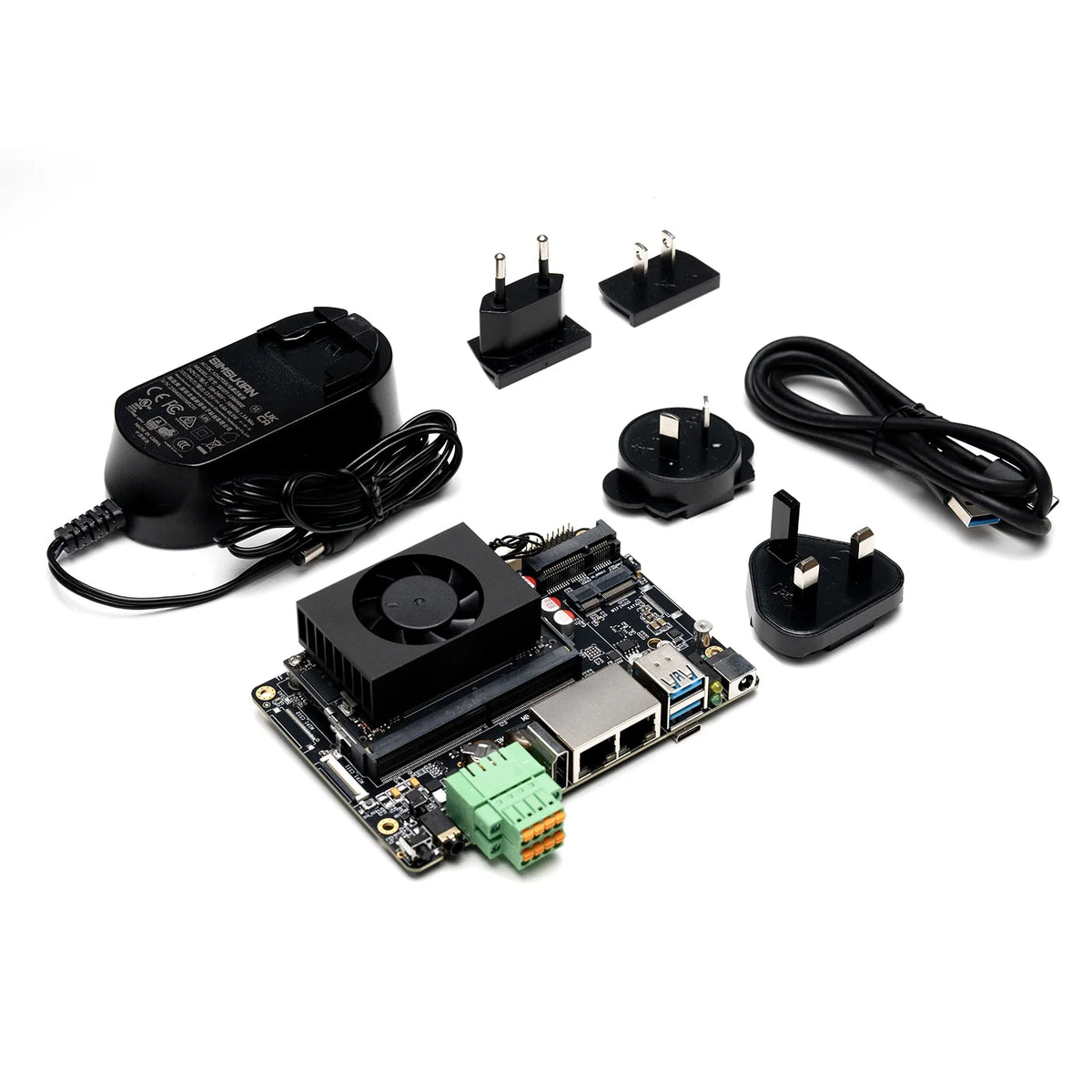

Shipping list
- Main unit × 1
- Power adapter / cable (region plug on request) × 1
- Accessories vary by configuration — contact us for the exact included list.
Document links will be replaced with the official Firefly resource URLs on request.
Our cooperating carriers: FedEx, DHL, UPS, SF Express
Delivery Area And Cost
| Country/Region | 0–2kg | 2–3kg | 3–4kg | 4–5kg | 5–6kg | 6–7kg | 7–8kg | 8–9kg | 9–10kg |
|---|---|---|---|---|---|---|---|---|---|
| Japan, Taiwan, Hong Kong, Macau | $15 | $20 | $25 | $30 | $35 | $40 | $45 | $50 | $55 |
| Singapore, Thailand, Malaysia | $20 | $25 | $30 | $35 | $40 | $45 | $50 | $55 | $60 |
| Indonesia, Philippines | $25 | $30 | $40 | $50 | $60 | $70 | $80 | $85 | $95 |
| South Korea | $25 | $35 | $35 | $45 | $45 | $55 | $55 | $65 | $65 |
| United States, Australia, New Zealand, Canada, UK, and most of Western Europe | $30 | $45 | $55 | $65 | $75 | $85 | $95 | $105 | $115 |
| Other regions (Eastern Europe, Middle East, Latin America, etc.) | $50 | $65 | $80 | $95 | $110 | $125 | $135 | $150 | $165 |
Shipping time is for reference only; the actual situation shall prevail.
- Authorized & Genuine — sourced directly from brand-approved channels.
- Local Engineering Support — datasheets, SDKs, and pre-flashed images in English and Chinese.
- OEM / ODM & FPGA Customization — tailor specs, enclosures, and BSP for your project.
- One-Stop Sourcing — Firefly + youyeetoo + our own FPGA / edge lineup in one store.
Not sure which platform fits your project?
Frequently asked questions
What is AIO-OrinNX Jetson Orin NX Robotics Motherboard used for?
AIO-OrinNX Jetson Orin NX Robotics Motherboard is a Motherboard / SBC from Firefly. It is typically used in embedded computing, edge AI inference, industrial control and rapid prototyping, and can be integrated into custom carrier boards or finished devices.
Does AIO-OrinNX Jetson Orin NX Robotics Motherboard include technical support, datasheets or pre-flashed images?
Yes. Ai-Paipai supplies this item as an authorized distributor and provides local engineering support, datasheets, SDKs and pre-flashed system images where applicable, plus OEM / ODM customization for volume projects.
Can I order AIO-OrinNX Jetson Orin NX Robotics Motherboard with OEM / ODM options or CE / FCC / RoHS certification?
OEM / ODM customization (specs, enclosure, BSP) is available, and CE / FCC / RoHS certified options can be provided on request for EU and US imports. Contact us for a quote.
How is AIO-OrinNX Jetson Orin NX Robotics Motherboard shipped, and what is the lead time?
Orders ship worldwide from Shenzhen. Stock items typically dispatch within a few business days; configurable or made-to-order variants take longer. Exact lead time is shown at checkout or on request.
Specifications
| Product Datasheet | Click Here |
| High-Performance Edge Computing Module | Equipped with the NVIDIA Jetson Orin Nano edge computing module, it uses a six-core ARM CPU and a 1024-core NVIDIA Ampere architecture GPU (32 Tensor Cores), which can run multiple AI application pipelines concurrently, bringing powerful AI performance. |
| Full-Scale Model Private Deployment | Supports private deployment of modern mainstream AI models, including large language models like LLaMA-2, ChatGLM, and Qwen; vision foundation models such as ViT, Grounding DINO, and SAM; as well as AIGC models like Stable Diffusion V1.5 for image generation. |
| Supports Up to 8K Video Decoding | It can decode 18 channels of 1080p@30fps videos and supports: 1x8K@30fps, 2x4K@60fps, 4x4K@30fps, 9x1080p@60fps, and 18x1080p@30fps, meeting the needs of various AI application scenarios. |
| Wide Range of Applications | Applicable to industries such as edge computing, robotics, large-scale model positioning, smart cities, smart medical care, and smart industrial applications. |
