AIO-GS1N2 Jetson Orin RK3576 Dual Module Gateway Motherboard
AIO-GS1N2 Jetson Orin RK3576 Dual Module Gateway Motherboard
Couldn't load pickup availability
AIO-GS1N2 Jetson Orin RK3576 Dual Module Gateway Motherboard is a Firefly product sold by Ai-Paipai. Key specifications — Soc: Core-3576JD4 RAM: LPDDR4/LPDDR4x (4/8/16GB) Storage:… · Storage expansion: 3 × SATA3.0 (Multiplexed with PCIe, expandable with 3.5"… · Video output: 1 × VGA (Maximum resolution 1080P), 1 × HDMI2.0 (Default… · Os: Linux · Power: DC 24V/5A (5.5 × 2.1mm) 280W AC power supply (Input:…. Typical applications: edge AI inference, IoT gateway deployments and industrial automation. Ai-Paipai (Shenzhen AiPaipai Intelligent Technology Co., Ltd.) is an authorized distributor providing local technical support, pre-installed SDK / OS images, OEM / ODM customization, and worldwide shipping.
✅ Authorized Distributor — Ai-Paipai (Shenzhen AiPaipai Intelligent Technology Co., Ltd.)
This product is supplied by an authorized distributor of the original brand. We provide local technical support, pre-installed SDK / mirror images, and OEM / ODM customization, plus fast global shipping.
AIO-GS1N2 adopts a dual-core heterogeneous architecture, with two system on modules running in parallel: RK3576 for general computing and Jetson Orin for real-time AI reasoning. By utilizing heterogeneous computing and integrating the advantages of different chips, it provides high-performance and multi-functional processing capabilities for complex scenarios. This design optimizes resource allocation, supports parallel task execution, and significantly improves system efficiency.
Feature
- Up to 157 TOPS Computing Power: It supports 6-157 TOPS computing power and has the capabilities of edge computing, real-time decision-making, AI smart gateway, large-scale data forwarding processing, complex network protocols and security computing, and visual development. It is suitable for various AI application scenarios such as edge AI servers, smart gateways, industrial automation, robot control, medical equipment, and in-vehicle multimedia terminals.
- Supports 8K Video Codec: Supports 8K@60fps H.265 encoding/decoding, providing clearer and smoother video transmission over standard networks while reducing storage requirements. Strong compression efficiency makes it ideal for security surveillance, industrial IoT monitoring and other bandwidth-sensitive applications.
- Onboard SATA 3.0 / M.2 PCIe Interfaces: Onboard SATA 3.0 and M.2 PCIe interfaces support storage expansion with 3.5"/2.5" SSDs/HDDs and PCIe NVMe SSDs, delivering terabyte-scale capacity.
- 10 Gigabit Ethernet Ports with PSE Support: This configuration features a 10 Gigabit Ethernet interface with Power Sourcing Equipment (PSE) functionality, providing strong compatibility to connect major brands of network cameras that comply with ONVIF and RTSP standards.
Applications
- Enterprise Security
- Traffic Management
- Public Safety
- Environmental Protection
- Smart Cities
- Home Security

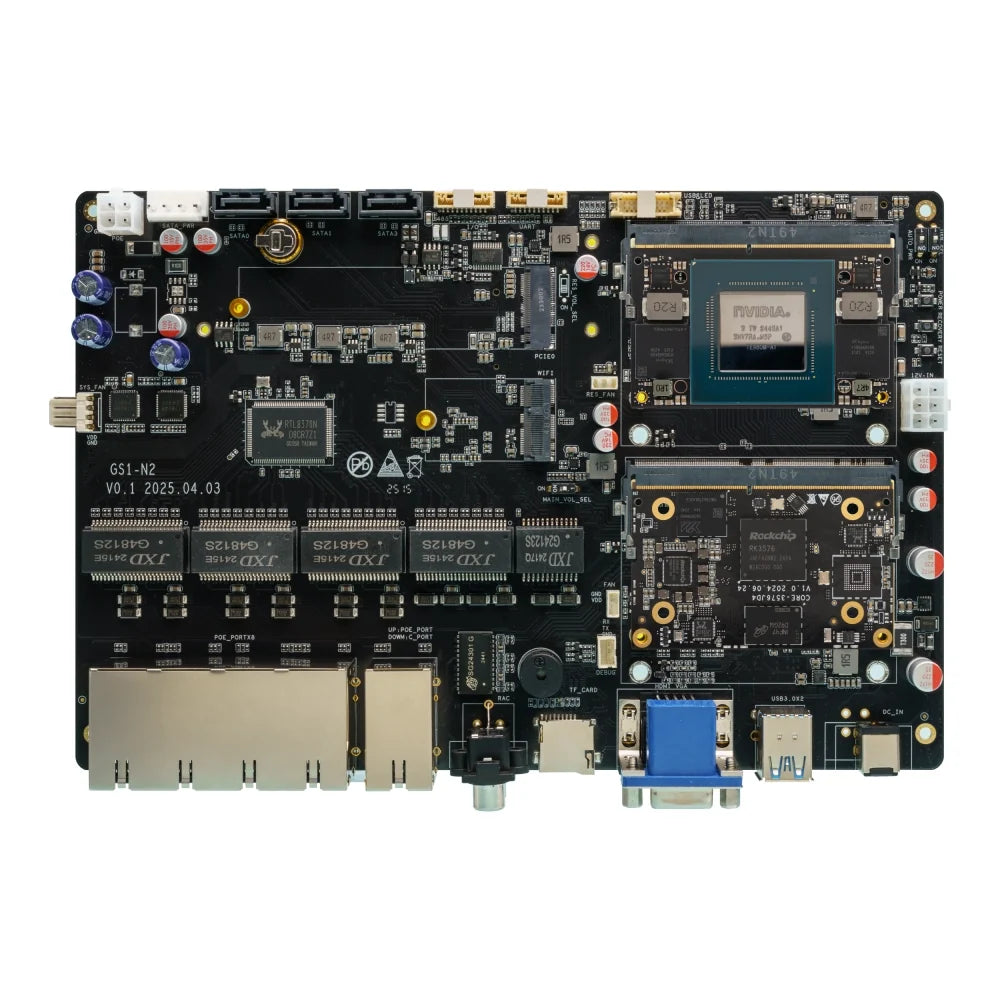

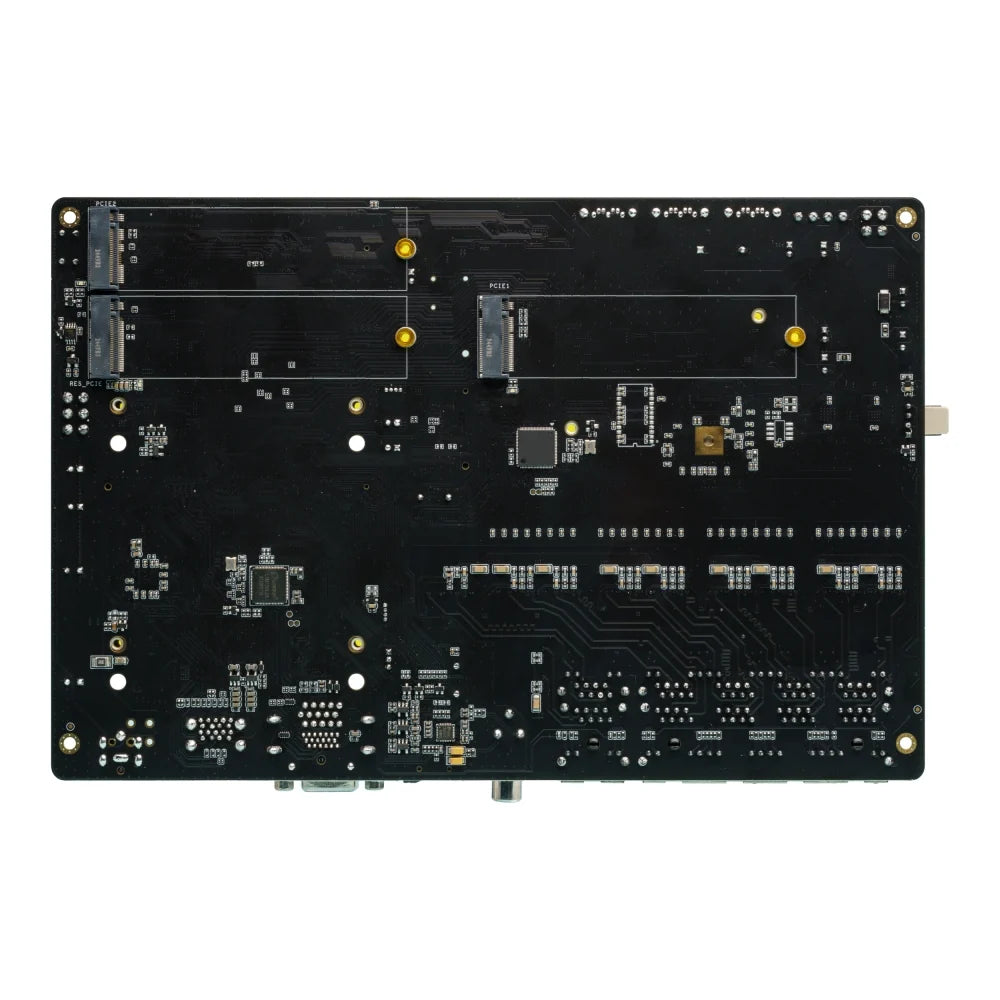

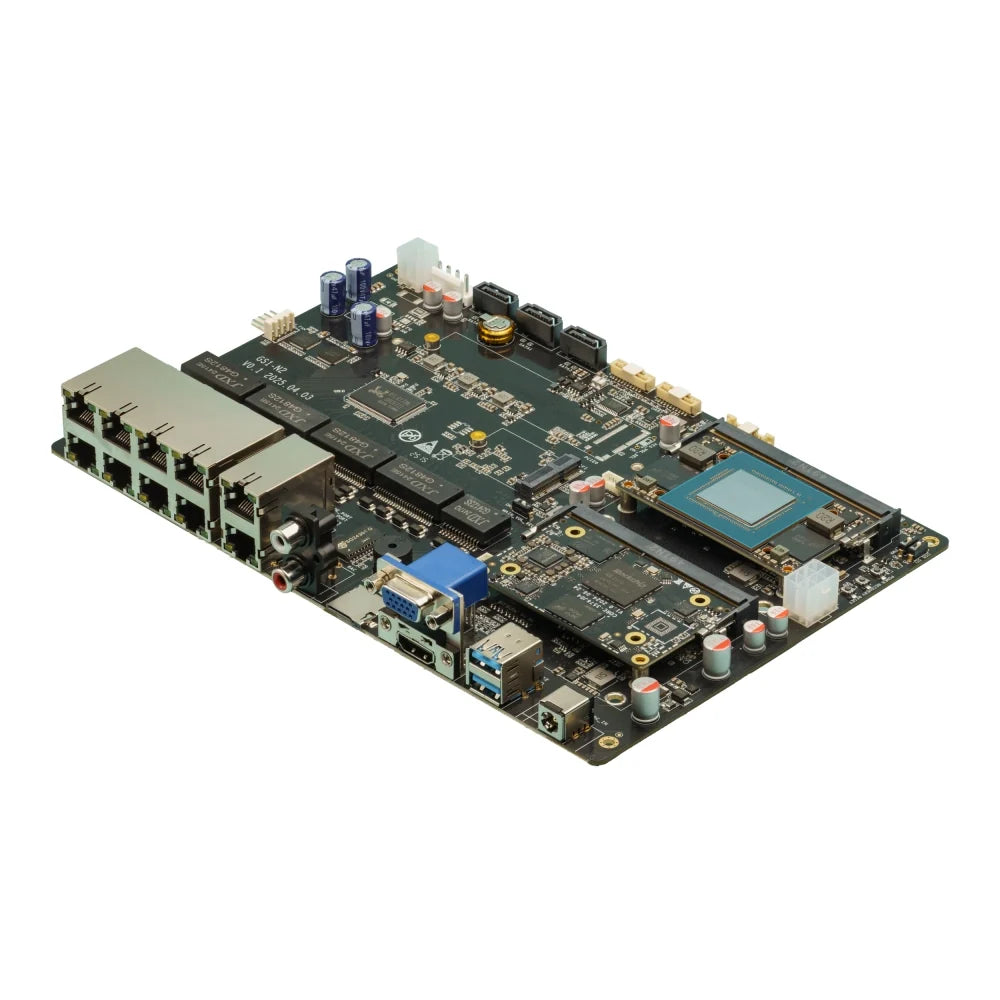

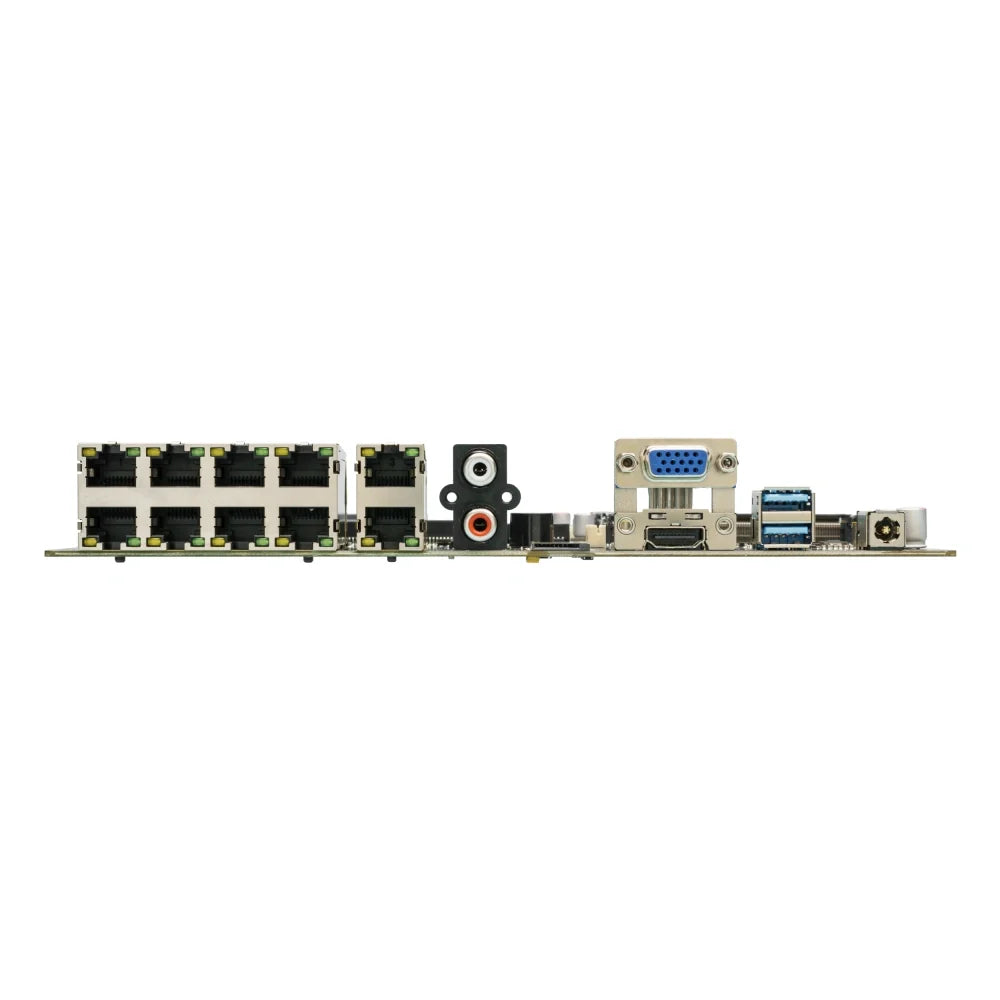

Hardware Overview
Shipping list
- Main unit × 1
- Power adapter / cable (region plug on request) × 1
- Accessories vary by configuration — contact us for the exact included list.
Document links will be replaced with the official Firefly resource URLs on request.
Our cooperating carriers: FedEx, DHL, UPS, SF Express
Delivery Area And Cost
| Country/Region | 0–2kg | 2–3kg | 3–4kg | 4–5kg | 5–6kg | 6–7kg | 7–8kg | 8–9kg | 9–10kg |
|---|---|---|---|---|---|---|---|---|---|
| Japan, Taiwan, Hong Kong, Macau | $15 | $20 | $25 | $30 | $35 | $40 | $45 | $50 | $55 |
| Singapore, Thailand, Malaysia | $20 | $25 | $30 | $35 | $40 | $45 | $50 | $55 | $60 |
| Indonesia, Philippines | $25 | $30 | $40 | $50 | $60 | $70 | $80 | $85 | $95 |
| South Korea | $25 | $35 | $35 | $45 | $45 | $55 | $55 | $65 | $65 |
| United States, Australia, New Zealand, Canada, UK, and most of Western Europe | $30 | $45 | $55 | $65 | $75 | $85 | $95 | $105 | $115 |
| Other regions (Eastern Europe, Middle East, Latin America, etc.) | $50 | $65 | $80 | $95 | $110 | $125 | $135 | $150 | $165 |
Shipping time is for reference only; the actual situation shall prevail.
- Authorized & Genuine — sourced directly from brand-approved channels.
- Local Engineering Support — datasheets, SDKs, and pre-flashed images in English and Chinese.
- OEM / ODM & FPGA Customization — tailor specs, enclosures, and BSP for your project.
- One-Stop Sourcing — Firefly + youyeetoo + our own FPGA / edge lineup in one store.
Not sure which platform fits your project?
Frequently asked questions
What is AIO-GS1N2 Jetson Orin RK3576 Dual Module Gateway Motherboard used for?
AIO-GS1N2 Jetson Orin RK3576 Dual Module Gateway Motherboard is a Motherboard / SBC from Firefly. It is typically used in embedded computing, edge AI inference, industrial control and rapid prototyping, and can be integrated into custom carrier boards or finished devices.
Does AIO-GS1N2 Jetson Orin RK3576 Dual Module Gateway Motherboard include technical support, datasheets or pre-flashed images?
Yes. Ai-Paipai supplies this item as an authorized distributor and provides local engineering support, datasheets, SDKs and pre-flashed system images where applicable, plus OEM / ODM customization for volume projects.
Can I order AIO-GS1N2 Jetson Orin RK3576 Dual Module Gateway Motherboard with OEM / ODM options or CE / FCC / RoHS certification?
OEM / ODM customization (specs, enclosure, BSP) is available, and CE / FCC / RoHS certified options can be provided on request for EU and US imports. Contact us for a quote.
How is AIO-GS1N2 Jetson Orin RK3576 Dual Module Gateway Motherboard shipped, and what is the lead time?
Orders ship worldwide from Shenzhen. Stock items typically dispatch within a few business days; configurable or made-to-order variants take longer. Exact lead time is shown at checkout or on request.
Specifications
| Product Datasheet | Click H e re |
| Onboard SATA 3.0 / M.2 PCIe Interfaces | Onboard SATA 3.0 and M.2 PCIe interfaces support storage expansion with 3.5"/2.5" SSDs/HDDs and PCIe NVMe SSDs, delivering terabyte-scale capacity. |
| 10 Gigabit Ethernet Ports with PSE Support | This configuration features a 10 Gigabit Ethernet interface with Power Sourcing Equipment (PSE) functionality, providing strong compatibility to connect major brands of network cameras that comply with ONVIF and RTSP standards. |
