Firefly

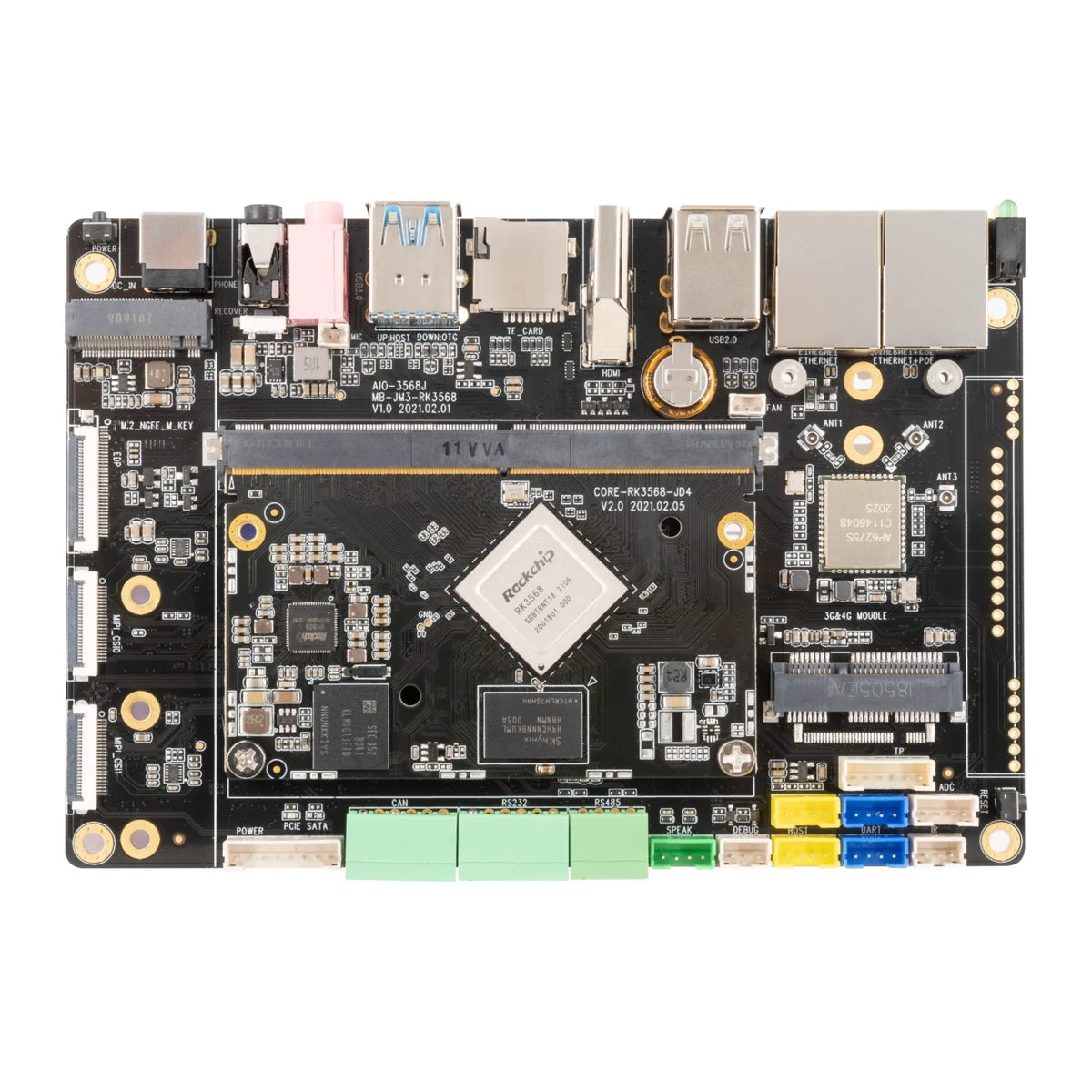

AIO-3568J Quad-Core ARM AI Motherboard
AIO-3568J Quad-Core ARM AI Motherboard
Couldn't load pickup availability
AIO-3568J Quad-Core ARM AI Motherboard is a Firefly product sold by Ai-Paipai. Key specifications — Soc: RockChip RK3568 · Ram: 2GB / 4GB / 8GB LPDDR4 32-bit, frequency up to 1600MHz · Storage: 32GB / 64GB / 128GB eMMC M.2 PCIe 3.0 × 1 (Supports 2242… · Ethernet: Supports dual Gigabit Ethernet ports(1000 Mbps). Among… · Display: 1 × HDMI2.0, supports 4K@60fps output 2 × MIPI DSI,…. Typical applications: edge AI inference, machine vision and IoT gateway deployments. Ai-Paipai (Shenzhen AiPaipai Intelligent Technology Co., Ltd.) is an authorized distributor providing local technical support, pre-installed SDK / OS images, OEM / ODM customization, and worldwide shipping.
✅ Authorized Distributor — Ai-Paipai (Shenzhen AiPaipai Intelligent Technology Co., Ltd.)
This product is supplied by an authorized distributor of the original brand. We provide local technical support, pre-installed SDK / mirror images, and OEM / ODM customization, plus fast global shipping.
The AIO-3568J features a Rockchip RK3568 quad-core processor with dual-core GPU and high-performance NPU, supporting up to 8GB RAM. It includes M.2 and SATA3.0 interfaces, POE+ power supply, WiFi 6, and 5G/4G connectivity. With rich I/O options, it's ideal for smart NVRs, cloud terminals, IoT gateways, and industrial control applications.
- Product Datasheet: Click Here
- Product Wiki: Click Here
Feature
- RK3568 Quad-core 64-bit Processor: RK3568 quad-core 64-bit Cortex-A55 processor adopts the new ARM v8.2-A architecture, with a main frequency of up to 2.0GHz, greatly improving efficiency. It adopts 22nm lithography process, low power consumption and high performance.
- Integrated Coprocessor: It integrates dual-core GPU, high-performance VPU and efficient NPU. GPU supports OpenGL ES3.2/2.0/1.1 and Vulkan1.1. VPU can realize 4K 60fps H.264/VP9 video decoding and 1080P 60fps H.264 video encoding. NPU supports one-click switching of mainstream frameworks such as Caffe/TensorFlow.
- Various Display Interfaces: The motherboard is equipped with MIPI-CSI x2, MIPI-DSI x2, HDMI2.0, and EDP video interfaces, supporting up to three-screen output and different display effects. It has a built-in 8M ISP and supports dual cameras and HDR. The video input interface can be connected to one or more external cameras.
- Dual Gigabit Ethernet Ports: Equipped with dual adaptive RJ45 Gigabit network ports, it can access and transmit internal and external network data, improving network transmission efficiency. The LAN (POE) network port supports POE+ (802.3AT, output power 30W) power supply, which can power the device while transmitting network data to ensure normal operation of the device.

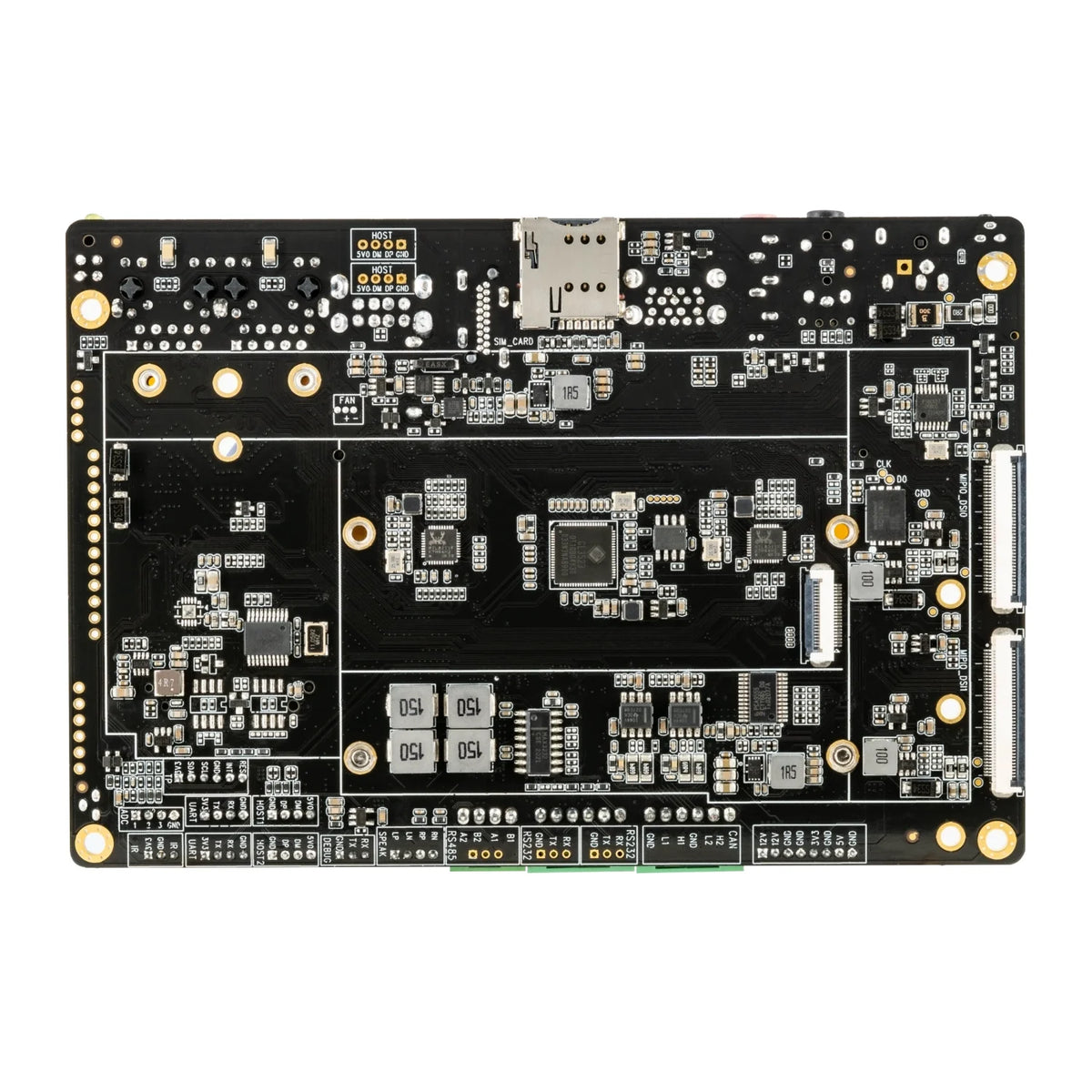

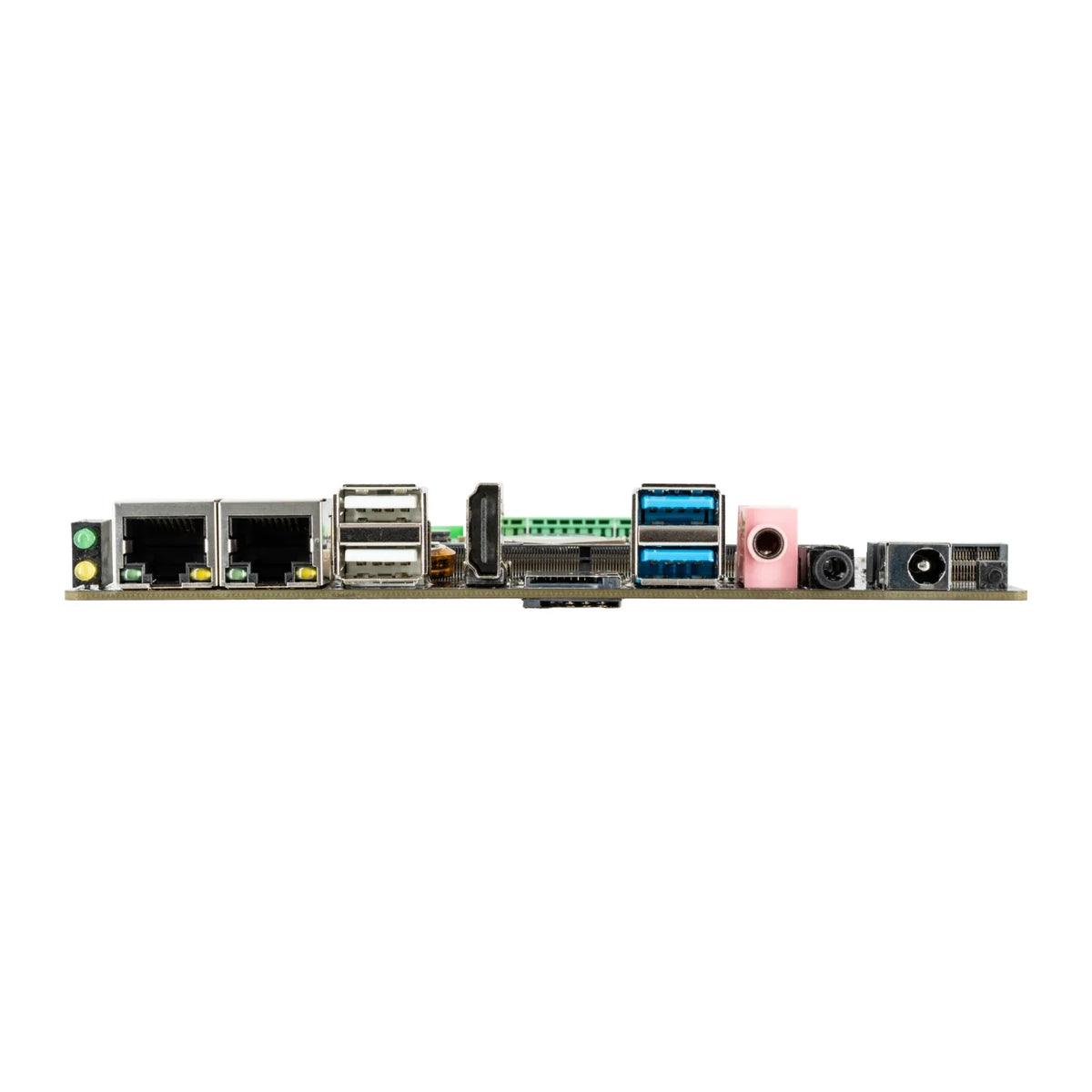

Hardware Overview
Shipping list
- Main unit × 1
- Power adapter / cable (region plug on request) × 1
- Accessories vary by configuration — contact us for the exact included list.
Document links will be replaced with the official Firefly resource URLs on request.
Our cooperating carriers: FedEx, DHL, UPS, SF Express
Delivery Area And Cost
| Country/Region | 0–2kg | 2–3kg | 3–4kg | 4–5kg | 5–6kg | 6–7kg | 7–8kg | 8–9kg | 9–10kg |
|---|---|---|---|---|---|---|---|---|---|
| Japan, Taiwan, Hong Kong, Macau | $15 | $20 | $25 | $30 | $35 | $40 | $45 | $50 | $55 |
| Singapore, Thailand, Malaysia | $20 | $25 | $30 | $35 | $40 | $45 | $50 | $55 | $60 |
| Indonesia, Philippines | $25 | $30 | $40 | $50 | $60 | $70 | $80 | $85 | $95 |
| South Korea | $25 | $35 | $35 | $45 | $45 | $55 | $55 | $65 | $65 |
| United States, Australia, New Zealand, Canada, UK, and most of Western Europe | $30 | $45 | $55 | $65 | $75 | $85 | $95 | $105 | $115 |
| Other regions (Eastern Europe, Middle East, Latin America, etc.) | $50 | $65 | $80 | $95 | $110 | $125 | $135 | $150 | $165 |
Shipping time is for reference only; the actual situation shall prevail.
- Authorized & Genuine — sourced directly from brand-approved channels.
- Local Engineering Support — datasheets, SDKs, and pre-flashed images in English and Chinese.
- OEM / ODM & FPGA Customization — tailor specs, enclosures, and BSP for your project.
- One-Stop Sourcing — Firefly + youyeetoo + our own FPGA / edge lineup in one store.
Frequently asked questions
What is AIO-3568J Quad-Core ARM AI Motherboard used for?
AIO-3568J Quad-Core ARM AI Motherboard is a Motherboard / SBC from Firefly. It is typically used in embedded computing, edge AI inference, industrial control and rapid prototyping, and can be integrated into custom carrier boards or finished devices.
Does AIO-3568J Quad-Core ARM AI Motherboard include technical support, datasheets or pre-flashed images?
Yes. Ai-Paipai supplies this item as an authorized distributor and provides local engineering support, datasheets, SDKs and pre-flashed system images where applicable, plus OEM / ODM customization for volume projects.
Can I order AIO-3568J Quad-Core ARM AI Motherboard with OEM / ODM options or CE / FCC / RoHS certification?
OEM / ODM customization (specs, enclosure, BSP) is available, and CE / FCC / RoHS certified options can be provided on request for EU and US imports. Contact us for a quote.
How is AIO-3568J Quad-Core ARM AI Motherboard shipped, and what is the lead time?
Orders ship worldwide from Shenzhen. Stock items typically dispatch within a few business days; configurable or made-to-order variants take longer. Exact lead time is shown at checkout or on request.
Specifications
| Product Datasheet | Click Here |
| Product Wiki | Click Here |
| RK3568 Quad-core 64-bit Processor | RK3568 quad-core 64-bit Cortex-A55 processor adopts the new ARM v8.2-A architecture, with a main frequency of up to 2.0GHz, greatly improving efficiency. It adopts 22nm lithography process, low power consumption and high performance. |
