Firefly

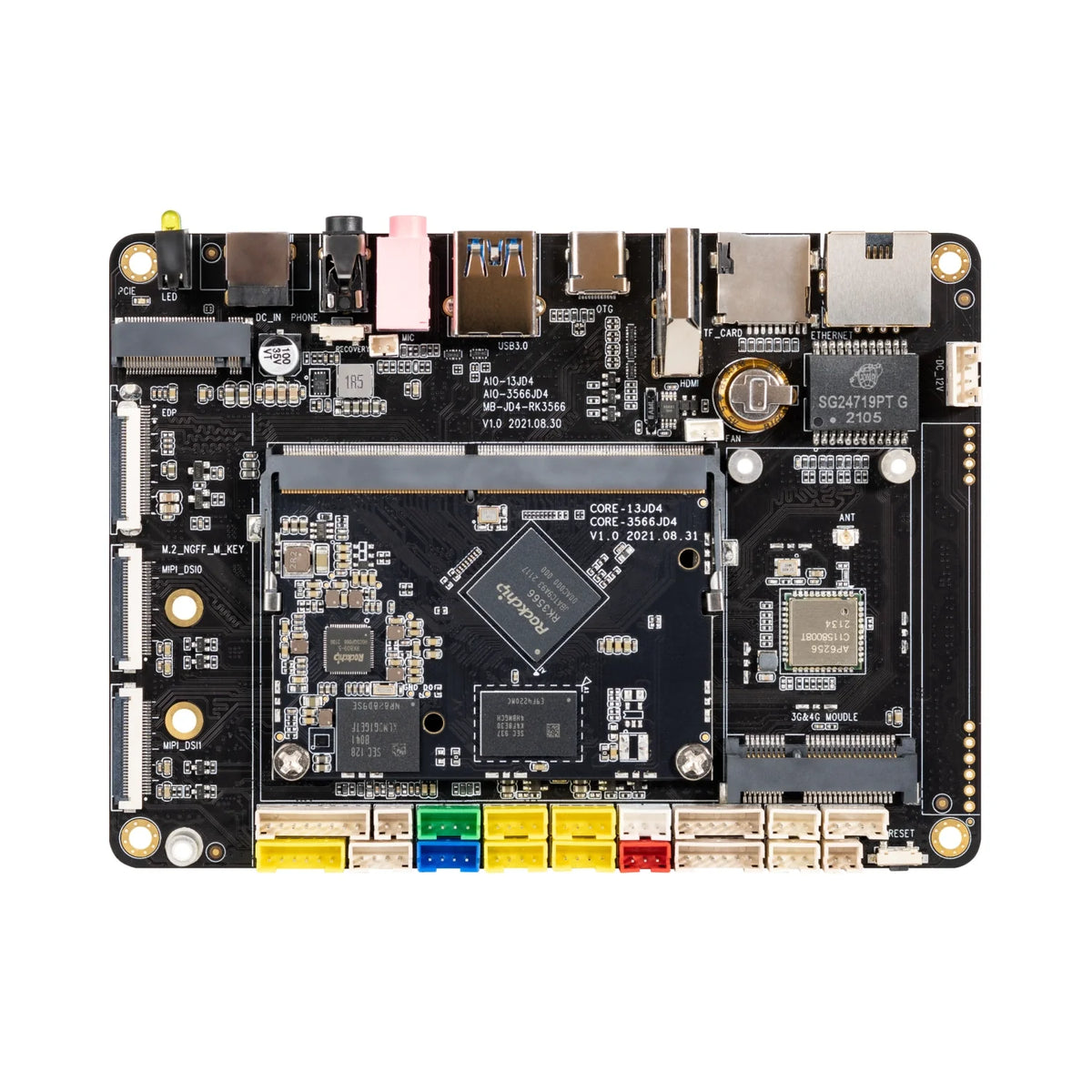

AIO-3566JD4 Quad-Core 64-Bit ARM Motherboard
AIO-3566JD4 Quad-Core 64-Bit ARM Motherboard
Couldn't load pickup availability
AIO-3566JD4 Quad-Core 64-Bit ARM Motherboard is a Firefly product sold by Ai-Paipai. Key specifications — Soc: RockChip RK3566 · Ram: 1GB/2GB/4GB/8GB LPDDR4/LPDDR4X · Storage: 16GB/32GB/64GB/128GB eMMC · Ethernet: 1 × 1000Mbps Ethernet (RJ45) Supports POE+ (802.3 AT,… · Display: 1 × HDMI2.0, supports up to 4K@60fps output 2 × MIPI…. Typical applications: edge AI inference, machine vision and IoT gateway deployments. Ai-Paipai (Shenzhen AiPaipai Intelligent Technology Co., Ltd.) is an authorized distributor providing local technical support, pre-installed SDK / OS images, OEM / ODM customization, and worldwide shipping.
✅ Authorized Distributor — Ai-Paipai (Shenzhen AiPaipai Intelligent Technology Co., Ltd.)
This product is supplied by an authorized distributor of the original brand. We provide local technical support, pre-installed SDK / mirror images, and OEM / ODM customization, plus fast global shipping.
The AIO-3566JD4 motherboard is equipped with RK3566 quad-core 64-bit processor, integrated dual-core GPU and high-efficiency NPU, and supports 8G large memory. The onboard M.2 interface and SATA3.0 interface can support large-capacity hard disk expansion storage. The rich interfaces make it suitable for entertainment PC, smart NVR, cloud terminal, IoT gateway and other scenarios.
- Product Wiki: Click Here
- Product Datasheet: Click Here
Feature
- RK3566 Quad-core 64-bit Processor: The RK3566 quad-core 64-bit Cortex-A55 processor has a main frequency of up to 1.8GHz and adopts a 22nm lithography process, with the characteristics of low power consumption and high performance.
- Integrated Coprocessor: It integrates a dual-core ARM G52 GPU, a high-performance VPU, and an efficient NPU. The GPU supports OpenGL ES 3.2/2.0/1.1 and Vulkan 1.1. The VPU can decode 4K H.264/VP9 videos at 60fps and encode 1080P H.264 videos at 60fps. The NPU boasts 1 TOPs of computing power and supports one-click switching between mainstream frameworks such as Caffe and TensorFlow.
- Powerful Network Communication: The motherboard supports 1000Mbps Ethernet, 2.4G/5G dual-band WiFi, 4G LTE/3G network communication, and a variety of high-speed, low-latency network communication methods.
- Multiple Display Interfaces: Equipped with MIPI-DSI×2, HDMI2.0, and EDP display interfaces. Supports MIPI-CSI (4-channel) camera interface, built-in 8M ISP image signal processor, and can connect to single-channel 8M camera or dual-channel 2M camera.
Hardware Overview
Shipping list
- Main unit × 1
- Power adapter / cable (region plug on request) × 1
- Accessories vary by configuration — contact us for the exact included list.
Document links will be replaced with the official Firefly resource URLs on request.
Our cooperating carriers: FedEx, DHL, UPS, SF Express
Delivery Area And Cost
| Country/Region | 0–2kg | 2–3kg | 3–4kg | 4–5kg | 5–6kg | 6–7kg | 7–8kg | 8–9kg | 9–10kg |
|---|---|---|---|---|---|---|---|---|---|
| Japan, Taiwan, Hong Kong, Macau | $15 | $20 | $25 | $30 | $35 | $40 | $45 | $50 | $55 |
| Singapore, Thailand, Malaysia | $20 | $25 | $30 | $35 | $40 | $45 | $50 | $55 | $60 |
| Indonesia, Philippines | $25 | $30 | $40 | $50 | $60 | $70 | $80 | $85 | $95 |
| South Korea | $25 | $35 | $35 | $45 | $45 | $55 | $55 | $65 | $65 |
| United States, Australia, New Zealand, Canada, UK, and most of Western Europe | $30 | $45 | $55 | $65 | $75 | $85 | $95 | $105 | $115 |
| Other regions (Eastern Europe, Middle East, Latin America, etc.) | $50 | $65 | $80 | $95 | $110 | $125 | $135 | $150 | $165 |
Shipping time is for reference only; the actual situation shall prevail.
- Authorized & Genuine — sourced directly from brand-approved channels.
- Local Engineering Support — datasheets, SDKs, and pre-flashed images in English and Chinese.
- OEM / ODM & FPGA Customization — tailor specs, enclosures, and BSP for your project.
- One-Stop Sourcing — Firefly + youyeetoo + our own FPGA / edge lineup in one store.
Frequently asked questions
What is AIO-3566JD4 Quad-Core 64-Bit ARM Motherboard used for?
AIO-3566JD4 Quad-Core 64-Bit ARM Motherboard is a Motherboard / SBC from Firefly. It is typically used in embedded computing, edge AI inference, industrial control and rapid prototyping, and can be integrated into custom carrier boards or finished devices.
Does AIO-3566JD4 Quad-Core 64-Bit ARM Motherboard include technical support, datasheets or pre-flashed images?
Yes. Ai-Paipai supplies this item as an authorized distributor and provides local engineering support, datasheets, SDKs and pre-flashed system images where applicable, plus OEM / ODM customization for volume projects.
Can I order AIO-3566JD4 Quad-Core 64-Bit ARM Motherboard with OEM / ODM options or CE / FCC / RoHS certification?
OEM / ODM customization (specs, enclosure, BSP) is available, and CE / FCC / RoHS certified options can be provided on request for EU and US imports. Contact us for a quote.
How is AIO-3566JD4 Quad-Core 64-Bit ARM Motherboard shipped, and what is the lead time?
Orders ship worldwide from Shenzhen. Stock items typically dispatch within a few business days; configurable or made-to-order variants take longer. Exact lead time is shown at checkout or on request.
Specifications
| Product Wiki | Click Here |
| Product Datasheet | Click Here |
| RK3566 Quad-core 64-bit Processor | The RK3566 quad-core 64-bit Cortex-A55 processor has a main frequency of up to 1.8GHz and adopts a 22nm lithography process, with the characteristics of low power consumption and high performance. |
| Powerful Network Communication | The motherboard supports 1000Mbps Ethernet, 2.4G/5G dual-band WiFi, 4G LTE/3G network communication, and a variety of high-speed, low-latency network communication methods. |
| Multiple Display Interfaces | Equipped with MIPI-DSI×2, HDMI2.0, and EDP display interfaces. Supports MIPI-CSI (4-channel) camera interface, built-in 8M ISP image signal processor, and can connect to single-channel 8M camera or dual-channel 2M camera. |
