Firefly

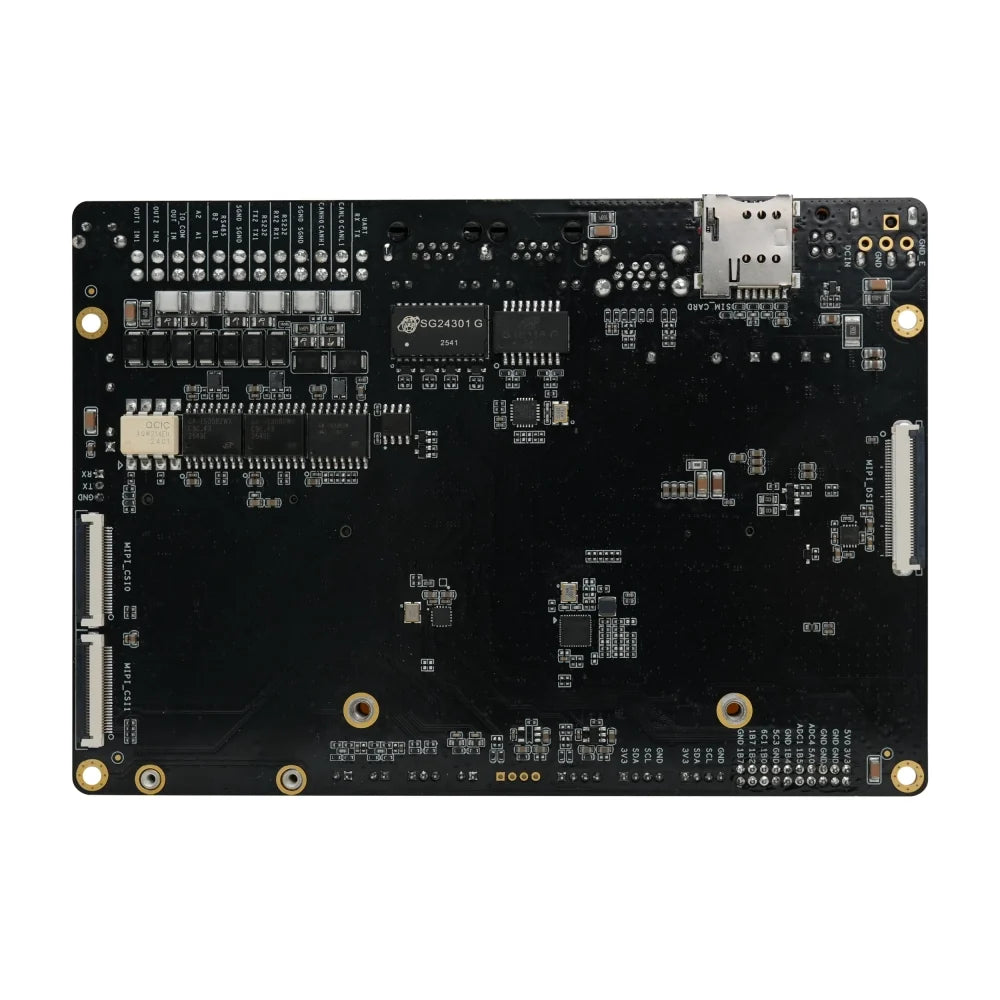

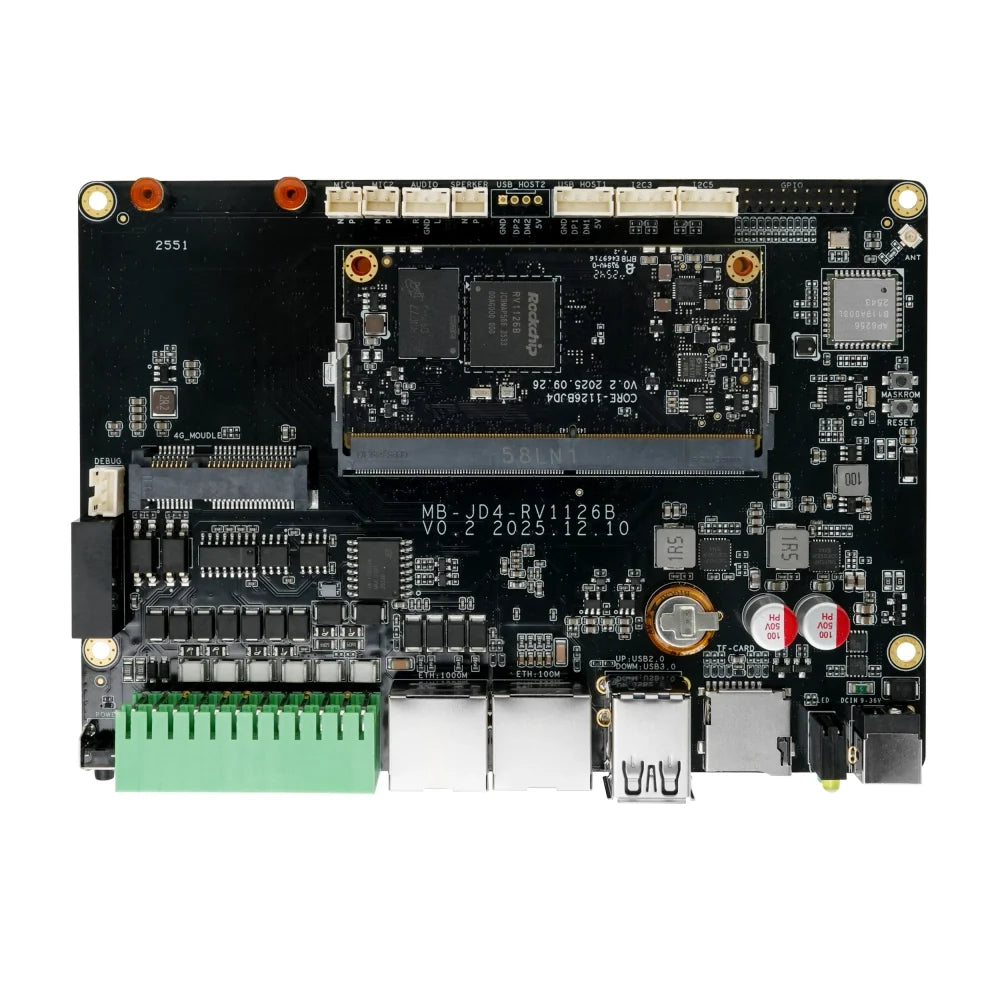

AIO-1126BJD4 AI Motherboard
AIO-1126BJD4 AI Motherboard
Couldn't load pickup availability
AIO-1126BJD4 AI Motherboard is a Firefly product sold by Ai-Paipai. Key specifications — Soc: Rockchip RV1126B · Npu: 3TOPS NPU, supporting INT4/INT8/INT16/FP16… · Ram: LPDDR4 (1GB/2GB/4GB Optional) · Storage: eMMC (8GB/16GB/64GB Optional) · Ethernet: Ethernet: 1 × Gigabit Ethernet (RJ45), 1 × 100M Ethernet…. Typical applications: edge AI inference, machine vision and IoT gateway deployments. Ai-Paipai (Shenzhen AiPaipai Intelligent Technology Co., Ltd.) is an authorized distributor providing local technical support, pre-installed SDK / OS images, OEM / ODM customization, and worldwide shipping.
✅ Authorized Distributor — Ai-Paipai (Shenzhen AiPaipai Intelligent Technology Co., Ltd.)
This product is supplied by an authorized distributor of the original brand. We provide local technical support, pre-installed SDK / mirror images, and OEM / ODM customization, plus fast global shipping.
The AIO-1126BJD4 is powered by a Rockchip RV1126B quad-core AI vision processor, integrating a 3-tops NPU and supporting various AI models and deep learning frameworks. It features a 12MP ISP, an 8MP AI-ISP, and multiple algorithm accelerators, supporting 12MP video encoding and 4K decoding, and provides various input interfaces. For connectivity, it supports dual Ethernet, onboard Wi-Fi, and Bluetooth, with optional 4G/3G expansion.
- Product Datasheet: Click Here
Feature
- AI Vision Processor RV1126B: The ARM Cortex-A53-based core operates at frequencies up to 1.6 GHz and integrates NEON advanced SIMD and FPU to enhance high-performance computing and multitasking capabilities.
- Deployment of Lightweight AI models: Supports private deployment of lightweight Transformer models, including LLM and multimodal models, under 2B parameters to meet the localized application needs in resource-constrained scenarios.
- Built-in 12-Megapixel ISP: It features a new generation hardware-level image signal processor (ISP) supporting up to 12 megapixels and integrates accelerators for key algorithms such as HDR, 3A, LSC, and noise reduction. Furthermore, it is equipped with an AI image signal processor (AI-ISP) (supporting up to 8 megapixels).
- 4K High-Frame-Rate Video Decoding: It supports video encoding up to 12MP@30fps. Its multi-stream encoding capability allows for simultaneous local high-resolution recording and low-resolution cloud transmission. It supports 4K@30fps decoding and integrates a JPEG codec, supporting baseline modes for various image sizes and YUV formats.
Product Overview
Shipping list
- Main unit × 1
- Power adapter / cable (region plug on request) × 1
- Accessories vary by configuration — contact us for the exact included list.
Document links will be replaced with the official Firefly resource URLs on request.
Our cooperating carriers: FedEx, DHL, UPS, SF Express
Delivery Area And Cost
| Country/Region | 0–2kg | 2–3kg | 3–4kg | 4–5kg | 5–6kg | 6–7kg | 7–8kg | 8–9kg | 9–10kg |
|---|---|---|---|---|---|---|---|---|---|
| Japan, Taiwan, Hong Kong, Macau | $15 | $20 | $25 | $30 | $35 | $40 | $45 | $50 | $55 |
| Singapore, Thailand, Malaysia | $20 | $25 | $30 | $35 | $40 | $45 | $50 | $55 | $60 |
| Indonesia, Philippines | $25 | $30 | $40 | $50 | $60 | $70 | $80 | $85 | $95 |
| South Korea | $25 | $35 | $35 | $45 | $45 | $55 | $55 | $65 | $65 |
| United States, Australia, New Zealand, Canada, UK, and most of Western Europe | $30 | $45 | $55 | $65 | $75 | $85 | $95 | $105 | $115 |
| Other regions (Eastern Europe, Middle East, Latin America, etc.) | $50 | $65 | $80 | $95 | $110 | $125 | $135 | $150 | $165 |
Shipping time is for reference only; the actual situation shall prevail.
- Authorized & Genuine — sourced directly from brand-approved channels.
- Local Engineering Support — datasheets, SDKs, and pre-flashed images in English and Chinese.
- OEM / ODM & FPGA Customization — tailor specs, enclosures, and BSP for your project.
- One-Stop Sourcing — Firefly + youyeetoo + our own FPGA / edge lineup in one store.
Frequently asked questions
What is AIO-1126BJD4 AI Motherboard used for?
AIO-1126BJD4 AI Motherboard is a Motherboard / SBC from Firefly. It is typically used in embedded computing, edge AI inference, industrial control and rapid prototyping, and can be integrated into custom carrier boards or finished devices.
Does AIO-1126BJD4 AI Motherboard include technical support, datasheets or pre-flashed images?
Yes. Ai-Paipai supplies this item as an authorized distributor and provides local engineering support, datasheets, SDKs and pre-flashed system images where applicable, plus OEM / ODM customization for volume projects.
Can I order AIO-1126BJD4 AI Motherboard with OEM / ODM options or CE / FCC / RoHS certification?
OEM / ODM customization (specs, enclosure, BSP) is available, and CE / FCC / RoHS certified options can be provided on request for EU and US imports. Contact us for a quote.
How is AIO-1126BJD4 AI Motherboard shipped, and what is the lead time?
Orders ship worldwide from Shenzhen. Stock items typically dispatch within a few business days; configurable or made-to-order variants take longer. Exact lead time is shown at checkout or on request.
Specifications
| Product Datasheet | Click Here |
| AI Vision Processor RV1126B | The ARM Cortex-A53-based core operates at frequencies up to 1.6 GHz and integrates NEON advanced SIMD and FPU to enhance high-performance computing and multitasking capabilities. |
| Deployment of Lightweight AI models | Supports private deployment of lightweight Transformer models, including LLM and multimodal models, under 2B parameters to meet the localized application needs in resource-constrained scenarios. |
