AIBOX PRO KIT Dual-AI Matrix Edge Computer
AIBOX PRO KIT Dual-AI Matrix Edge Computer
Couldn't load pickup availability

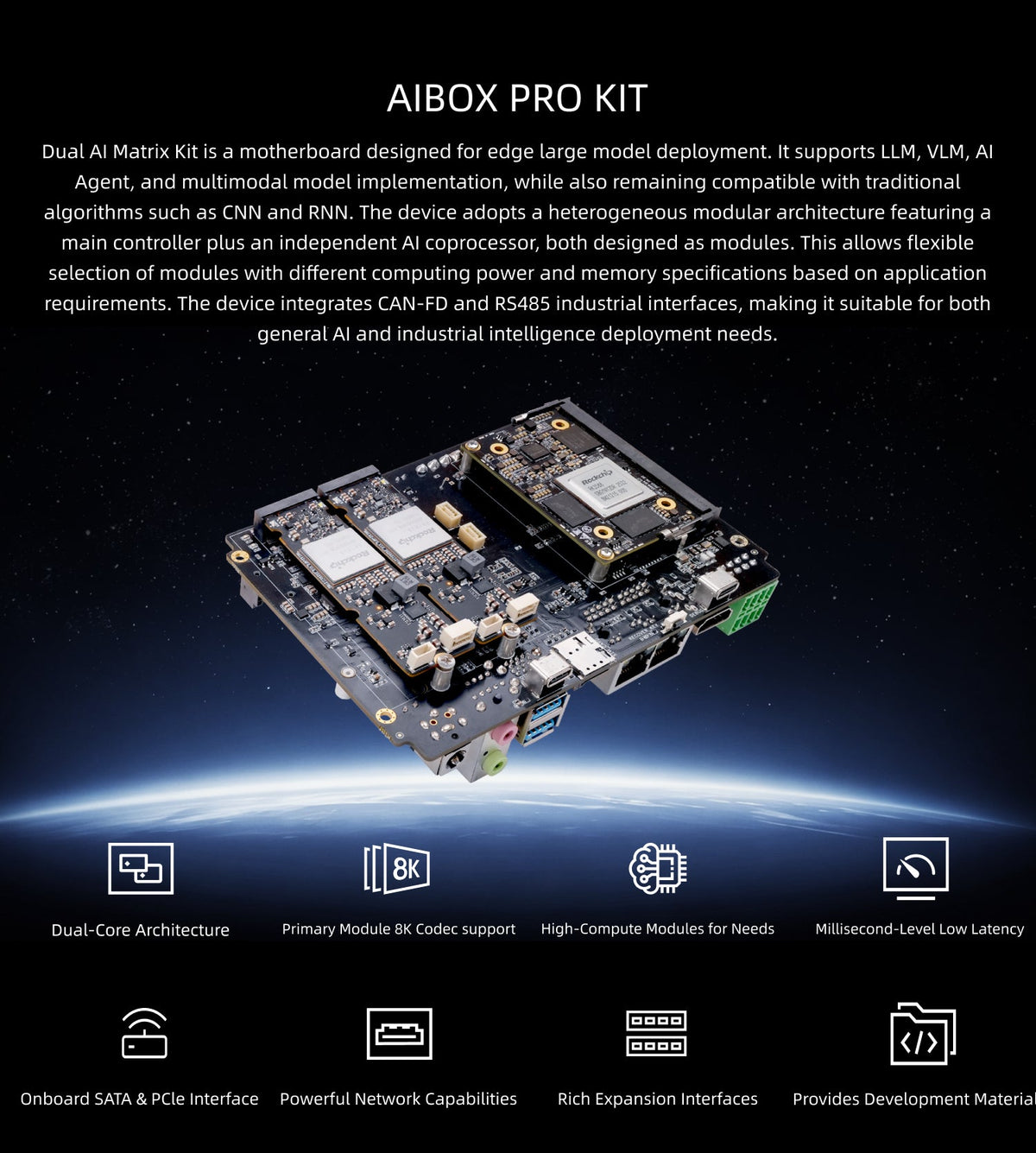

AIBOX PRO KIT is a dual-AI matrix edge computer built for on-device large model deployment. It pairs a modular Rockchip host SoC with one or two independent M.2 AI accelerator modules, so compute power and memory can be scaled by swapping modules instead of redesigning the whole system.
Instead of a fixed-specification AI box, the PRO KIT uses a heterogeneous modular architecture — a main controller plus an independent AI coprocessor — supporting LLM, VLM and AI Agent workloads while remaining compatible with traditional CNN and RNN algorithms. It integrates CAN-FD and RS485 industrial interfaces, making it suitable for both general AI and industrial intelligence deployment.
Key features

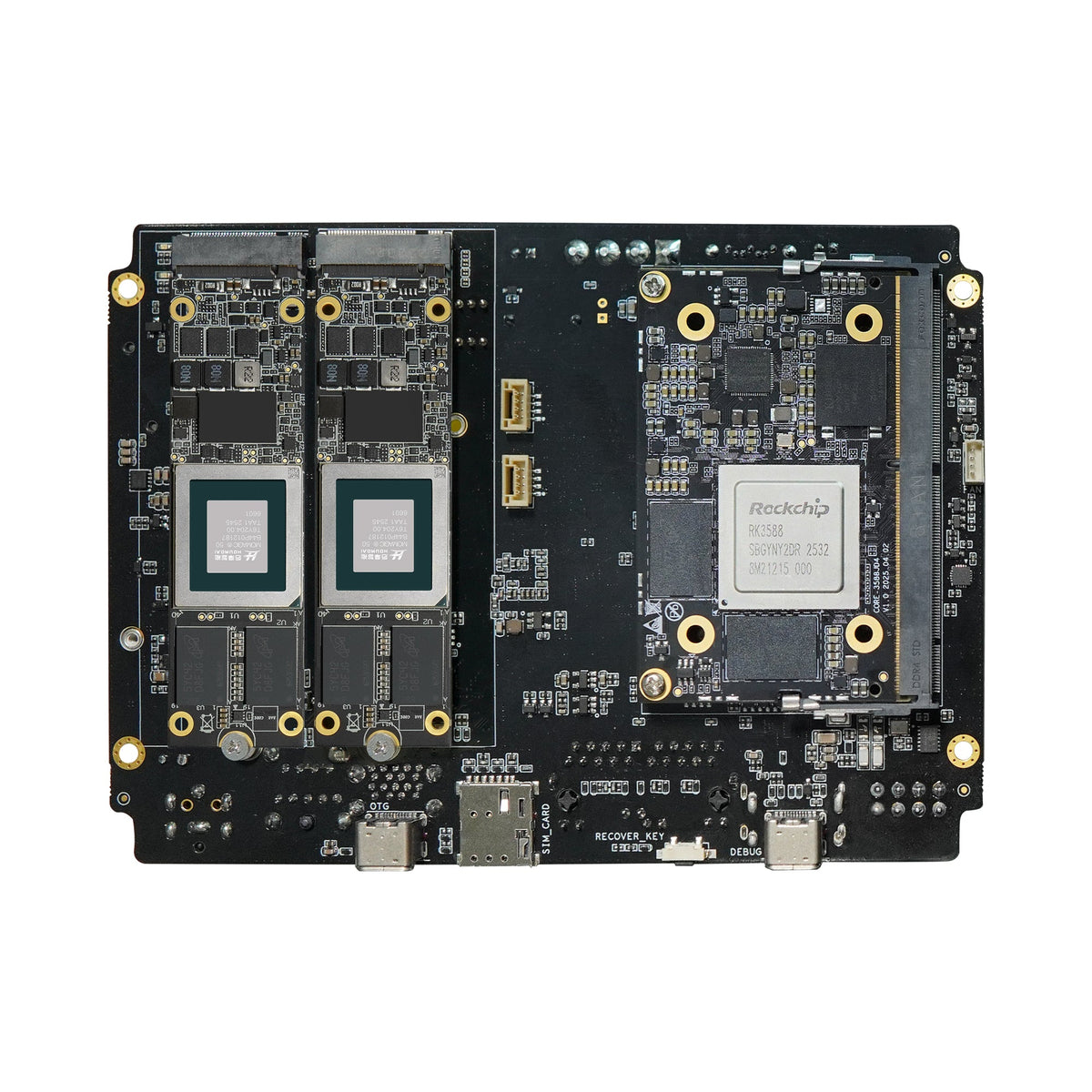

- Dual-core architecture — host SoC module plus an independent AI coprocessor module

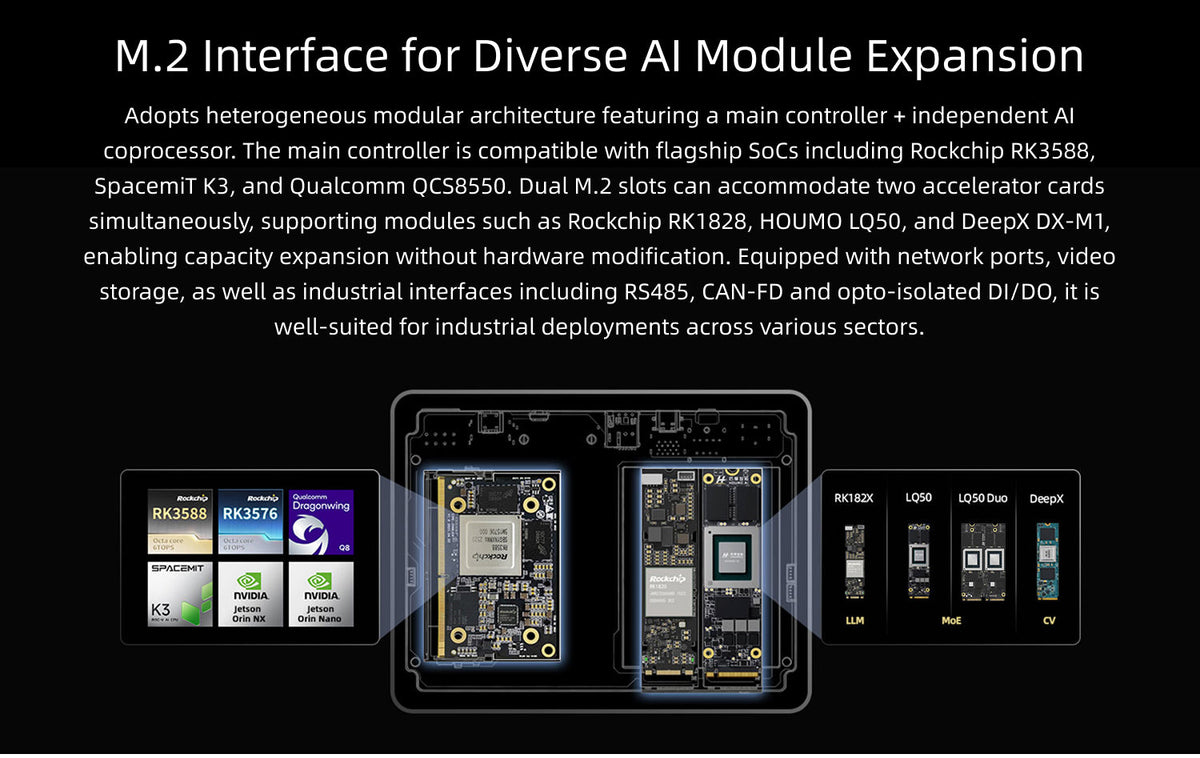

- 2 × M.2 M-KEY accelerator slots — accepts RK1828, HOUMO LQ50, DeepX DX-M1 and other 2260/2280 M.2 modules
- Runs LLMs up to 7B smoothly with RK1828 (5GB DRAM, 20 TOPS INT8); up to 35B with LQ50 (48GB LPDDR5, 160 TOPS INT8)
- 8K video — 8K@30fps H.265/H.264 encoding and 8K@60fps H.265 decoding with RK3588 host
- Onboard SATA 3.0, PCIe NVMe, TF card storage expansion and dual Gigabit Ethernet
- Industrial I/O — RS485, CAN-FD, opto-isolated DI/DO, 9–36V wide voltage input, −20°C to 60°C operation
- Millisecond-level low latency with rich expansion and full development materials

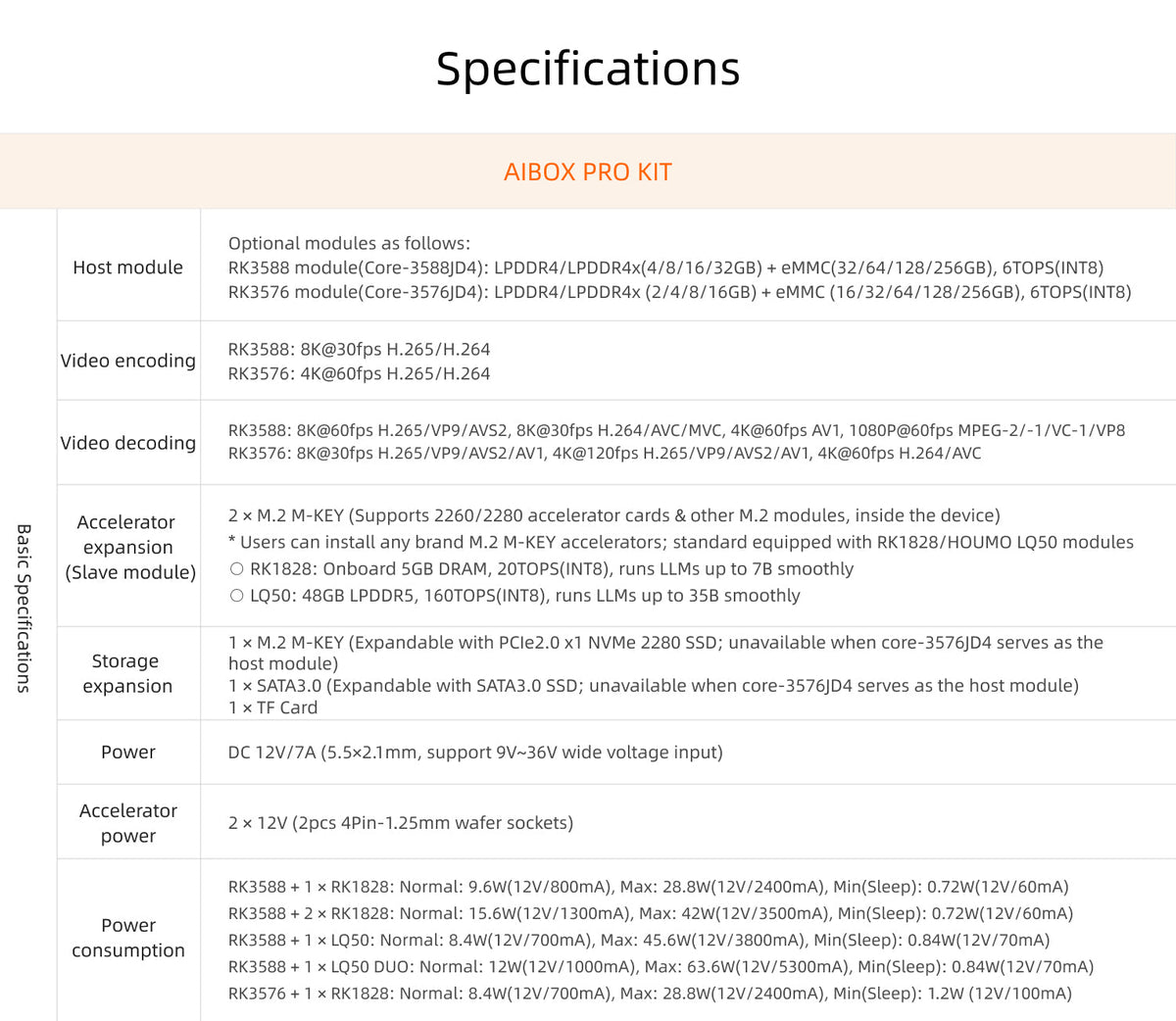

Specifications
| Host module | Optional modules as follows: RK3588 module (Core-3588JD4): LPDDR4/LPDDR4x (4/8/16/32GB) + eMMC (32/64/128/256GB), 6 TOPS (INT8) RK3576 module (Core-3576JD4): LPDDR4/LPDDR4x (2/4/8/16GB) + eMMC (16/32/64/128/256GB), 6 TOPS (INT8) |
| Video encoding | RK3588: 8K@30fps H.265/H.264 RK3576: 4K@60fps H.265/H.264 |
| Video decoding | RK3588: 8K@60fps H.265/VP9/AVS2, 8K@30fps H.264/AVC/MVC, 4K@60fps AV1, 1080P@60fps MPEG-2/-1/VC-1/VP8 RK3576: 8K@30fps H.265/VP9/AVS2/AV1, 4K@120fps H.265/VP9/AVS2/AV1, 4K@60fps H.264/AVC |
|
Accelerator expansion (slave module) |
2 × M.2 M-KEY (supports 2260/2280 accelerator cards & other M.2 modules, inside the device) * Users can install any brand M.2 M-KEY accelerators; standard equipped with RK1828 / HOUMO LQ50 modules ○ RK1828: onboard 5GB DRAM, 20 TOPS (INT8), runs LLMs up to 7B smoothly ○ LQ50: 48GB LPDDR5, 160 TOPS (INT8), runs LLMs up to 35B smoothly |
| Storage expansion | 1 × M.2 M-KEY (expandable with PCIe 2.0 x1 NVMe 2280 SSD; unavailable when Core-3576JD4 serves as the host module) 1 × SATA 3.0 (expandable with SATA 3.0 SSD; unavailable when Core-3576JD4 serves as the host module) 1 × TF card |
| Power | DC 12V/7A (5.5×2.1mm, supports 9V–36V wide voltage input) |
| Accelerator power | 2 × 12V (2 pcs 4Pin-1.25mm wafer sockets) |
| Power consumption | RK3588 + 1 × RK1828: Normal 9.6W (12V/800mA), Max 28.8W (12V/2400mA), Min (sleep) 0.72W (12V/60mA) RK3588 + 2 × RK1828: Normal 15.6W (12V/1300mA), Max 42W (12V/3500mA), Min (sleep) 0.72W (12V/60mA) RK3588 + 1 × LQ50: Normal 8.4W (12V/700mA), Max 45.6W (12V/3800mA), Min (sleep) 0.84W (12V/70mA) RK3588 + 1 × LQ50 DUO: Normal 12W (12V/1000mA), Max 63.6W (12V/5300mA), Min (sleep) 0.84W (12V/70mA) RK3576 + 1 × RK1828: Normal 8.4W (12V/700mA), Max 28.8W (12V/2400mA), Min (sleep) 1.2W (12V/100mA) |
| OS | Linux |
| Dimensions | 148.0mm × 106.0mm × 36.4mm |
| Environment | Operating temperature: −20°C to 60°C; storage temperature: −20°C to 70°C; storage humidity: 10%–90% RH (non-condensing) |

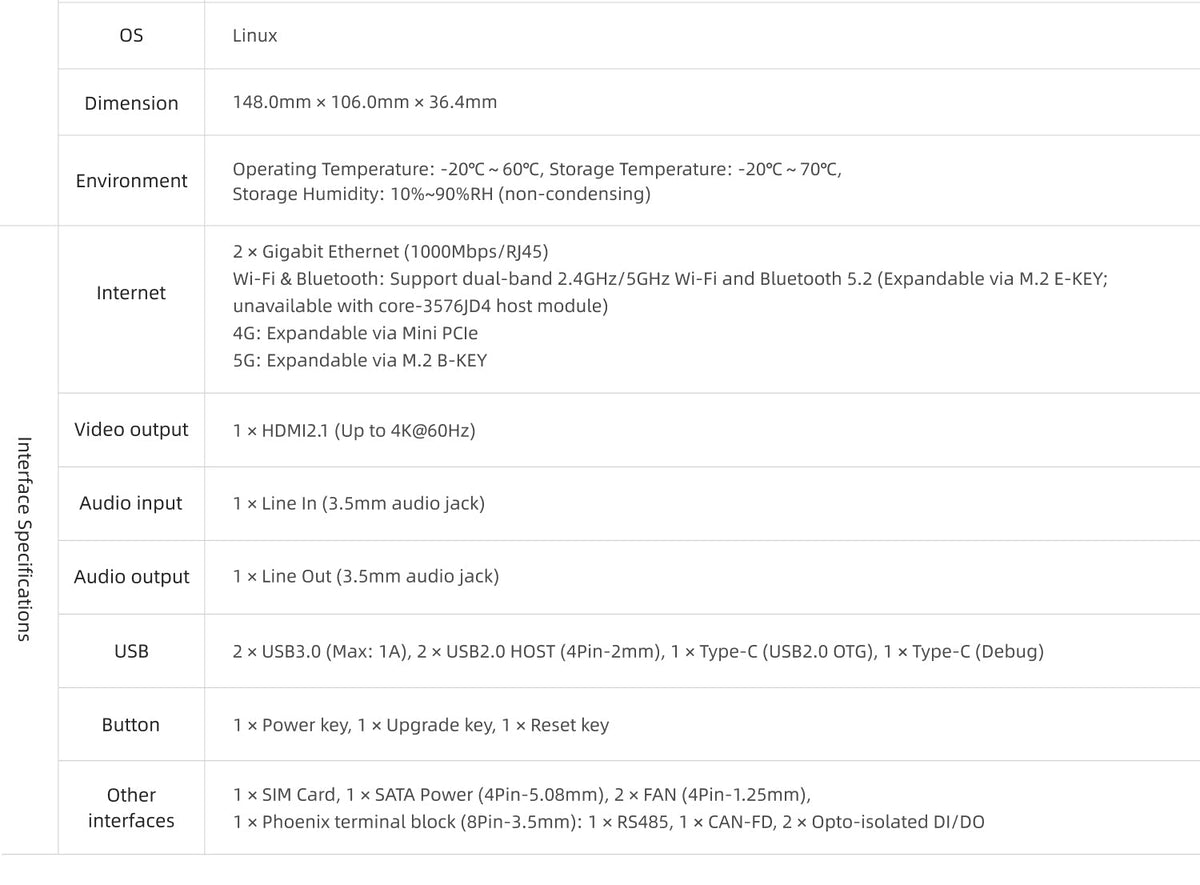

Interface specifications
| Internet | 2 × Gigabit Ethernet (1000Mbps/RJ45) Wi-Fi & Bluetooth: dual-band 2.4GHz/5GHz Wi-Fi and Bluetooth 5.2 (expandable via M.2 E-KEY; unavailable with Core-3576JD4 host module) 4G: expandable via Mini PCIe | 5G: expandable via M.2 B-KEY |
| Video output | 1 × HDMI 2.1 (up to 4K@60Hz) |
| Audio input | 1 × Line In (3.5mm audio jack) |
| Audio output | 1 × Line Out (3.5mm audio jack) |
| USB | 2 × USB 3.0 (max 1A), 2 × USB 2.0 HOST (4Pin-2mm), 1 × Type-C (USB 2.0 OTG), 1 × Type-C (debug) |
| Button | 1 × power key, 1 × upgrade key, 1 × reset key |
| Other interfaces | 1 × SIM card, 1 × SATA power (4Pin-5.08mm), 2 × FAN (4Pin-1.25mm), 1 × Phoenix terminal block (8Pin-3.5mm): 1 × RS485, 1 × CAN-FD, 2 × opto-isolated DI/DO |
Available configurations
- RK3588 (8GB+64GB) + RK1828 ×1 — entry dual-AI kit, 20 TOPS INT8 accelerator, runs LLMs up to 7B
- RK3588 (8GB+64GB) + RK1828 ×2 — dual accelerator configuration for higher throughput and parallel model serving
Need RK3576, LQ50, DX-M1 or a custom module combination? Contact us at lixu@ai-paipai.com for a configuration quote.
Typical applications
Robotics, edge AI computing, industrial automation, intelligent security, autonomous driving, smart cities, traffic management, home storage and retail automation.
Ai-Paipai is an authorized Firefly distributor providing engineering support, configuration guidance and worldwide express shipping from Shenzhen.
Not sure which platform fits your project?
Frequently asked questions
What is AIBOX PRO KIT Dual-AI Matrix Edge Computer used for?
AIBOX PRO KIT Dual-AI Matrix Edge Computer is a AI Edge Computer from Firefly. It is typically used in embedded computing, edge AI inference, industrial control and rapid prototyping, and can be integrated into custom carrier boards or finished devices.
Does AIBOX PRO KIT Dual-AI Matrix Edge Computer include technical support, datasheets or pre-flashed images?
Yes. Ai-Paipai supplies this item as an authorized distributor and provides local engineering support, datasheets, SDKs and pre-flashed system images where applicable, plus OEM / ODM customization for volume projects.
Can I order AIBOX PRO KIT Dual-AI Matrix Edge Computer with OEM / ODM options or CE / FCC / RoHS certification?
OEM / ODM customization (specs, enclosure, BSP) is available, and CE / FCC / RoHS certified options can be provided on request for EU and US imports. Contact us for a quote.
How is AIBOX PRO KIT Dual-AI Matrix Edge Computer shipped, and what is the lead time?
Orders ship worldwide from Shenzhen. Stock items typically dispatch within a few business days; configurable or made-to-order variants take longer. Exact lead time is shown at checkout or on request.
Specifications
| Host module | RK3588 (Core-3588JD4) or RK3576 (Core-3576JD4) — LPDDR4/LPDDR4x up to 32GB + eMMC up to 256GB, 6 TOPS INT8 |
| AI accelerator slots | 2 x M.2 M-KEY (2260/2280) |
| Standard accelerators | RK1828 — 5GB DRAM, 20 TOPS INT8, runs LLMs up to 7B |
| Upgrade accelerator | HOUMO LQ50 — 48GB LPDDR5, 160 TOPS INT8, runs LLMs up to 35B |
| Video encoding | 8K@30fps H.265/H.264 (RK3588) · 4K@60fps H.265/H.264 (RK3576) |
| Video decoding | 8K@60fps H.265/VP9/AVS2, 4K@60fps AV1 (RK3588) · 8K@30fps AV1 (RK3576) |
| Storage expansion | 1 x M.2 M-KEY NVMe SSD · 1 x SATA 3.0 · 1 x TF card |
| Networking | 2 x Gigabit Ethernet (RJ45) · Wi-Fi 2.4G/5G + Bluetooth 5.2 (M.2 E-KEY) · 4G (Mini PCIe) / 5G (M.2 B-KEY) |
| Video output | 1 x HDMI 2.1 (up to 4K@60Hz) |
| Industrial I/O | RS485 · CAN-FD · opto-isolated DI/DO |
| Audio | 1 x Line In (3.5mm) |
| Power input | DC 12V/7A, supports 9V-36V wide voltage |
| Power consumption | 8.4W idle-typical to 63.6W max depending on module combination |
| Operating system | Linux |
| Dimensions | 148.0 x 106.0 x 36.4 mm |
| Operating temperature | -20C to 60C |
| Storage temperature | -20C to 70C, humidity 10%-90% RH non-condensing |
