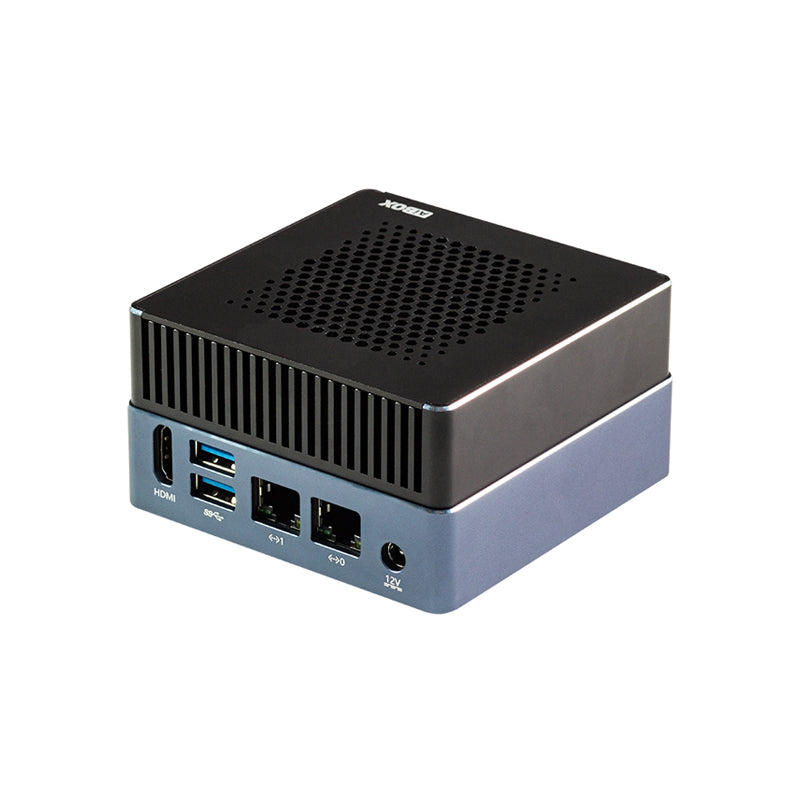

• Firefly AIBOX-1684X Embedded PC Edge Computing Video Analysis
  • Firefly AIBOX-1684X — view 2

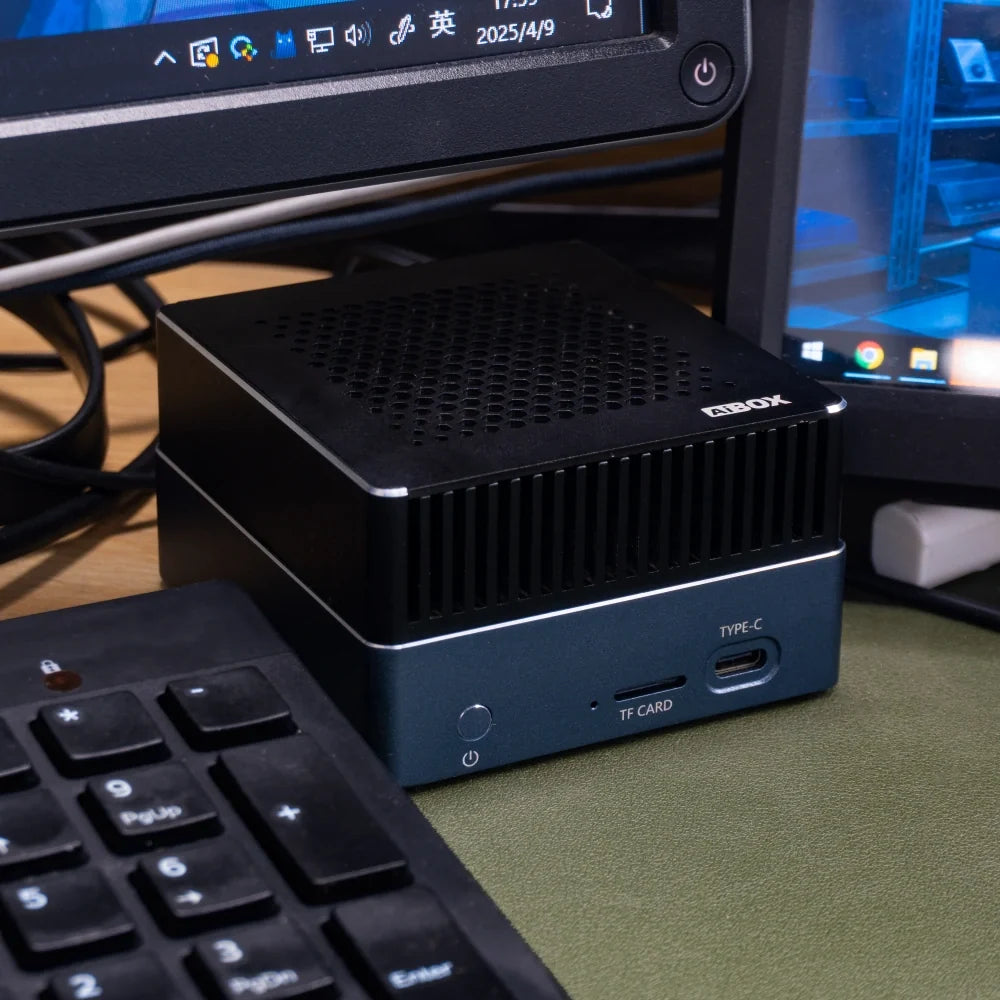

  • Firefly AIBOX-1684X — view 3

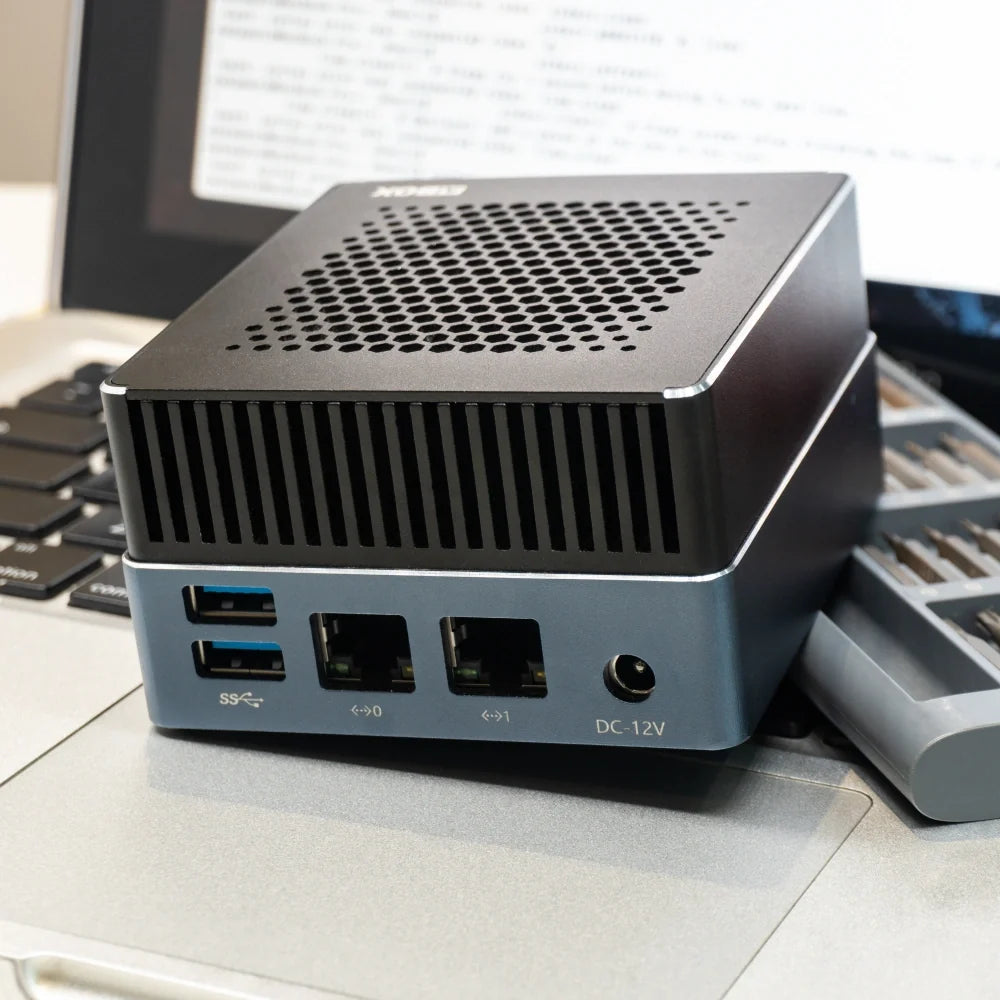

  • Firefly AIBOX-1684X — view 4

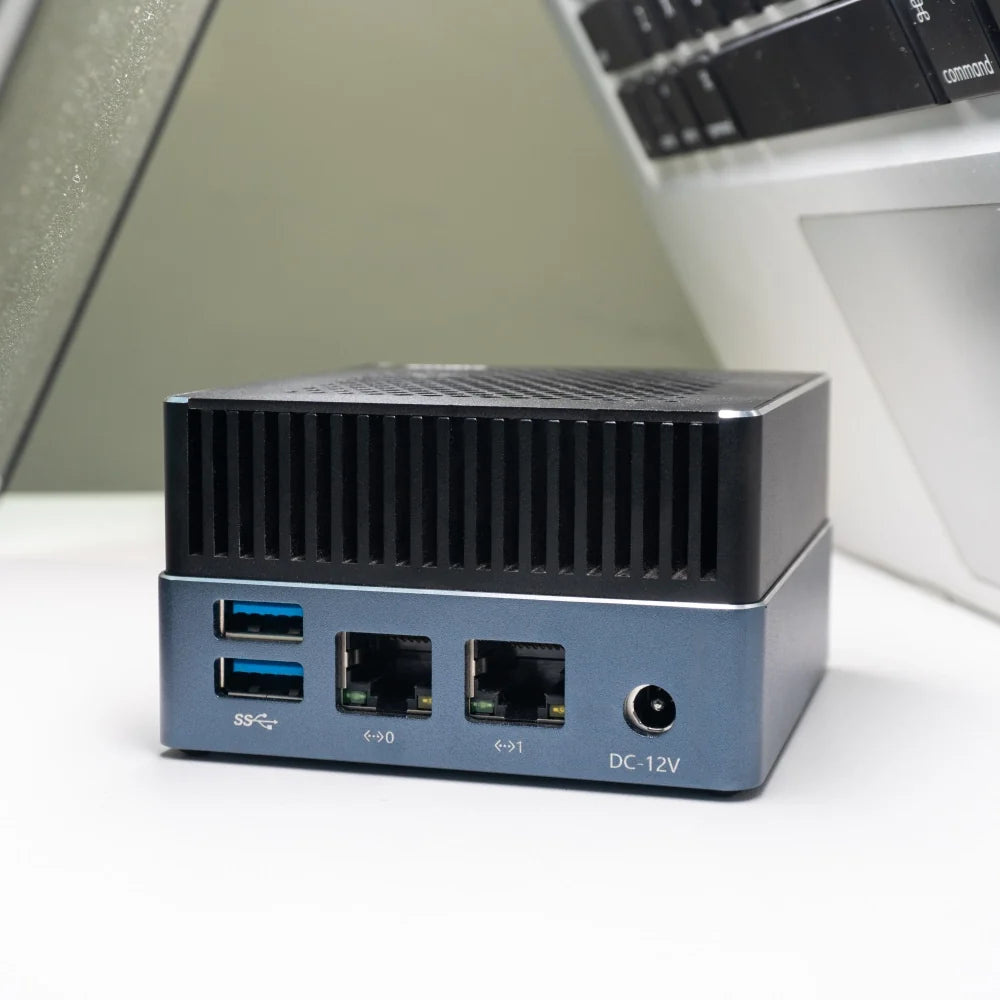

  • Firefly AIBOX-1684X — view 5

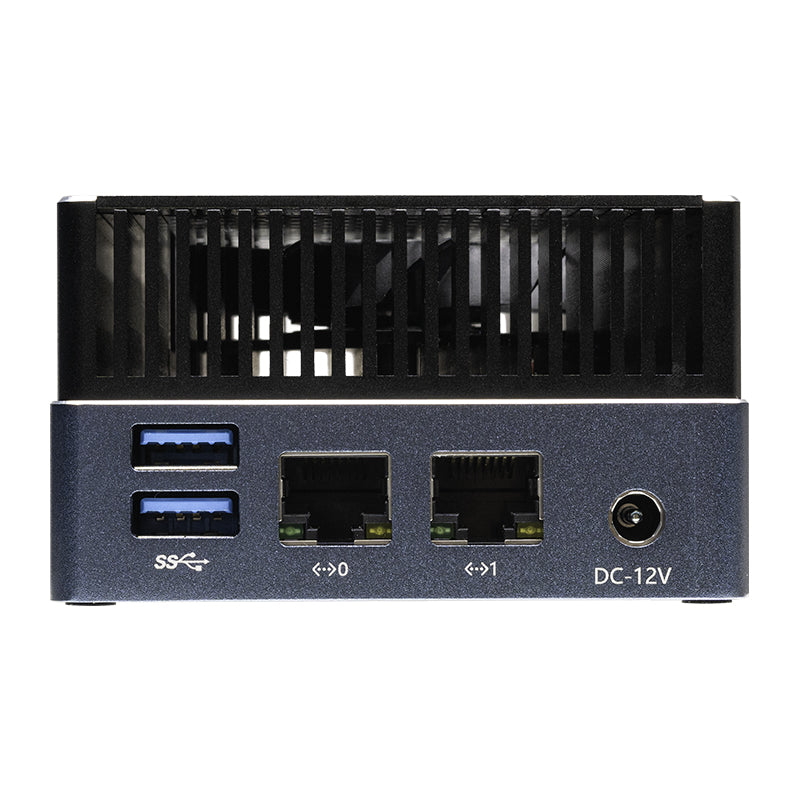

  • Firefly AIBOX-1684X — view 6

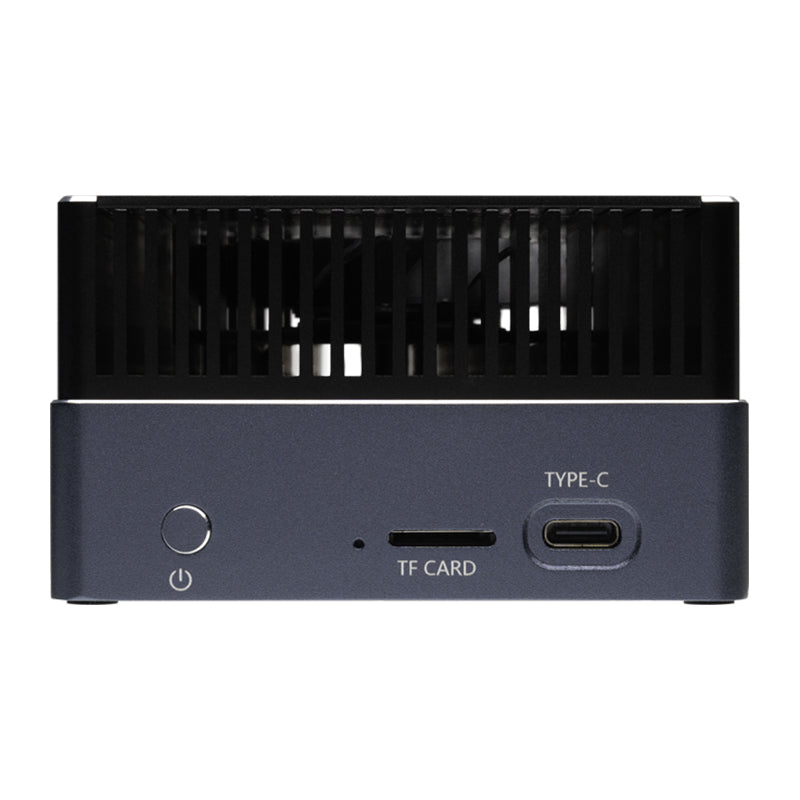

1 6

Firefly

AIBOX-1684X Embedded PC Edge Computing Video Analysis

AIBOX-1684X Embedded PC Edge Computing Video Analysis

$659.00 USD
$659.00 USD
Sale Sold out
Shipping calculated at checkout.
Configuration

AIBOX-1684X Embedded PC Edge Computing Video Analysis is a Firefly product sold by Ai-Paipai. Key specifications — Soc: SOPHON BM1684X · Ram: 8GB/12GB/16GB LPDDR4/LPDDR4X · Storage: 32GB/64GB/128GB eMMC, 1 × TF Card · Ethernet: 2 × Gigabit Ethernet (1000Mbps/RJ45) · Software support: The private deployment of ultra-large-scale parameter…. Typical applications: edge AI inference, machine vision and industrial automation. Ai-Paipai (Shenzhen AiPaipai Intelligent Technology Co., Ltd.) is an authorized distributor providing local technical support, pre-installed SDK / OS images, OEM / ODM customization, and worldwide shipping.

✅ Authorized Distributor — Ai-Paipai (Shenzhen AiPaipai Intelligent Technology Co., Ltd.)

This product is supplied by an authorized distributor of the original brand. We provide local technical support, pre-installed SDK / mirror images, and OEM / ODM customization, plus fast global shipping.

Discover AIBOX-1684X

AIBOX-1684X adopts SOPHON AI processor BM1684X, which can be configured with 16GB large memory and 128GB eMMC; supports 32TOPS (INT8) peak computing power, 16TFLOPS (FP16/BF16) computing power, and 2TFLOPS (FP32) high-precision computing power; supports 32-channel H.265/H.264 1080p@25fps video decoding; supports mainstream programming frameworks, has a complete tool chain and high ease of use, and low algorithm migration cost; suitable for a variety of AI computing scenarios such as visual computing, edge computing, general computing services, smart transportation, unmanned supermarkets, drones, etc.

Feature

  • The Private Deployment of Large Models: Large language Models; Traditional network architectures; Docker container
  • 32TOPS BM1684X AI Processor: The SOPHON AI processor BM1684X uses an octa-core ARM Cortex-A53 with a main frequency of up to 2.3GHz and adopts a 12nm lithography process.
  • Powerful Multi-channel Video AI Performance: The embedded PC supports up to 32-channel 1080P H.264/H.265 video decoding and 32-channel 1080P HD video processing (decoding + AI analysis), which is very suitable for various AI applications such as face detection and license plate recognition in video streams.
  • Powerful Network Communication Capabilities: With dual 1000Mbps Ethernet, the AI box ensures high-speed and stable network communication, meeting the needs of various application scenarios.
  • All-aluminum Alloy Shell: Industrial-grade all-metal body, aluminum alloy structure, excellent thermal conductivity. The grille design on the top cover effectively conducts heat, ensuring computing performance and stability even under high-temperature operating conditions. The top cover adopts a hexagonal porous design, which is both elegant and efficient.

Applications

  • Surveillance
  • AI Education
  • Computing Services
  • Edge Computing
  • Private Deployment of Large Models
  • Data Security

Hardware Overview

Shipping list

  • Main unit × 1
  • Power adapter / cable (region plug on request) × 1
  • Accessories vary by configuration — contact us for the exact included list.
Shipping list
AIBOX-1684X x 1 12V 4A power adapter x 1 Data cable (Type-C-2.0 data cable) x 1
Soc
SOPHON BM1684X
Cpu
High-performance octa-core ARM A53, 12nm lithography process, frequency up to 2.3 GHz
Tpu
32TOPS (INT8), 16TFLOPS (FP16/BF16), 2TFLOPS (FP32)
Vpu
32-channel H.265/H.264 1080P@25fps video decoding 1-channel H.265 8K@25fps video decoding 32-channel 1080P@25fps processing decoding + AI analysis 12-channel H.265/H.264 1080P@25fps video encoding JPEG image encoding and decoding can reach 1080P@600fps
Ram
8GB/12GB/16GB LPDDR4/LPDDR4X
Storage
32GB/64GB/128GB eMMC, 1 × TF Card
Power
DC 12V/4A (5.5 × 2.5mm)
Power consumption
Normal: 20.4W (12V/1700mA) Max: 43.2W (12V/3600mA)
Software support
The private deployment of ultra-large-scale parameter models under the Transformer architecture, including large language models such as LLaMa2, ChatGLM, and Qwen, as well as major visual models like ViT, Grounding DINO, and SAM. The private deployment of the Stable Diffusion V1.5 image generation model in the AIGC field. Traditional network architectures such as CNN, RNN, and LSTM; a variety of deep learning frameworks, including TensorFlow, PyTorch, MXNet, PaddlePaddle, Caffe, and ONNX, as well as custom operator development. Docker container management technology.
Dimension
90.6mm × 84.4mm × 48.5mm
Weight
≈ 420g
Environment
Operating temperature: -20℃~60℃ Storage temperature: -20℃~70℃ Storage humidity: 10%~90%RH (non-condensing)
Ethernet
2 × Gigabit Ethernet (1000Mbps/RJ45)
Usb
2 × USB3.0 (Max: 1A), 1 × Type-C (Debug serial)
Button
1 × Power button
Product tutorials
Click Here
Sdk software and firmware files
Click Here
Product tutorialsClick Here
Product datasheetClick Here
SDK software and firmware filesClick Here

Document links will be replaced with the official Firefly resource URLs on request.
