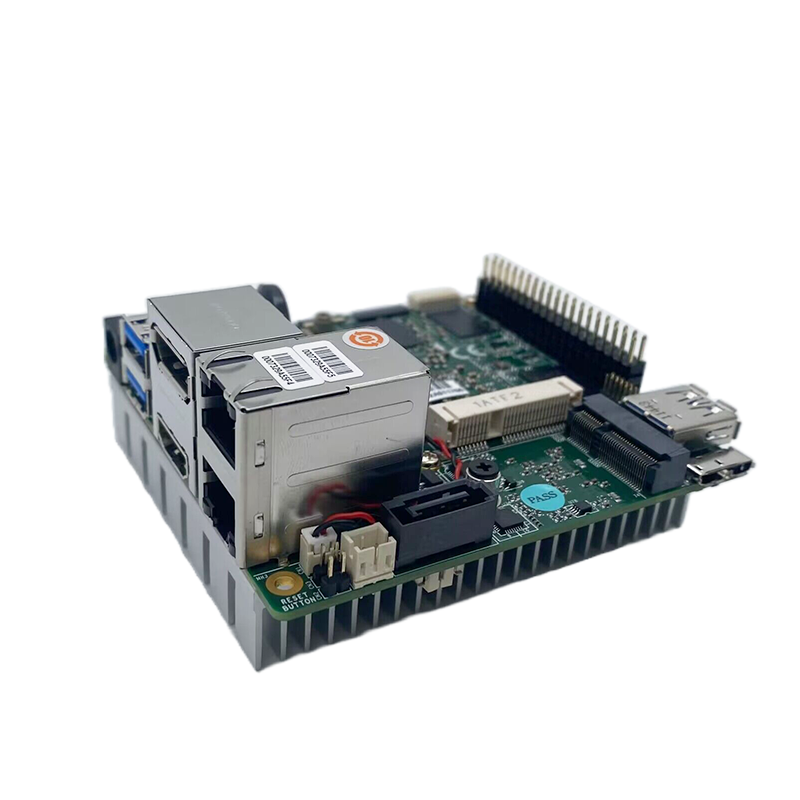

AAEON UP Squared 6000 - X86 Industrial Platform - Intel Pentium® and Celeron® N and J series processors - [NEW] is an embedded computing platform for industrial and edge applications from AAEON.

Available from Ai-Paipai with local engineering support, datasheets and pre-flashed images where applicable, plus OEM / ODM options and worldwide shipping.

AAEON UP Squared 6000 Edge Computing Kit

• Quick Start
• Tips

Introduction

The UP Squared 6000 is the latest addition to our extensive UP Squared lineup. Based on the latest Intel® Atom® x6000E series, Intel Pentium® and Celeron® N and J series processors (formerly Elkhart Lake),

UP Squared 6000 is built for automation, robotics, and industrial applications with Time-Sensitive Networking (TSN), Time-Coowned Computing (TCC)*, in-band ECC*, onboard TPM 2.0*, PSE applications Additional carrier boards* to unlock.

Features

• Powerful Engine: Equipped with the latest generation Intel® processors, 12W TDP, delivering exceptional performance.
• Graphics Upgrade: Intel UHD Graphics performance doubled, supporting 3 displays at 4kp60.
• Industrial-Level Security: 12V DC input, supports Intel® TSN, and TCC for real-time performance.
• Efficient Storage: Supports NVMe M.2 2280 for faster data transfer.
• AI Acceleration: Optional Intel® Movidius™ Myriad™ X VPU, compatible with OpenVINO.

Shipping List

Edge Computing Kit with Power

Applications

UP Squared 6000 is built for automation, robotics, and industrial applications with Time-Sensitive Networking (TSN), Time-Coowned Computing (TCC)*, in-band ECC*, onboard TPM 2.0*, PSE applications Additional carrier boards* to unlock.

Specification

• Elkhart Lake SoC  (one of the other)
  • Intel Celeron N6210 dual-core processor @  1.2 GHz / 2.6 GHz with 16EU Intel UHD graphics; 6.5W TDP
  • Intel Pentium J6426 quad-core processor @ 1.8GHz / 3GHz with 32EU Intel UHD Graphics; 10W TDP
  • Intel Atom x6413E quad-core processor @ 1.50 GHz / 3.0 GHz  with 16EU Intel UHD Graphics; 9W TDP
  • Intel Atom x6425RE quad-core processor @ 1.90 GHz with 32 EU Intel UHD Graphics; 12W TDP
• System memory – 2GB, 4GB, 8GB LPDDR4
• Storage capacity – 32GB or 64GB eMMC flash, 1x SATA port, 1x M.2 2280 socket for NVMe SSD
• AI accelerator – Optional UP AI Core XM 2280 with 2x Intel Movidius Myriad X
• Display Interfaces
  • 1x HDMI 2.0b, 1x DP 1.2
  • Intel Atom x6413E, Intel Atom x6425RE only – 1x eDP
• Audio – Audio line in/out
• Networking
  • Celeron, Pentium – 1x GbE, 1x 2.5GbE via Intel WGI211AT  and Intel.I225-V
  • Intel Atom x6413E, Intel Atom x6425RE – 1x GbE, 1x 2.5GbE via Intel WGI210IT and I225-IT
  • Optional WiFi 5/6 & Bluetooth via M.2 2230 socket
  • Optional 5G, 4G LTE via M.2 3042/3052 socket and SIM card socket
• USB
  • 2x USB 3.1 Type-A ports
  • Intel Atom x6413E, Intel Atom x6425RE only – 1x USB 3.1 OTG Type C port
• Serial (Intel Atom x6413E, Intel Atom x6425RE only) – 1x RS232/422 DB9 interface
• Expansion
  • 1x M.2 2242/2280 M Key (supports NMVe SSD),
  • 1x M.2 2230 E Key
  • 1x M.2 3042/3052 B Key
  • 40-pin Raspberry Pi HAT-compatible header
  • 100-pin GP bus (Intel Atom x6413E, Intel Atom x6425RE only) for carrier board support (SBC only, not Edge computer)
• Security – TPM 2.0 (Intel Atom x6413E, Intel Atom x6425RE only)
• Misc – UEFI BIOS, RTC, WoL (Wake-on-LAN), watchdog timer, PXE
• Power Supply – 12V DC up to 6A AT/ATX (default AT mode)
• Power consumption (typical) – 22W ~ 38W (depends on SKUs)
• Dimensions
  • SBC – 10.16 x 10.16 cm
  • Edge Computer – 11.7 x 10.6 x 7 cm
• Temperature Range
  • SBC – Operating: 0°C  to  60°C; storage: -40°C to 80°C
  • Edge Computer – Operating: 0°C  to  50°C; storage: -40°C to 80°C
• Humidity – 0% to 90% relative humidity, non-condensing
• Certifications – CE/FCC Class A, RoHS compliant
• Longevity – 2035
