3.5 inch Industrial PC Motherboards - 6xCOM Optional onboard Intel Alder Lake-N N200 N100 N97 N95 i3-N305 CPU, ELSKY M198SE
3.5 inch Industrial PC Motherboards - 6xCOM Optional onboard Intel Alder Lake-N N200 N100 N97 N95 i3-N305 CPU, ELSKY M198SE
Couldn't load pickup availability
Designed for embedded and industrial use, 3.5 inch Industrial PC Motherboards - 6xCOM Optional onboard Intel Alder Lake-N N200 N100 N97 N95 i3-N305 CPU, ELSKY M198SE is an industrial motherboard / SBC built for embedded deployments.
Available from Ai-Paipai with local engineering support, datasheets and pre-flashed images where applicable, plus OEM / ODM options and worldwide shipping.
3.5 inch Industrial PC Motherboards - 6xCOM Optional onboard Intel Alder Lake-N N200 N100 N97 N95 i3-N305 CPU, ELSKY M128SE
- Quick Start: contact for help: lixu@ai-paipai.com
-
Tips
- Windows 11 is not supported on the N100 and I3-N305.
Introduction

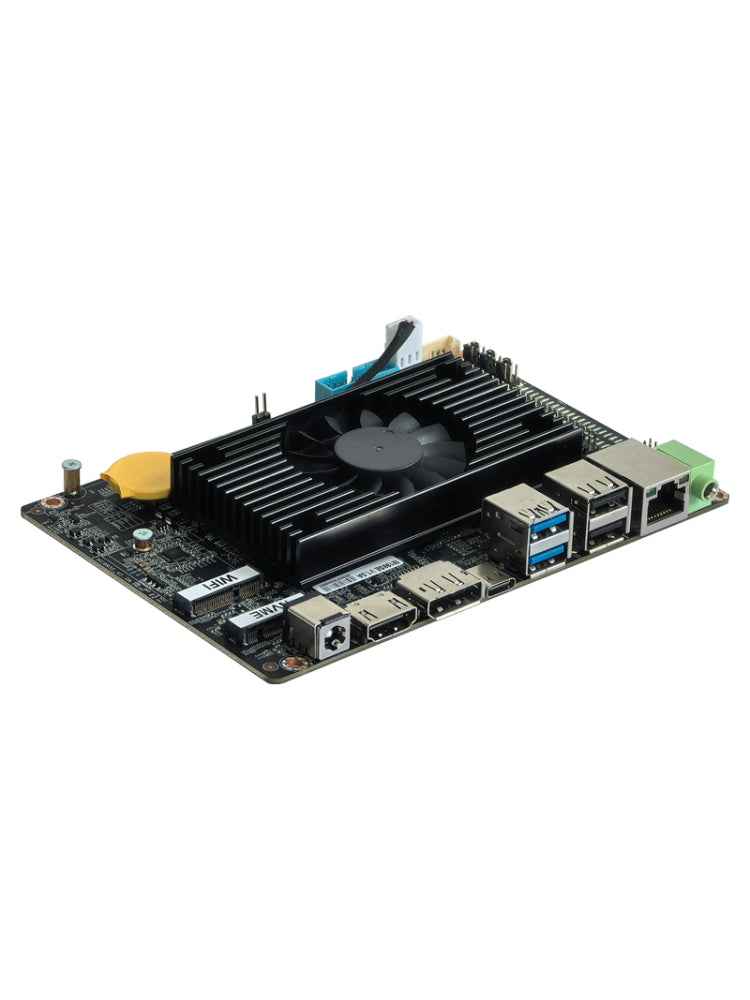

This high-performance motherboard, designed for modern computing demands, supports ONBOARD Intel Alder Lake-N N200 N100 N97 N95 i3-N305 CPUs with a compact form factor of 146mm x 102mm. It features a single NB-DDR5 SODIMM slot with up to 16GB memory support, catering to various memory speeds and capacity needs. Power management is robust with 12V-24V wide voltage input, accommodating CPUs with power consumption ranging from 55W to 115W. The display capabilities are enhanced with 1x HDMI 2.1/1x DP interfaces supporting 4K resolution and a Type-C interface for display and data transfer. Network connectivity is fortified with dual Gigabit Ethernet ports and optional support for additional network cards. Wireless connectivity is enabled through an M.2 WiFi interface supporting PCIe 3.0 and Bluetooth modules. Storage options include an NGFF interface for M.2 2280 SSDs with NVMe and SATA support. The audio system is powered by a Realtek ALC897 HD audio decoder for high-fidelity sound. USB connectivity is provided by two USB 3.2 Gen1 and two USB 2.0 ports. Expansion and control are facilitated through multiple COM ports, GPIO pins, CPU fan control, and a hardware watchdog with scheduled start-up and remote management features. It is compatible with a range of operating systems, including Windows 11, Windows 10, and Linux, making it suitable for diverse applications from home entertainment to professional workstations.
Features
- Size and Compatibility: Compact design at 146mm x 102mm, Optional onboard Intel Alder Lake-N N200 N100 N97 N95 i3-N305 CPU.
- Memory Support: Single NB-DDR5 SODIMM slot supporting up to 16GB of memory at speeds of 4800 MHz.
- Power Management: Wide voltage input of 12V-24V to accommodate CPUs with power consumption up to 115W.
- Display Features: 1x HDMI 2.0 ports, 1x DP for 4K resolution and one Type-C port for display and data transfer.
- Networking: Dual network interfaces with Intel 1215V and Realtek 8111H Gigabit Ethernet, with options for Intel I219V and YT 680.
- Wireless Connectivity: M.2 WiFi interface for PCIe 3.0 and Key-E interface M.2 2230 WiFi Bluetooth modules.
- Storage: NGFF interface for M.2 2280 SSDs with NVMe and SATA support.
- Audio: Realtek ALC897 HD audio decoder for high-fidelity sound and MIC input.
- USB Ports: Two USB 3.2 Gen1 ports at 5 Gbps and two USB 2.0 ports at 480 Mbps.
- Expansion and Control: Multiple COM ports, GPIO pins, CPU fan control, and a hardware watchdog with timed start-up and remote control.
- OS Support: Compatible with Windows 11, Windows 10, and Linux.
Shipping List
1x Motherboard
Specification
| Feature | Description |
|---|---|

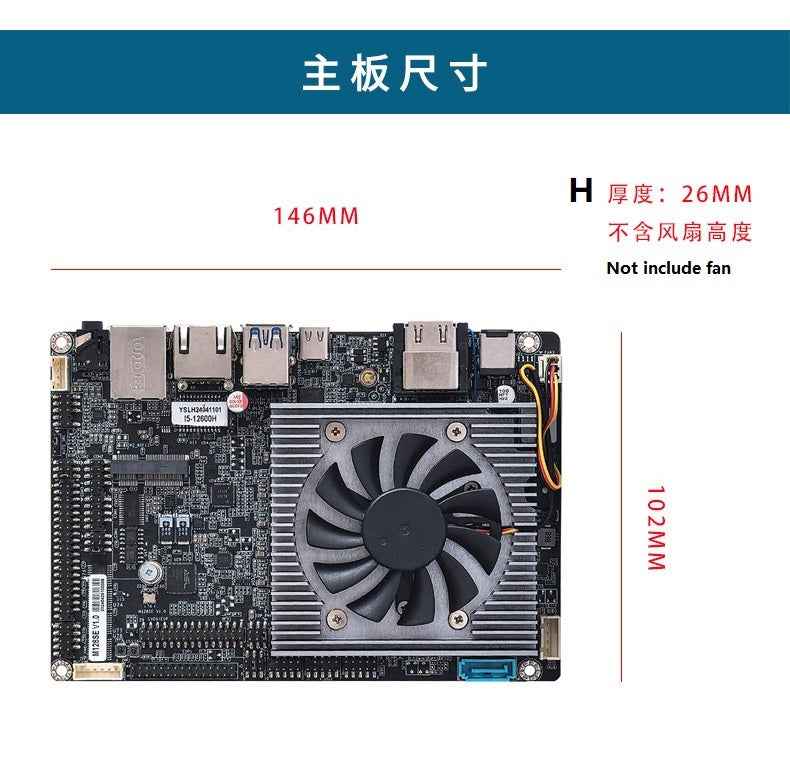

| Size | 146mm (L)*102mm (W)*23mm (H without a radiator) |
| CPU | Optional onboard Intel Alder Lake-N N200 N100 N97 N95 i3-N305 CPU |

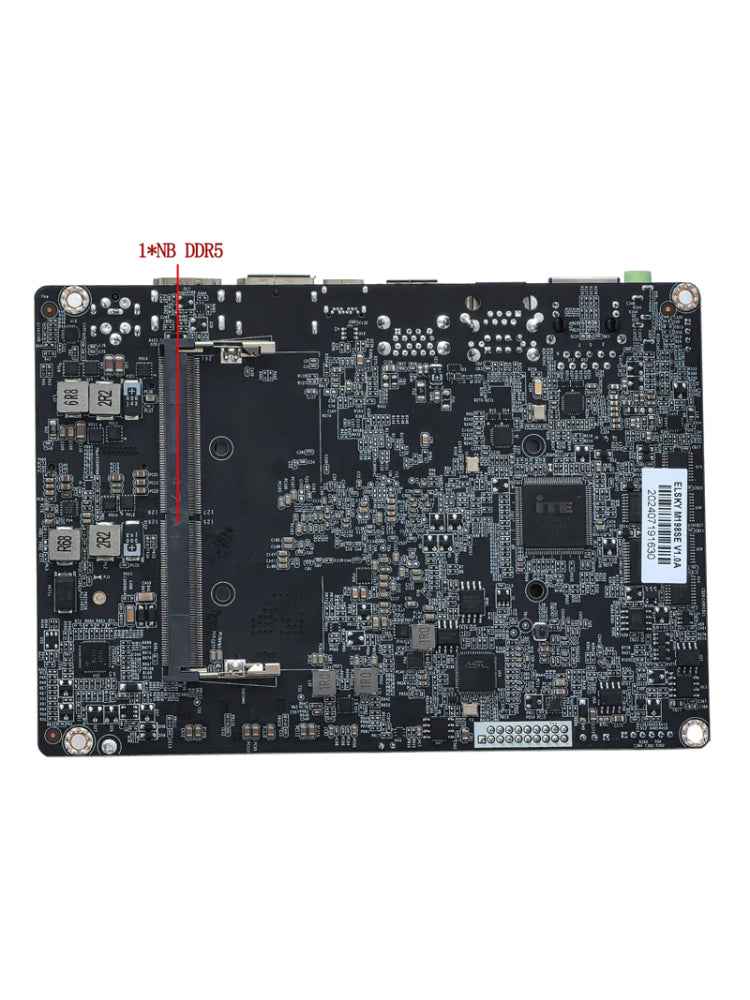

| Memory | 1*NB-DDR5 SODIMM memory, support 4800 memory, maximum support 16G |
| Power Supply | 1*DC IN(5.5x2.5mm) supports 12V-24V wide voltage power supply by default |
| Max 55W, recommended 12V 4A / 24V2A or above power supply | |
| Graphics | Intel UHD Graphics Super core, support single display, double/three/four development replication, double/three/four development extension, SHELL double display |

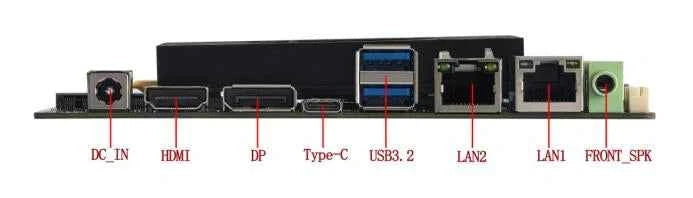

| Display Function | 1x HDMI 2.1 interface, 4K resolution 4096/3840/2160@60Hz 1x DP interface, do not support DP+++, 4K resolution 4096/3840@60Hz |
| 1x Type C interface supports display and USB data transmission | |
| 1x VCC_SEL pin, EDP1 Operating voltage control pin (6Pin, 23Pin, 2.0mm) | |
| 1x LVDS/EDP pin, support resolution 19201080@60Hz (30Pin, 2*15Pin, 2.0mm) | |
| 1 xBKLT_CONN pin, LVDS Backlit switch control pin (6Pin, 16Pin, 2.0mm) | |
| 1x EDP_PWR1 pin, LVDS/EDP Voltage control insert (6Pin, 23Pin, 2.0mm) | |
| LVDS or EDP, Shared pins EDP uses EDP-B screen line, EDP supports 4K resolution | |
| 1xMIPI CSI, support CSI-2 Camera | |
| Network Function | Dual network: default support for Realtek 8111H + Realtek 8111H Gigabit network card; Optional support YT 6801 Gigabit network card + YT 6801 Gigabit network card |
| Single network: Realtek 8111H Gigabit network cardOptional support YT 6801 Gigabit network card | |
| Support network wake up and PXE no disk start function | |
| Wireless Function | 1x M2-WIFI interface, Support PCIE 3.0 signal, support Key-E interface M.2 2230 WiFi Bluetooth module |
| Hard Disk Function | 1x NGFF interface, supports PCIE 4.0 signal, support Key-M interface M.2 2280 hard disk, default support NVME protocol and SATA protocol |
| Sound Function | Default support for Realtek ALC897 HD digital audio decoder, G-channel high-fidelity audio controller |
| 1x LINE OUT interface, LINE_OUT output and MIC_IN input | |
| 1x F_AUDIO pin, Standard audio insert (9Pin, 25Pin, 2.0mm) | |
| 1x INT_SPK pin, The amplifier supports 8Ω 5W horn dual channel output (4Pin, 14Pin, 2.0mm) | |

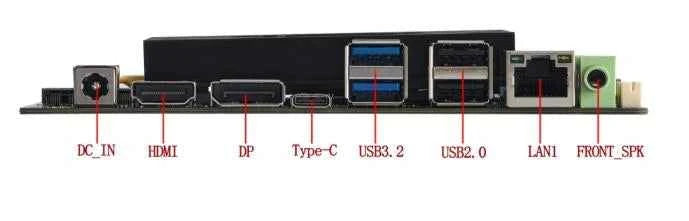

| USB Function | 2x USB3.2 interface, Rear standard USB3.2 Gen1 interface, max transmission bandwidth of 5 Gbps |
| 2x USB2.0 interface, Rear standard USB2.0 interface, max transmission broadband of 480Mbps (Dual-network motherboard does not have this interface) | |
| 1x F_USB1 pin, Front USB2.0 pin, (9Pin, 2x5Pin, 2.0mm) 1x F_USB2 pin, Front USB2.0 pin, (9Pin, 2x5Pin, 2.0mm) 1x F_USB3_A pin, Front USB3.2 pin, (19Pin, 2x5Pin, 2.0mm) |
|
| Switching Function | |
| 1*F_USB2 pin | Front USB2.0 pin, one group has 2* USB2.0 (9Pin, 2*5Pin, 2.0mm) |
| 1*F_PANEL pin | Switch, power light, hard disk light, restart pin (9Pin, 2*5Pin, 2.0mm) |
| 1*AUTO_SW pin | Hardware control power-on boot pin (3Pin, 1*3Pin, 2.0mm) |
| Other I/O | |
| 1*COM1 pin | Serial port, COM1 supports RS232/RS422/RS485 optional (9Pin, 2*5Pin, 2.0mm) |
| 1*COM2 pin | Serial port, supporting the standard RS232 (9Pin, 2*5Pin, 2.0mm) |
| 1*COM3-6 pin | Serial port, supporting the standard RS232 (39Pin, 2*20Pin, 2.0mm) |
| All serial ports | With variable hardware support TTL |
| 1*JCOM1/2 pin | The COM1/2 ninth pin voltage can be controlled at 0V/5V/12V (6Pin, 2*3Pin, 2.0mm) |
| 1*CLR_CMOS pin | Motherboard reset, discharge plug pin (3Pin, 1*3Pin, 2.0mm) |
| 1*FAN3 pin | CPU fan pin, support for temperature control (3Pin, 1*3Pin, 2.54mm) |
| 1*J-GPIO pin | GPIO Control pin (10Pin, 2*5Pin, 2.0mm) |
| Operating Environment | Operating temperature: -10℃~60℃; Operating humidity: 5%~95% relative humidity, no condensation |
| BIOS | AMI BIOS supports power-on, timed startup, remote switch on and off intelligent device identification |
| Watch Dog | Watchdog programming supports the hardware reset function (256 level, 0~255 seconds) |
| Operating System | Support Windows 11, Windows 10, Linux etc. |
Detailed Descriptions
✅ Traceable Supply Chain — Ai-Paipai (Shenzhen AiPaipai Intelligent Technology Co., Ltd.)
This product is supplied through a traceable supply chain. We provide local technical support, pre-installed SDK / mirror images, and OEM / ODM customization, plus fast global shipping.
Why Buy From Ai-Paipai?
- Genuine & Traceable — sourced through a verifiable supply chain.
- Local Engineering Support — datasheets, SDKs, and pre-flashed images in English and Chinese.
- OEM / ODM & FPGA Customization — tailor specs, enclosures, and BSP for your project.
- One-Stop Sourcing — Firefly + youyeetoo + our own FPGA / edge lineup in one store.
Frequently asked questions
What is 3.5 inch Industrial PC Motherboards - 6xCOM Optional onboard Intel Alder Lake-N N200 N100 N97 N95 i3-N305 CPU, ELSKY M198SE used for?
3.5 inch Industrial PC Motherboards - 6xCOM Optional onboard Intel Alder Lake-N N200 N100 N97 N95 i3-N305 CPU, ELSKY M198SE is a Motherboard / SBC from ELSKY. It is typically used in embedded computing, edge AI inference, industrial control and rapid prototyping, and can be integrated into custom carrier boards or finished devices.
Does 3.5 inch Industrial PC Motherboards - 6xCOM Optional onboard Intel Alder Lake-N N200 N100 N97 N95 i3-N305 CPU, ELSKY M198SE include technical support, datasheets or pre-flashed images?
Yes. Ai-Paipai supplies this item through a traceable supply chain and provides local engineering support, datasheets, SDKs and pre-flashed system images where applicable, plus OEM / ODM customization for volume projects.
Can I order 3.5 inch Industrial PC Motherboards - 6xCOM Optional onboard Intel Alder Lake-N N200 N100 N97 N95 i3-N305 CPU, ELSKY M198SE with OEM / ODM options or CE / FCC / RoHS certification?
OEM / ODM customization (specs, enclosure, BSP) is available, and CE / FCC / RoHS certified options can be provided on request for EU and US imports. Contact us for a quote.
How is 3.5 inch Industrial PC Motherboards - 6xCOM Optional onboard Intel Alder Lake-N N200 N100 N97 N95 i3-N305 CPU, ELSKY M198SE shipped, and what is the lead time?
Orders ship worldwide from Shenzhen. Stock items typically dispatch within a few business days; configurable or made-to-order variants take longer. Exact lead time is shown at checkout or on request.
Specifications
| Feature | Description |
| Size | 146mm (L)*102mm (W)*23mm (H without a radiator) |
| CPU | Optional onboard Intel Alder Lake-N N200 N100 N97 N95 i3-N305 CPU |
| Memory | 1*NB-DDR5 SODIMM memory, support 4800 memory, maximum support 16G |
| Power Supply | 1*DC IN(5.5x2.5mm) supports 12V-24V wide voltage power supply by default |
| Graphics | Intel UHD Graphics Super core, support single display, double/three/four development replication, double/three/four development extension, SHELL double display |
| Display Function | 1x HDMI 2.1 interface, 4K resolution 4096/3840/ 2160@60Hz 1x DP interface, do not support DP+++, 4K resolution 4096/3840@60Hz |
| Network Function | Dual network: default support for Realtek 8111H + Realtek 8111H Gigabit network card; Optional support YT 6801 Gigabit network card + YT 6801 Gigabit network card |
| Wireless Function | 1x M2-WIFI interface, Support PCIE 3.0 signal, support Key-E interface M.2 2230 WiFi Bluetooth module |
| Hard Disk Function | 1x NGFF interface, supports PCIE 4.0 signal, support Key-M interface M.2 2280 hard disk, default support NVME protocol and SATA protocol |
| Sound Function | Default support for Realtek ALC897 HD digital audio decoder, G-channel high-fidelity audio controller |
| USB Function | 2x USB3.2 interface, Rear standard USB3.2 Gen1 interface, max transmission bandwidth of 5 Gbps |
| 1*F_USB2 pin | Front USB2.0 pin, one group has 2* USB2.0 (9Pin, 2*5Pin, 2.0mm) |
| 1*F_PANEL pin | Switch, power light, hard disk light, restart pin (9Pin, 2*5Pin, 2.0mm) |
| 1*AUTO_SW pin | Hardware control power-on boot pin (3Pin, 1*3Pin, 2.0mm) |
| 1*COM1 pin | Serial port, COM1 supports RS232/RS422/RS485 optional (9Pin, 2*5Pin, 2.0mm) |
| 1*COM2 pin | Serial port, supporting the standard RS232 (9Pin, 2*5Pin, 2.0mm) |
| 1*COM3-6 pin | Serial port, supporting the standard RS232 (39Pin, 2*20Pin, 2.0mm) |
| All serial ports | With variable hardware support TTL |
| 1*JCOM1/2 pin | The COM1/2 ninth pin voltage can be controlled at 0V/5V/12V (6Pin, 2*3Pin, 2.0mm) |
| 1*CLR_CMOS pin | Motherboard reset, discharge plug pin (3Pin, 1*3Pin, 2.0mm) |
| 1*FAN3 pin | CPU fan pin, support for temperature control (3Pin, 1*3Pin, 2.54mm) |
| 1*J-GPIO pin | GPIO Control pin (10Pin, 2*5Pin, 2.0mm) |
| Operating Environment | Operating temperature: -10℃~60℃; Operating humidity: 5%~95% relative humidity, no condensation |
| BIOS | AMI BIOS supports power-on, timed startup, remote switch on and off intelligent device identification |
| Watch Dog | Watchdog programming supports the hardware reset function (256 level, 0~255 seconds) |
| Operating System | Support Windows 11, Windows 10, Linux etc. |
